Metal flexible conduit | JS series galvanized metal hose
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification
YDT supplies galvanized flexible metal conduit for protecting and routing wires and cables in machinery, buildings and factory electrical installations. The JS series is manufactured from galvanized steel strip and features a lightweight, highly flexible construction with excellent bending performance.
Its smooth internal structure helps wires and cables pass through the conduit more easily, making the JS series suitable for industrial installations that require flexible routing around equipment, structural components and changes in cable direction.
Explore YDT's complete range of armored flexible conduits for additional cable protection options.
| Product Name | JS series galvanized metal hose |
| Product Material | Galvanized steel strip is used. |
| Product Features | Compared to other products, it is lighter in weight, super soft, and has excellent bending performance. The internal smooth structure makes it extremely easy to thread wires. |
| application area | The wiring protection of buildings such as machinery, buildings, and factories can protect wires and cables to achieve insulation and enhance the appearance of cable bending. |
| usage method | First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector. |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

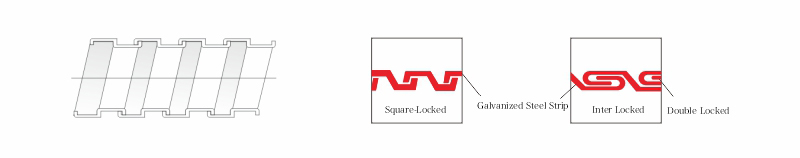

Structure Diagram
Product Material: Made of galvanized steel strip.
Product features: Lightweight compared to other products, with ultra soft and excellent bending performance, and a smooth internal structure that makes it easy to thread wires.
Application areas: Wiring protection for buildings such as machinery, buildings, and factories, protecting wires and cables to achieve insulation and enhancing cable bending aesthetics.
Usage: First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector.
Technical Parameter
| Model | Specifications | Outer diameter and tolerance(mm) | Natural Curve (mm) | Max.axial Pull (Kg) | |
| M | G system | ||||
| YDT-JS-6 | φ6 | 3/16" | 8.20±0.25 | 40 | 335 |
| YDT-JS-8 | φ8 | 1/4" | 11.0±0.30 | 45 | 470 |
| YDT-JS-10 | φ10 | 5/16" | 13.5±0.30 | 55 | 590 |
| YDT-JS-12 | φ12 | 15.5±0.35 | 60 | 710 | |
| YDT-JS-13 | φ13 | 3/8" | 16.5±0.35 | 65 | 765 |
| YDT-JS-15 | φ15 | 19.0±0.35 | 80 | 885 | |
| YDT-JS-16 | φ16 | 1/2" | 20.0±0.35 | 85 | 940 |
| YDT-JS-19 | φ19 | 23.3±0.40 | 95 | 1120 | |
| YDT-JS-20 | φ20 | 3/4" | 24.3±0.40 | 100 | 1180 |
| YDT-JS-25 | φ25 | 1" | 30.3±0.45 | 120 | 1450 |
| YDT-JS-32 | φ32 | 11/4" | 38.0±0.50 | 150 | 1885 |
| YDT-JS-38 | φ38 | 11/2" | 45.0±0.60 | 180 | 2240 |
| YDT-JS-51 | φ51 | 2" | 58.0±1.00 | 220 | 3000 |
| YDT-JS-64 | φ64 | 21/2" | 72.5±1.50 | 310 | 3770 |
| YDT-JS-75 | φ75 | 3" | 83.5±2.00 | 350 | 4400 |
| YDT-JS-100 | φ100 | 4" | 108.5±3.00 | 410 | 4700 |
The JS series uses galvanized steel strip to provide a flexible metal protective path around electrical wires and cables.
Compared with heavier conduit structures, its lightweight construction can simplify handling and routing during installation.
The conduit is soft and offers excellent bending performance, making it easier to route cables through machinery, equipment frames and building structures where straight rigid conduit is impractical.
The smooth internal construction helps reduce obstruction when wires and cables are threaded through the conduit.
This is especially useful for installations involving longer routes or multiple direction changes.
The metal structure provides additional physical protection around wires and cables while allowing the cable route to bend according to equipment or installation layouts.
Using flexible conduit helps organize exposed cable runs and creates a more orderly appearance around equipment and building electrical installations.
The JS galvanized flexible metal conduit is suitable for wiring protection in:
Industrial machinery
Manufacturing equipment
Factory electrical systems
Building wiring
Electrical equipment
Control systems
Equipment cable routing
Exposed wiring protection
Flexible cable transitions
Its flexibility makes it particularly useful where wires and cables need to pass around machinery, structural components or installation obstacles.
Industrial machines commonly contain cables connecting motors, sensors, control systems and electrical cabinets.
Rigid conduit may be difficult to install where the wiring route changes direction several times.
The JS flexible steel conduit can follow the equipment layout while helping protect and organize the cables passing between different machine components.
Electrical wiring in buildings and factories may require flexible transitions between fixed conduit, equipment and electrical enclosures.
The JS series can be used to protect these cable routes while maintaining the flexibility needed for bends and restricted installation areas.
For other conduit structures, browse YDT's complete armored flexible conduits range.
The installation process is straightforward:
Select the suitable JS conduit size according to the cable dimensions.
Thread the wires or cables through the conduit.
Route the flexible conduit according to the required installation path.
Match the conduit with the corresponding YDT-DPJ connector.
Connect the conduit to the equipment or electrical interface.
The smooth internal structure helps make wire threading easier during installation.
The JS series is designed to be matched with the corresponding model of YDT-DPJ connector.
When selecting a connector, buyers should consider:
JS conduit size
Equipment interface
Required thread type
Installation position
Explore YDT's conduit connectors and fittings to select compatible connection products.
Before ordering, confirm several basic requirements.
Check the outside diameter and quantity of wires or cables that will pass through the conduit.
Select a conduit that provides sufficient internal space for cable installation.
Specific models should be checked against the product specification and dimensional drawing.
Consider how many bends are required and how much space is available around the machinery or building structure.
Confirm where the conduit will be installed and whether additional environmental protection is required.
If the application requires an outer PVC protective layer, consider the JSB PVC coated flexible metal conduit instead.
Select the corresponding YDT-DPJ connector according to conduit size and equipment interface.
YDT offers several flexible conduit structures for different cable protection requirements.
| Series | Product Type | Best Suited For |
|---|---|---|
| JS Series | Galvanized Flexible Metal Conduit | Lightweight and flexible galvanized steel cable routing |
| JSB Series | PVC Coated Flexible Metal Conduit | Applications requiring galvanized steel with PVC outer protection |
| JSP Series | Plastic Coated Flexible Metal Conduit | Alternative coated flexible metal conduit requirements |
View all Armored Flexible Conduits to compare available conduit options.
YDT supplies flexible conduits and related connection products for industrial wire and cable routing.
Buyers can source the JS flexible metal conduit together with compatible conduit connectors and fittings.
The JS series is designed for applications including machinery, factories and building electrical wiring.
Buyers can provide cable dimensions, conduit size and connection requirements to help confirm the suitable conduit and connector combination before ordering.
Provide the required conduit size, quantity, cable dimensions, application and connector requirements. If the correct model is not yet known, provide your cable and installation information for selection.
The JS series is manufactured from galvanized steel strip.
Its lightweight construction, excellent bending performance and smooth internal structure make the conduit easier to route and help wires pass through during installation.
The conduit should be matched with the corresponding YDT-DPJ connector according to conduit size and equipment interface. Browse conduit connectors and fittings for related products.
Looking for a galvanized flexible metal conduit manufacturer for machinery, factory or building wiring projects?
Send YDT your required conduit size, cable dimensions, quantity and connector requirements to identify the suitable JS series flexible metal conduit for your installation.
