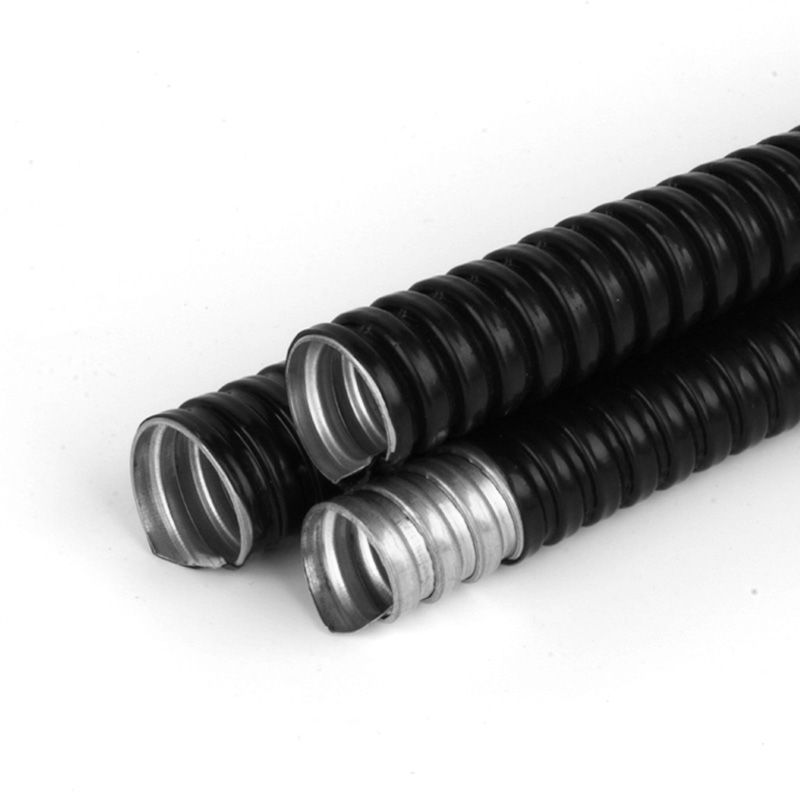

Metal flexible conduit JSB series flat plastic cable hose
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification

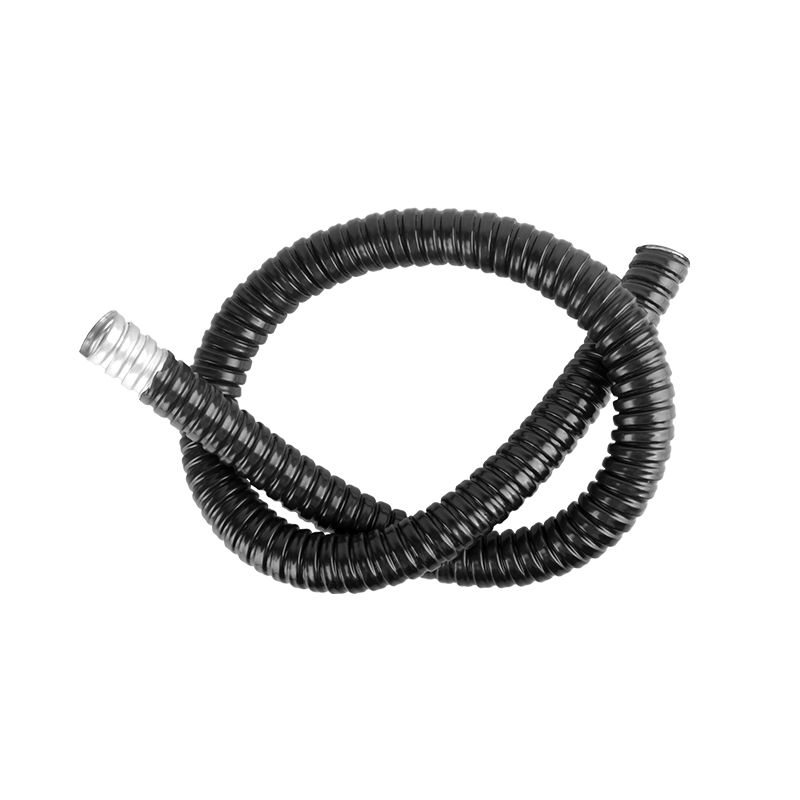

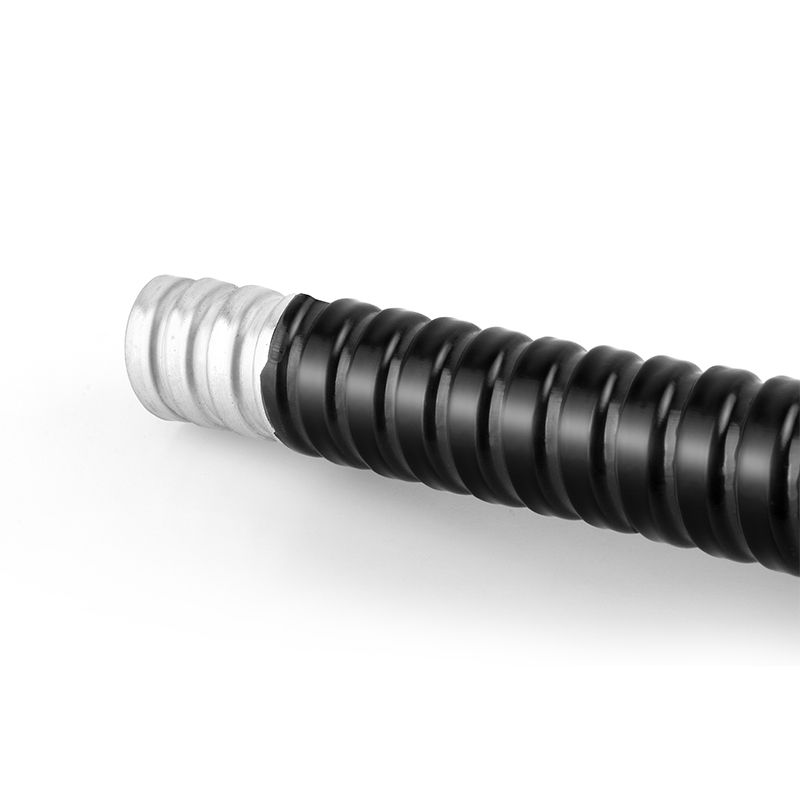

YDT supplies PVC coated flexible metal conduit for industrial wire and cable protection. The JSB series combines a galvanized steel inner strip with a UV-resistant PVC outer layer, providing flexible routing, insulation, waterproof protection and improved tensile performance.
Available in black and gray, this conduit is suitable for railway systems, machinery, automation equipment, power distribution, communications, ships, buildings and factory wiring.
Explore more armored flexible conduits for different cable protection requirements.
| Product Name | JSB series plastic coated metal hose |
| Product color | Black, gray |

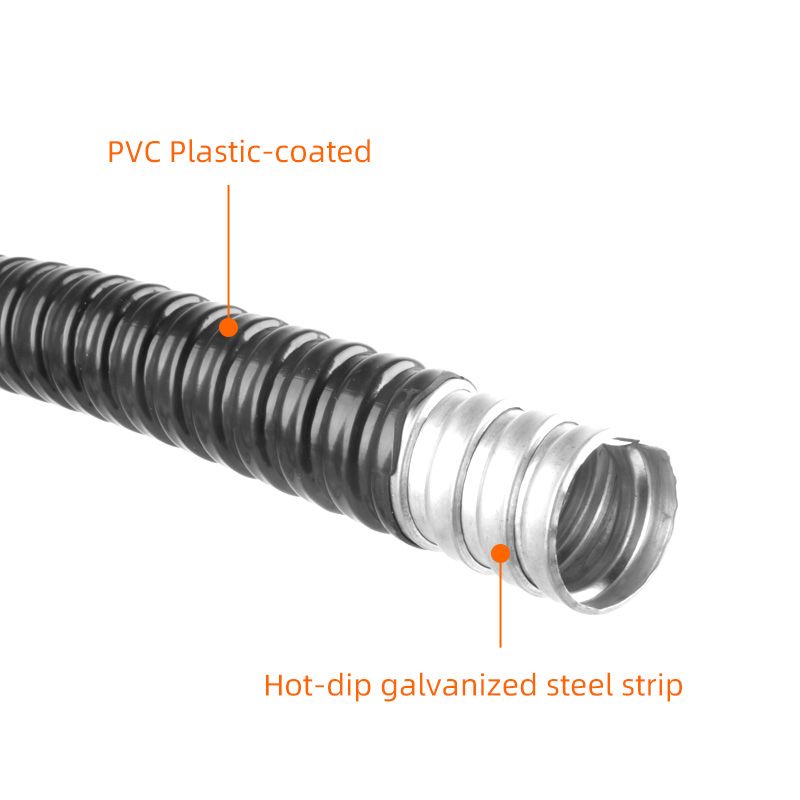

| Product Material | (Inner layer) adopts galvanized steel strip and special insulation treatment; The outer layer is made of PVC material (UV resistant, anti-aging). |
| Product certification | European Environmental SGS: SHG134468/CHEM |
| working temperature | -10 ° C~+80 ° C, can reach+100 ° C in a short period of time. |
| Product Features | 1. The hose has waterproof, insulating, and tensile properties. 2. The surface is made of PVC material, and fire-resistant and flame-retardant agents are added to the PVC plastic. 3. The structure is a reverse buckle type, which increases tensile strength and is not easily broken or deformed. 4. Good bending performance and smooth internal structure, making it extremely easy to thread wires and cables. “ |
| application area | Railway, locomotive, transportation system engineering, air conditioning, various machinery, automation control equipment, power plants, chemical, power distribution systems, communication systems, ships, buildings, exposed wiring protection inside and outside factories. |
| Product Usage | Protect wires and cables to achieve insulation, waterproofing, and enhance the aesthetic appearance of cable bending. |
| usage method | First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

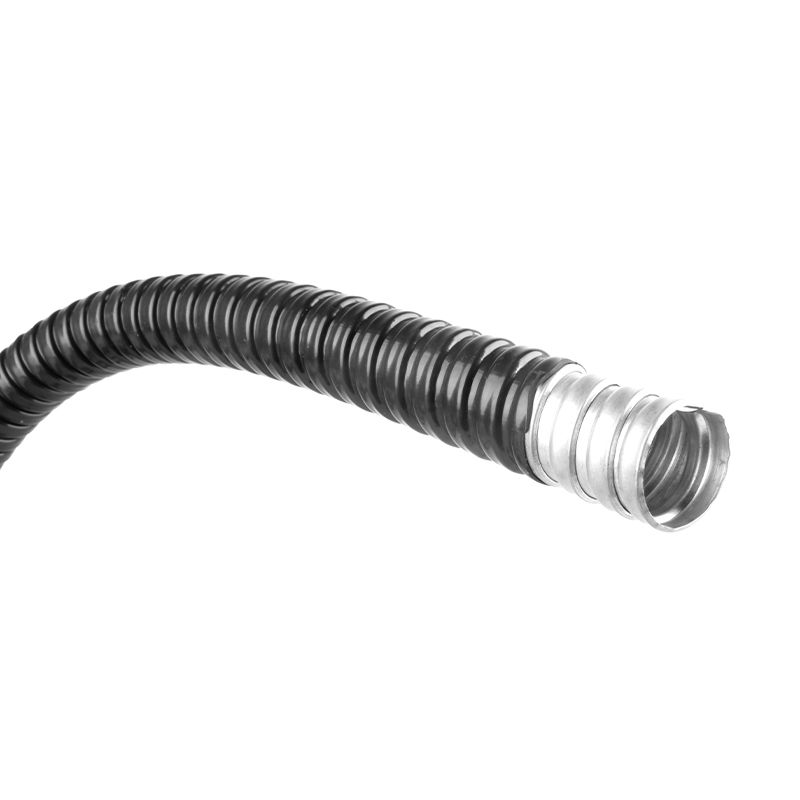

Structure Diagram
Product colors: Black, Gray
Product material: (inner layer) adopts galvanized steel strip and special insulation treatment; The outer layer is made of PVC material (UV resistant, anti-aging).
Product certification: European environmental SGS: SHG134468/CHEM.
Working temperature: -10 °C~+80 °C, can reach+100 °C in a short time.
Product features:
1. The hose has waterproof, insulating, and tensile properties.
2. The surface is made of PVC material, and fire-resistant and flame-retardant agents are added to the PVC plastic.

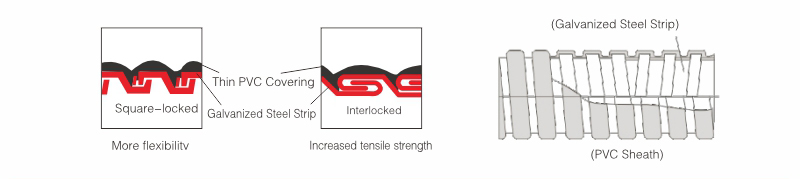

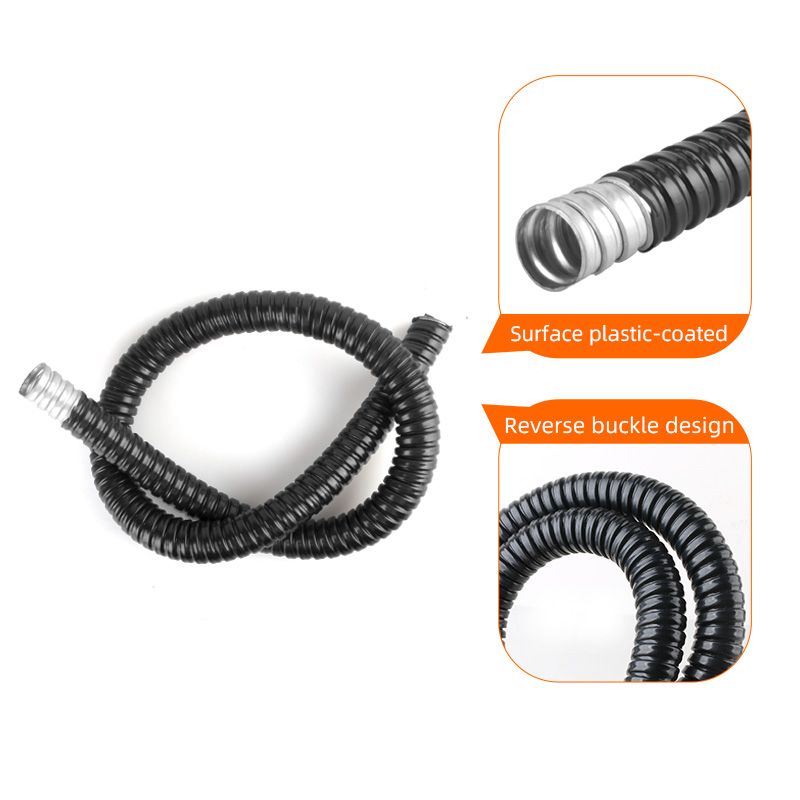

3. The structure is a reverse buckle type, which increases tensile strength and is not easily broken or deformed.
4. Good bending performance and smooth internal structure, making it extremely easy to thread wires and cables.
Application areas: Railway, locomotive, transportation system engineering, air conditioning, various machinery, automation control equipment, power plants, chemical industry, power distribution systems, communication systems, ships, buildings, wiring protection for exposed parts inside and outside factories.
Product use: Protect wires and cables to achieve insulation, waterproofing, and enhance the aesthetic bending of cables.
Usage: First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector.
Technical Parameter
| Model | Specifications | Outer diameter and tolerance(mm) | Natural Curve (mm) | Max.axial Pull (Kg) | |
| M | G system | ||||
| YDT-JSB-6 | φ6 | 3/16" | 9.00±0.25 | 40 | 335 |
| YDT-JSB-8 | φ8 | 1/4" | 11.8±0.30 | 45 | 470 |
| YDT-JSB-10 | φ10 | 5/16" | 14.5±0.30 | 55 | 590 |
| YDT-JSB-12 | φ12 | 16.5±0.35 | 60 | 710 | |
| YDT-JSB-13 | φ13 | 3/8" | 17.5±0.35 | 65 | 765 |
| YDT-JSB-15 | Φ15 | 20.2±0.35 | 80 | 885 | |
| YDT-JSB-16 | φ16 | 1/2" | 21.2±0.35 | 85 | 940 |
| YDT-JSB-19 | φ19 | 24.5±0.40 | 95 | 1120 | |
| YDT-JSB-20 | φ20 | 3/4" | 25.5±0.40 | 100 | 1180 |
| YDT-JSB-25 | φ25 | 1" | 31.7±0.45 | 120 | 1450 |
| YDT-JSB-32 | φ32 | 11/4" | 39.6±0.50 | 150 | 1885 |
| YDT-JSB-38 | φ38 | 11/2" | 46.6±0.60 | 180 | 2240 |
| YDT-JSB-51 | φ51 | 2" | 59.5±1.00 | 220 | 3000 |
| YDT-JSB-64 | φ64 | 21/2" | 73.5±1.50 | 310 | 3770 |
| YDT-JSB-75 | φ75 | 3" | 84.5±2.00 | 350 | 4400 |
| YDT-JSB-100 | φ100 | 4" | 109.0±3.00 | 410 | 4700 |

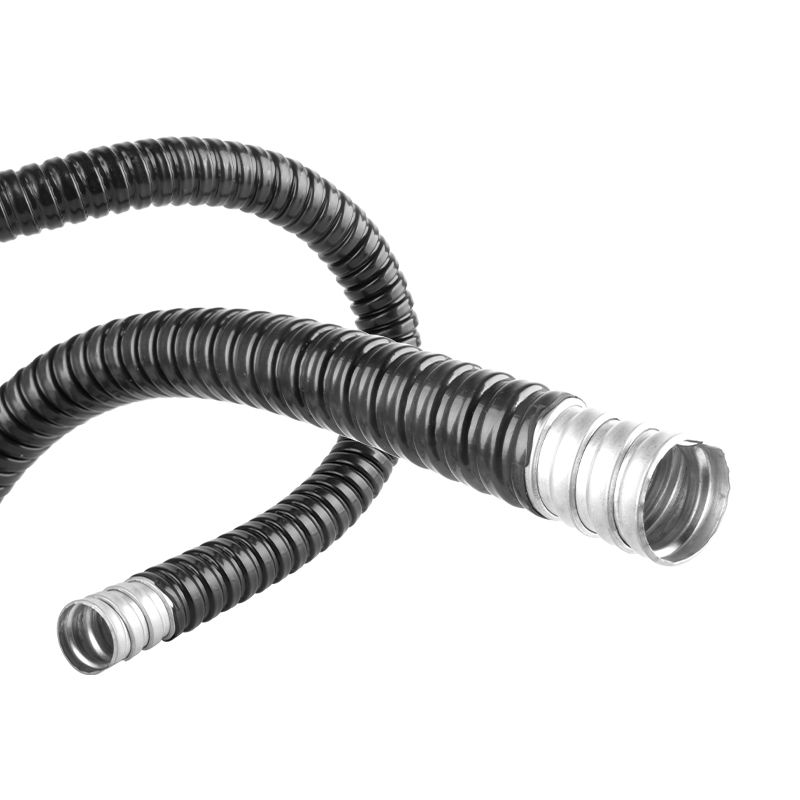

The inner galvanized steel strip provides mechanical reinforcement, while the outer PVC layer adds insulation, moisture protection, UV resistance and anti-aging performance.
The reverse-buckle construction increases tensile strength and helps reduce breaking or deformation during installation.

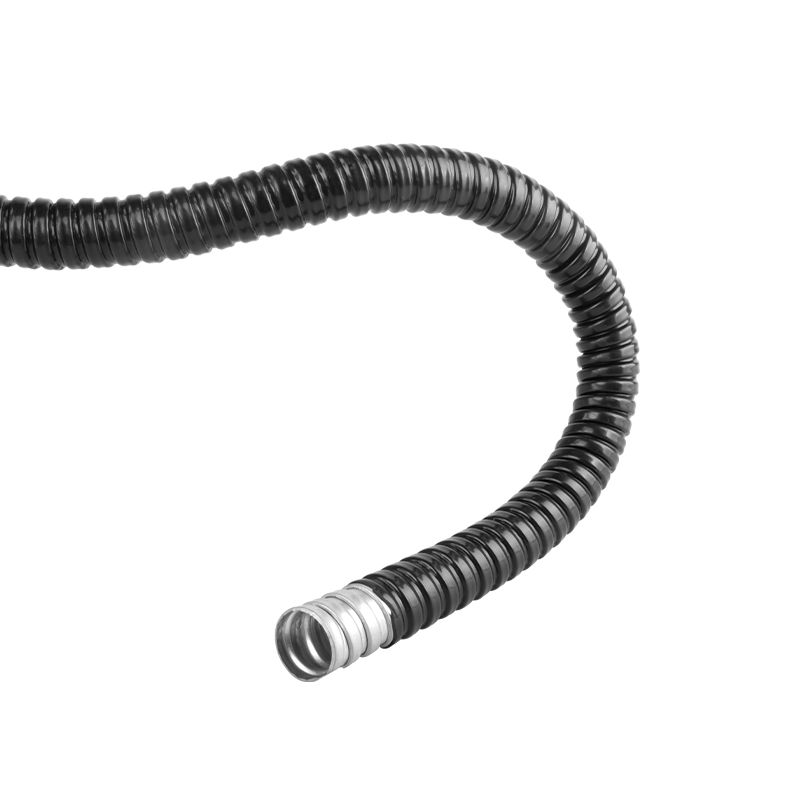

Good bending performance allows the conduit to follow machinery, equipment frames and complex cable paths where rigid conduit is difficult to use.
The smooth internal construction helps wires and cables pass through the conduit more easily during installation.
Fire-resistant and flame-retardant agents are added to the PVC outer layer to improve protection for industrial electrical installations.
The JSB PVC coated flexible metal conduit is designed for wire and cable protection in:
Railway and locomotive systems
Industrial machinery
Automation control equipment

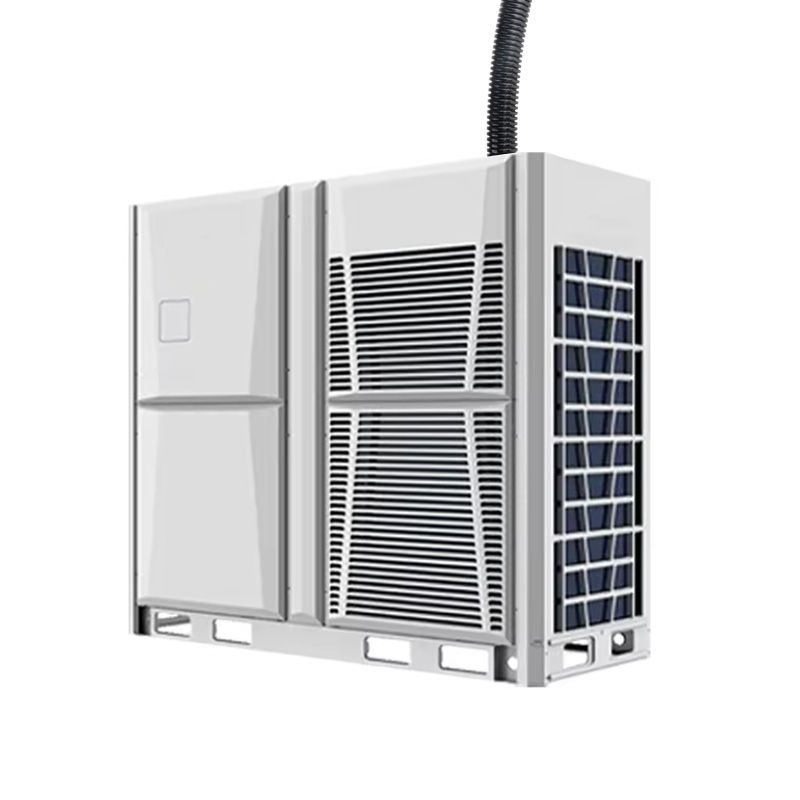

Air-conditioning systems
Power plants
Power distribution systems
Communication systems
Chemical facilities
Ships
Buildings
Exposed wiring inside and outside factories
For related cable protection solutions, view YDT products for automation applications, electrical applications and communication applications.
Before ordering, confirm the following information:
Cable Size
Check the diameter and number of wires or cables that need to pass through the conduit.
Conduit Size
Select the appropriate JSB model according to cable dimensions and installation space.
Operating Environment
Consider working temperature, moisture, UV exposure and installation location.
Bending Requirements
Confirm the available bending space and cable routing path around equipment.
Connector Type
Match the selected conduit with the corresponding YDT-DPJ connector.
Specific models and dimensions should be selected according to the product specification and size drawing.
After wires and cables are threaded through the conduit, the JSB series can be matched with the corresponding YDT-DPJ connector.
Buyers sourcing a complete cable protection system can select the conduit and connector together according to conduit size, equipment interface and installation requirements.
View YDT's conduit connectors and fittings for compatible connection options.
YDT offers different flexible conduit structures for different cable protection requirements.
| Series | Product Type | Suitable For |
|---|---|---|
| JSB Series | PVC Coated Flexible Metal Conduit | Galvanized steel core with PVC outer protection |
| JS Series | Galvanized Flexible Metal Conduit | Metal conduit without JSB-style PVC coating |
| JSP Series | Plastic Coated Flexible Metal Conduit | Alternative coated metal conduit configuration |
View the full Armored Flexible Conduits range to compare available options.
YDT supplies flexible conduits, conduit fittings and related cable protection products for industrial applications.
Buyers can source both JSB flexible conduit and compatible conduit connectors and fittings from one supplier.
Products are used across railway, machinery, automation, electrical, communications, marine and building projects.
The JSB series lists European Environmental SGS certification SHG134468/CHEM. Buyers can specify required certification or documentation when requesting a quotation.
Learn more about YDT's international compliance and quality.
Please provide the required conduit size or cable dimensions, quantity, color, application, working environment and connector requirements.
The JSB series is designed to match the corresponding YDT-DPJ connector. The correct model should be selected according to conduit size and equipment interface.
The listed working temperature is -10°C to +80°C, with short-term temperatures up to +100°C.
The JSB series lists European Environmental SGS certification SHG134468/CHEM. If documents are required for purchasing or project approval, include the requirement in your inquiry.
Looking for a reliable PVC coated flexible metal conduit manufacturer for machinery, railway, automation or electrical projects?
Send YDT your required conduit size, quantity, cable dimensions, application and connector requirements. We can help you identify the suitable JSB conduit for your cable protection system.
