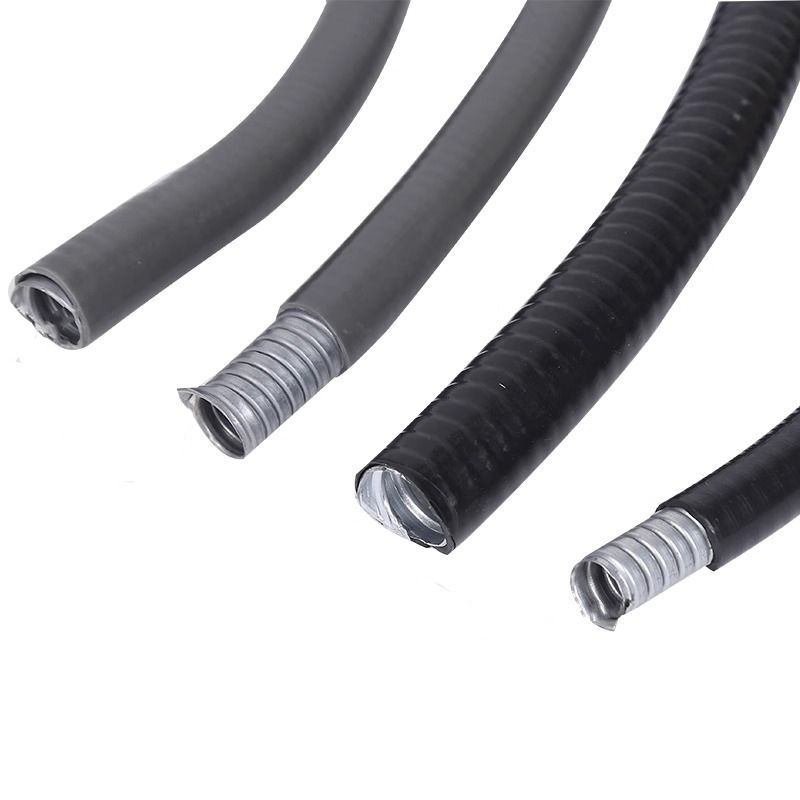

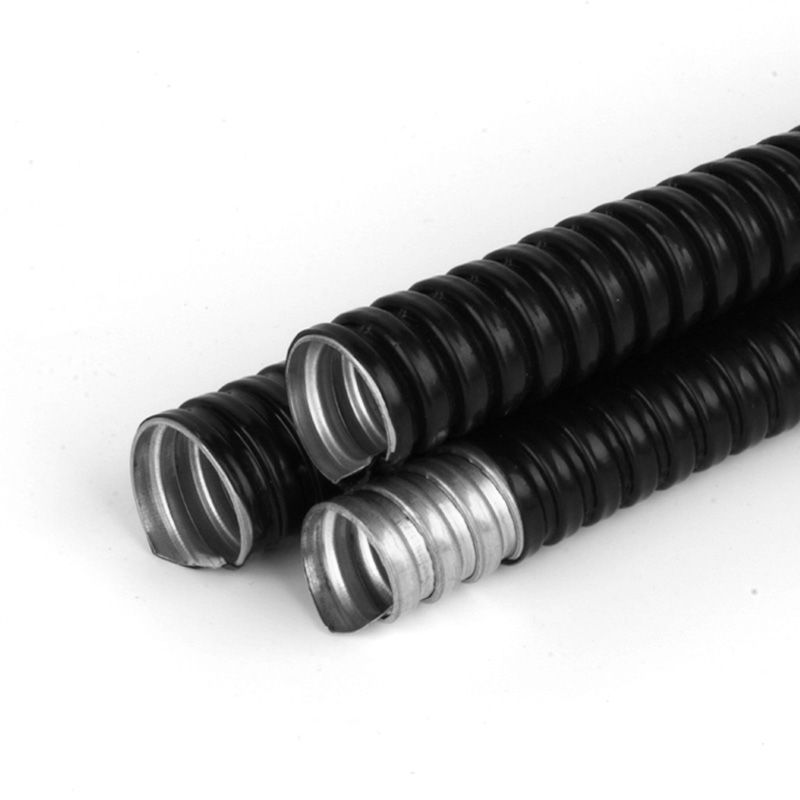

Metal flexible conduit JSP series flat plastic cable hose
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification

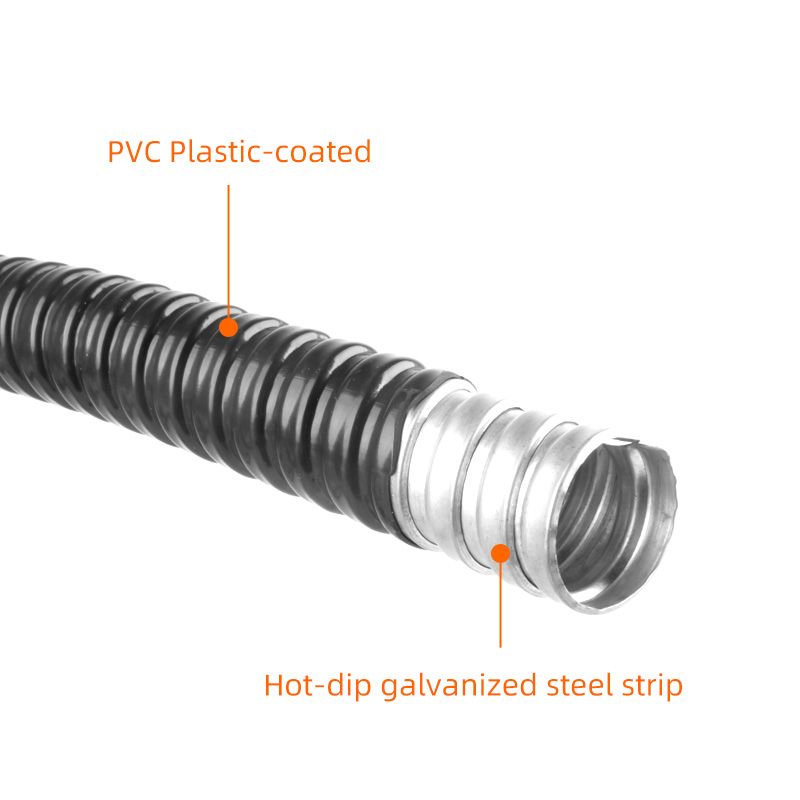

YDT supplies smooth PVC coated metal conduit for flexible wire and cable protection in industrial, transportation and electrical systems. The JSP series combines an inner galvanized steel strip with a UV-resistant and anti-aging PVC outer layer, providing waterproof, insulating, tensile and flexible performance.

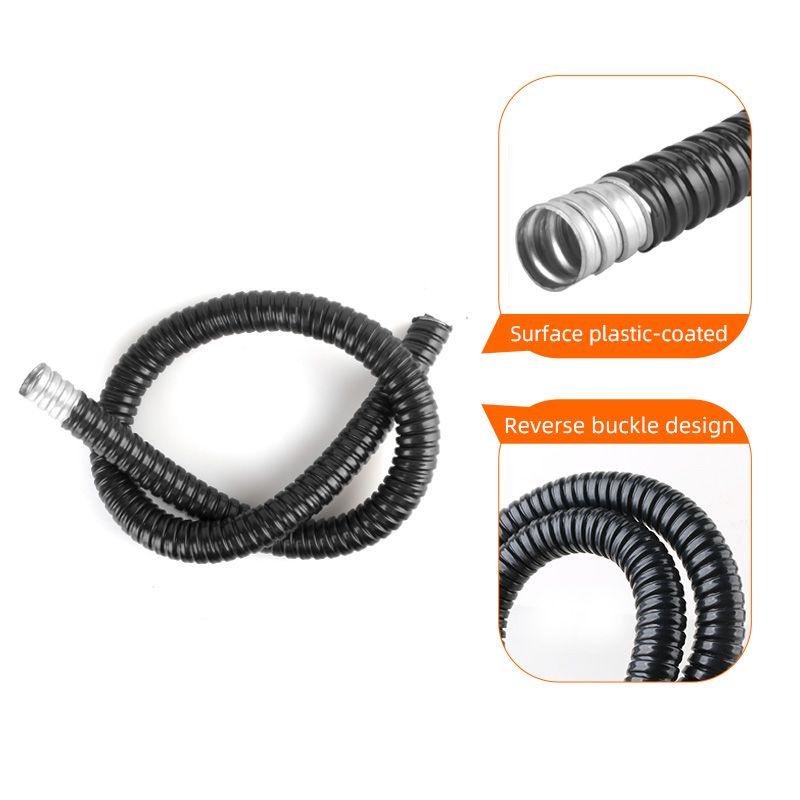

Its reverse-buckle metal structure improves tensile strength, while good bending performance and a smooth internal construction help simplify cable threading and routing through machinery, equipment and complex wiring paths.
Explore YDT's complete range of armored flexible conduits for other cable protection options.
| Product Name | JSP series flat plastic cable hose |
| Product color | Black, gray |
| Product Material | (Inner layer) adopts galvanized steel strip and special insulation treatment; The outer layer is made of PVC material (UV resistant, anti-aging). |
| Product certification | European Environmental SGS: SHG134468/CHEM |
| working temperature | -10 ° C~+80 ° C, can reach+100 ° C in a short period of time. |
| Product Features | 1. The hose has waterproof, insulating, and tensile properties. 2. The surface is made of PVC material, and fire-resistant and flame-retardant agents are added to the PVC plastic. 3. The structure is a reverse buckle type, which increases tensile strength and is not easily broken or deformed. 4. Good bending performance and smooth internal structure, making it extremely easy to thread wires and cables. “ |
| application area | Railway, locomotive, transportation system engineering, air conditioning, various machinery, automation control equipment, power plants, chemical, power distribution systems, communication systems, ships, buildings, exposed wiring protection inside and outside factories. |
| Product Usage | Protect wires and cables to achieve insulation, waterproofing, and enhance the aesthetic appearance of cable bending. |
| usage method | First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

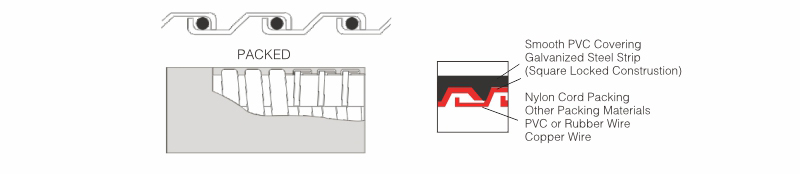

Structure Diagram
Product colors: black, gray
Product material: (inner layer) adopts galvanized steel strip and special insulation treatment; The outer layer is made of PVC material (UV resistant, anti-aging).
PVC material (UV resistant, anti-aging).
Working temperature: -10 °C~+80 °C, can reach+100 °C in a short time.
Product features:
1. The hose has waterproof, insulating, and tensile properties.
2. The surface is made of PVC material, and fire-resistant and flame-retardant agents are added to the PVC plastic.
3. The structure is a reverse buckle type, which increases tensile strength and is not easily broken or deformed.
4. Good bending performance and smooth internal structure, making it extremely easy to thread wires and cables.
Application areas: Railway, locomotive, transportation system engineering, air conditioning, various machinery, automation control equipment, power plants, chemical industry, power distribution systems, communication systems, ships, buildings, factories. Wiring protection for exposed parts inside and outside the house.
Product use: Protect wires and cables to achieve insulation.
Usage: First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector.
Technical Parameter
| Model | Specifications | Outer diameter and tolerance(mm) | Natural Curve (mm) | Max.axia Pull (Kg) | |
| M | G system | ||||
| YDT-JSP-10 | Φ10 | 5/16" | 14.5±0.30 | 55 | 590 |
| YDT-JSP-12 | Φ12 | 16.5±0.35 | 60 | 710 | |
| YDT-JSP-13 | φ13 | 3/8" | 17.5±0.35 | 65 | 765 |
| YDT-JSP-15 | φ15 | 20.2±0.35 | 80 | 885 | |
| YDT-JSP-16 | φ16 | 1/2" | 21.2±0.35 | 85 | 940 |
| YDT-JSP-19 | Φ19 | 24.5±0.40 | 95 | 1120 | |
| YDT-JSP-20 | Φ20 | 3/4" | 25.5±0.40 | 100 | 1180 |
| YDT-JSP-25 | φ25 | 1" | 31.7±0.45 | 120 | 1450 |
| YDT-JSP-32 | φ32 | 11/4" | 39.6±0.50 | 150 | 1885 |
| YDT-JSP-38 | φ38 | 11/2" | 46.6±0.60 | 180 | 2240 |
| YDT-JSP-51 | φ51 | 2" | 59.5±1.00 | 220 | 3000 |
| YDT-JSP-64 | φ64 | 21/2" | 73.0±1.50 | 310 | |
| YDT-JSP-75 | φ75 | 3" | 88.9±2.00 | 350 | |
| YDT-JSP-100 | φ100 | 4" | 114.3±3.00 | 410 | |
The inner galvanized steel strip provides mechanical reinforcement, while the outer PVC layer adds insulation, waterproof protection, UV resistance and anti-aging performance.
The reverse-buckle construction increases tensile strength and helps reduce breakage or deformation when the conduit is bent or pulled during installation.
Good bending performance allows the JSP conduit to follow machinery, equipment frames and complex cable routes more easily than rigid conduit.
The smooth internal structure helps wires and cables pass through the conduit with less obstruction during installation.
Fire-resistant and flame-retardant agents are incorporated into the PVC material for additional protection in industrial electrical installations.
JSP PVC coated metal conduit can be used for cable protection in:
Railway and locomotive systems
Transportation system engineering
Air-conditioning equipment
Industrial machinery
Automation control equipment
Power plants
Power distribution systems
Communication systems
Chemical facilities
Ships
Buildings
Exposed factory wiring
For related solutions, explore YDT products for automation applications, electrical applications and communication applications.
Machinery and automation systems often require cables to pass around frames, motors, control units and restricted installation spaces.
The JSP flexible metal conduit for cable protection combines the mechanical support of a galvanized steel inner layer with the protection of an external PVC covering.
Its flexible construction allows cable routes to change direction without relying entirely on rigid conduit, while the smooth internal structure makes wire installation easier.
The standard working temperature of the JSP series is:
-10°C to +80°C
For short periods, the conduit can reach:
+100°C
The PVC outer layer is UV resistant and anti-aging and includes fire-resistant and flame-retardant agents.
For actual projects, conduit suitability should be confirmed according to operating temperature, environmental exposure and installation requirements.
Before requesting a quotation, confirm the following information:
Cable Size
Check the diameter and number of wires or cables that will pass through the conduit.
Required Conduit Size
Select the JSP specification according to cable dimensions and available installation space.
Bending Requirements
Consider the cable route, number of bends and available bending space.
Operating Environment
Confirm temperature, moisture exposure, UV exposure and installation location.
Connector Requirement
Match the conduit with the corresponding YDT-DPJ connector according to conduit size and equipment interface.
Specific sizes should be selected according to the JSP specification and dimensional drawing.
Installation is straightforward:
Select the suitable JSP conduit size.
Thread the wires or cables through the conduit.
Route the conduit according to the required cable path.
Match it with the corresponding YDT-DPJ connector.
Secure the conduit to the equipment or electrical interface.
Buyers sourcing a complete cable protection system can also browse YDT's conduit connectors and fittings.
YDT offers different flexible conduit structures for different cable protection requirements.
| Series | Product Type | Suitable For |
|---|---|---|
| JSP Series | Smooth PVC Coated Metal Conduit | Flexible cable protection with galvanized steel and PVC construction |
| JSB Series | PVC Coated Flexible Metal Conduit | PVC-coated industrial flexible conduit applications |
| JS Series | Galvanized Flexible Metal Conduit | Lightweight galvanized metal conduit without PVC outer coating |
View the complete Armored Flexible Conduits range to compare available options.
YDT supplies flexible metal conduits together with compatible conduit connectors and fittings, helping buyers source related cable protection components from one supplier.
The JSP series can be used across railway, machinery, automation, power distribution, communications, marine and building applications.
Different conduit sizes can be selected according to cable dimensions, installation space and routing requirements.
The JSP series lists European Environmental SGS certification SHG134468/CHEM. Buyers requiring documentation for purchasing or project approval can specify their requirements during inquiry.
Learn more about YDT's international compliance and quality.
Please provide the required conduit size, quantity, cable dimensions, application, operating environment and connector requirements.
The inner layer uses galvanized steel strip with special insulation treatment, while the outer layer is made of UV-resistant and anti-aging PVC.
The standard working temperature is -10°C to +80°C, with short-term exposure up to +100°C.
The JSP series should be matched with the corresponding YDT-DPJ connector according to conduit size and equipment interface. Related options are available under conduit connectors and fittings.
Looking for a smooth PVC coated metal conduit manufacturer for railway, machinery, automation or electrical cable protection?
Send YDT your required conduit size, quantity, cable dimensions, application and connector requirements to identify the appropriate JSP series conduit for your project.
