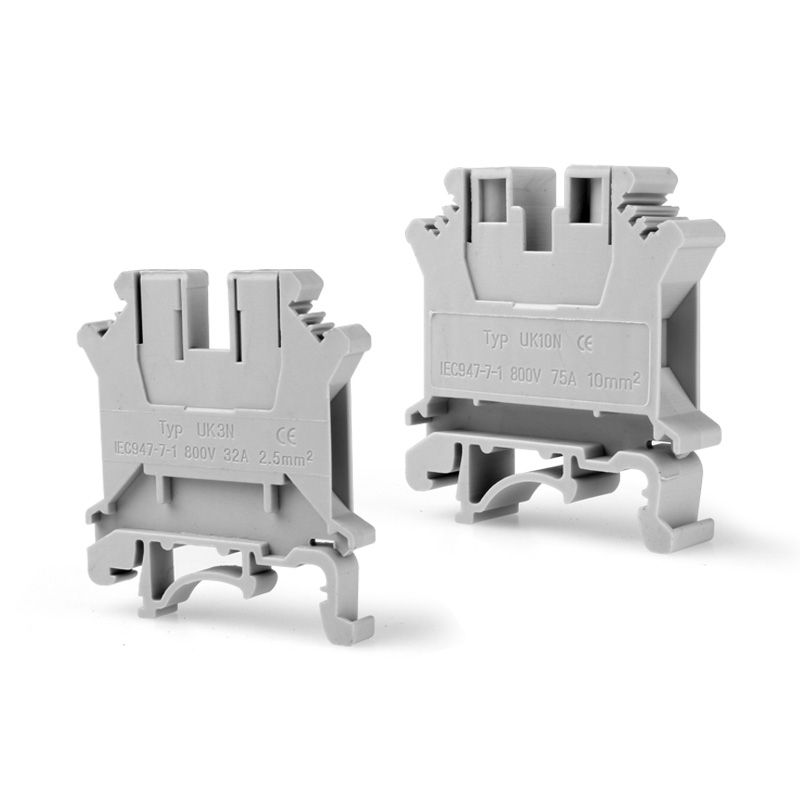

Wiring Terminal | UK Series Wiring Terminal | Metal Components Made of Purple Copper | customization

Description

As a leading manufacturer and supplier of cable glands and electrical accessories, YDT is committed to providing high-quality products and services to enterprises in various industries.

Every YDT electrical product and accessory is made of high-quality new materials; Multiple types of products are waterproof, dustproof, flame-retardant, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.

Our multiple series of products can be customized according to customer needs, and we look forward to working with you.

Get Instant Quote Next Product

Product Specification

Product Name	UK Series Wiring Terminal
model	UK

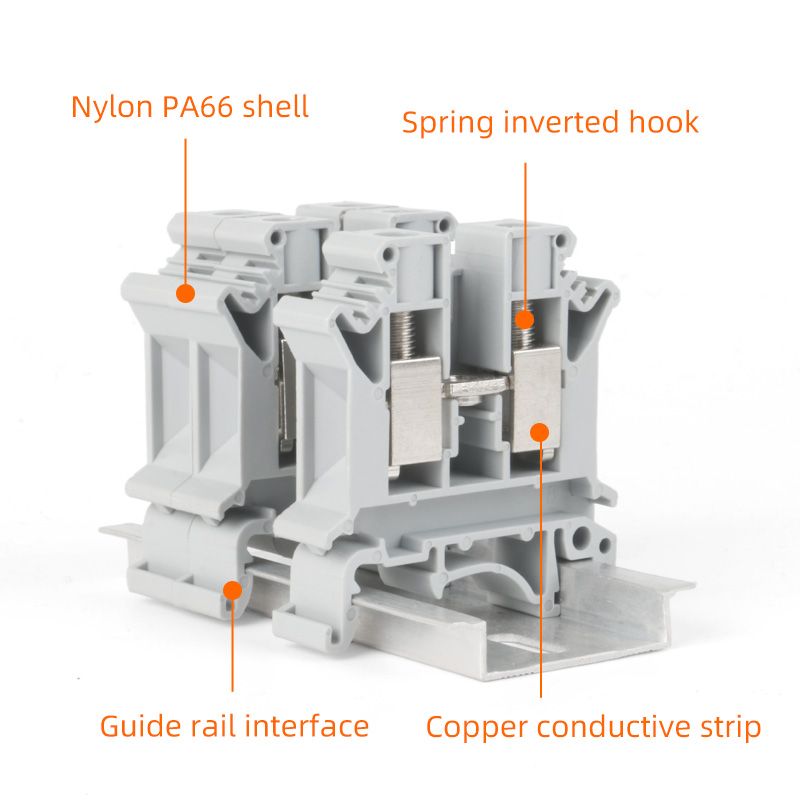

Product Material	The shell is made of high-quality nylon, and the metal parts are made of purple copper material
Specification and size	Specific dimensions should refer to the dimension specification diagram

Drawings

Structure Diagram

UK 1.5N/2.5B
	technical standard	IEC	UL
	Rated current	17.5/24	15/20
	Rated Voltage	500/800	300/300
	Rated cross-sectional	1.5/2.5	AWG26-16/AWG24-12
	Insulation material UI94 certification	PA66/VO
	current graph
UK 3N/5N
	technical standard	IEC	UL
	Rated current	24/32	20/30
	Rated Voltage	800/800	600/600
	Rated cross-sectional	2.5/4	AWG24-12/AWG24-10
	Insulationmaterial UI94 certification	PA66/VO
	current graph
UK 6N/10N
	technical standard	IEC	UL
	Rated current	41/57	50/65
	Rated Voltage	800/800	600/600
	Rated cross-sectional	16/16	AWG24-8/AWG20-6
	Insulationmaterial UI94 certification	PA66/VO
	current graph
UK 16B/16N
	technical standard	IEC	UL
	Rated current	76/76	85/85
	Rated Voltage	400/800	600/600
	Rated cross-sectional	1.5/2.5	AWG12-4/AWG14-4
	Insulationmaterial UI94 certification	PA66/VO
	current graph

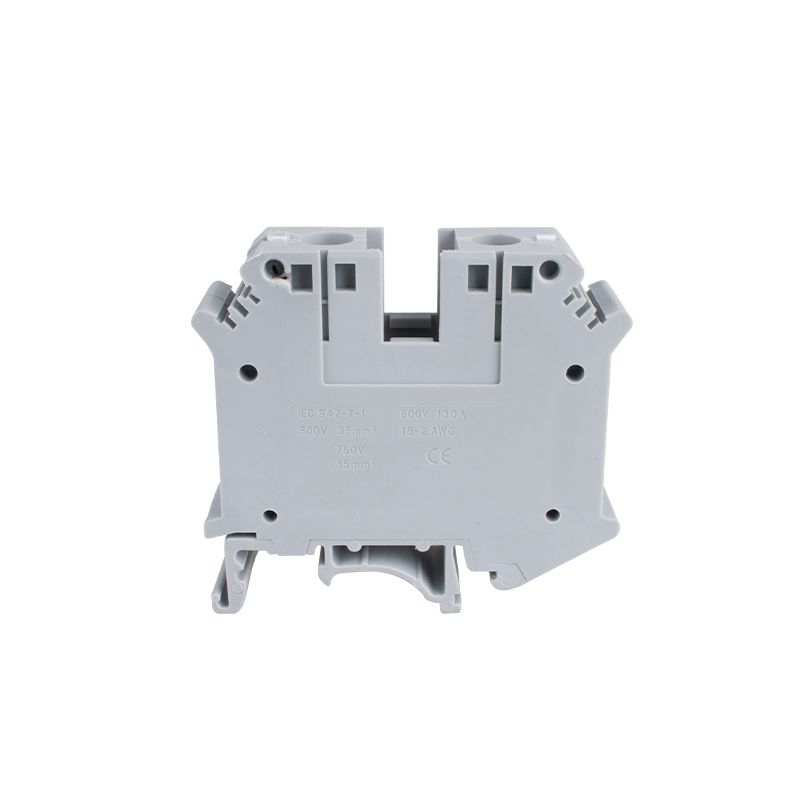

UK 35B/35N
	technical standard	IEC	UL
	Rated current	125/125	115/125
	Rated Voltage	800/800	600/600
	Rated cross-sectional	35/35	AWG8-2/AWG8-2
	Insulation material UI94 certification	PA66/VO
	current graph
UKH50/UKH95
	technical standard	IEC	UL
	Rated current	150/232	150/230
	Rated Voltage	1000/1000	600/600
	Rated cross-sectional	50/95	AWG6-2/0 AWG4-3/0
	Insulationmaterial UI94 certification	PA66/VO
	current graph
UKH150/UKH240
	technical standard	IEC	UL
	Rated current	309/415	285/380
	Rated Voltage	1000/1000	600/600
	Rated cross-sectional	150/240	AWG2-300kcmil AWG2/0-500kcmil
	Insulationmaterial UI94 certification	PA66/VO
	current graph
MBKKB2.5/MBKKB2.5-L
	technical standard	IEC	UL
	Rated current	24/24	20/20
	Rated Voltage	500/500	300/300
	Rated cross-sectional	2.5/2.5	AWG24-12/AWG24-12
	Insulationmaterial UI94 certification	PA66/VO
	currentgraph
UKK3/UKK5
	technical standard	IEC	UL
	Rated current	24/32	20/30
	Rated Voltage	500/5000	600/600
	Rated cross-sectional	2.5/4	AWG24-12/AWG24-12
	Insulationmaterial UI94 certification	PA66/VO
	current graph

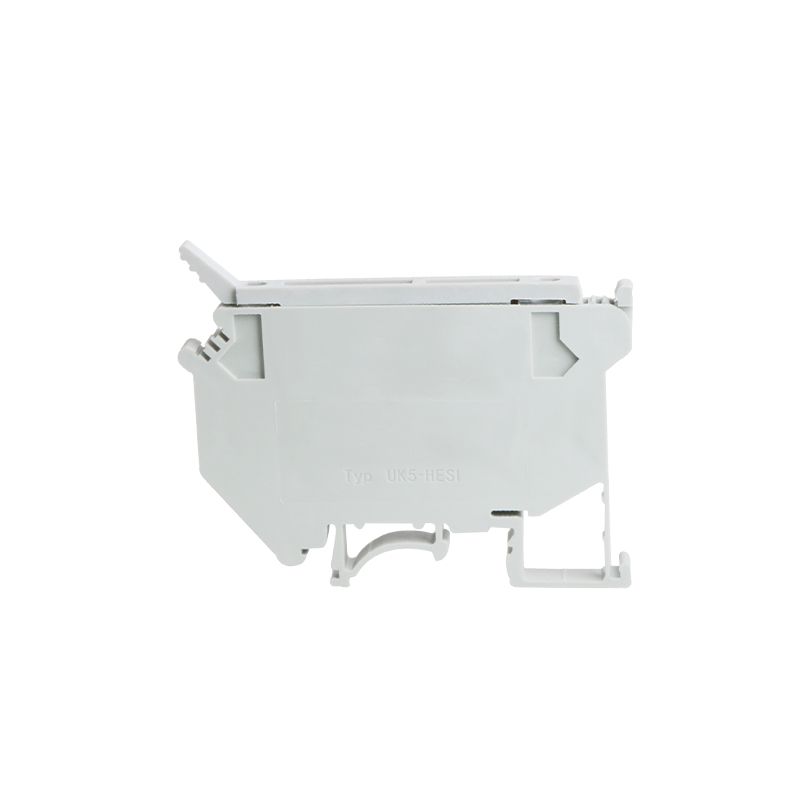

UK5-HESI
	technical standard	IEC	UL
	Rated current	6.3	12
	Rated Voltage	800	600
	Rated cross-sectional	4	AWG24-12
	Insulation material UI94 certification	PA66/VO
	current graph

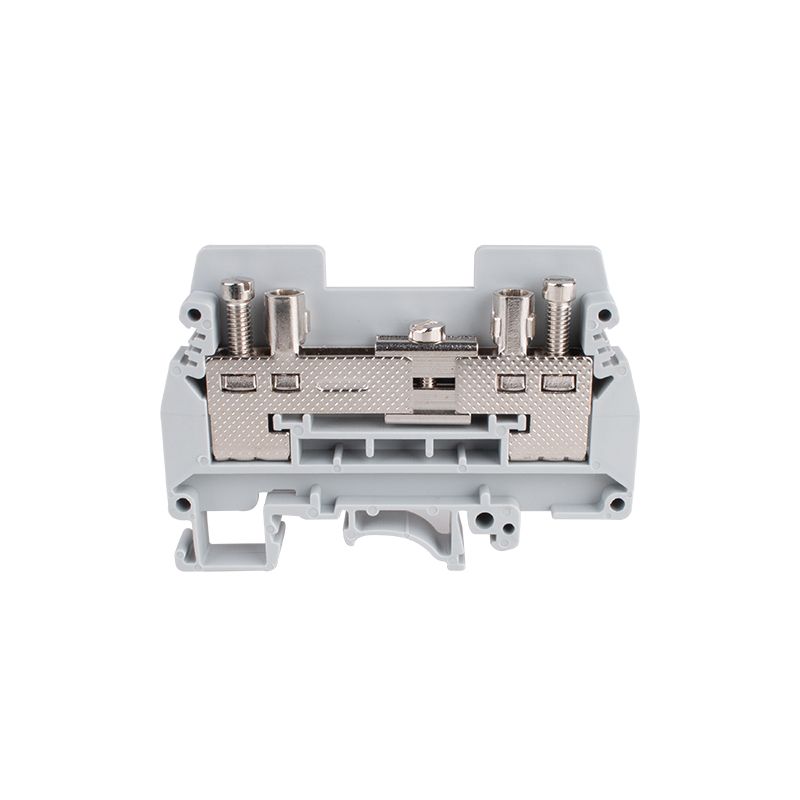

URTK/S
	technical standard	IEC	UL
	Rated current	41	400
	Rated Voltage	400	300
	Rated cross-sectional	6	AWG20-8
	Insulation material U194 certification	PA66/VO
	current graph
