Terminal block ST series Metal by Red copper customization

Description

As a leading manufacturer and supplier of cable glands and electrical accessories, YDT is committed to providing high-quality products and services to enterprises in various industries.

Every YDT electrical product and accessory is made of high-quality new materials; Multiple types of products are waterproof, dustproof, flame-retardant, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.

Our multiple series of products can be customized according to customer needs, and we look forward to working with you.

Get Instant Quote Next Product

Product Specification

Product Name	ST series wiring terminals
model	ST
Product Material	The shell is made of high-quality nylon, and the metal parts are made of purple copper material
Specification and size	Specific dimensions should refer to the dimension specification diagram

Drawings

Structure Diagram

ST 6/10-TWIN
	technical standard	IEC	UL
	Rated current	41/57	50/60
	Rated Voltage	1000/1000	600/600
	Rated cross-sectional	6/10	AWG24-8/AWG16-6
	Insulation material U194 certification	PA66/VO
	current graph

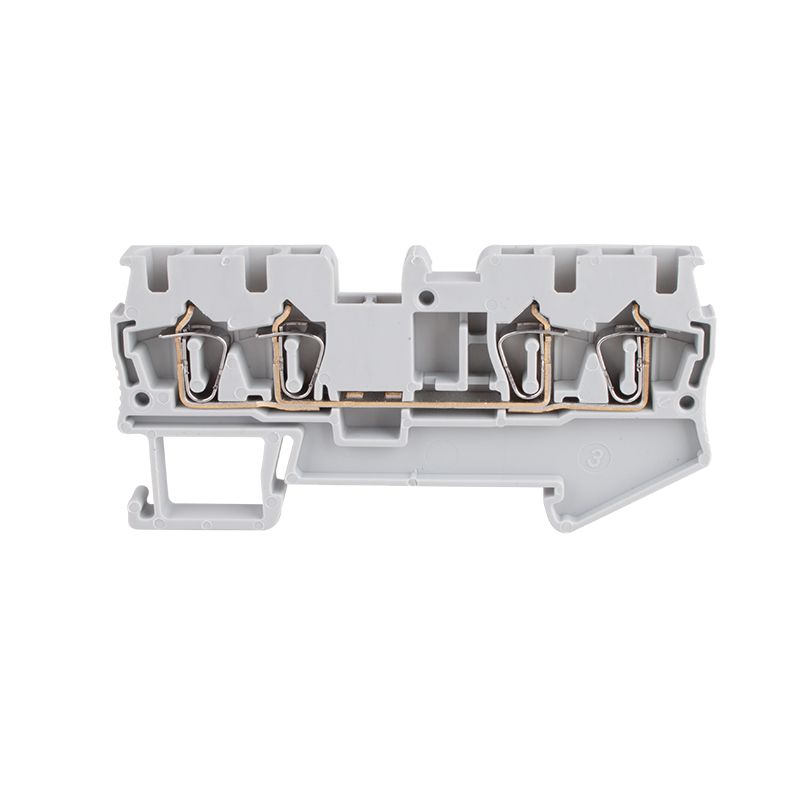

ST 1.5/2.5/4-QUATTRO
	technical standard	IEC	UL
	Rated current	17.5/24/32	15/20/30
	Rated Voltage	500/800/800	300/600/600
	Rated cross-sectional	1.5/2.5/4	AWG26-14/AWG28-12 AWG28-10
	Insulation material U194 certification	PA66/VO
	current graph

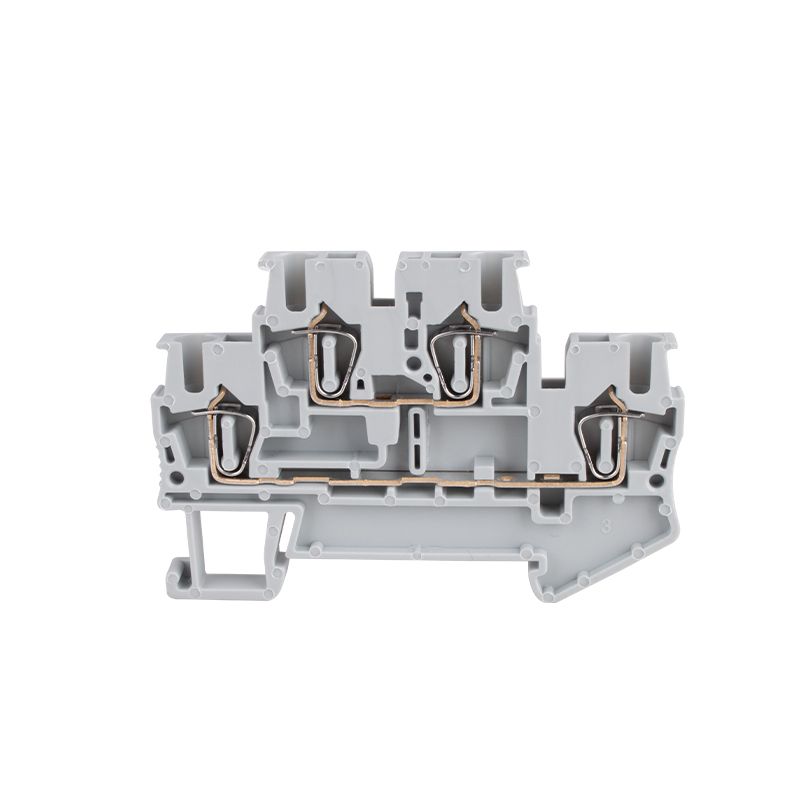

STTB 1.5/2.5/4
	technical standard	IEC	UL
	Rated current	17.5/22/30	15/20/30
	Rated Voltage	500/500/500	300/600/600
	Rated cross-sectional	1.5/2.5/4	AWG26-14/AWG28-12 AWG28-10
	Insulation material U194 certification	PA66/VO
	current graph
STTB 1.5/2.5/4-PV
	technicalstandard	IEC	UL
	Ratedcurrent	17.5/22/30	15/20/30
	RatedVoltage	500/500/500	300/600/600
	Ratedcross-sectional	1.5/2.5/4	AWG26-14/AWG28-12 AWG28-10
	Insulation material U194 certification	PA66/VO
	current graph

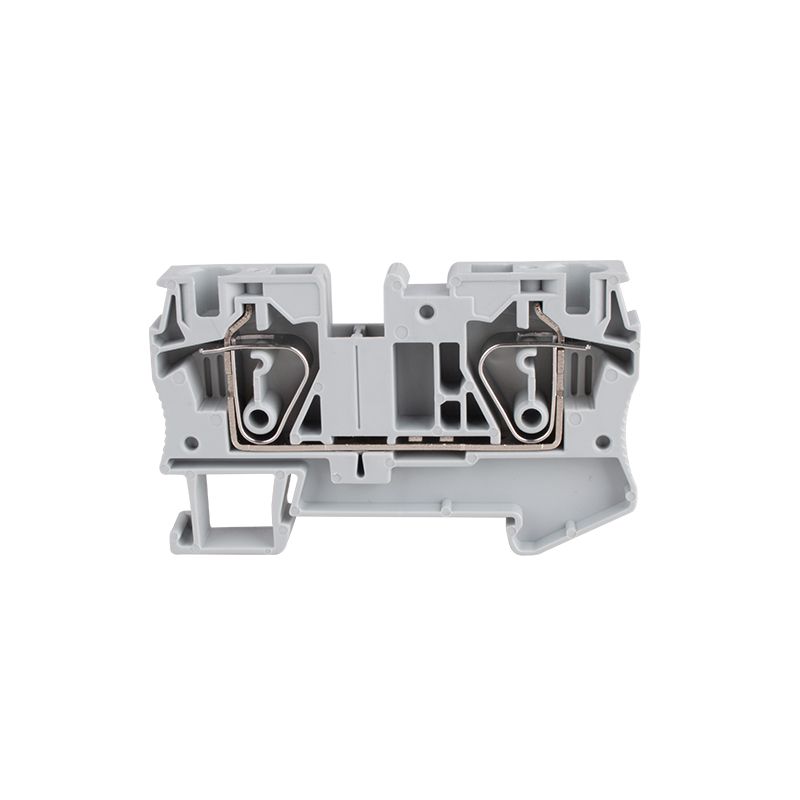

ST 1.5/2.5/4
	technical standard	IEC	UL
	Rated current	17.5/24/32	15/20/30
	Rated Voltage	500/800/800	300/600/600
	Rated cross-sectional	1.5/2.5/4	AWG26-14/AWG28-12 AWG28-10
	Insulation material U194 certification	PA66/VO
	currentgraph
ST 6/10
	technical standard	IEC	UL
	Rated current	41/57	50/60
	Rated Voltage	1000/1000	600/600
	Rated cross-sectional	6/10	AWG24-8/AWG16-6
	Insulation material UI94 certification	PA66/VO
	current graph
ST 16/35
	technical standard	IEC	UL
	Rated current	76/125	85/115
	Rated Voltage	1000/1000	600/600
	Rated cross-sectional	16/35	AWG16-4/AWG14-2
	Insulation material UI94 certification	PA66/VO
	current graph

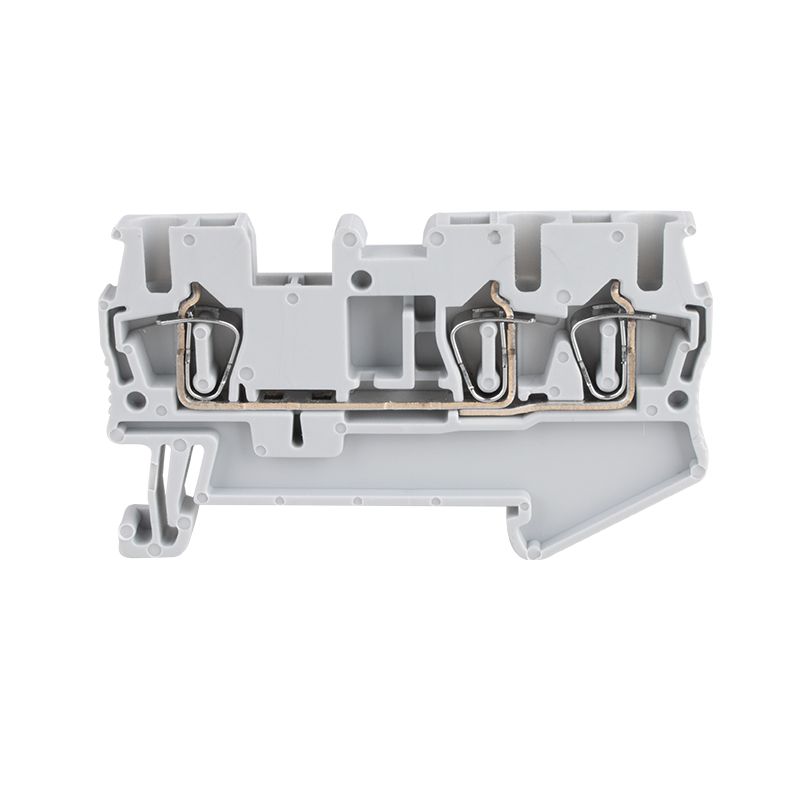

ST 1.5/2.5/4-TWIN
	technical standard	IEC	UL
	Ratedcurrent	17.5/24/32	15/20/30
	RatedVoltage	500/800/800	300/600/600
	Ratedcross-sectional	1.5/2.5/4	AWG26-14/AWG28-12 AWG28-10
	Insulation material UI94 certification	PA66/VO
	current graph
