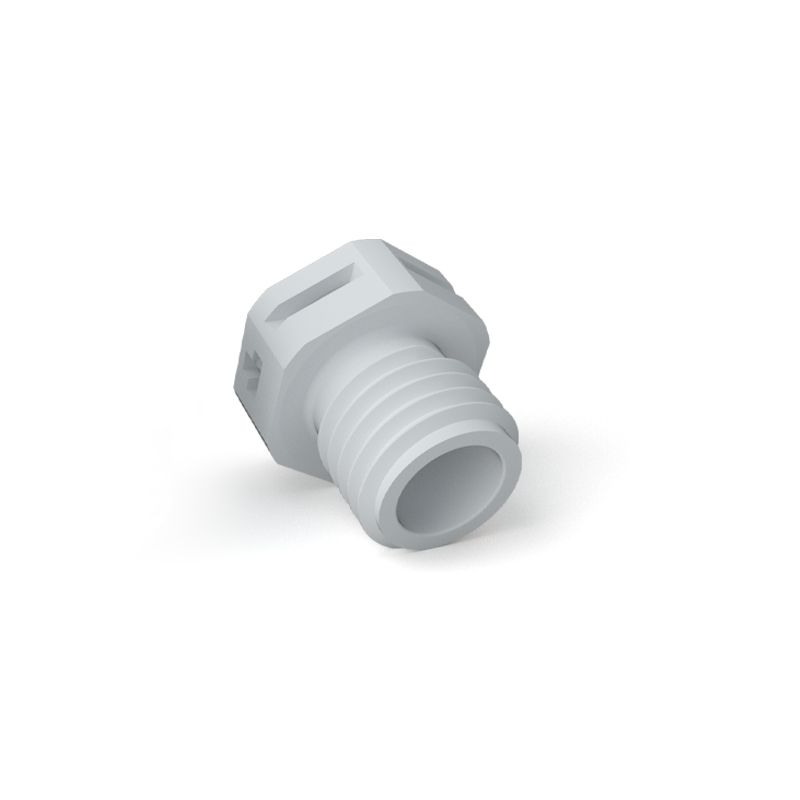

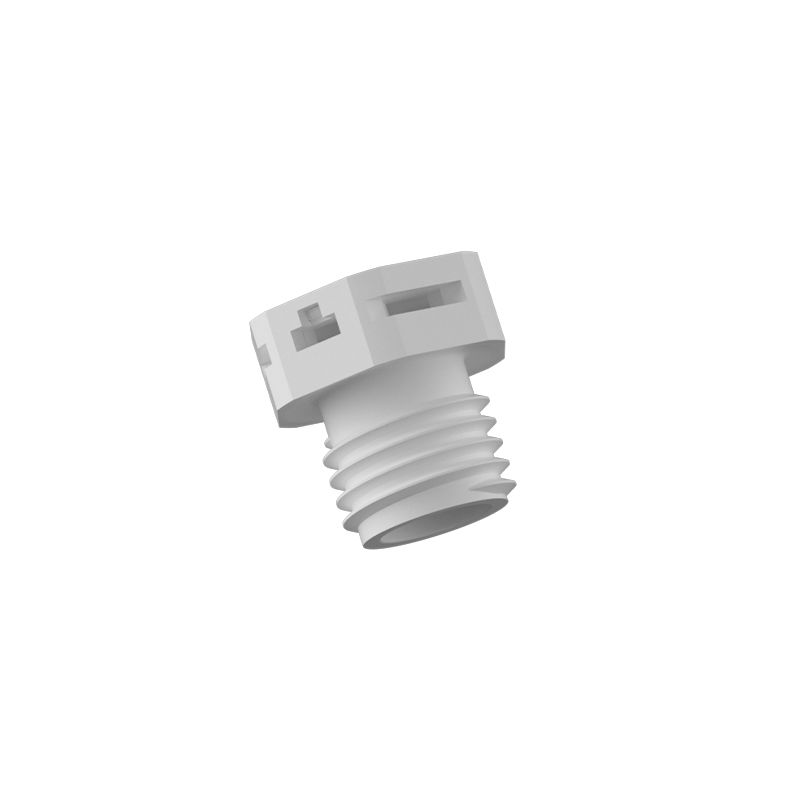

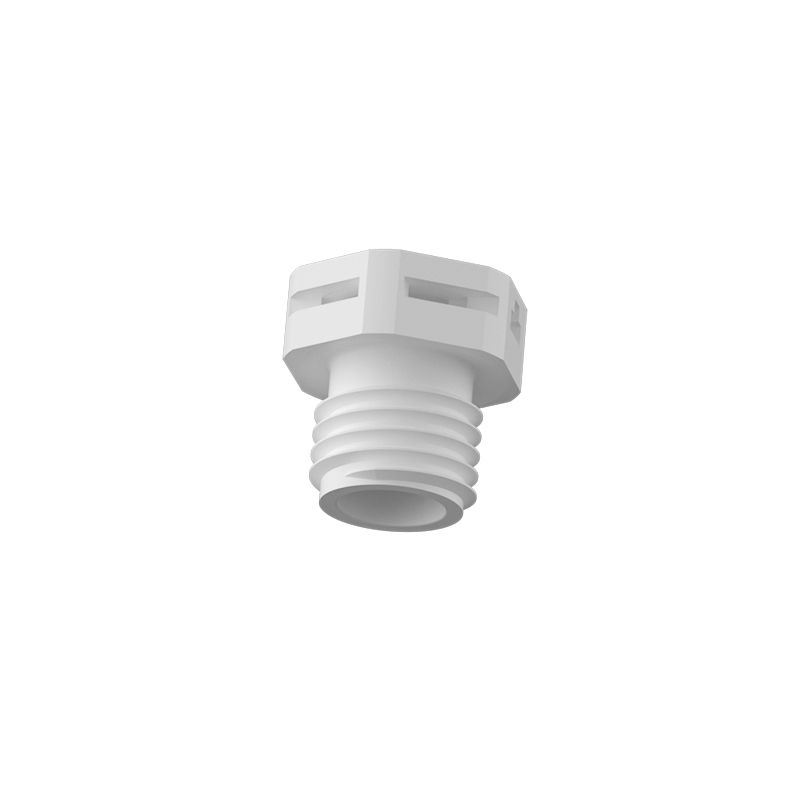

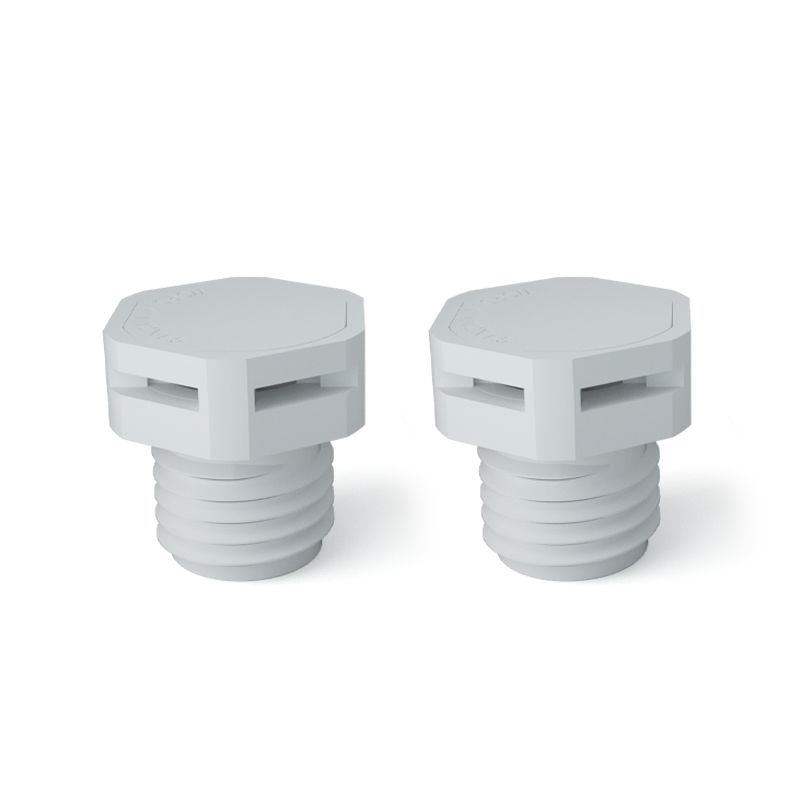

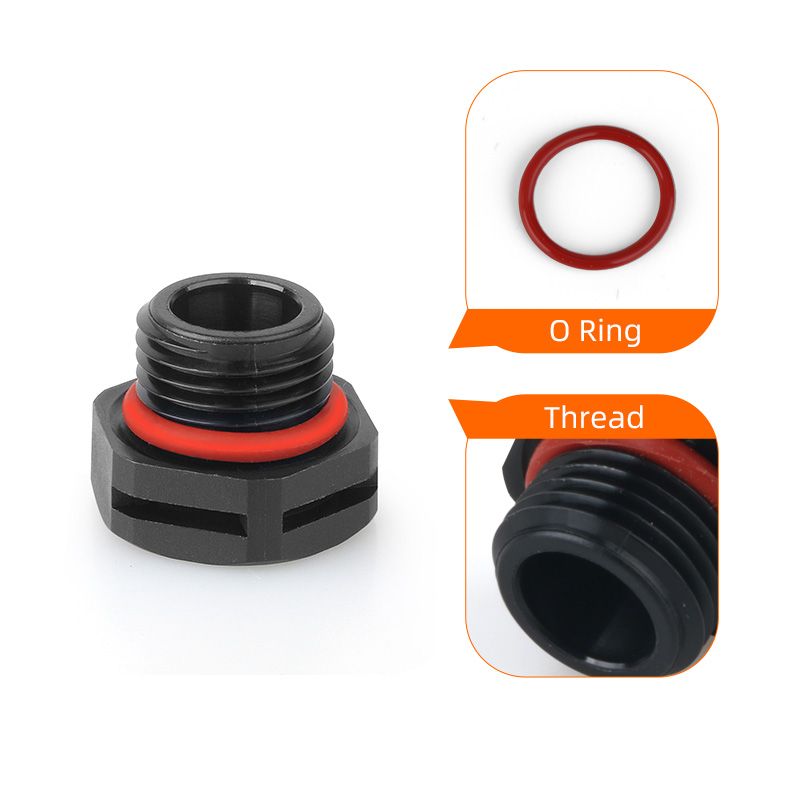

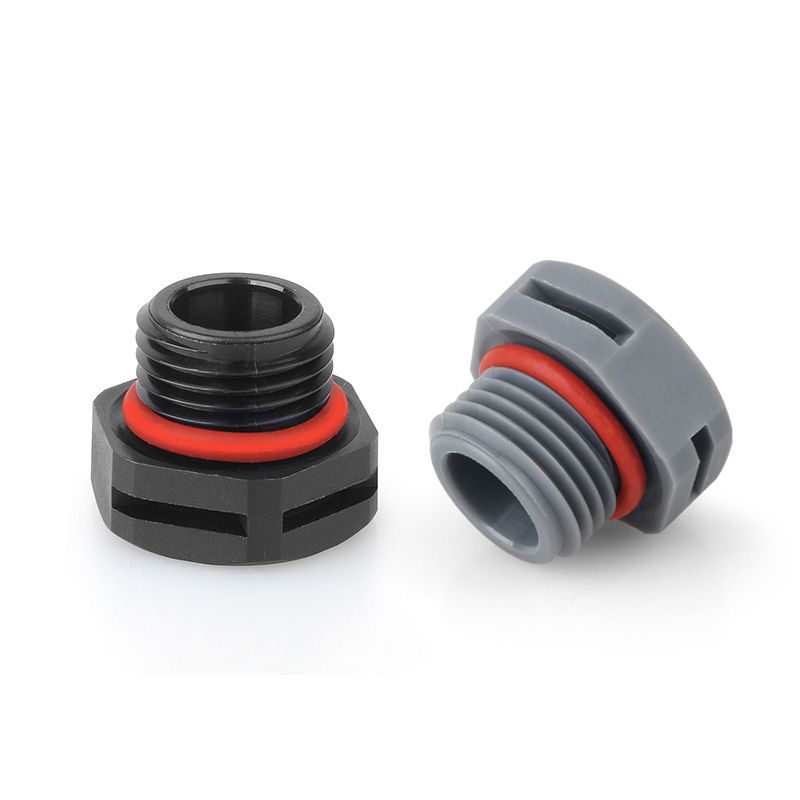

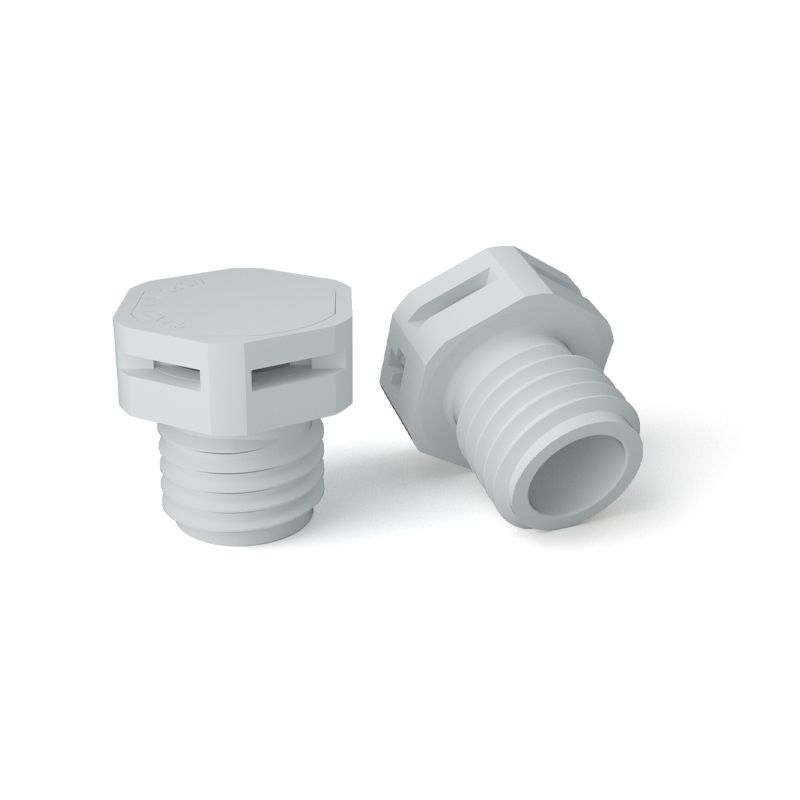

Nylon breathable vent plug | M thread | customization
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This series of products is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable glands and electrical accessories products can be customized according to customer needs.
Product Specification
| Product Name | Nylon breathable valve |
| Model | M |
| Product Material | High quality nylon |
| Temperature range | Static -40 ℃ to 100 ℃ |
| Product design features | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Fire resistance | Flame retardant |
| Certificate | CE S9001 |
| Aperture range selection | Specific dimensions should refer to the dimension specification diagram |
Drawings

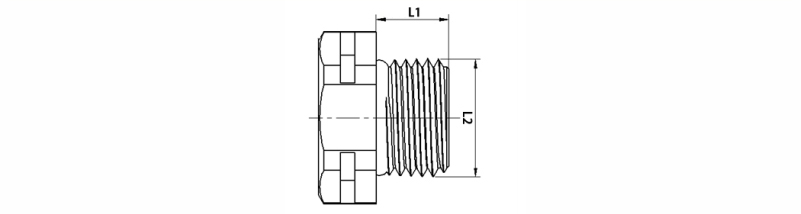

Structure Diagram

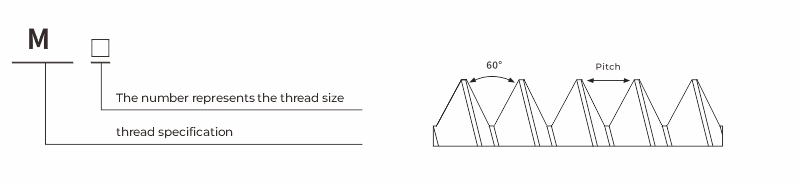

M Type
ISO metric thread, also known as metric thread, has a flat tooth tip that is easy to turn, and a rounded tooth base to increase thread strength. The thread angle is 60 degrees. Representations such as M8x1.25 or M8.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| M12 | 4~8 | 12 | 10 | 17/17 |
| M16 | 5~10 | 16 | 10 | 22/22 |
| M20 | 6~12 | 20 | 10 | 27/27 |
