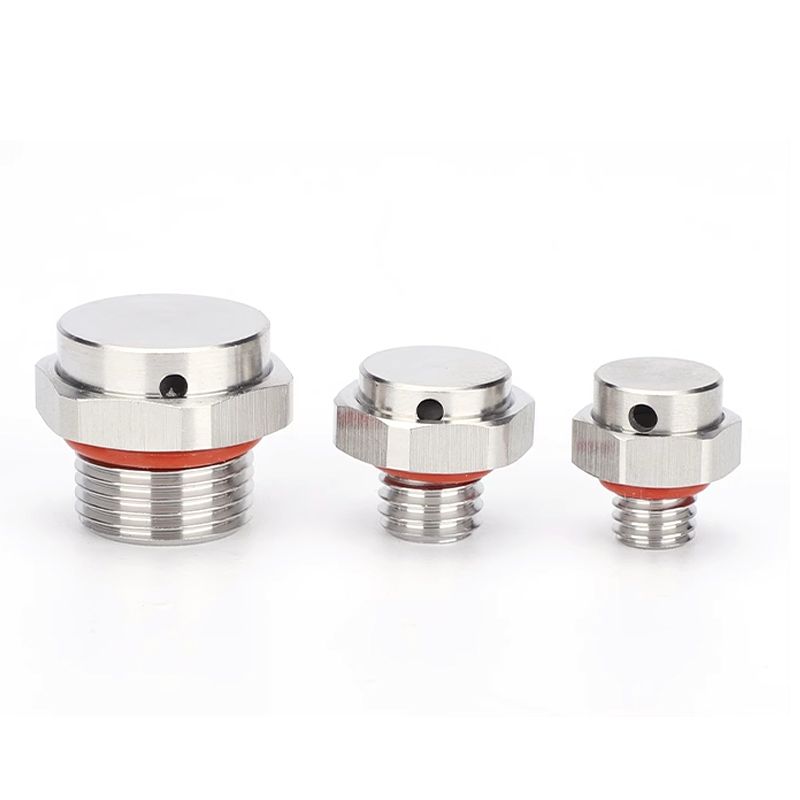

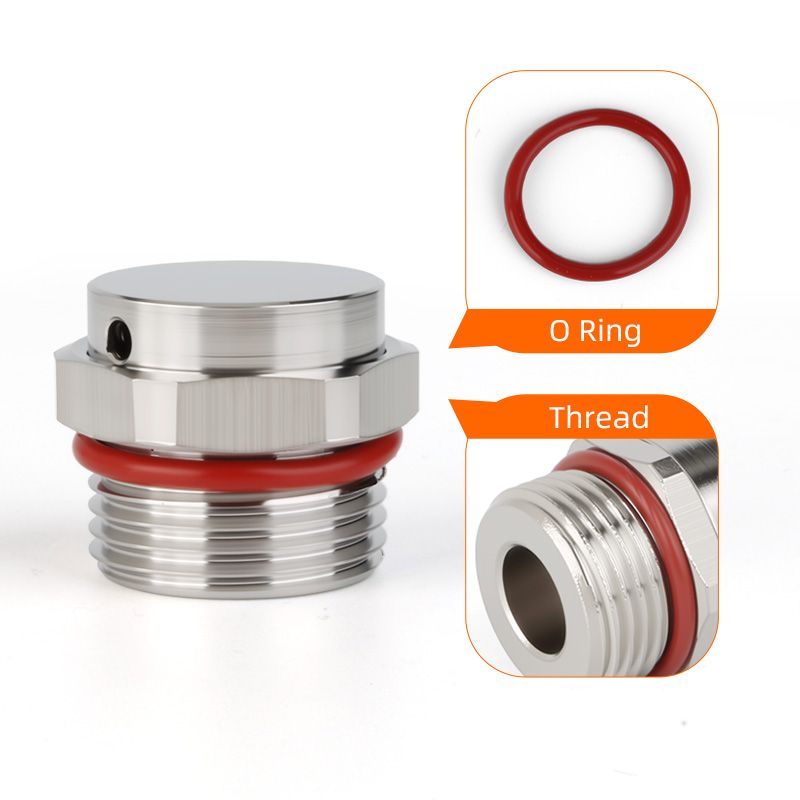

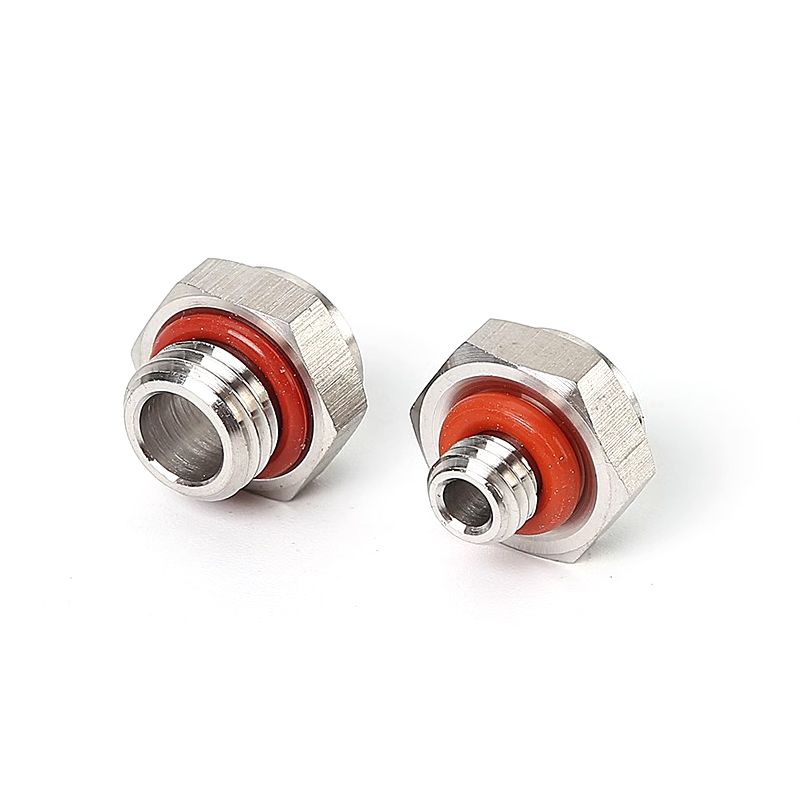

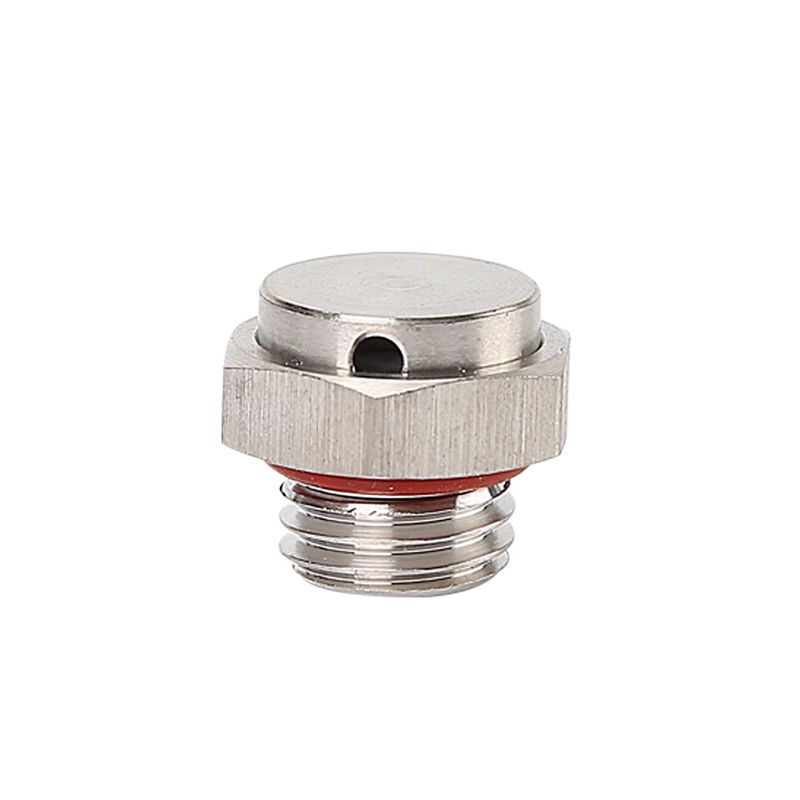

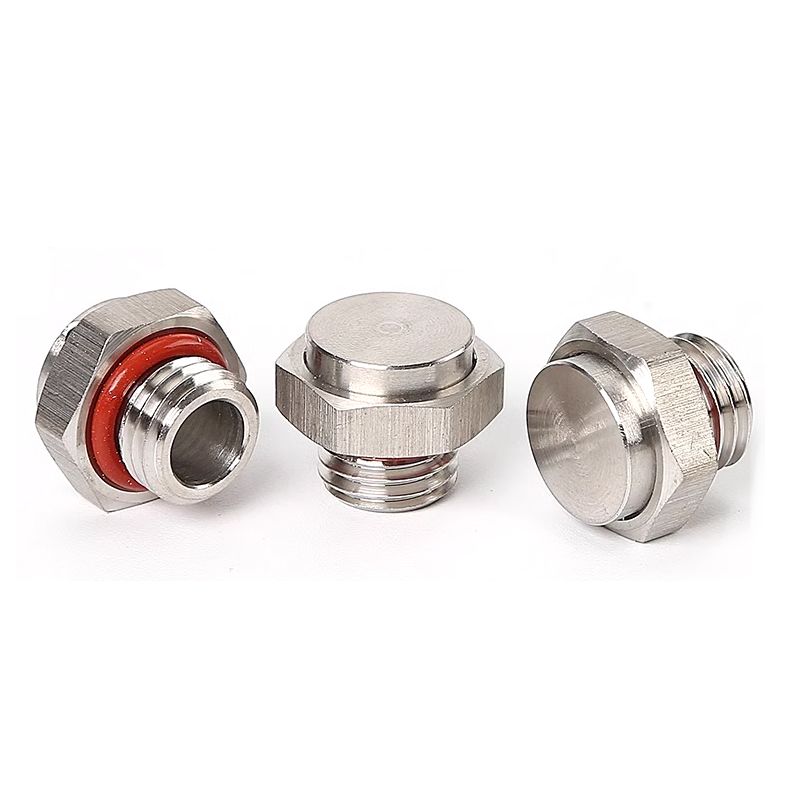

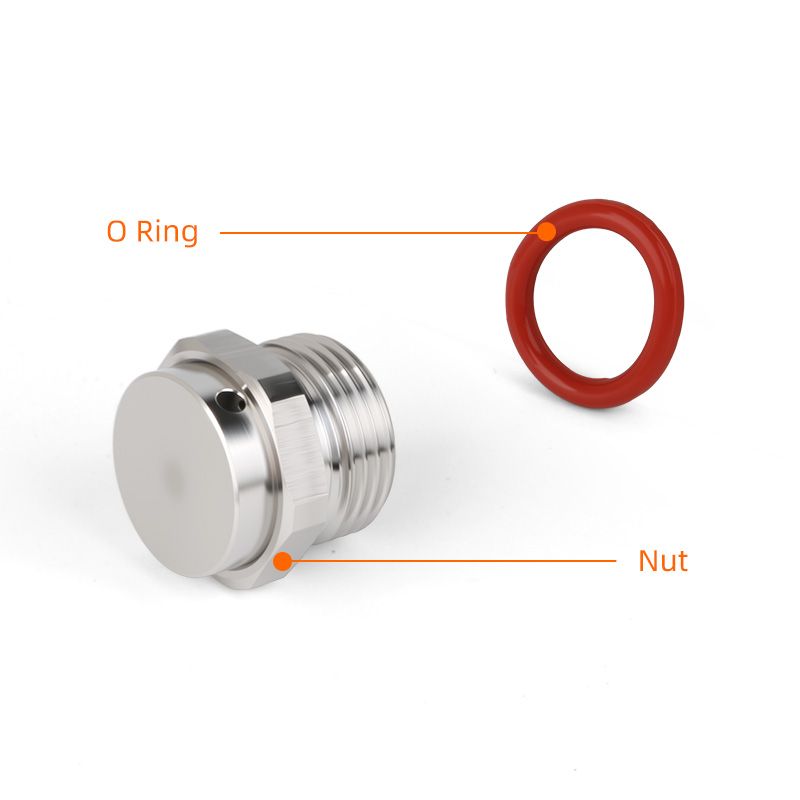

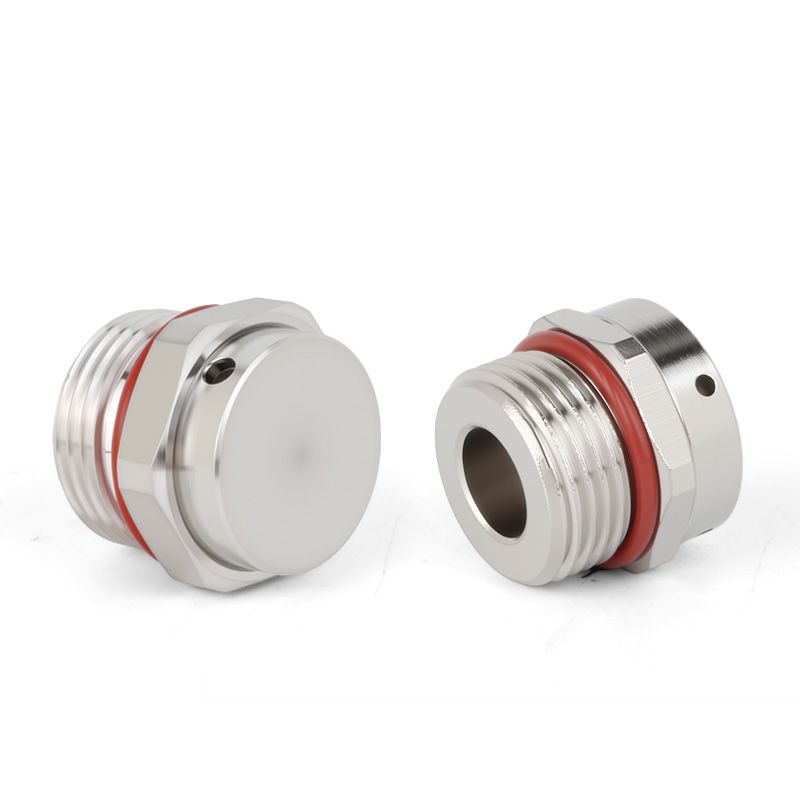

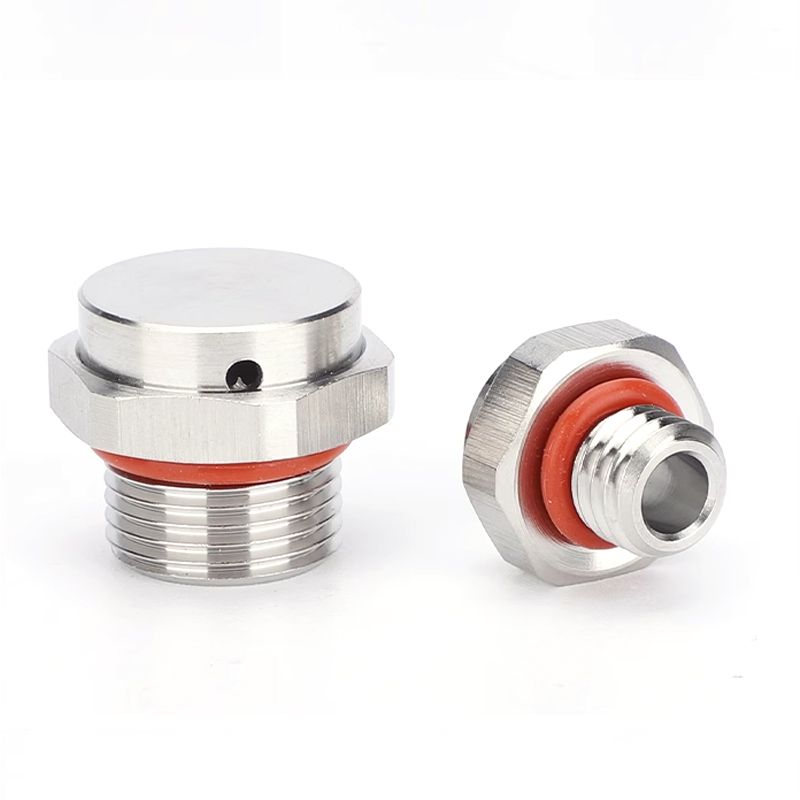

Metal breathable vent plug | M thread | customization

Description

As a leading manufacturer and supplier of cable glands and electrical accessories, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new materials; This series of products is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Our cable glands and electrical accessories products can be customized according to customer needs.

Get Instant Quote Next Product

Product Specification

Product Name	Metal breathable valve
Model	M
Product Material	High quality metal
Temperature range	Static -40 ℃ to 100 ℃
Product design features	Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Fire resistance	Flame retardant
Certificate	CE S9001
Aperture range selection	Specific dimensions should refer to the dimension specification diagram

Drawings

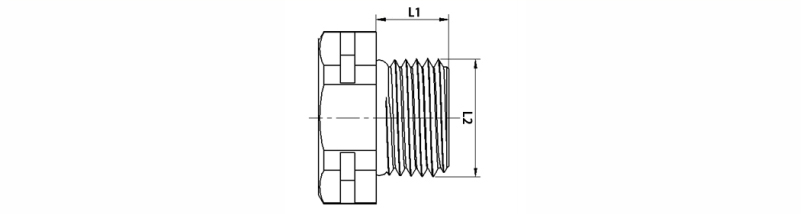

Structure Diagram

M Type

ISO metric thread, also known as metric thread, has a flat tooth tip that is easy to turn, and a rounded tooth base to increase thread strength. The thread angle is 60 degrees. Representations such as M8x1.25 or M8.

Metal breathable vent plug | M thread | customization

Technical Parameter

Model	Cable Range (mm)	Thread O.D. L2(mm)	Thread Length L1(mm)	Spanner Size A & E(mm)
M12	4~8	12	10	17/17
M16	5~10	16	10	22/22
M20	6~12	20	10	27/27
