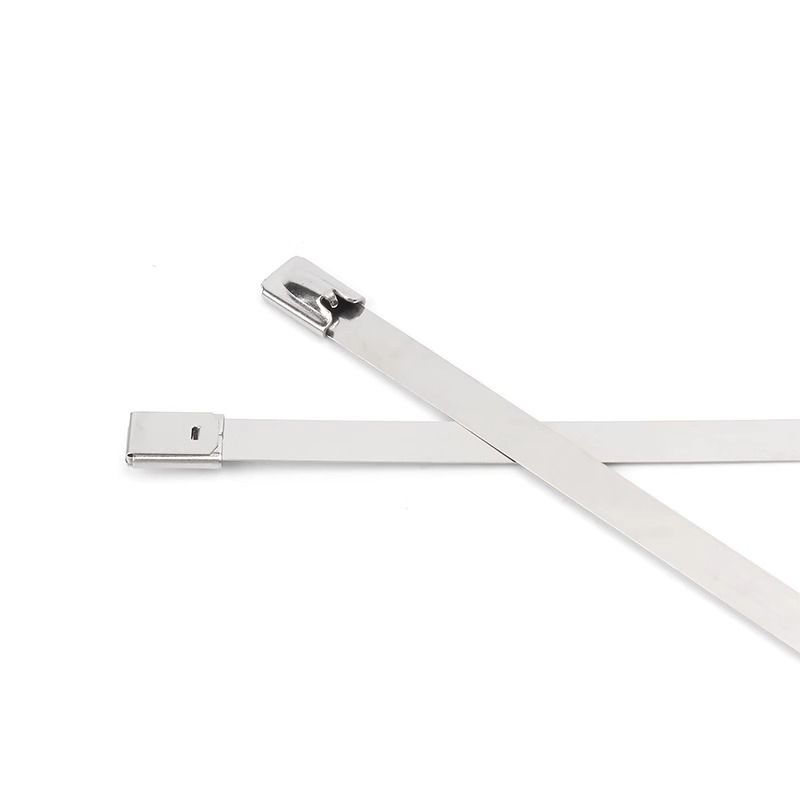

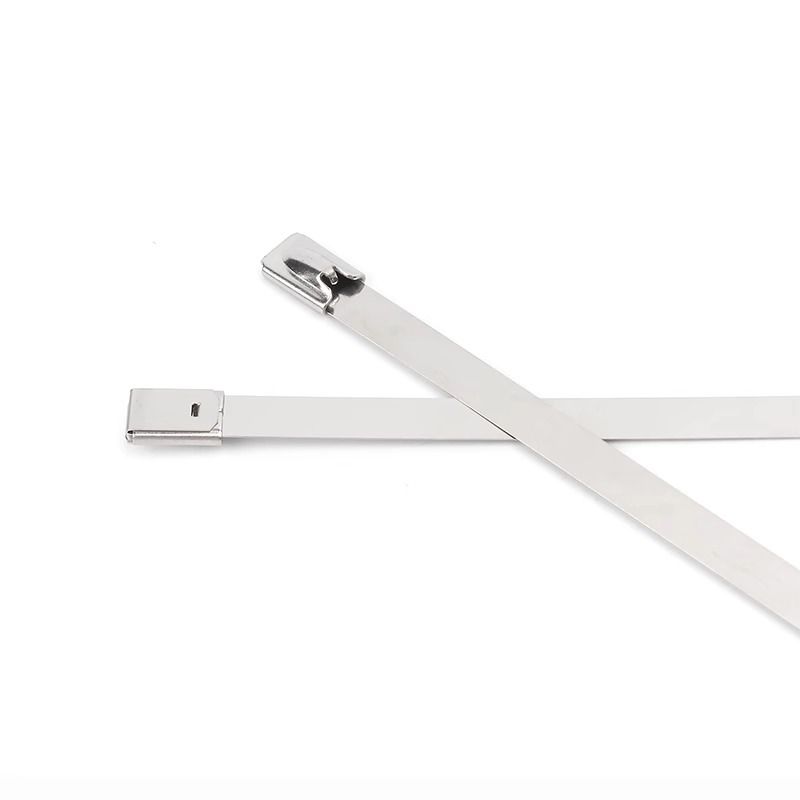

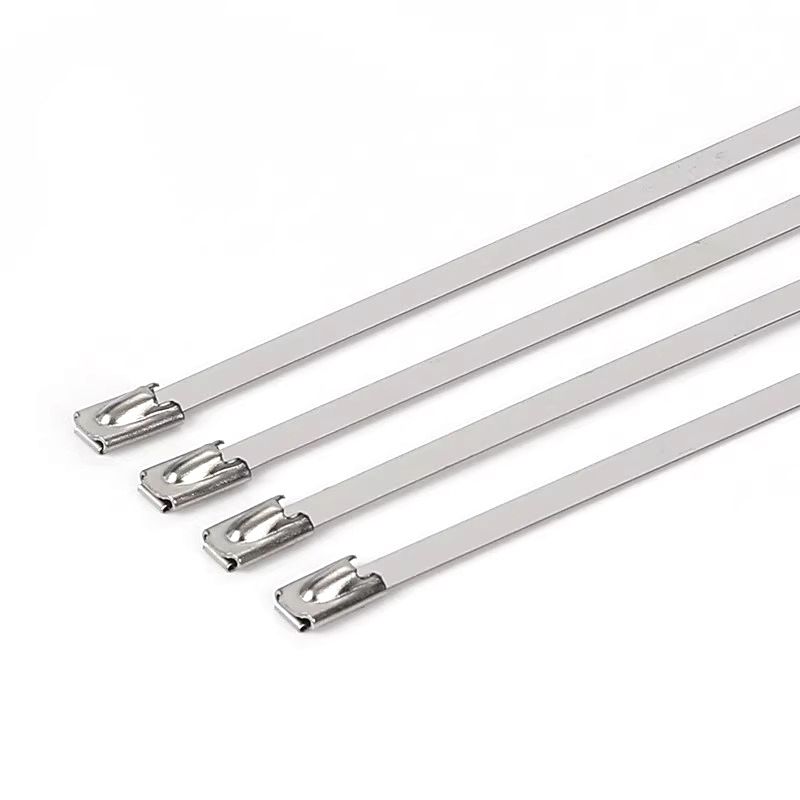

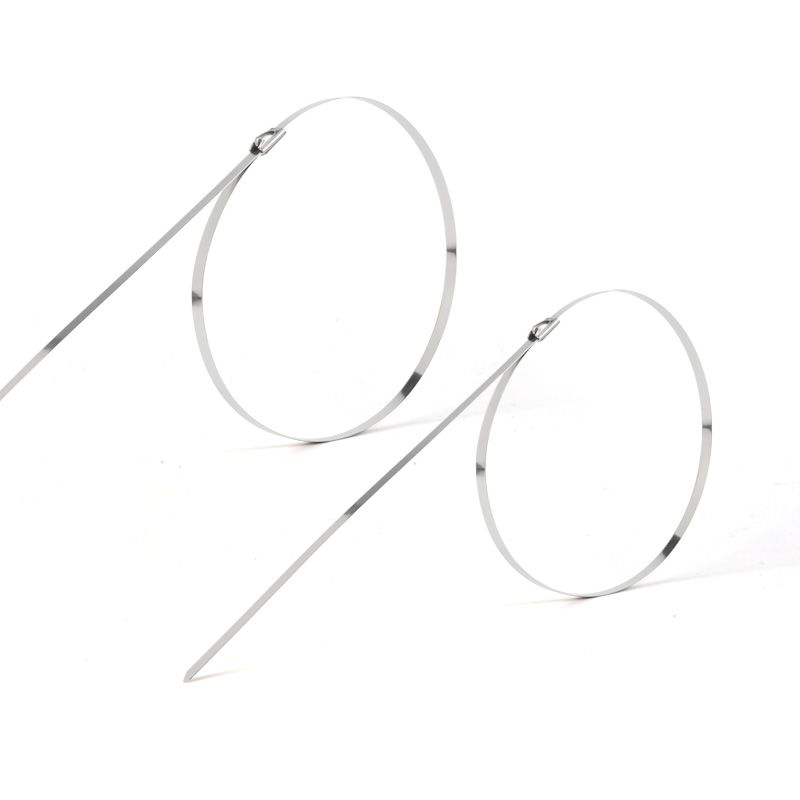

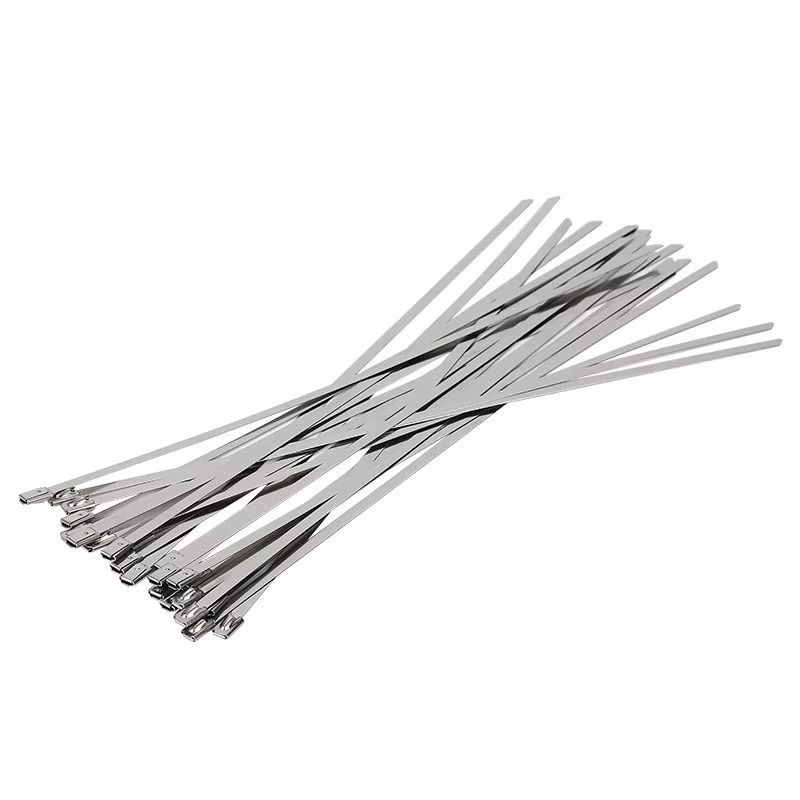

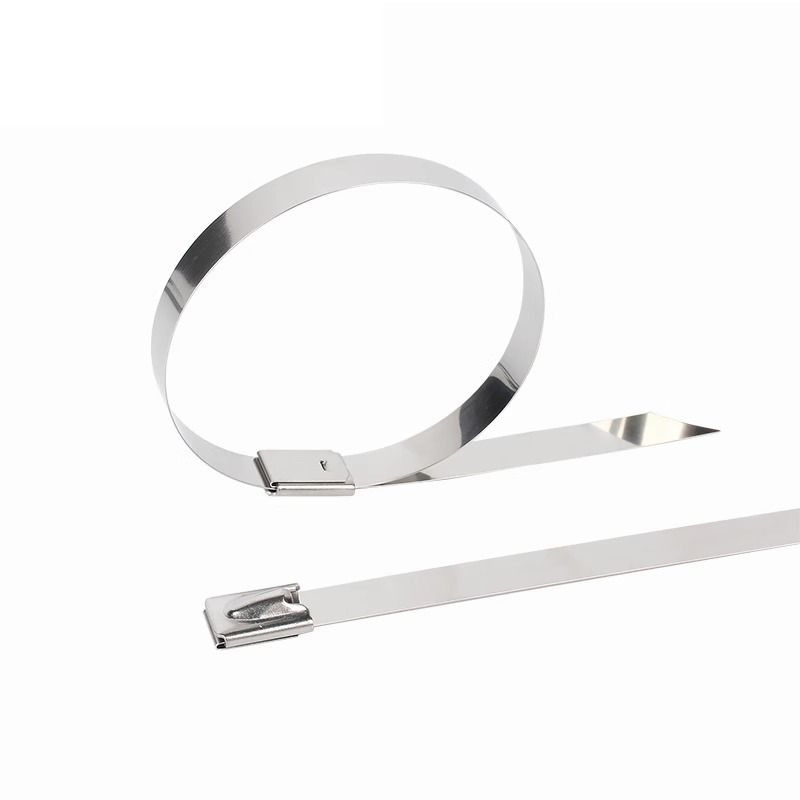

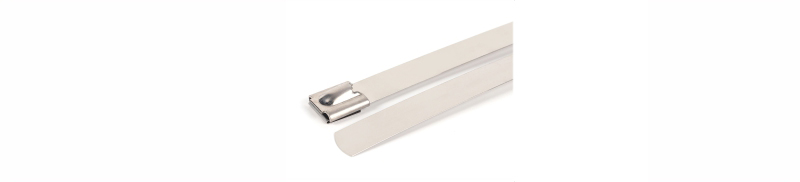

Stainless steel cable ties | C-type self-locking丨 304/316L 丨 customization
Description
As a leading manufacturer and supplier of electrical components, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT product and various accessories are made of high-quality new materials; Most series of products are waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
All our series of products and supporting accessories can be customized according to customer needs. We look forward to your cooperation.
Product Specification
| Product Name | C-series stainless steel cable ties |
| Tensile value | Tensile force value ≥ 500N. |
| working temperature | -25℃~60℃ |
| Product Material | The cable tie body is made of 304 or 316 stainless steel, and the surface coating of the main body is PVC. |

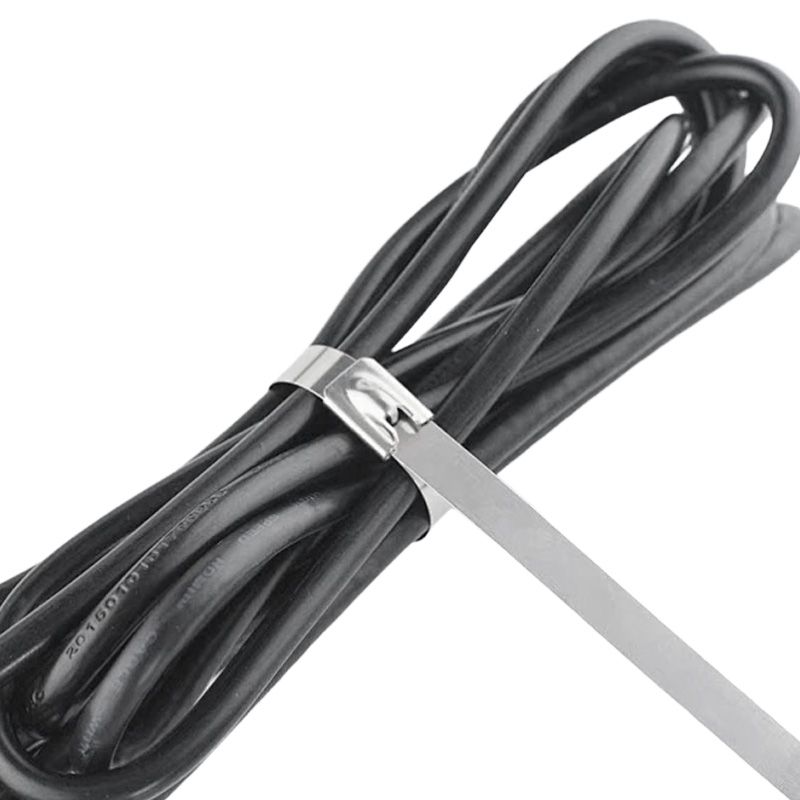

| Product Features | Suitable for tying in outdoor, humid, high temperature and other places, the cable has anti-wear, anti-corrosion, radiation resistance and fire resistance properties. |
| Specification and size | Compliant with IEC92 “Ship Electrical Equipment” and GB113-85. “ |
Drawings

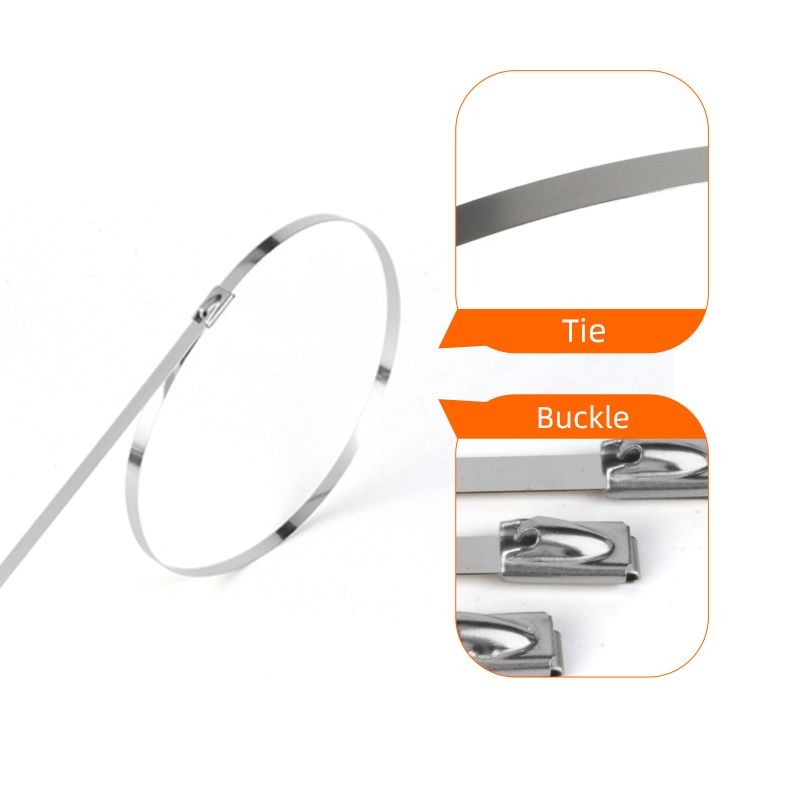

Structure Diagram
Tensile value: Tensile value ≥ 500N.
Working temperature: -25 °C~60 °C.
Product material: The cable tie body is made of 304 or 316 stainless steel, and the surface coating of the main body is PVC.
Product features: Suitable for tying in outdoor, humid, high temperature and other places. The cable has anti-wear, anti-corrosion, radiation resistance and fire resistance properties.
Compliant with IEC92 "Ship Electrical Equipment" and GB113-85.
Technical Parameter
| Model | Width (mm) | Length (mm) | Max. bundle rang (mm) | Thickness of basic tape (mm) |
| YDT-C | 4.6 | 100 | 23 | 0.25 |
| YDT-C | 4.6 | 150 | 38 | 0.25 |
| YDT-C | 4.6 | 200 | 52 | 0.25 |
| YDT-C | 4.6 | 250 | 68 | 0.25 |
| YDT-C | 4.6 | 300 | 84 | 0.25 |
| YDT-C | 4.6 | 460 | 103 | 0.25 |
| YDT-C | 4.6 | 500 | 148 | 0.25 |
| YDT-C | 8 | 150 | 146 | 0.25 |
| YDT-C | 8 | 175 | 48 | 0.25 |
| YDT-C | 8 | 200 | 52 | 0.25 |
| YDT-C | 8 | 250 | 68 | 0.25 |
| YDT-C | 8 | 300 | 84 | 0.25 |
| YDT-C | 8 | 350 | 98 | 0.25 |
| YDT-C | 8 | 400 | 114 | 0.25 |
| YDT-C | 12 | 150 | 38 | 0.25 |
| YDT-C | 12 | 200 | 52 | 0.25 |
| YDT-C | 12 | 300 | 84 | 0.25 |
| YDT-C | 12 | 400 | 116 | 0.25 |
