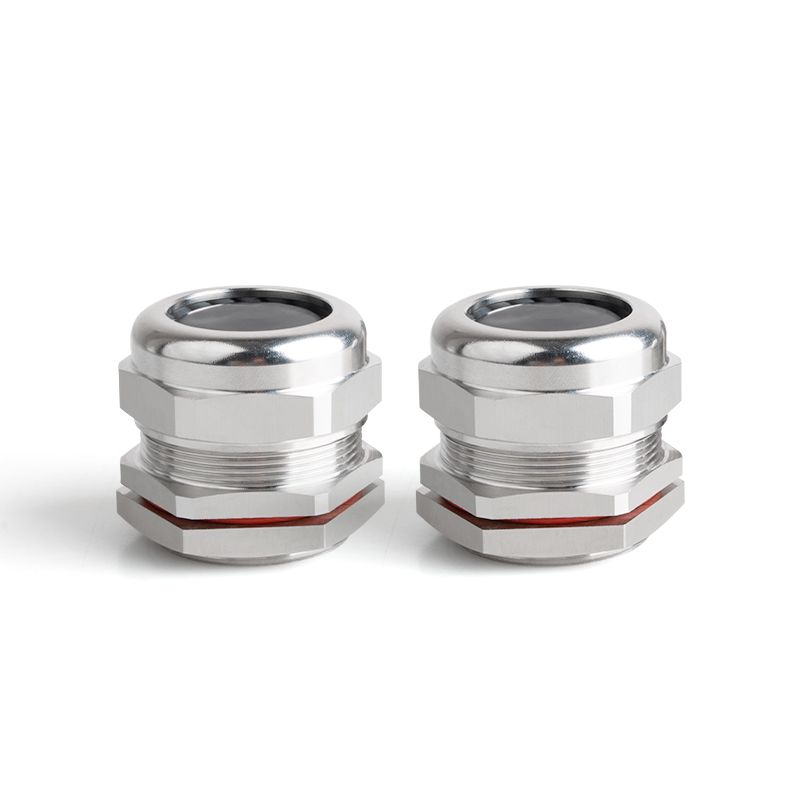

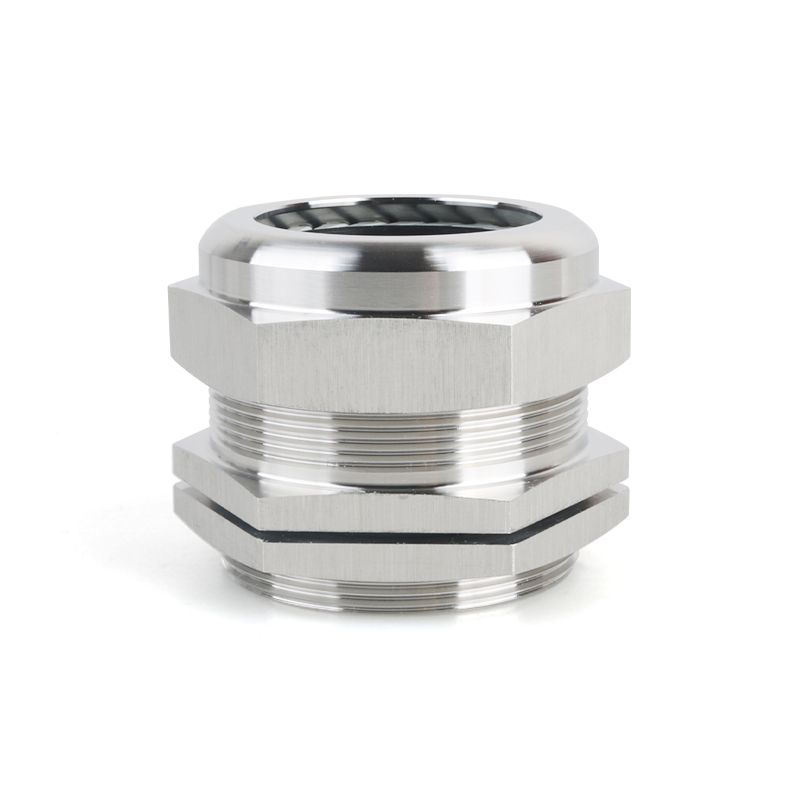

Stainless steel cable sealing sleeve 丨 304/316L NPT types 丨 IP66 IP68 丨 stress relief 丨 wire clamp
Description
As a leading manufacturer and supplier of cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.

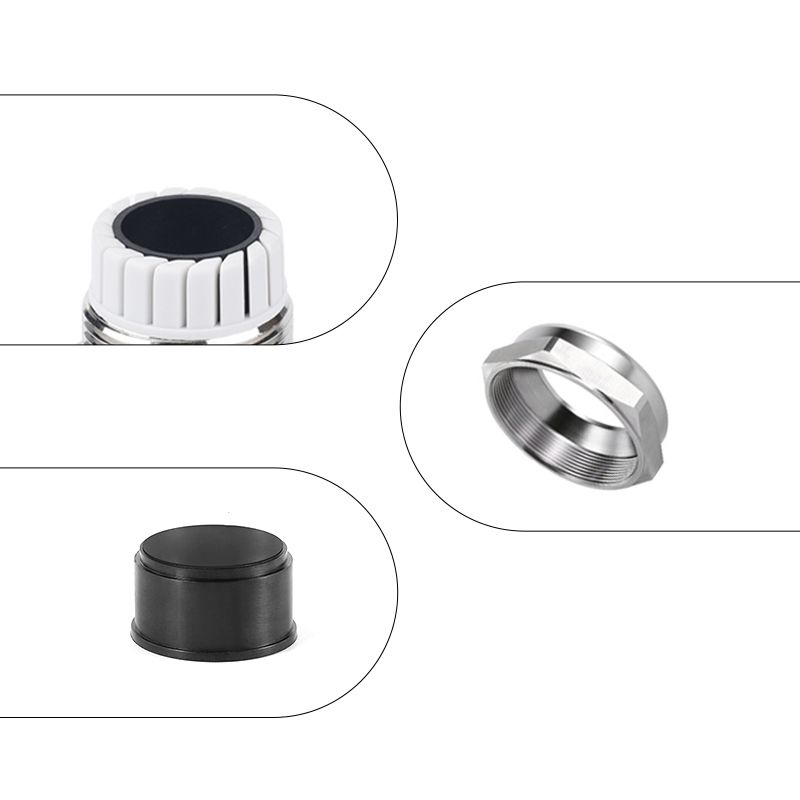

Each YDT cable gland is made of high-quality 304/316L stainless steel
material; The tightening nut, main body, and nut parts are made of
high-quality stainless steel materials; The gripping claws, sealing
rings, and gaskets are made of weather resistant nitrile rubber. This
series of products has a static temperature range of -40 ℃ to 100 ℃ and
an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to 80 ℃,
instantly heat-resistant to 100 ℃. In addition, this type of product is
waterproof, dustproof, salt resistant, acid and alkali resistant,
alcohol, grease, and general solvents.
Our cable gland products include various styles such as standard,
universal, and corner series, with complete specifications and
customizable colors according to customer needs.
Product Specification
| Product Name | Stainless steel cable gland |
| Model | NPT thread series |
| Product Material | Nylon PA66 (body, tightening cap, nut); nitrile rubber (sealing ring, gasket) |
| Temperature range | Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. |
| Product design features | Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Protection level | IP66 IP68 |
| Fire resistance | UL94 V-2 |
| UV resistant | F1 |
| Environmental protection | Compliant with RoHs standards, halogen-free |
| Certificate | CE, RoHS, REACH |
| Cable range | Refer to the specification table for specific size specifications and display diagram |
| Special function available | Extended, anti bending, single hole, multi hole, semi through, straight through |

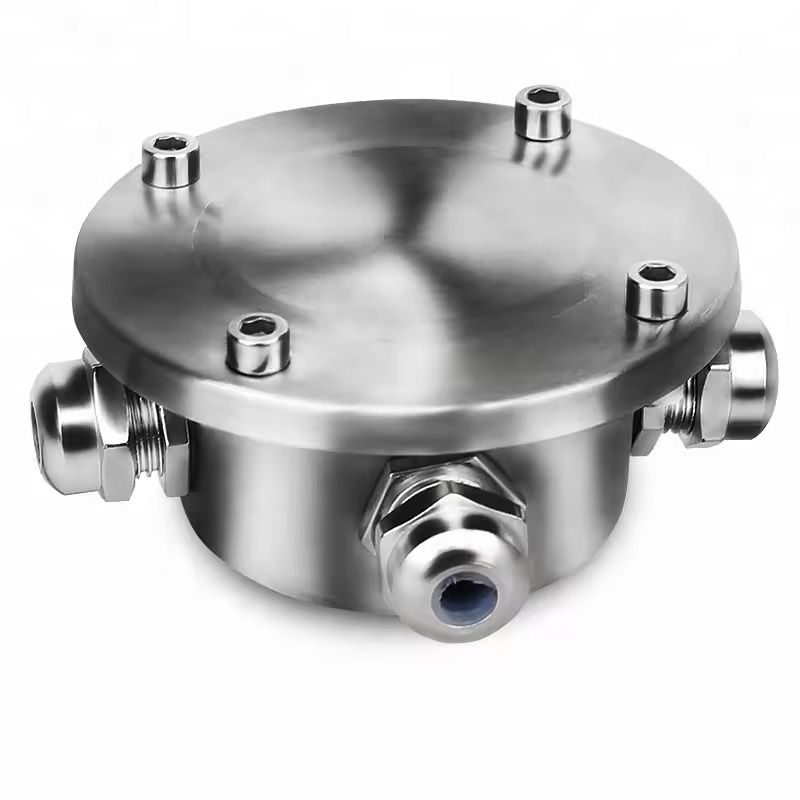

| Application | Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements |
| Machine and equipment manufacturing | |
| Photovoltaic | |
| Automation technology |
Drawings

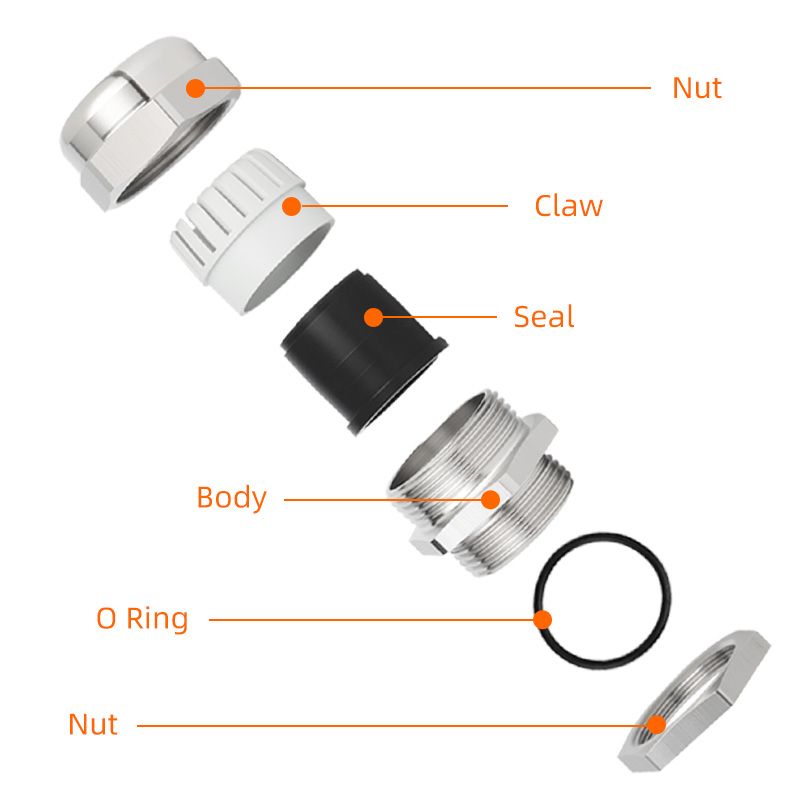

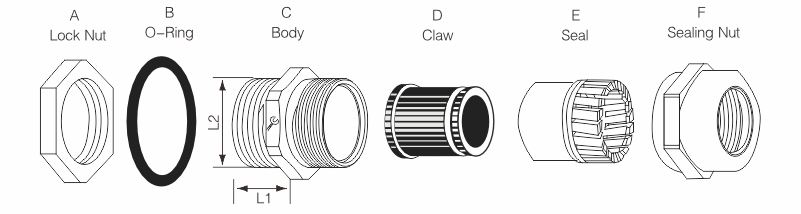

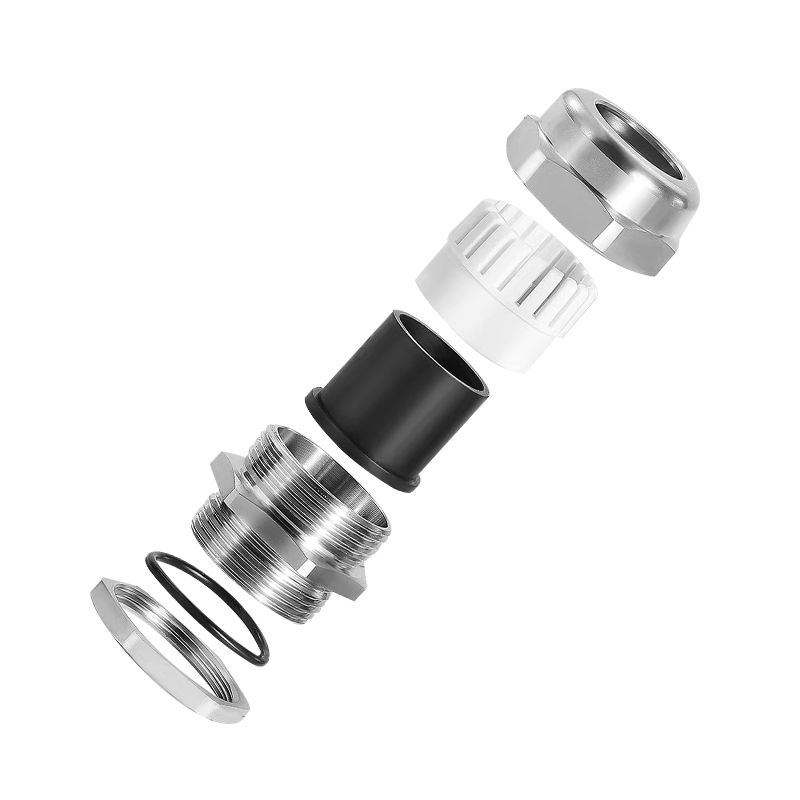

Structure Diagram
NPT Type

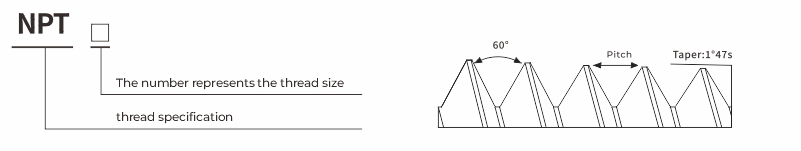

NPT belongs to the American standard taper pipe thread, which can be found in GB/T12716-1991 for North American national standards; The thread angle is 60.
The NPT standard thread size is usually described by two parameters: thread diameter and pitch; Representations such as NPT3/8 ", NPT1/2", NPT3/4", etc.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| BNPT 1/4" | 3~6.5 | 13.6 | 7 | 14 |
| BNPT 1/4" | 1.5~3 | 13.6 | 7 | 14 |
| BNPT 3/8" | 4~8 | 17 | 8 | 18 |
| BNPT 3/8" | 2~6 | 17 | 8 | 18 |
| BNPT 1/2" | 6~12 | 21.2 | 8 | 22 |
| BNPT 1/2" | 5~9 | 21.2 | 8 | 22 |
| BNPT 3/4" | 13~18 | 26.5 | 9 | 30 |
| BNPT 3/4" | 9~16 | 26.5 | 9 | 30 |
| BNPT 1" | 18~25 | 33.2 | 10 | 40 |
| BNPT 1" | 13~20 | 33.2 | 10 | 40 |
| BNPT 1-1/4" | 22~30 | 41.9 | 11 | 45 |
| BNPT 1-1/4" | 20~26 | 41.9 | 11 | 45 |
| BNPT 1-1/4" | 25~33 | 41.9 | 11 | 50/45 |
| BNPT 1-1/4" | 20~26 | 41.9 | 11 | 50/45 |
| BNPT 1-1/2" | 32~38 | 48 | 13 | 57/52 |
| BNPT 1-1/2" | 25~31 | 48 | 13 | 57/52 |
| BNPT 2" | 37~44 | 60 | 14 | 64 |
| BNPT 2" | 29~35 | 60 | 14 | 64 |
| BNPT 2-1/2" | 42~52 | 72.6 | 15 | 78 |
| BNPT 2-1/2" | 32~40 | 72.6 | 15 | 78 |
| BNPT 3" | 65~70 | 88.6 | 15 | 94 |
| BNPT 3" | 55~60 | 88.6 | 15 | 94 |
