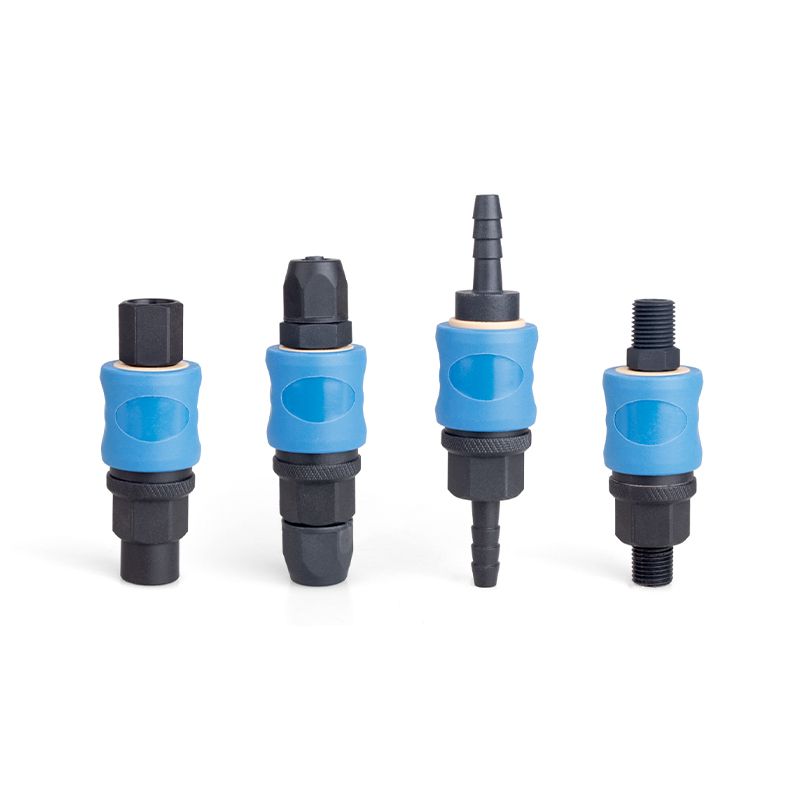

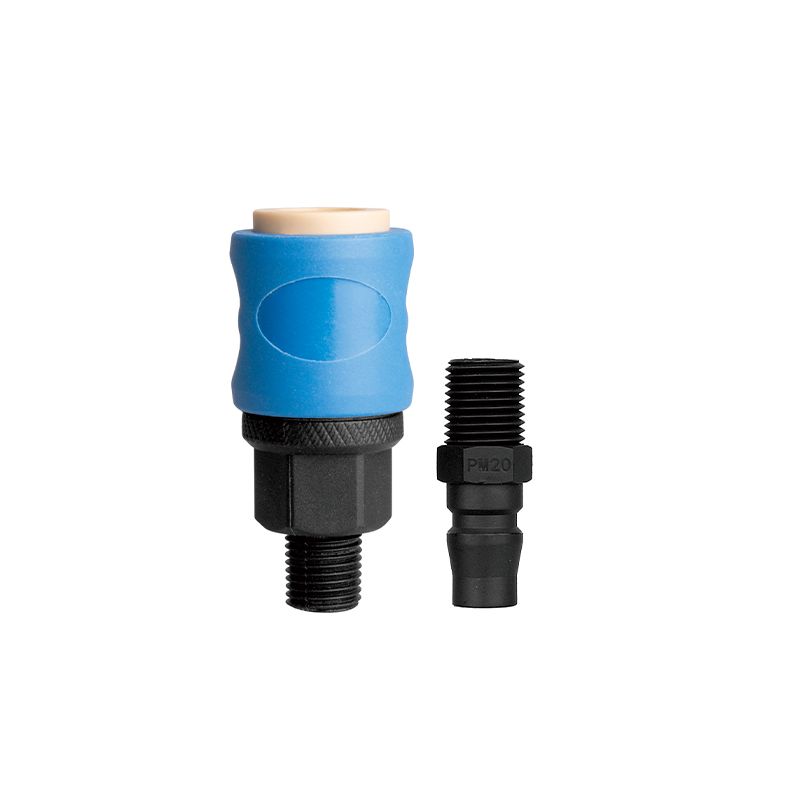

Pneumatic quick connector I Plastic steel I Self-locking I SP/SF/SH/SM type

Description

As a leading manufacturer and supplier of electrical components, YDT is committed to providing high-quality products and services to enterprises in various industries.

Each YDT pneumatic product and various accessories are made of high-quality new materials; This series of products is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.

All of our series of pneumatic products can be customized according to customer needs. We look forward to your cooperation.

Get Instant Quote Next Product

Product Specification

Product Name	Plastic steel self-locking joint

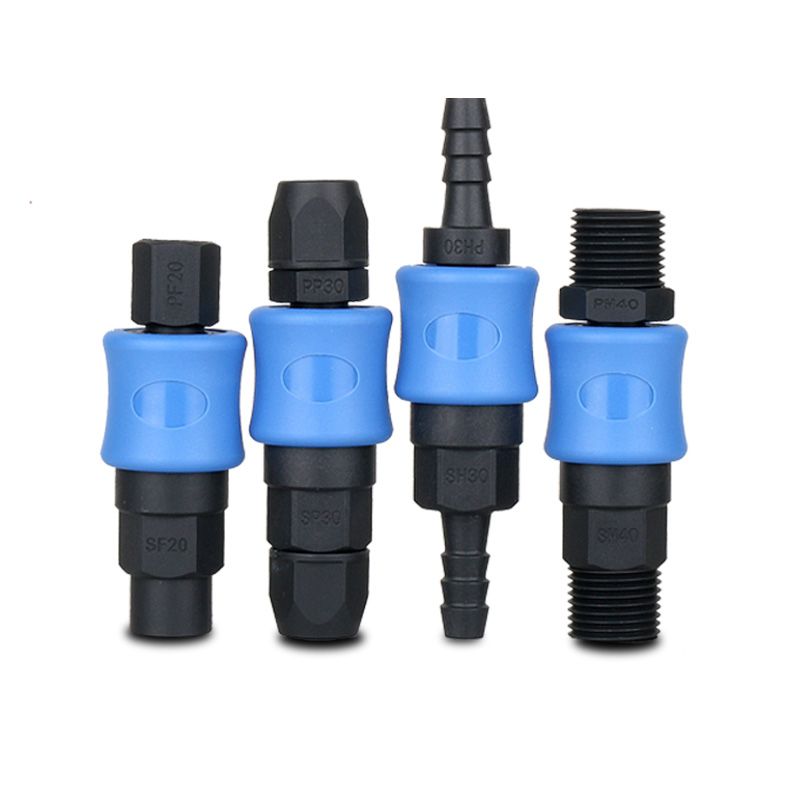

model	SP type/SF type/SH type/SM type
Product Material	The plastic parts are made of nylon PA66. The spring and steel ball are made of stainless steel material.
temperature range	-35 ℃ to 60 ℃, instantaneous heat resistance to 120 ℃
Product design features	The mother head is integrally formed, with a double-layer stepped leak proof design.
Pressure resistance	The maximum pressure resistance of industrial grade can reach 2.0Mpa.
Specification and size	Specific dimensions should refer to the dimension specification diagram

Drawings

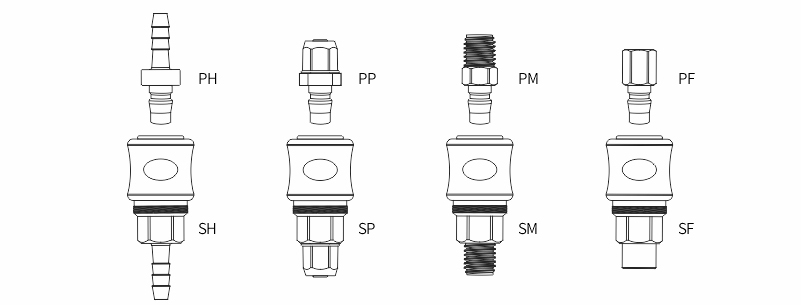

Structure Diagram

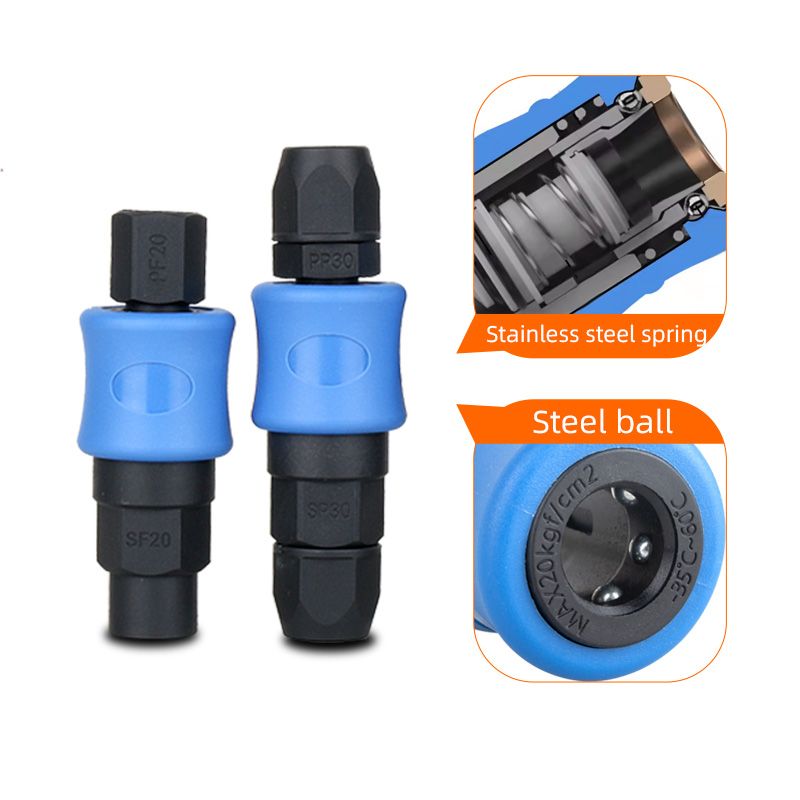

Product Material: The plastic parts are made of nylon PA66. The spring and steel ball are made of stainless steel material.

Working Temperature: -35°C to 60°C, instantaneous heat resistance up to 120°C.

Product Features: The female head is integrally formed, with a double-layer stepped leak proof design.

Pressure Resistance: The maximum pressure resistance of industrial grade can reach 2.0Mpa.

Technical Parameter

Model	Applicable size	Packaging quantity
SM20+PM20	External thread: British G1/4	45.5 * 32 * 35cm 200 pieces/box
SM30+PM30	External thread: British G3/8	45.5 * 32 * 35cm 200 pieces/box
SM40+PM40	External thread: British G1/2	45.5 * 32 * 35cm 200 pieces/box

Model	Applicable size	Packaging quantity

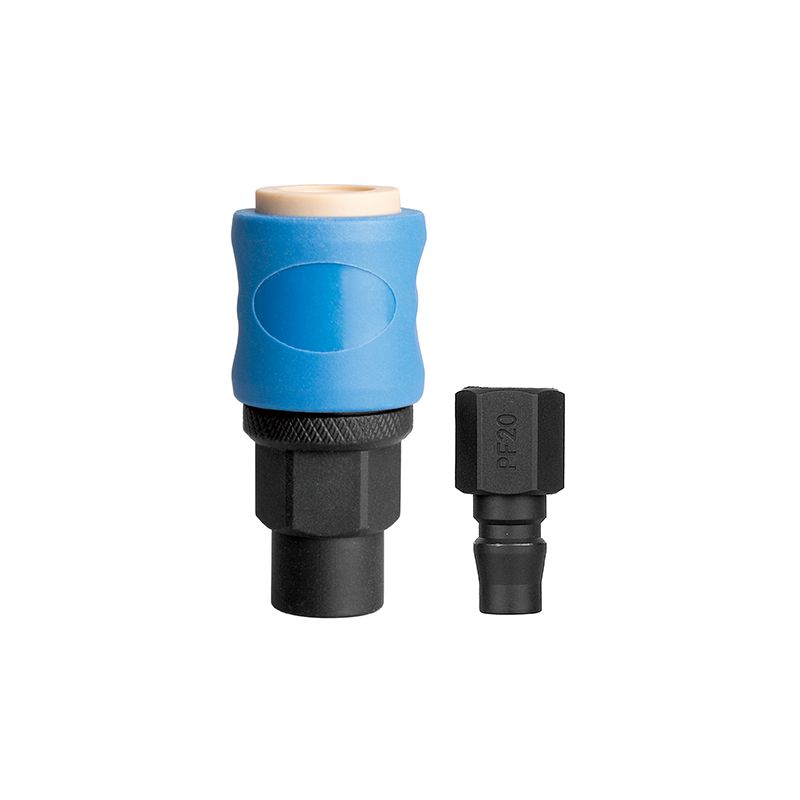

SF20+PF20	Internal thread: British G1/4	45.5 * 32 * 35cm 200 pieces/box
SF30+PF30	Internal thread: British G3/8	45.5 * 32 * 35cm 200 pieces/box
SF40+PF40	Internal thread: British G1/2	45.5 * 32 * 35cm 200 pieces/box

Model	Applicable size	Packaging quantity

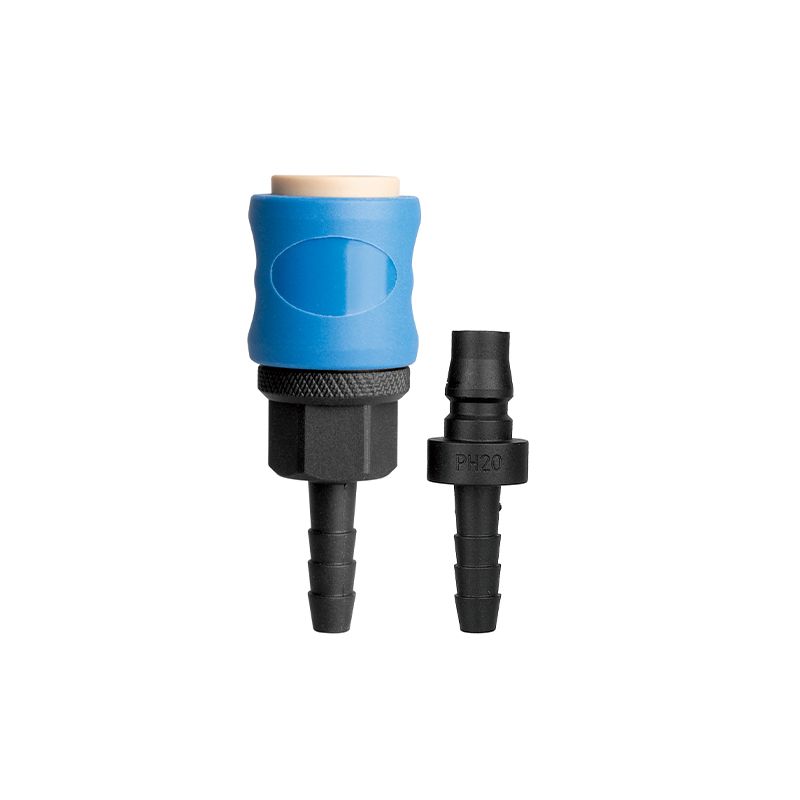

SH20+PH20	Inner diameter: 8-9	45.5 * 32 * 35cm 200 pieces/box
SH30+PH30	Inner diameter: 10-11	45.5 * 32 * 35cm 200 pieces/box
SH40+PH40	Inner diameter: 12-13mm	45.5 * 32 * 35cm 200 pieces/box

Model	Applicable size	Packaging quantity

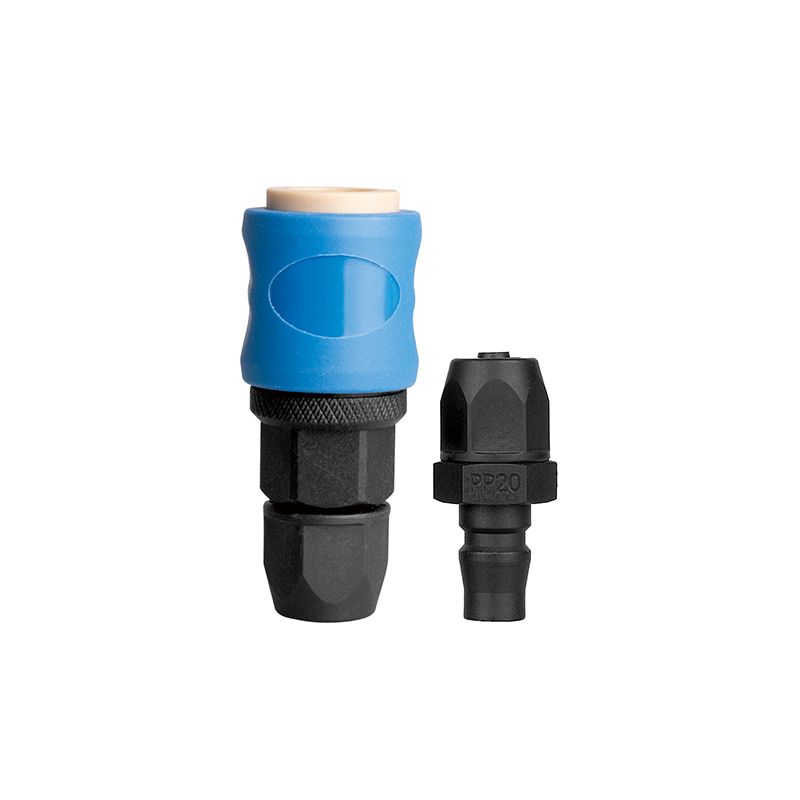

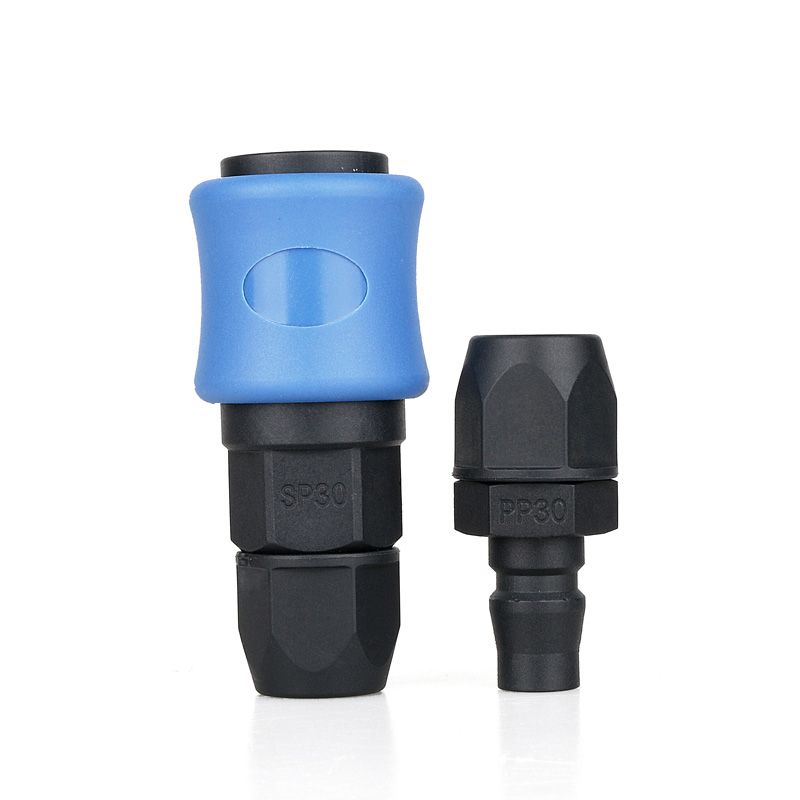

SP20+PP20	8mm (outer diameter)+5mm (inner diameter) 10mm	45.5 * 32 * 35cm 200 pieces/box
SP30+PP30	(outer diameter)+6.5mm (inner diameter) 12mm	45.5 * 32 * 35cm 200 pieces/box
SP40+PP40	(Outer diameter)+8mm (Inner diameter)	45.5 * 32 * 35cm 200 pieces/box
