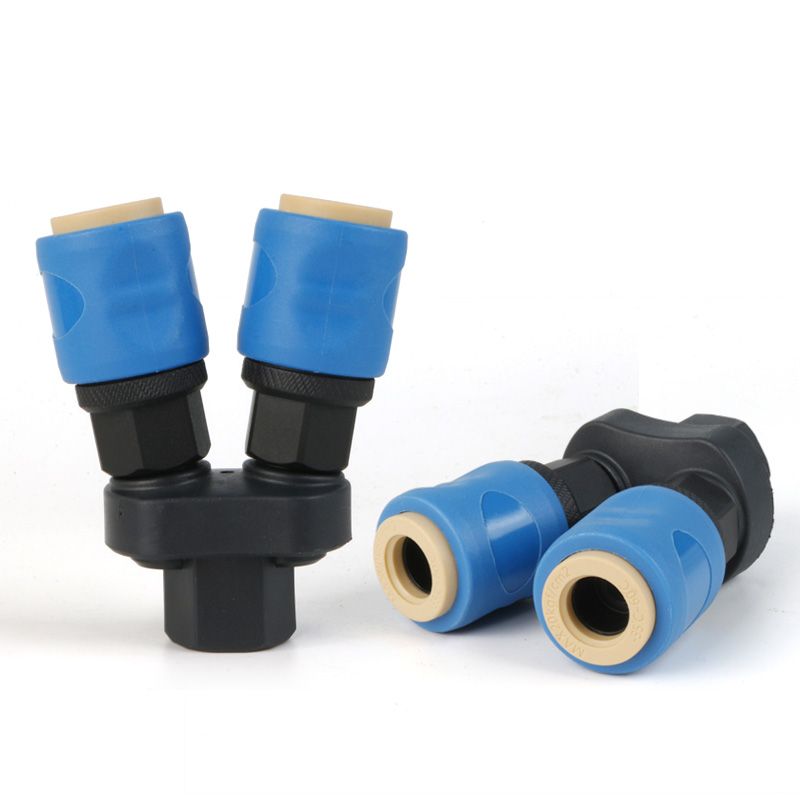

Multi head plastic steel pneumatic self-locking quick connector 丨 Full range of specifications two-way/three-way type

Multi head plastic steel pneumatic self-locking quick connector 丨 Full range of specifications two-way/three-way type

Description

As a leading manufacturer and supplier of electrical components, YDT is committed to providing high-quality products and services to enterprises in various industries.

Each YDT pneumatic product and various accessories are made of high-quality new materials; This series of products is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.

All of our series of pneumatic products can be customized according to customer needs. We look forward to your cooperation.

Get Instant Quote

Product Specification

Product Name	Plastic steel self-locking joint
model	two-way/three-way type

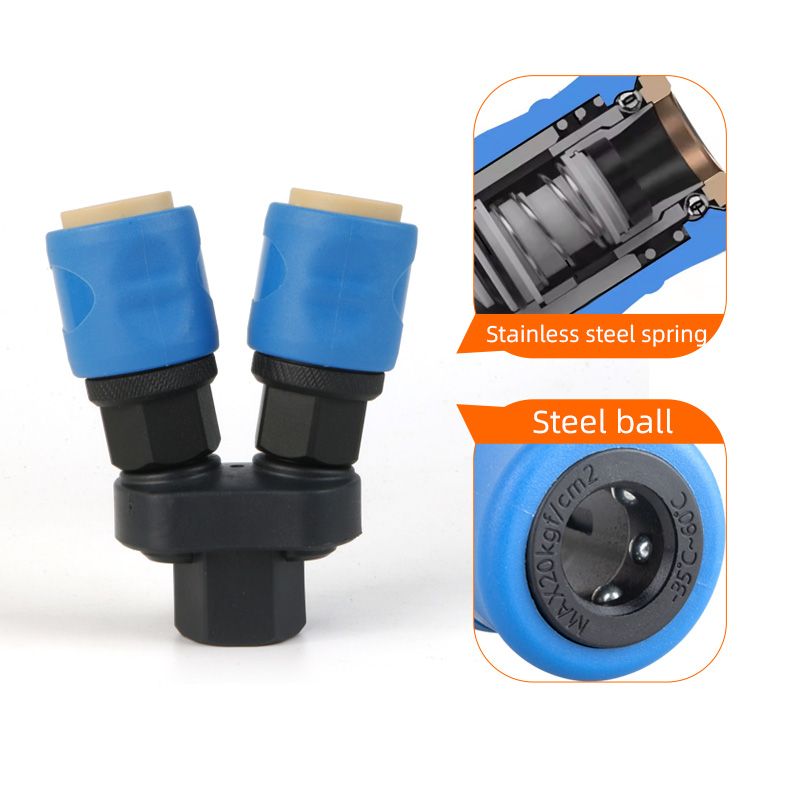

Product Material	The plastic parts are made of nylon PA66. The spring and steel ball are made of stainless steel material.
temperature range	-35 ℃ to 60 ℃, instantaneous heat resistance to 120 ℃.
Product design features	Integrated and versatile, capable of inserting two/three pipes or male heads, with high adaptability.
Pressure resistance	The maximum pressure resistance of industrial grade can reach 2.0Mpa.
Specification and size	Specific dimensions should refer to the dimension specification diagram

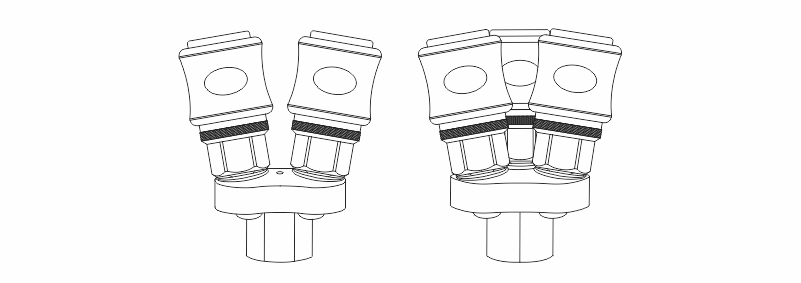

Drawings

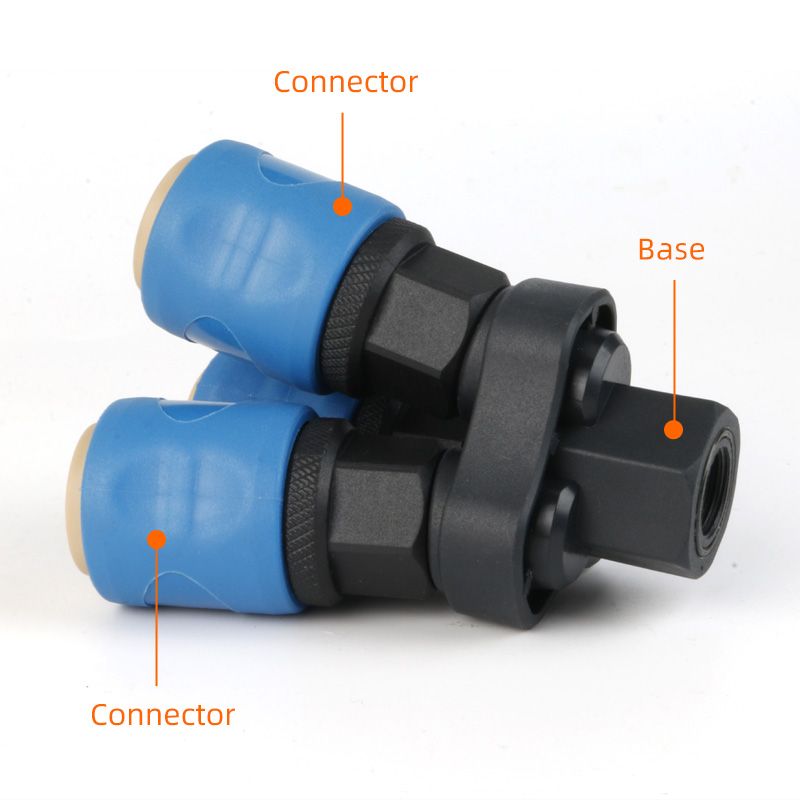

Structure Diagram

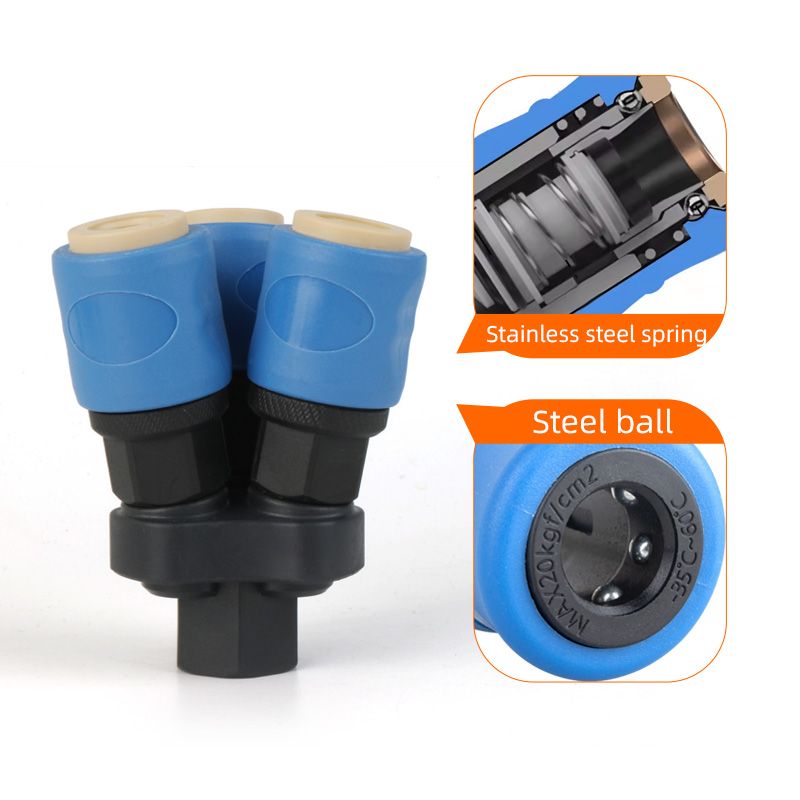

Product Material: The plastic parts are made of nylon PA66. The spring and steel ball are made of stainless steel material.

Working Temperature: -35°C to 60°C, instantaneous heat resistance up to 120°C.

Product Features: Integrated and versatile, capable of inserting two/three pipes or male heads, with high adaptability.

Pressure Resistance: The maximum pressure resistance of industrial grade can reach 2.0Mpa.

Technical Parameter

Model	Applicable size	Packaging quantity
Two way 1/4 inner wire	Installation bottom hole: British G1/4	200 pieces/box
Two way 1/2 outer wire	Installation bottom hole: British G1/2	200 pieces/box

Model	Applicable size	Packaging quantity
Three way 1/4 inner wire	Installation bottom hole: British G1/4	200 pieces/box
Three way 1/2 outer wire	Installation bottom hole: British G1/2	200 pieces/box
