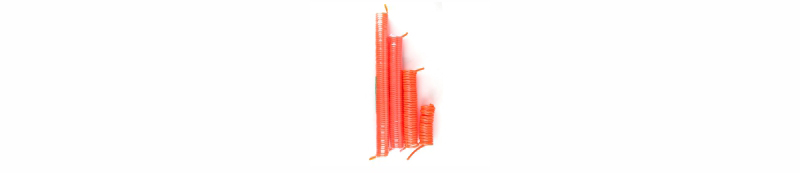

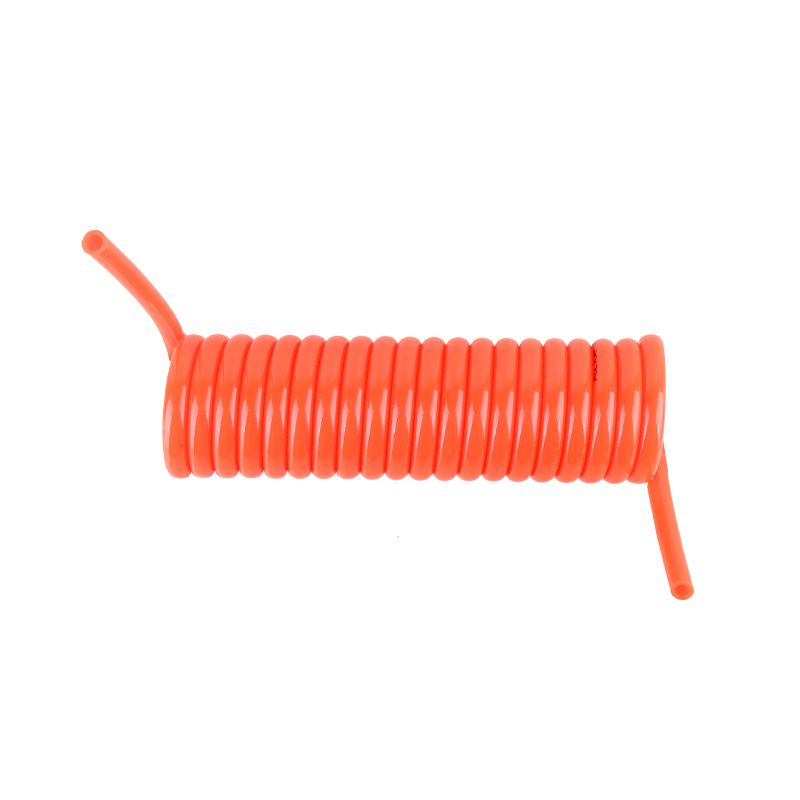

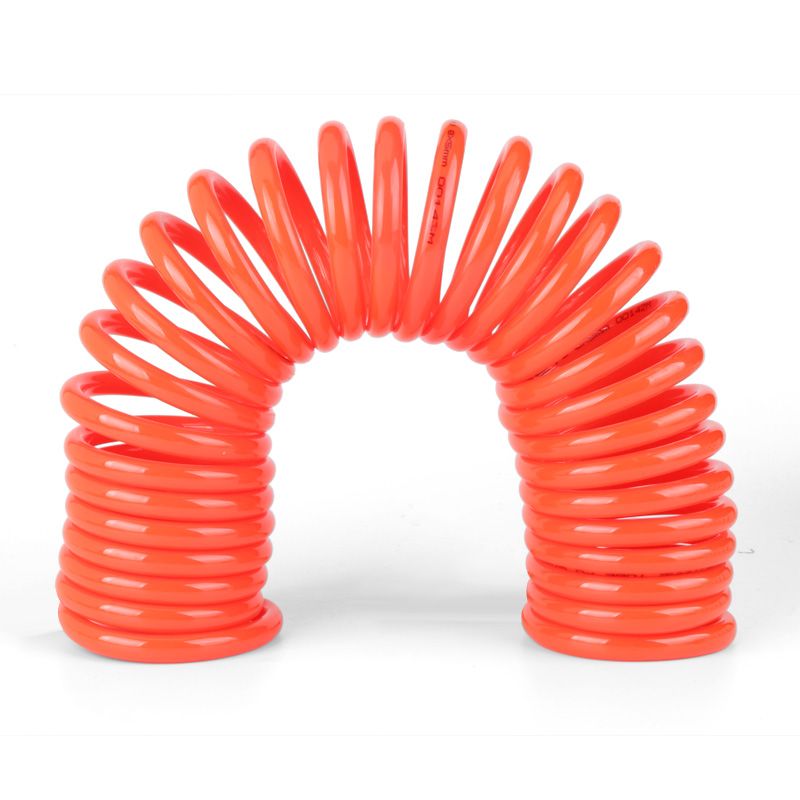

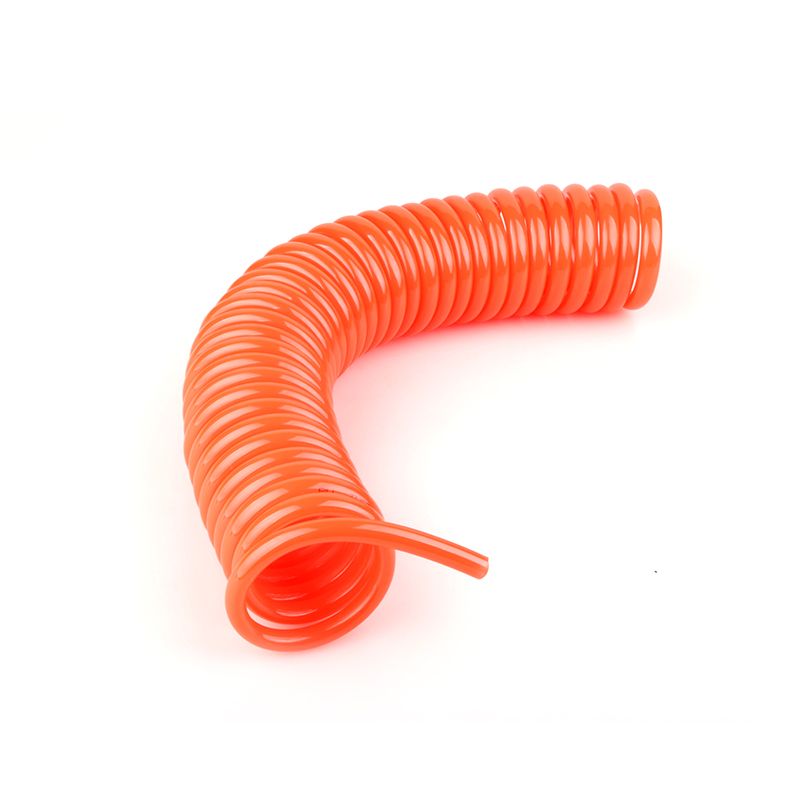

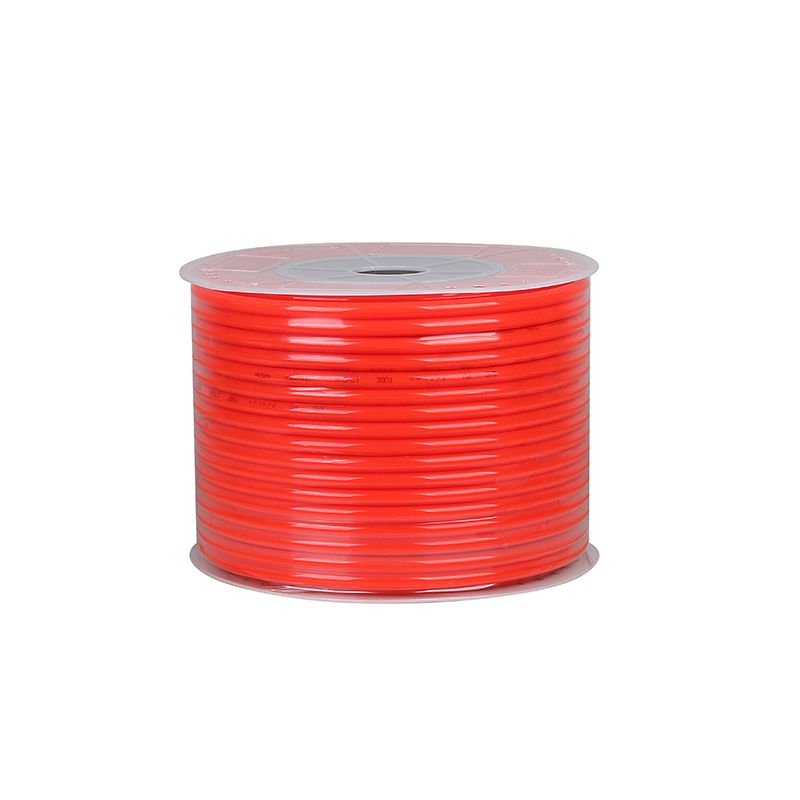

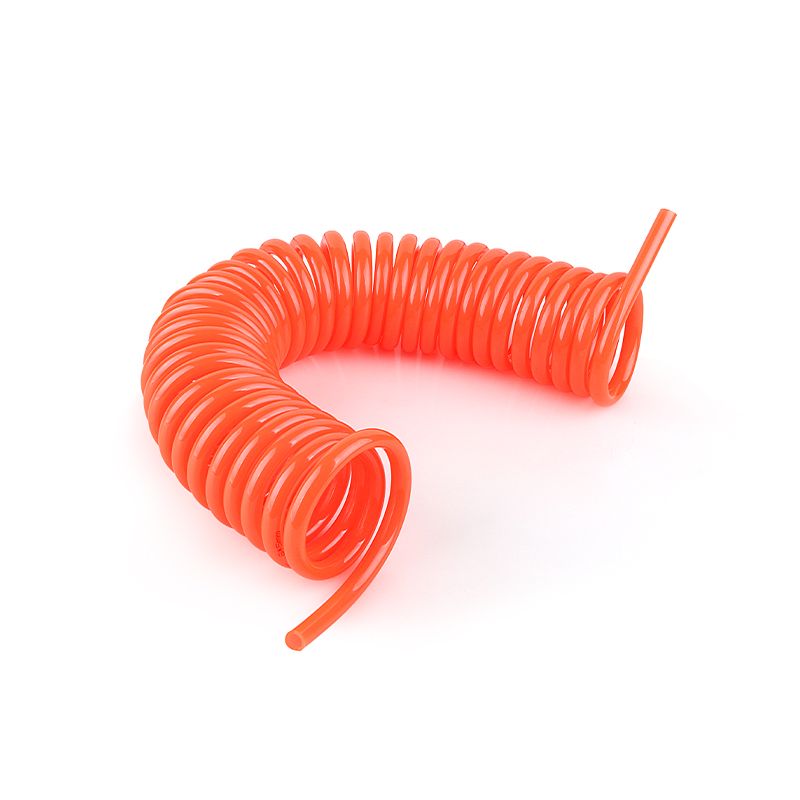

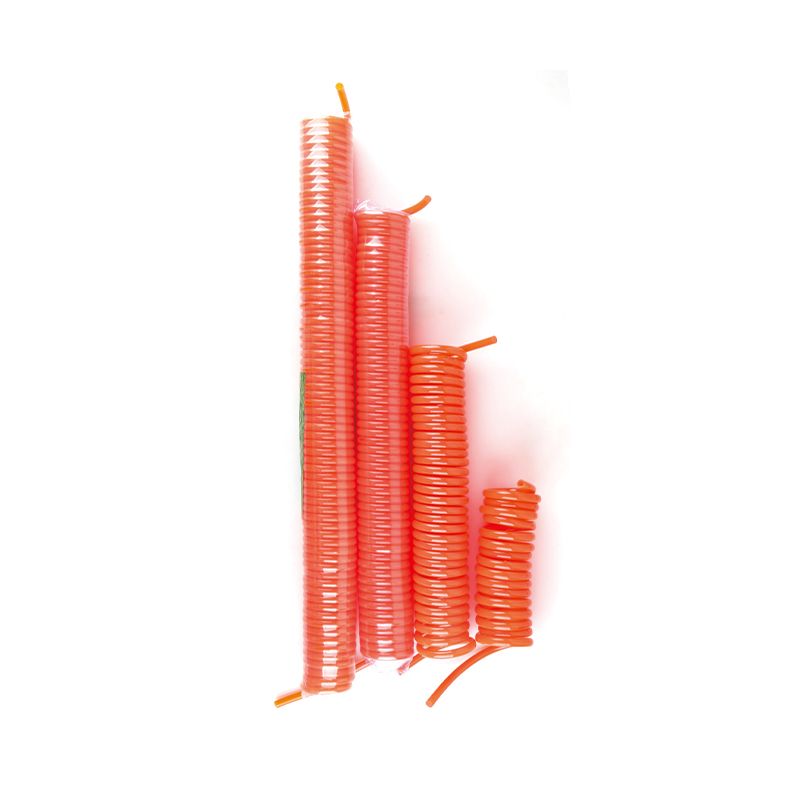

PU spring air tube, pneumatic tubing hose 丨 supports size customization
Description
As a leading manufacturer and supplier of electrical components, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT pneumatic product and various accessories are made of high-quality new materials; This series of products is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
All of our series of pneumatic products can be customized according to customer needs. We look forward to your cooperation.
Product Specification
| Product Name | PU spring tracheal hose |
| Product Material | Using PU material |
| Product design features | Soft and anti explosion, can be connected to pneumatic joints, with high adaptability. |
| working pressure | 10KG |
| Wear resistance strength | 30MG-40MG |
| Specification and size | Specific dimensions should refer to the dimension specification diagram |
Drawings
Structure Diagram
Product Material: Made of PU material.
Working Temperature: -35°C to 60°C.
Product Features: Soft and anti explosion, can be connected to pneumatic joints, high adaptability.
Work Pressure: 10KG.
Wear Resistance Strength: 30MG-40MG.
Technical Parameter
| Model | Outer Diameter D (mm) | Inner Diameter d (mm) | Wall Thickness | Length | Minimum Bend Radius |
| 0604 | 6 | 4 | 1.7 | 3-15 | 15 |
| 0805 | 8 | 5 | 1.7 | 3-25 | 25 |
| 1065 | 10 | 6.5 | 1.7 | 3-25 | 30 |
| 1208 | 12 | 8 | 1.7 | 3-25 | 35 |
| 1410 | 14 | 10 | 1.7 | 5-15 | 55 |
| 1612 | 16 | 12 | 1.7 | 5-15 | 65 |
