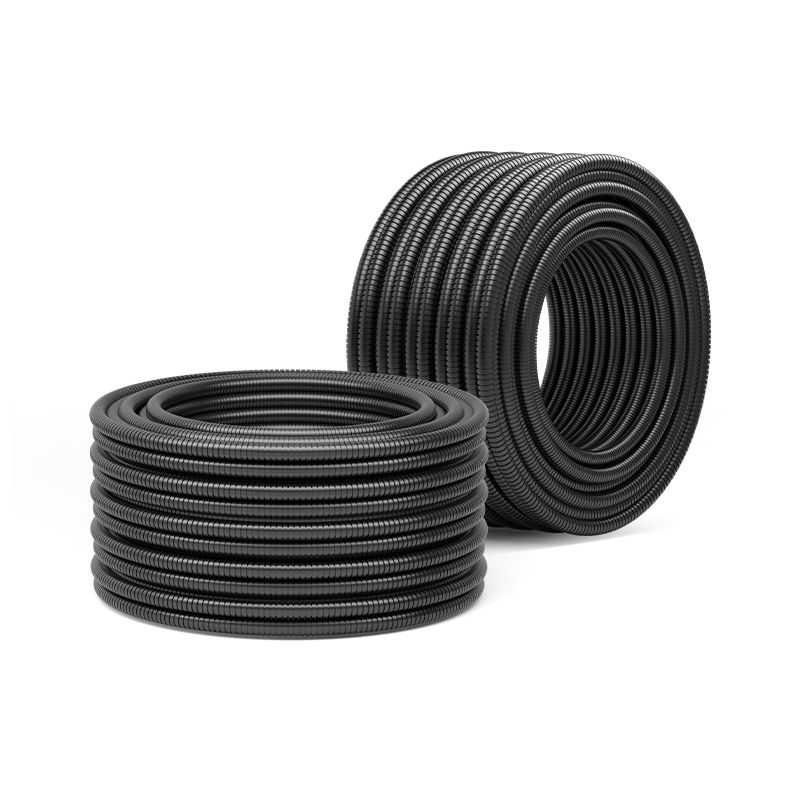

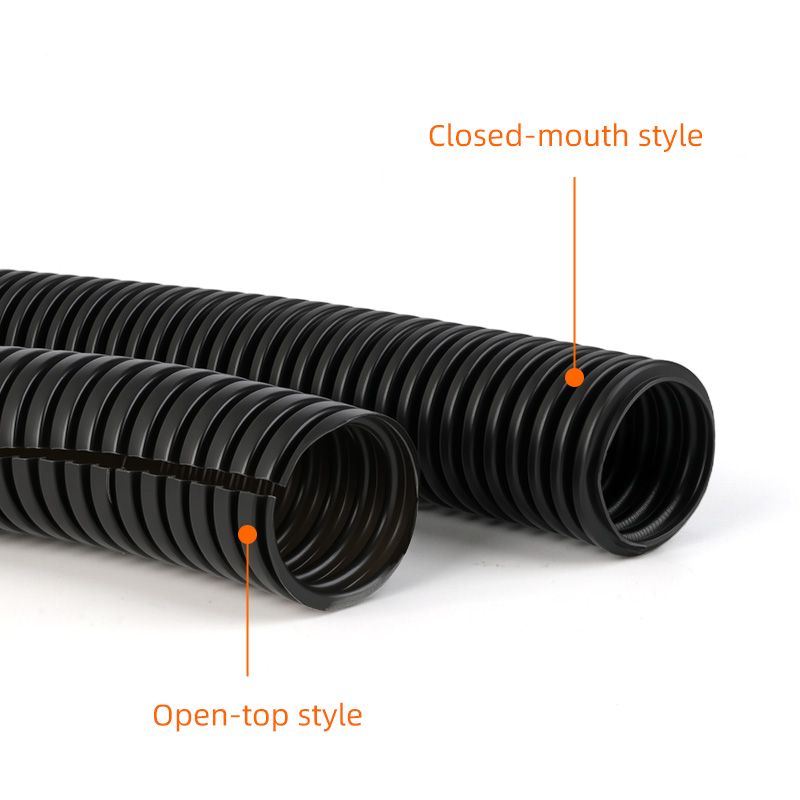

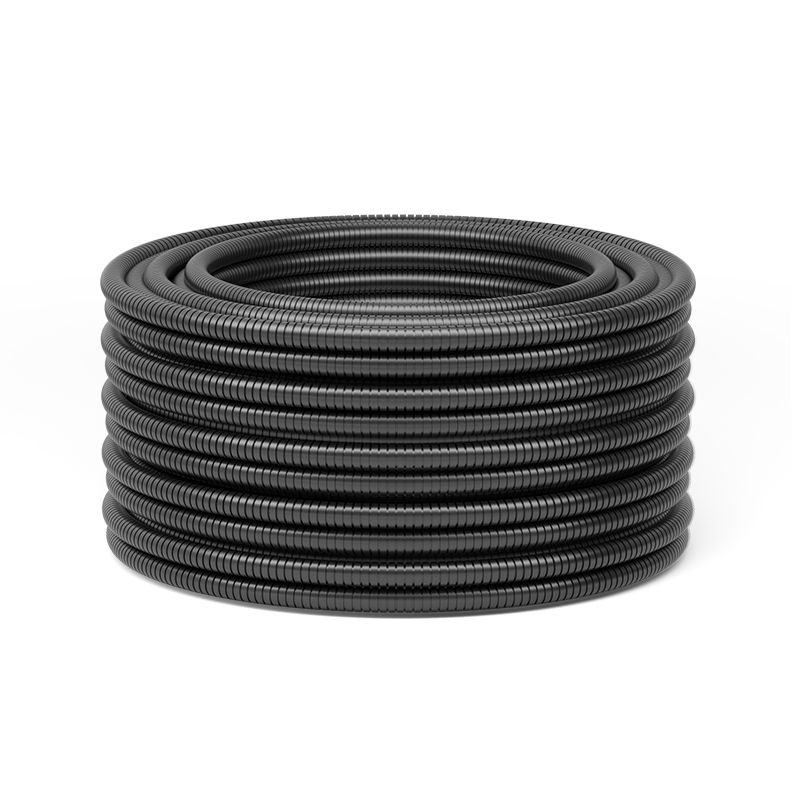

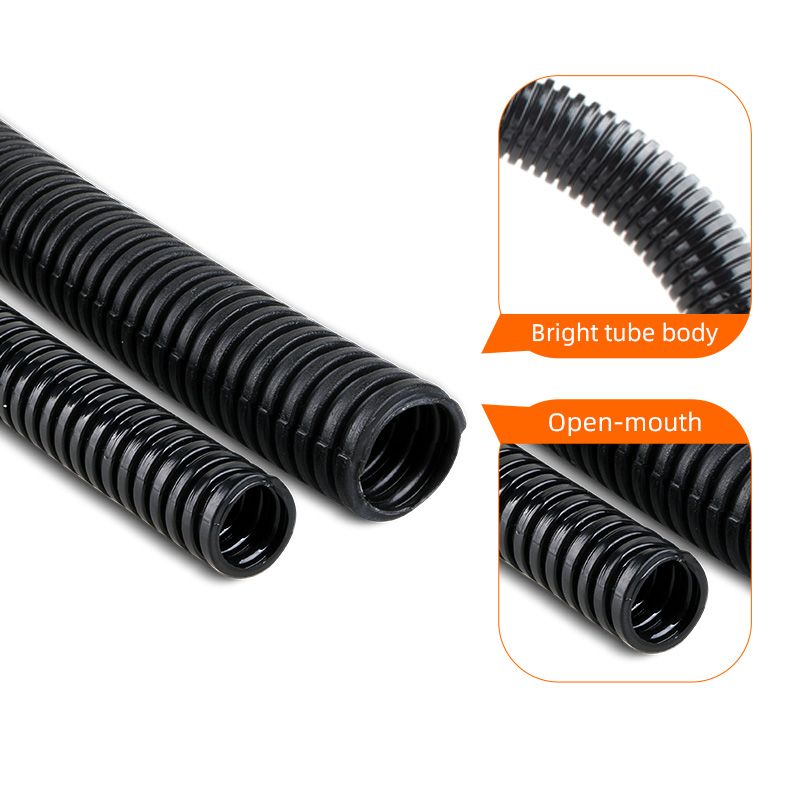

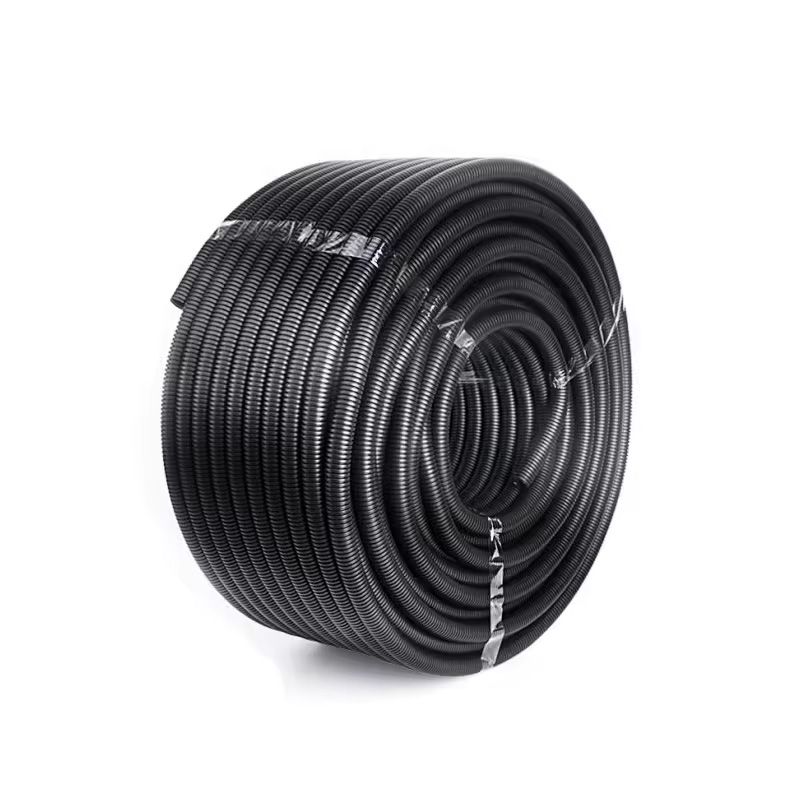

PP flame- retardant flexible conduit
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new

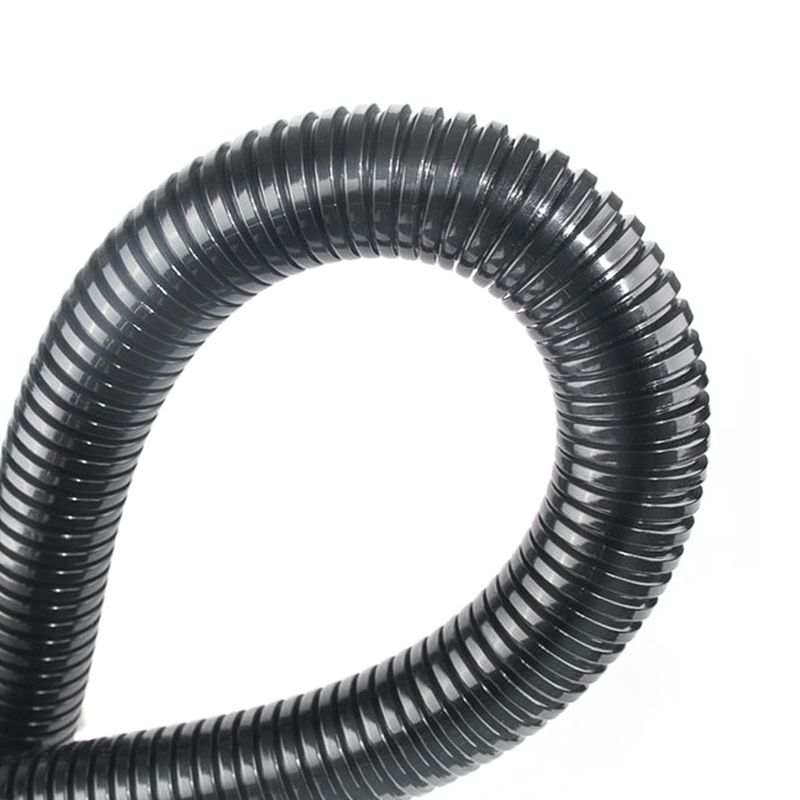

material; This series has good flexibility, good bending performance,
can withstand heavy loads, has a glossy surface, and is resistant to
friction.
Our nylon hose products and the entire series of supporting products can be customized according to customer needs.
Product Specification
| Product Name | PP series flame-retardant polypropylene hose |
| Product Material | PP polypropylene |
| working temperature | .-30 ℃~100 ℃, can reach+110℃ in a short period of time. |
| product mix | Both the interior and exterior are wavy. |

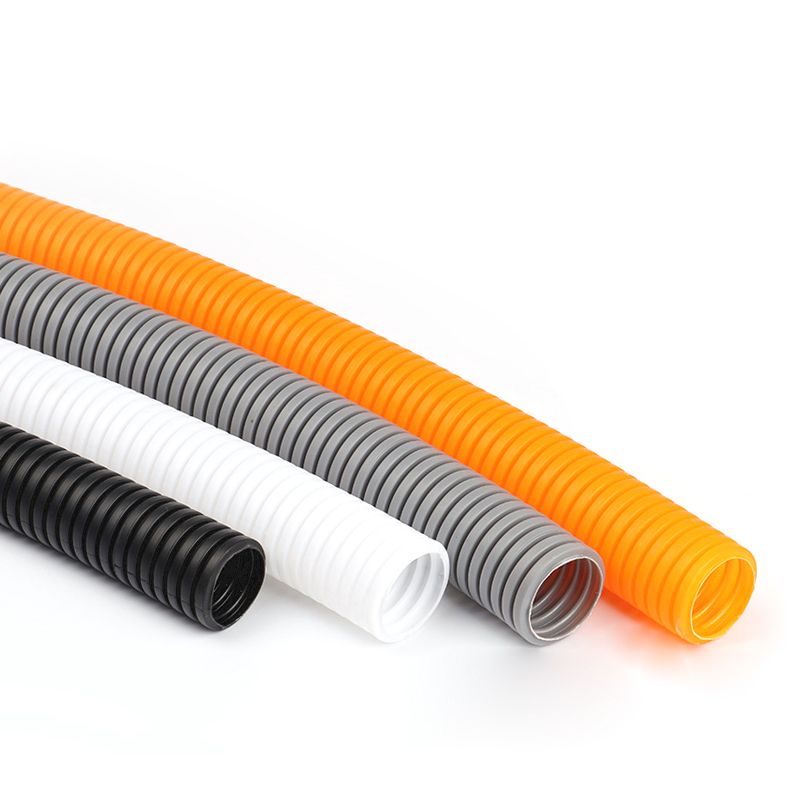

| Product color | Black, other colors can be customized according to customer requirements (can be opened as needed). |
| Scope of Supply | Flame retardant, FV-0 |
| Product certification | National Chemical Building Materials Quality Supervision: GB/T14828.4-1993. |
| Product Features | Good flexibility, glossy surface, and chemical corrosion resistance. |
| application area | Industries such as mechanical manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automation control, etc. |
| usage method | Insert the wires and cables into the tube, and then use the corresponding models of YDT: SM-G, SM, SM-F series hose connectors. |
| Scope selection | Specific dimensions should refer to the dimension specification diagram |
Drawings

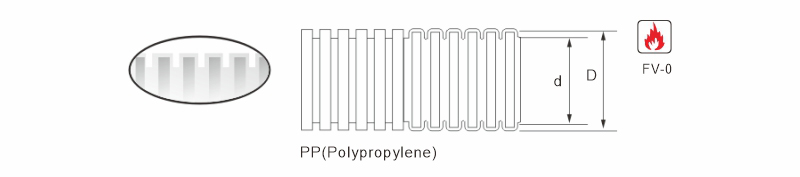

Structure Diagram
Product material: PP polypropylene.
Working temperature: -30 °C~+100 °C, can reach+110 °C in a short time.
Product structure: Both the interior and exterior are wavy.
Product color: Black (can be opened as needed).
Supply scope: flame retardant, FV-0.
Product certification: National Chemical Building Materials Quality Supervision; GB/T14828.4-1993.
Product features: Good flexibility, glossy surface, chemical corrosion resistance.
Application areas: Mechanical manufacturing, electrical insulation protection, lighting equipment, automotive manufacturing, aviation equipment, subway, train, automation control and other industries.
Usage: Insert the wires and cables into the tube, and then use the corresponding models of YDT-SM-G, SM-G, SM-F series hose connectors.
Technical Parameter
| Model | Specification Of Flexible Pipe | Inner Diameter d (mm) | Outer Diameter D (mm) | Curved Radius (mm) | Packing (m) |
| YDT-PP-7.0 | AD7.0 | 5.00 | 7.00 | 10 | 200 |
| YDT-PP-8.0 | AD8.0 | 6.00 | 8.00 | 12 | 200 |
| YDT-PP-10.0 | AD10.0 1/4" | 6.50 | 10.0 | 16 | 100 |
| YDT-PP-11.6 | AD11.6 | 8.00 | 11.6 | 16 | 100 |
| YDT-PP-13.0 | AD13.0 5/16" | 10.0 | 13.0 | 20 | 100 |
| YDT-PP-15.8 | AD15.8 3/8" | 12.0 | 15.8 | 30 | 100 |
| YDT-PP-18.5 | AD18.5 | 14.3 | 18.5 | 40 | 100 |
| YDT-PP-21.2 | AD21.2 1/2" | 17.0 | 21.2 | 45 | 100 |
| YDT-PP-25.0 | AD25.0 | 20.0 | 25.0 | 45 | 50 |
| YDT-PP-28.5 | AD28.5 3/4" | 23.0 | 28.5 | 50 | 50 |
| YDT-PP-34.5 | AD34.5 1" | 29.0 | 35.0 | 60 | 50 |
| YDT-PP-42.5 | AD42.5 11/2" | 36.0 | 42.0 | 70 | 25 |
| YDT-PP-54.5 | AD54.5 2" | 48.0 | 54.5 | 90 | 25 |
| YDT-PP-67.2 | AD67.2 21/2" | 56.0 | 53.0 | 130 | 20 |
| YDT-PP-80.0 | AD80.0 3" | 69.0 | 80.0 | 170 | 20 |
| YDT-PP-106.0 | AD106.0 4" | 91.0 | 106 | 225 | 20 |
