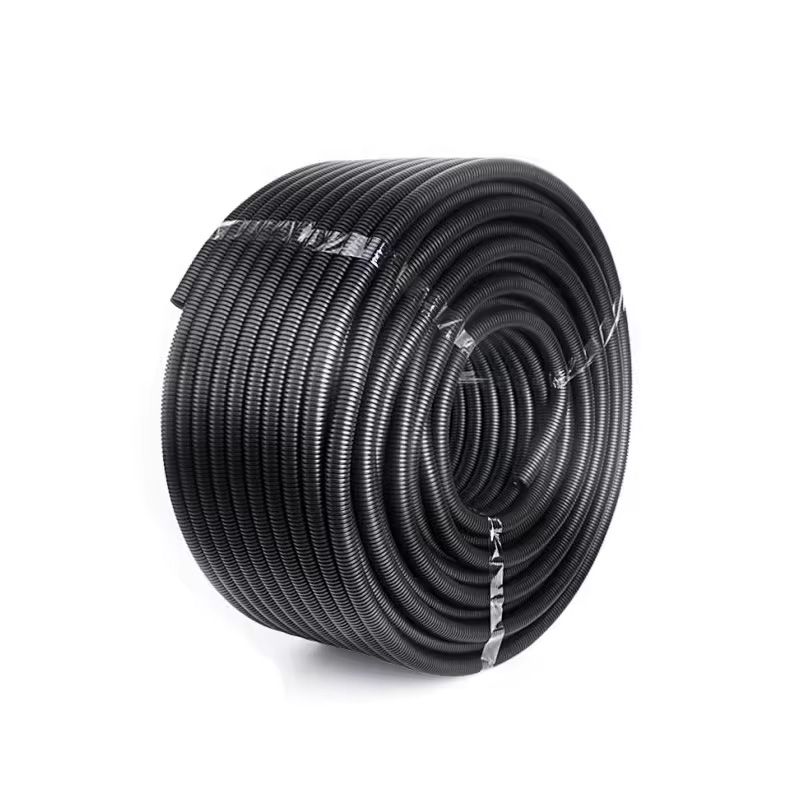

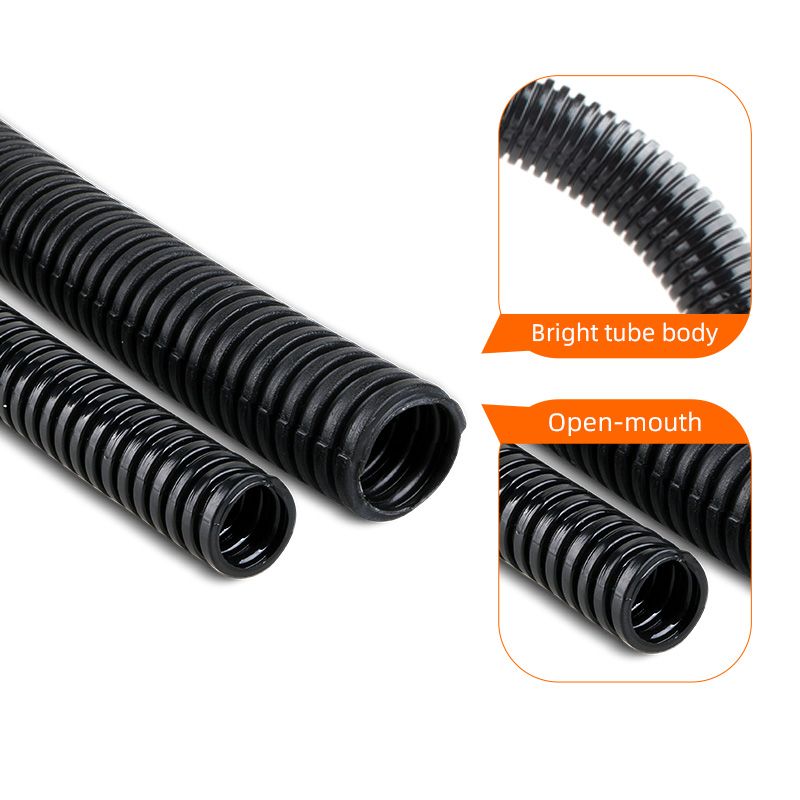

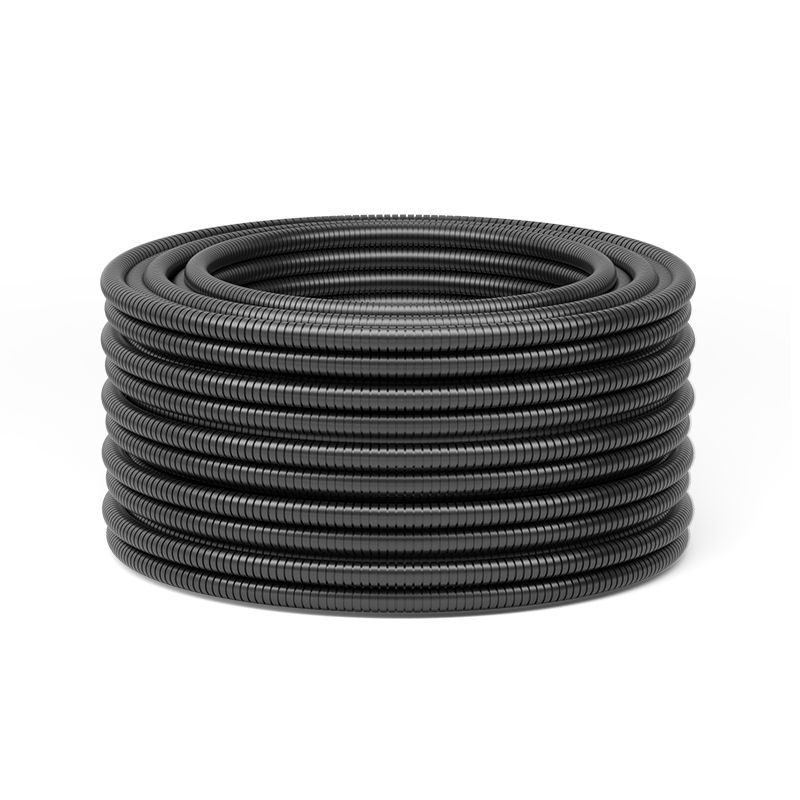

PE flexible conduit
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new

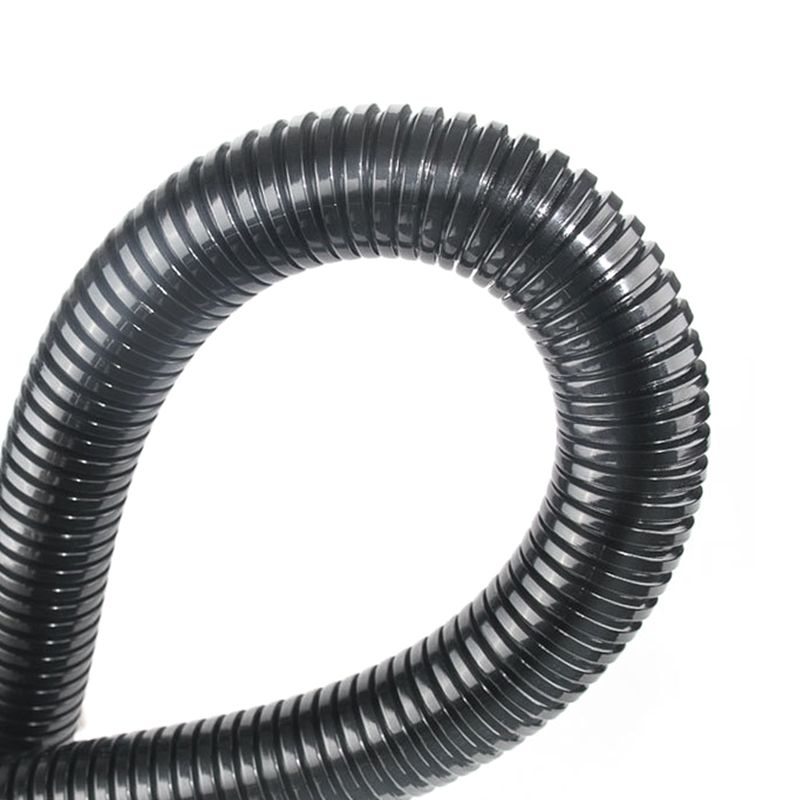

material; This series has good flexibility, good bending performance,
can withstand heavy loads, has a glossy surface, and is resistant to
friction.
Our nylon hose products and the entire series of supporting products can be customized according to customer needs.
Product Specification
| Product Name | PE series polyolefin hose |
| Product Material | PE Polyethylene |
| working temperature | -30 ° C~100 ° C, can reach+120 ° C in a short period of time. |
| product mix | Both the interior and exterior are wavy. |
| Product color | Black, other colors can be customized according to customer requirements (can be opened as needed). |
| Product Features | Good flexibility, good bending performance, able to withstand heavy loads, acid resistant, lubricating oil, coolant, etc., with a glossy surface and friction resistance. |
| carrying capacity | Can withstand the heavy pressure of foot pressure, does not break or deform, can quickly recover, and has no damage to itself. |
| application area | Can be used in machine tools, electrical equipment, food machinery, automation instruments, motors, to protect cables and wires from external wear and insulation. |
| usage method | Insert the wires and cables into the tube, and then use the corresponding models of YDT: SM-G, SM, SM-F series hose connectors. |
| Scope selection | Specific dimensions should refer to the dimension specification diagram |
Drawings

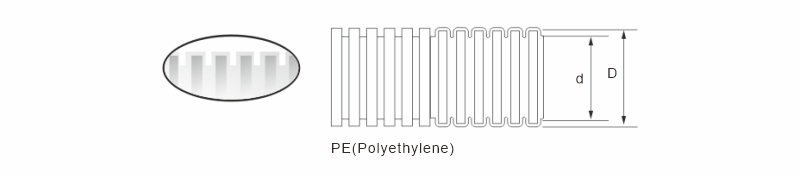

Structure Diagram
Product material: PE polyethylene.
Working temperature: -30 °C~+100 °C, can reach+120 °C in a short time.
Product structure: Both the interior and exterior are wavy.
Product color: Black, other colors can be customized according to customer requirements (can be opened as needed).
Product features: Good flexibility, glossy surface, chemical corrosion resistance.
Bearing capacity: It can withstand the heavy pressure of foot pressure without breaking or deforming, can quickly recover, and has no damage to itself.
Application areas: Can be used in machine tool machinery, power equipment, food machinery, automation instruments, motors, to protect cables and wires from external wear and insulation.
Usage: Insert the wires and cables into the tube, and then use the corresponding models of YDT: SM-G, SM-G, SM-F series hose connectors.
Technical Parameter
| Model | Specification Of Flexible Pipe | Inner Diameter d (mm) | Outer Diameter D (mm) | Curved Radius (mm) | Packing (m) |
| YDT-PE-7.0 | AD7.0 / | 5.00 | 7.00 | 10 | 200 |
| YDT-PE-8.0 | AD8.0 / | 6.00 | 8.00 | 12 | 200 |
| YDT-PE-10.0 | AD10.0 1/4" | 6.50 | 10.0 | 16 | 100 |
| YDT-PE-11.6 | AD11.6 / | 8.00 | 11.6 | 16 | 100 |
| YDT-PE-13.0 | AD13.0 5/16" | 10.0 | 13.0 | 20 | 100 |
| YDT-PE-15.8 | AD15.8 3/8" | 12.0 | 15.8 | 30 | 100 |
| YDT-PE-18.5 | AD18.5 / | 14.3 | 18.5 | 40 | 100 |
| YDT-PE-21.2 | AD21.2 1/2" | 17.0 | 21.2 | 45 | 100 |
| YDT-PE-25.0 | AD25.0 / | 20.0 | 25.0 | 45 | 50 |
| YDT-PE-28.5 | AD28.5 3/4" | 23.0 | 28.5 | 50 | 50 |
| YDT-PE-34.5 | AD34.5 1" | 29.0 | 34.5 | 60 | 50 |
| YDT-PE-42.5 | AD42.5 11/4" | 36.0 | 42.5 | 70 | 50 |
| YDT-PE-54.5 | AD54.5 2" | 48.0 | 54.5 | 90 | 25 |
| YDT-PE-67.2 | AD67.2 21/2" | 56.0 | 67.2 | 130 | 20 |
| YDT-PE-80.0 | AD80.0 3" | 69.0 | 80.0 | 170 | 20 |
| YDT-PE-106.0 | AD106.0 4" | 91.0 | 106 | 225 | 20 |
