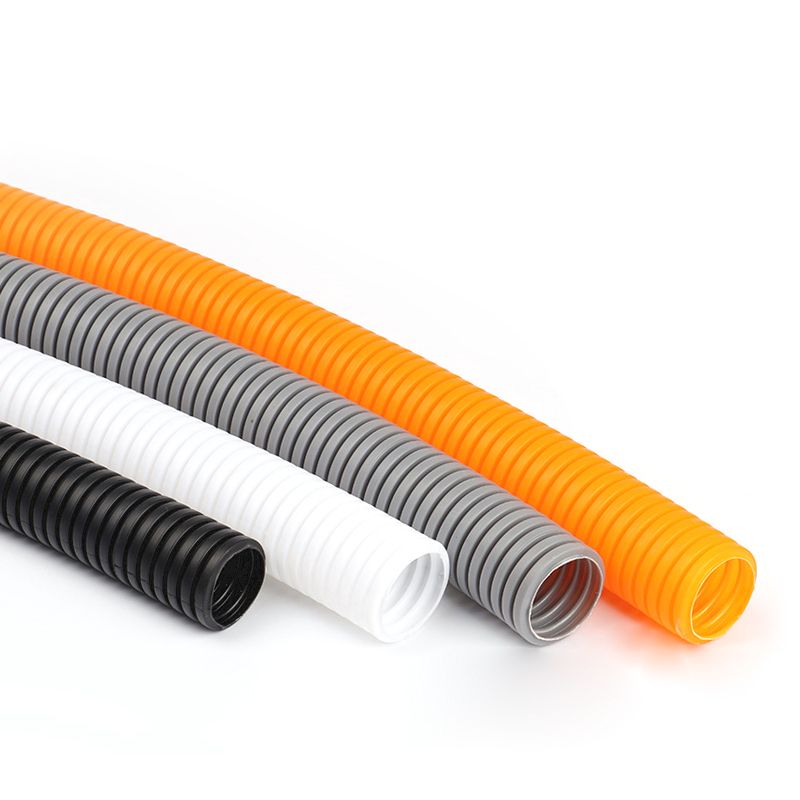

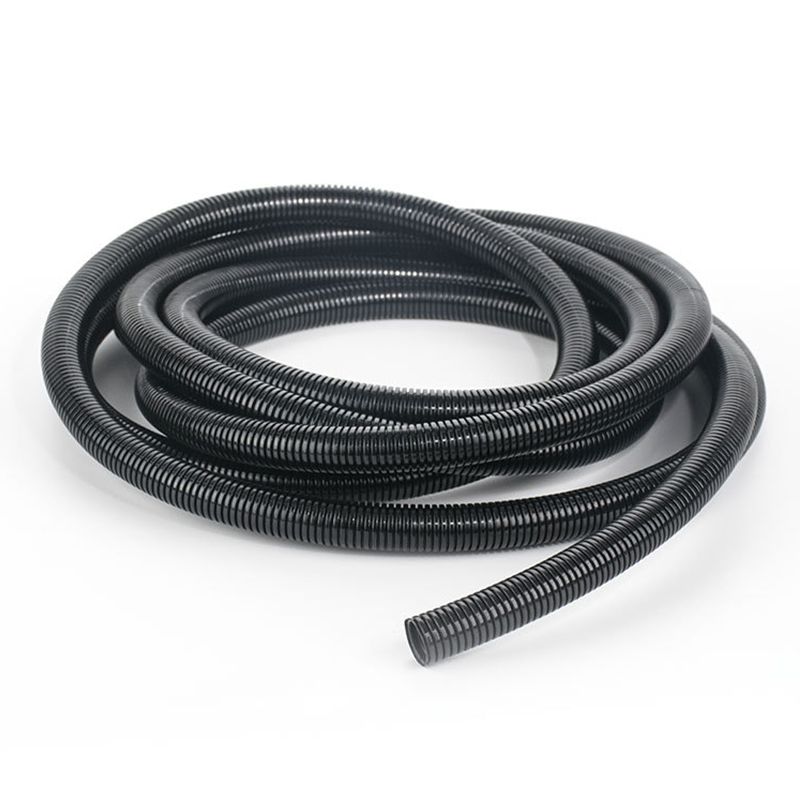

PA-Z flame- retardant flexible conduit

Description

As a leading manufacturer and supplier of cable glands and electrical accessories, YDT is committed to providing high-quality products and services to enterprises in various industries.

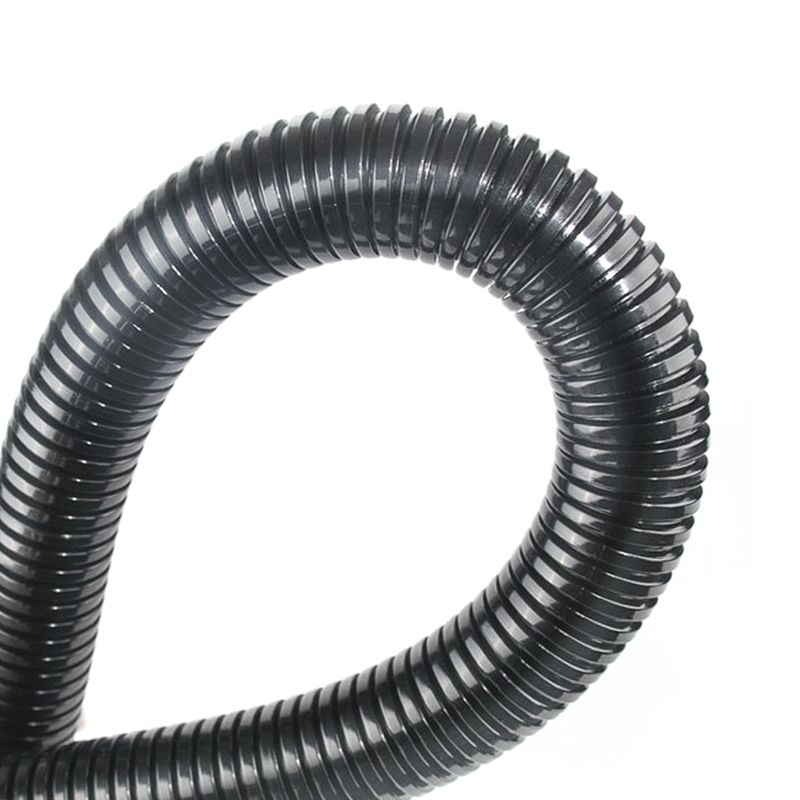

Each YDT cable sealing sleeve accessory is made of high-quality new material; This series has good flexibility, good bending performance, can withstand heavy loads, has a glossy surface, and is resistant to friction.
Our nylon hose products and the entire series of supporting products can be customized according to customer needs.

Get Instant Quote Next Product

Product Specification

Product Name	PA-Z series flame retardant nylon hose
Product Material	Nylon PA66
working temperature	-30 ℃~100 ℃, can reach+140℃ in a short period of time.
product mix	Both the interior and exterior are wavy.
Product color	Black, other colors can be customized according to customer requirements (can be opened as needed).
Scope of Supply	Flame retardant, FV-0
Product Features	Good flexibility, good bending performance, able to withstand heavy loads, acid resistant, lubricating oil, coolant, etc., with a glossy surface and friction resistance.
carrying capacity	Can withstand the heavy pressure of foot pressure, does not break or deform, can quickly recover, and has no damage to itself

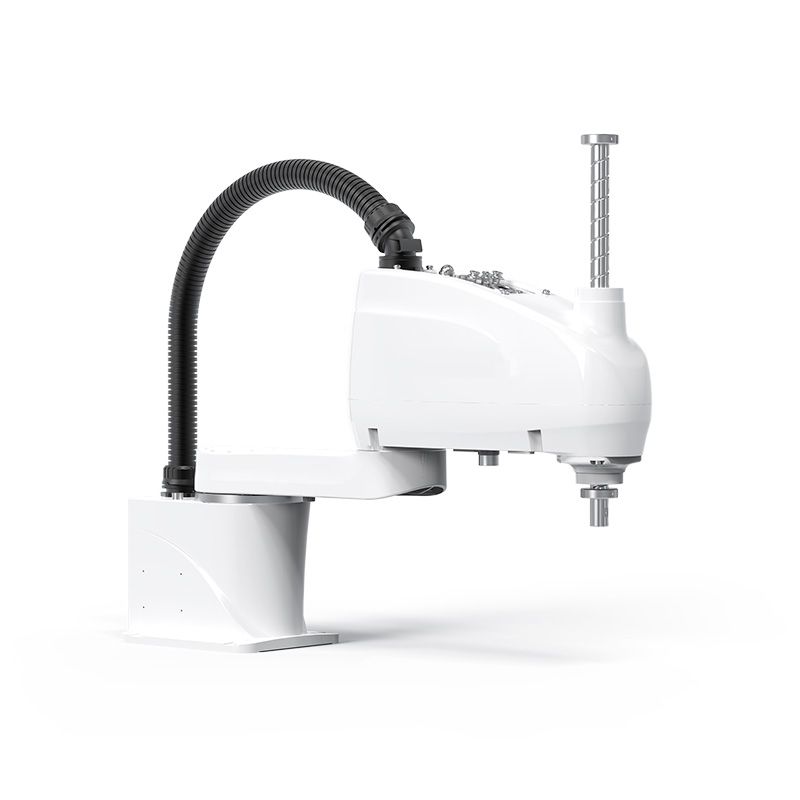

application area	Industries such as mechanical manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automation control, etc.
usage method	Insert the wires and cables into the tube, and then use the corresponding models of YDT: SM-G, SM, SM-F series hose connectors.
Scope selection	Specific dimensions should refer to the dimension specification diagram

Drawings

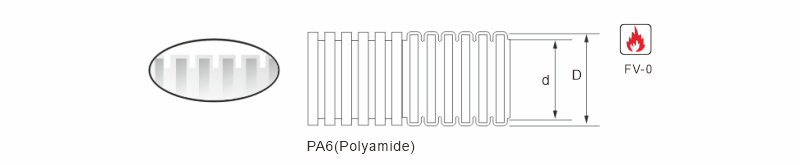

Structure Diagram

Product material: Nylon PA66.

Working temperature: -30 °C~+100 °C, can reach+140 °C in a short time.

Product certification: Quality certification from the Ministry of Railways.

Supply scope: Flame retardant, flame retardant grade: FV-0.Product structure: Both the interior and exterior are wavy.

Product features: Good flexibility, good bending performance, able to withstand heavy loads, acid resistant, lubricating oil, coolant, etc., glossy surface, friction resistant.

Bearing capacity: It can withstand the heavy pressure of foot pressure without breaking or deforming, can quickly recover, and has no damage to itself.

Usage: Insert the wires and cables into the tube, and then use the corresponding models of YDT-SM-G, SM, SM-F series hose connectors.

Technical Parameter

Model	Specification Of Flexible Pipe	Inner Diameter d(mm)	Outer Diameter D(mm)	Curved Radius (mm)	Packing (m)
YDT-PA-Z-7.0	AD7.0	5.00	7.00	10	200
YDT-PA-Z-8.0	AD8.0	6.00	8.00	12	200
YDT-PA-Z-10.0	AD10.0	6.50	10.0	16	100
YDT-PA-Z-11.6	AD11.6	8.00	11.6	16	100
YDT-PA-Z-13.0	AD13.0	10.0	13.0	20	100
YDT-PA-Z-15.8	AD15.8	12.0	15.8	30	100
YDT-PA-Z-18.5	AD18.5	14.3	18.5	40	100
YDT-PA-Z-21.2	AD21.2	17.0	21.2	45	100
YDT-PA-Z-25.0	AD25.0	20.0	25.0	45	50
YDT-PA-Z-28.5	AD28.5	23.0	28.5	50	50
YDT-PA-Z-34.5	AD34.5	29.0	34.5	60	50
YDT-PA-Z-42.5	AD42.5	36.0	42.5	70	50
YDT-PA-Z-54.5	AD54.5	48.0	54.5	90	25
YDT-PA-Z-67.2	AD67.2	56.0	67.2	130	20
YDT-PA-Z-80.0	AD80.0	69.0	80.0	170	20
YDT-PA-Z-106.0	AD106.0	91.0	106	225	20
