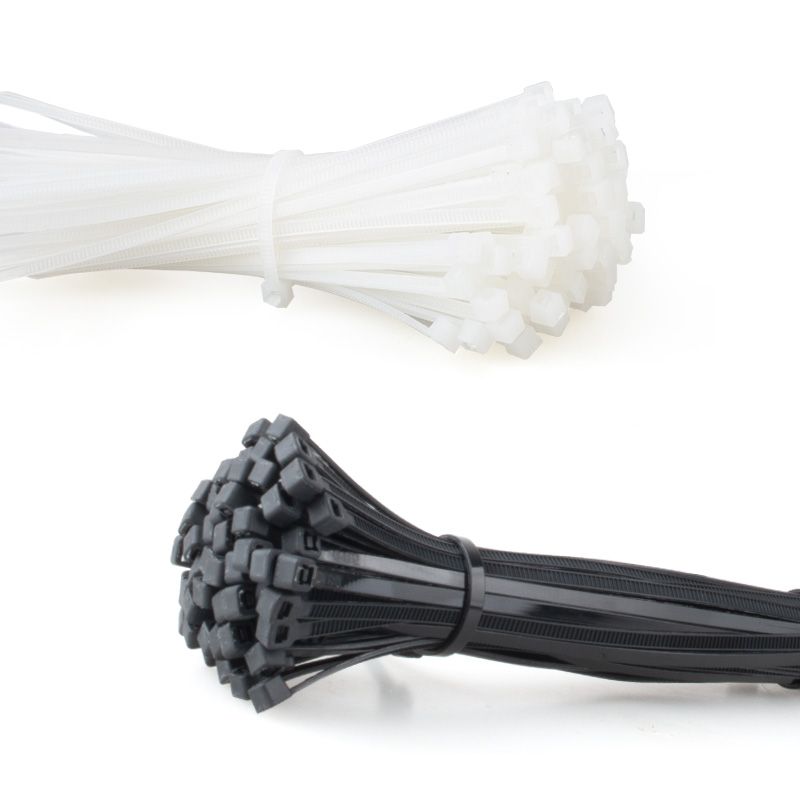

Nylon cable ties | self-locking type 丨customization
Description
As a leading manufacturer and supplier of electrical components, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT product and various accessories are made of high-quality new materials; Most series of products are waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
All our series of products and supporting accessories can be customized according to customer needs. We look forward to your cooperation.
Product Specification
| Product Name | Self locking nylon cable tie |
| Product Material | Nylon PA66 |
| Fire rating | 94V-2 |
| working temperature | .-35℃~85℃ |
| Product color | The standard color is natural (white), and there is also black with anti UV clues. Special colors are welcome to be customized. |
| Specification and size | Specific dimensions should refer to the dimension specification diagram |

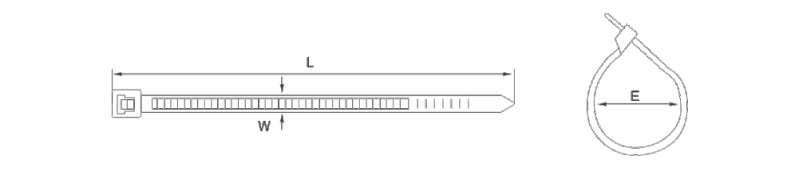

Drawings
Structure Diagram
Product material: Nylon PA66.
Fire rating: 94V-2.
Working temperature: -35 °C~+85 °C.

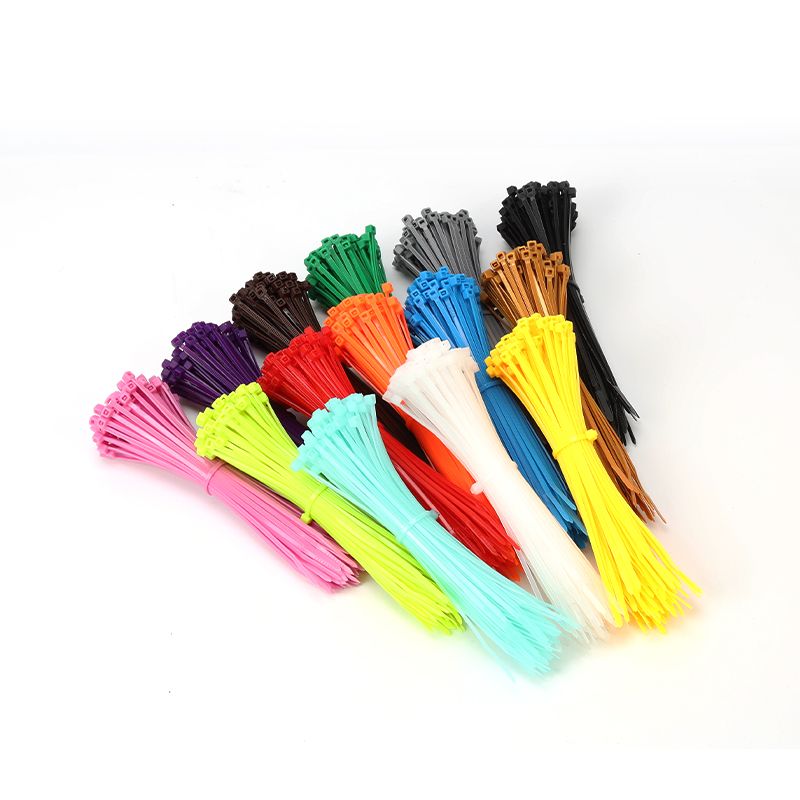

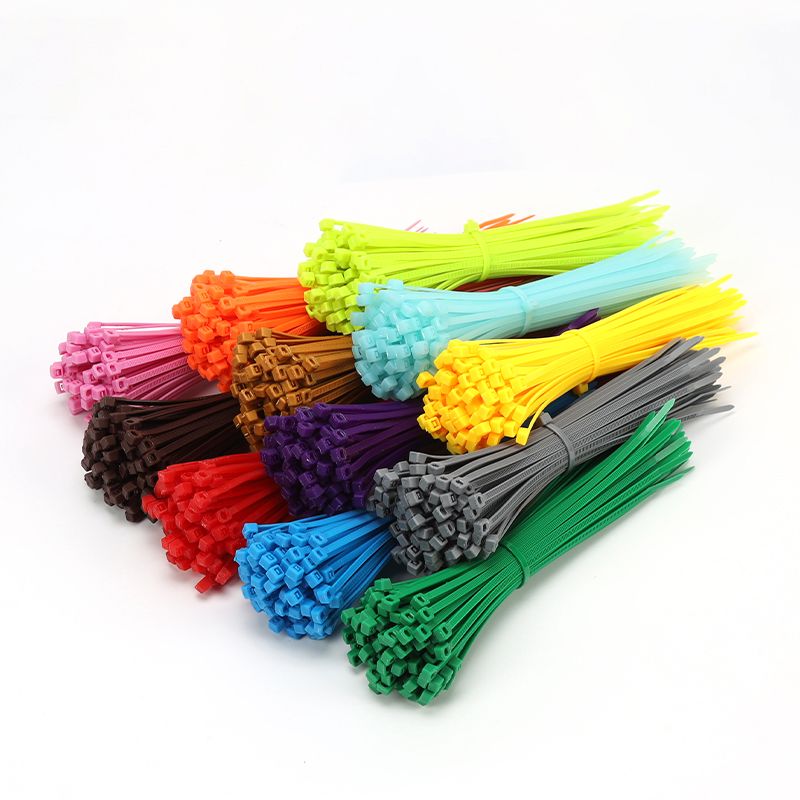

Product color: The standard color is natural color (white), and there is also black color with anti UV clues.0 Special colors are welcome to be customized.
Technical Parameter
| Model | L | W (mm) | Bundle Range E(mm) | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| YDT-3x60 | 23/8" | 60 | 2.5 | 2-11 | 18 | 8 | ||||
| YDT-3x80 | 33/16" | 80 | 2.5 | 2-16 | 18 | 8 | ||||
| YDT-3x90 | 25/8" | 90 | 2.5 | 2-18 | 18 | 8 | ||||
| YDT-3x100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 | ||||
| YDT-3x120 | 43/4" | 120 | 2.5 | 2-30 | 18 | 8 | ||||
| YDT-3x140 | 51/2" | 140 | 2.5 | 2-33 | 18 | 8 | ||||
| YDT-3x150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 | ||||
| YDT-3x160 | 61/4" | 160 | 2.5 | 2-40 | 18 | 8 | ||||
| YDT-3x200 | 8" | 200 | 2.5 | 2-50 | 18 | 8 | ||||
| YDT-4x100 | 4" | 100 | 3.5 | 2-22 | 40 | 18 | ||||
| YDT-4x120 | 43/4" | 120 | 3.5 | 3-30 | 40 | 18 | ||||
| YDT-4x140 | 51/2" | 140 | 3.5 | 3-33 | 40 | 18 | ||||
| YDT-4x150 | 6" | 150 | 3.5 | 3-35 | 40 | 18 | ||||
| YDT-4x180 | 7" | 180 | 3.5 | 3-42 | 40 | 18 | ||||
| YDT-4×200 | 8" | 200 | 3.5 | 3-50 | 40 | 18 | ||||
| YDT-4×220 | 85/8" | 220 | 3.5 | 3-58 | 40 | 18 | ||||
| YDT-4×250 | 10" | 250 | 3.5 | 3-65 | 40 | 18 | ||||
| YDT-4×280 | 11" | 280 | 3.5 | 3-70 | 40 | 18 | ||||
| YDT-4x300 | 115/8° | 300 | 3.5 | 3-80 | 40 | 18 | ||||
| YDT-4x370 | 141/2" | 370 | 3.5 | 3-102 | 40 | 18 | ||||
| Model | L | W (mm) | Bundle Range E(mm) | Tensile Strength | |||||
| Inch | mm | LBS | KGS | ||||||
| YDT-5x120 | 43/4" | 120 | 4.5 | 3-24 | 50 | 22 | |||
| YDT-5x180 | 7" | 180 | 4.5 | 3-42 | 50 | 22 | |||
| YDT-5x190 | 71/2" | 190 | 4.5 | 3-46 | 50 | 22 | |||
| YDT-5×200 | 8" | 200 | 4.5 | 3-50 | 50 | 22 | |||
| YDT-5×250 | 10" | 250 | 4.5 | 3-65 | 50 | 22 | |||
| YDT-5×280 | 11" | 280 | 4.8 | 3-70 | 50 | 22 | |||
| YDT-5x300 | 75/8" | 300 | 4.5 | 3-82 | 50 | 22 | |||
| YDT-5x350 | 133/4" | 350 | 4.5 | 3-90 | 50 | 22 | |||
| YDT-5x380 | 15" | 380 | 4.7 | 3-102 | 50 | 22 | |||
| YDT-5x400 | 153/4" | 400 | 4.7 | 3-105 | 50 | 22 | |||
| YDT-5x430 | 17" | 430 | 4.7 | 3-110 | 50 | 22 | |||
| YDT-5x450 | 173/4" | 450 | 4.7 | 3-130 | 50 | 22 | |||
| YDT-5x500 | 1911/16" | 500 | 4.7 | 3-150 | 50 | 22 | |||
| YDT-8×150 | 6" | 150 | 7.0 | 3-33 | 85 | 38 | |||
| YDT-8×180 | 7" | 180 | 6.8 | 3-42 | 85 | 38 | |||
| YDT-8×200 | 8" | 200 | 6.8 | 3-50 | 85 | 38 | |||
| YDT-8×250 | 10" | 250 | 7.5 | 4-63 | 85 | 38 | |||
| YDT-8×300 | 115/8" | 300 | 7.5 | 4-82 | 85 | 38 | |||
| YDT-8×350 | 133/4" | 350 | 7.5 | 4-90 | 120 | 55 | |||
| YDT-8×370 | 141/4" | 370 | 7.5 | 4-98 | 85 | 38 | |||
| YDT-8×400 | 153/4" | 400 | 7.5 | 4-105 | 120 | 55 | |||
| YDT-8×450 | 173/4" | 450 | 7.5 | 4-118 | 120 | 55 | |||
| YDT-8×500 | 1911/16" | 500 | 7.5 | 4-450 | 120 | 55 | |||
| YDT-8×750 | 299/16" | 750 | 7.5 | 4-220 | 120 | 55 | |||
| YDT-9×450 | 173/4" | 450 | 9.0 | 4-118 | 175 | 80 | |||
| YDT-9×530 | 203/4" | 530 | 9.0 | 8-155 | 175 | 80 | |||
| YDT-9×550 | 211/16" | 550 | 9.0 | 8-160 | 175 | 80 | |||
| YDT-9×650 | 259/16" | 650 | 9.0 | 8-190 | 175 | 80 | |||
| YDT-9×700 | 271/2" | 700 | 9.0 | 10-205 | 175 | 80 | |||
| YDT-9×760 | 30" | 760 | 9.0 | 10-225 | 175 | 80 | |||
| YDT-9×920 | 361/4" | 920 | 9.0 | 10-265 | 175 | 80 | |||
| YDT-9×1020 | 401/6" | 1020 | 9.0 | 10-295 | 175 | 80 | |||
| YDT-9×1150 | 451/4" | 1150 | 9.0 | 10-310 | 175 | 80 | |||
| YDT-9×1220 | 48" | 1210 | 9.0 | 10-340 | 175 | 80 | |||
| YDT-9×1350 | 53" | 1350 | 9.0 | 10-380 | 175 | 80 | |||
| YDT-10×450 | 173/4" | 450 | 10 | 10-125 | 250 | 114 | |||
| YDT-10×500 | 1911/16" | 500 | 10 | 12-150 | 250 | 114 | |||
| YDT-12×300 | 115/8" | 300 | 12.7 | 12-82 | 250 | 114 | |||
| YDT-12×400 | 153/4" | 400 | 12.7 | 12-105 | 250 | 114 | |||
| YDT-12×540 | 211/4" | 540 | 12.7 | 14-155 | 250 | 114 | |||
| YDT-12×650 | 259/16" | 650 | 12.0 | 14-190 | 250 | 114 | |||
| YDT-12×750 | 299/16" | 750 | 12.0 | 10-220 | 250 | 114 | |||
| YDT-12×780 | 303/4" | 780 | 12.7 | 14-230 | 250 | 114 | |||
| YDT-13×540 | 211/4" | 540 | 13.0 | 14-155 | 250 | 114 | |||
