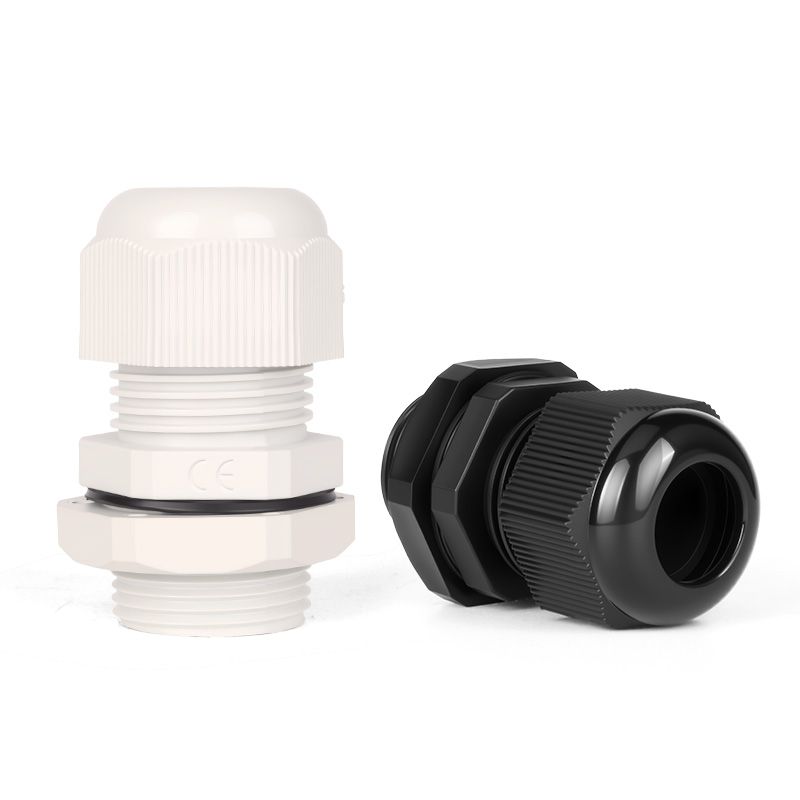

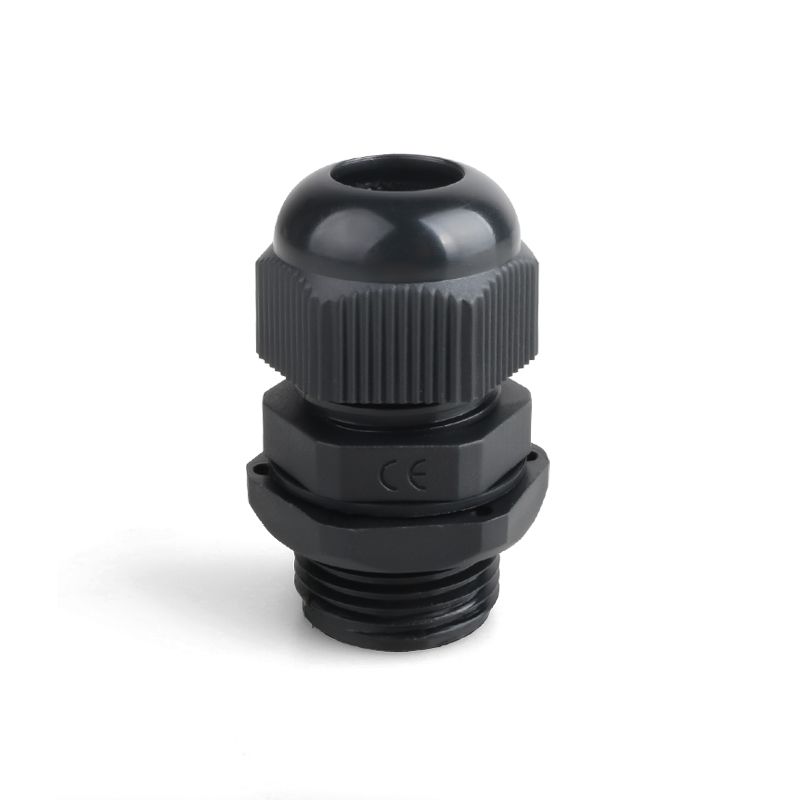

Nylon cable gland丨Extended version丨M-BL types丨IP66 IP68 丨 Strain relief 丨Cord grip

Description

YDT is a leading cable gland manufacturer and supplier serving businesses across industries.
Our cable gland is made of high-quality nylon through integrated injection molding; The tightening nut, main body, and nut parts are made of nylon PA66 material; The sealing ring and gasket are made of nitrile rubber. This series of products has a static temperature range of -40 ℃ to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, the product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.
Our nylon cable gland products include various styles such as standard, universal, and corner series, with complete specifications and colors that can be customized according to customer requirement.

Get Instant Quote Next Product

Product Specification

Product Name	Extended version Nylon waterproof cable gland
Model	M Thread Series

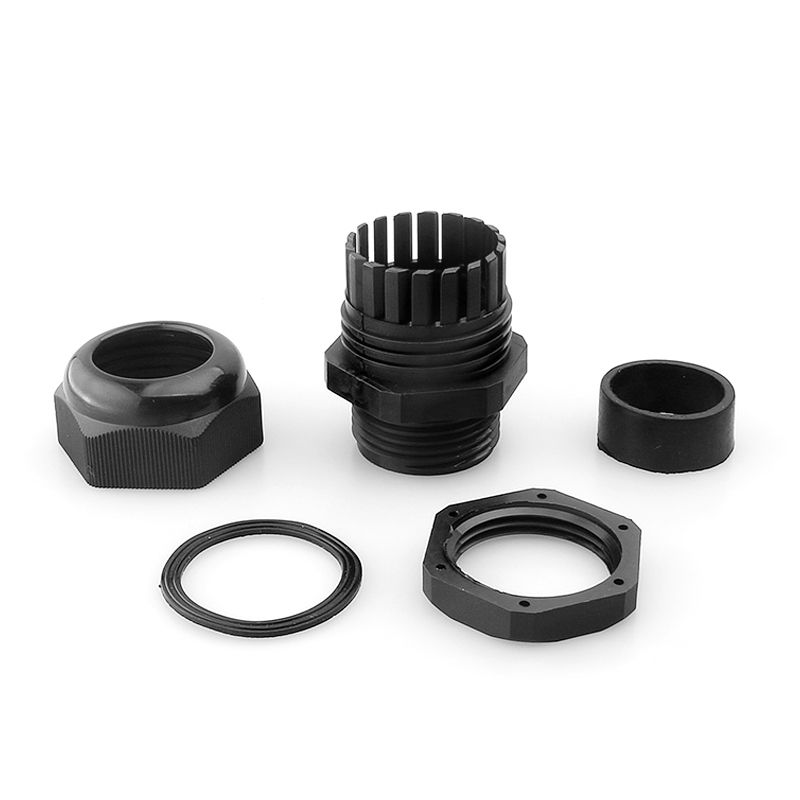

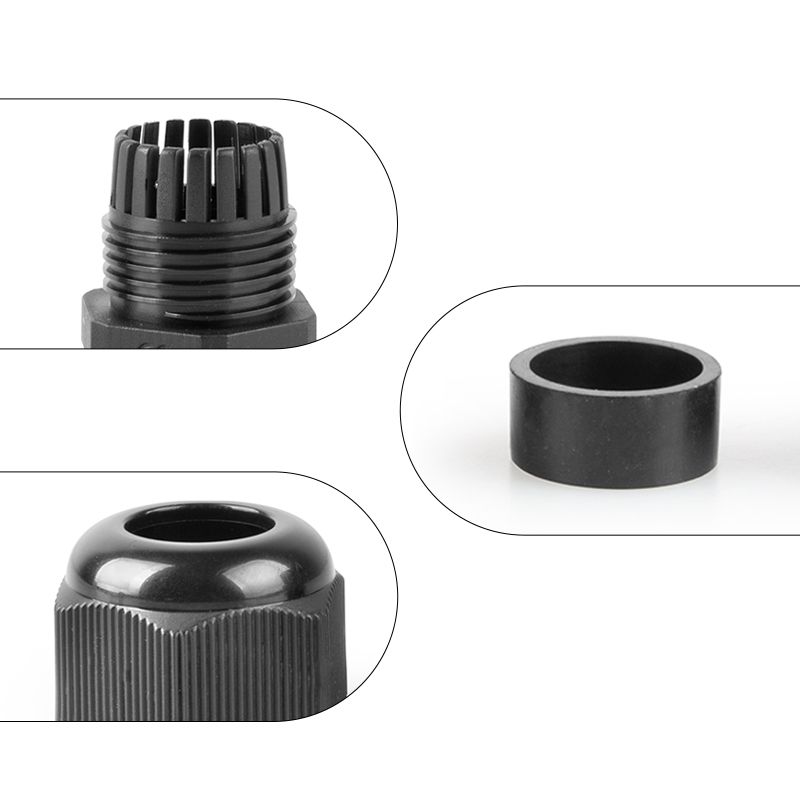

Product Material	Nylon PA66 (body, tightening cap, nut); nitrile rubber (sealing ring, gasket)
Temperature range	Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃.

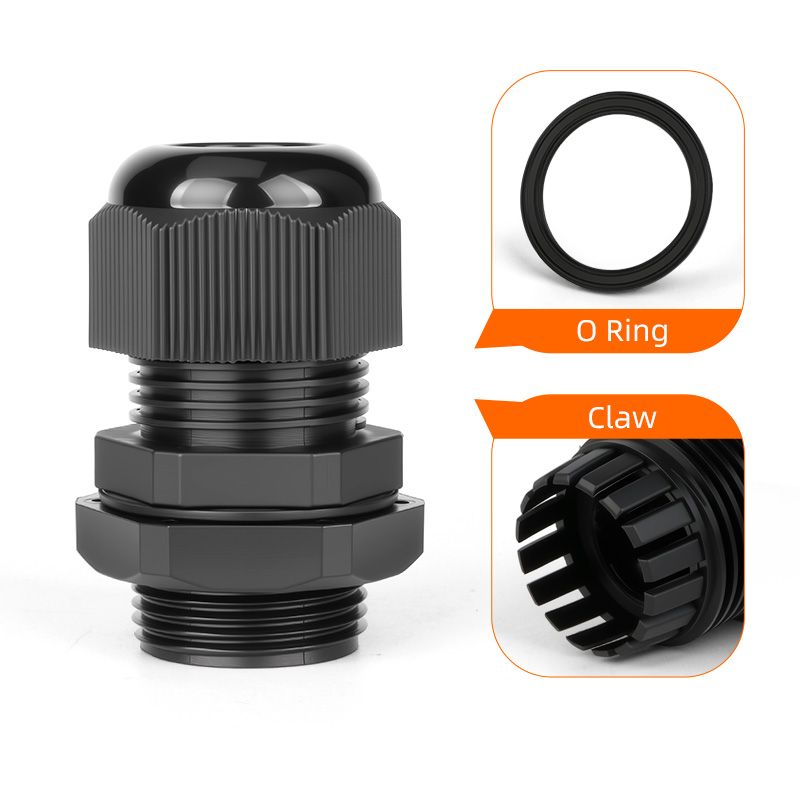

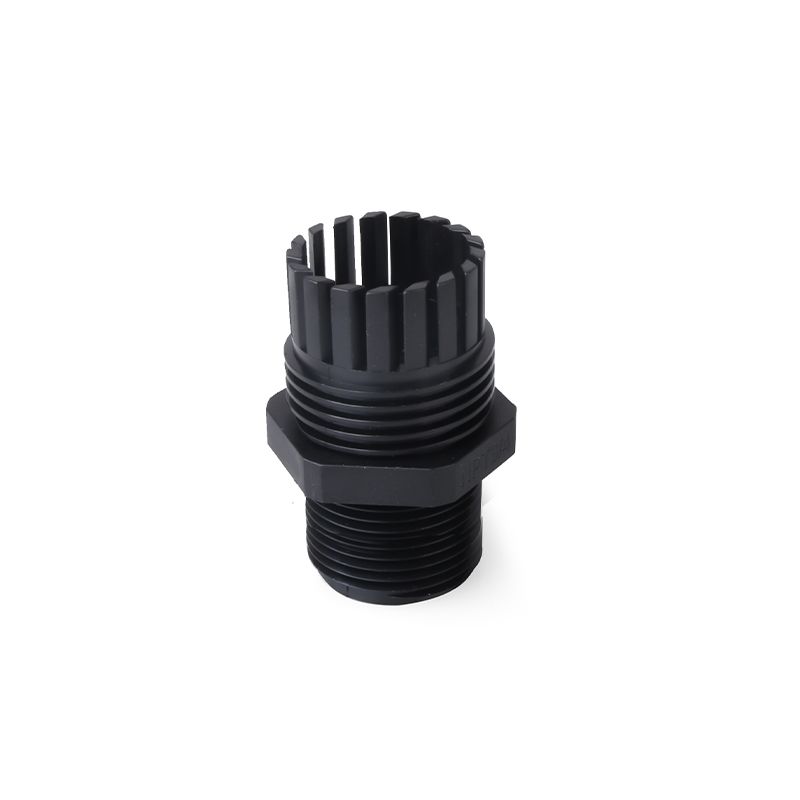

Product design features	Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength
Product performance	Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Protection level	IP66 IP68
Fire resistance	UL94 V-2
UV resistant	F1
Environmental protection	Compliant with RoHs standards, halogen-free
Certificate	CE, RoHS, REACH
Cable range	Refer to the specification table for specific size specifications and display diagram
Special function available	Extended, anti bending, single hole, multi hole
Application	Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
	Machine and equipment manufacturing
	Photovoltaic
	Automation technology

Drawings

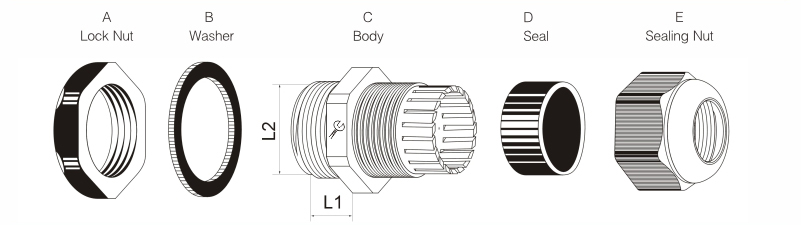

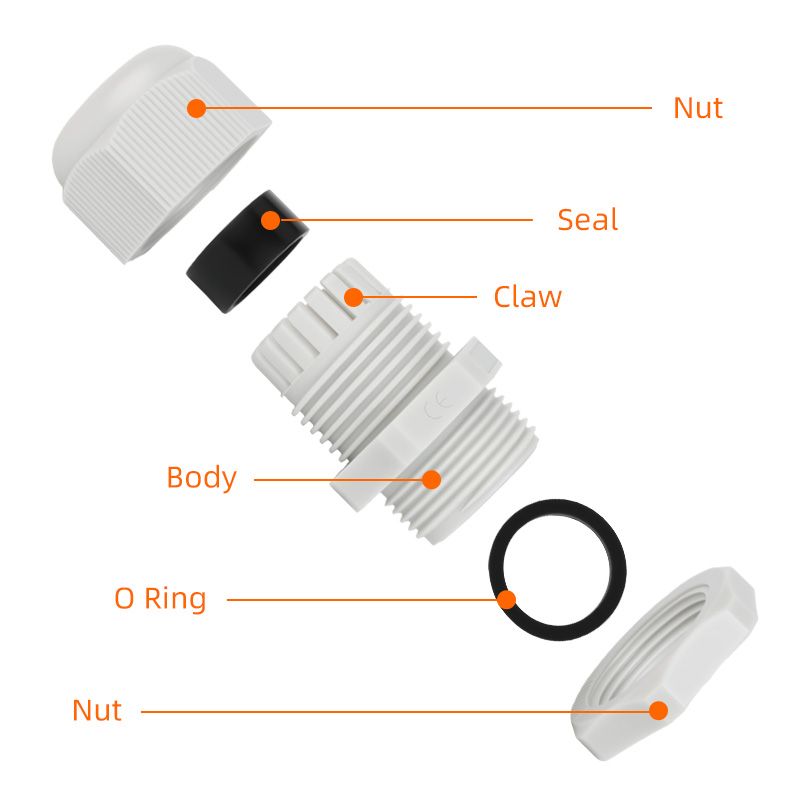

Structure Diagram

M Type

ISO metric thread, also known as metric thread, has a flat tooth tip thatis easy to turn, and a rounded tooth base to increase thread strength. The thread angle is 60 degrees.Representations such as M8x1.25 or M8.

M Type

Technical Parameter

Model	Cable Range (mm)	Thread O.D. L2(mm)	Thread Length L1(mm)	Spanner Size A & E(mm)
M12-BL	4~8	11.75	15	19/18
M12-BL	2~6	11.75	15	19/18
M16-BL	5~10	16	15	22/24
M16-BL	3~7	16	15	22/24
M20-BL	10~13	20	15	27/30
M20-BL	7~12	20	15	27/30
M25-BL	13~18	24.75	15.2	34/33
M25-BL	9~16	24.75	15.2	34/33
M32-BL	18~25	31.75	15	42/41
M32-BL	13~20	31.75	15	42/41
M40-BL	23~32	40	18	52/58
M40-BL	20~26	40	18	52/58
M50-BL	32~38	50	18	58/62
M50-BL	25~31	50	18	58/62
M63-BL	37~44	63	19	65/68
M63-BL	29~35	63	19	65/68
