Nylon cable gland 丨NPT types丨IP66 IP68 丨 Strain relief 丨Cord grip
Description

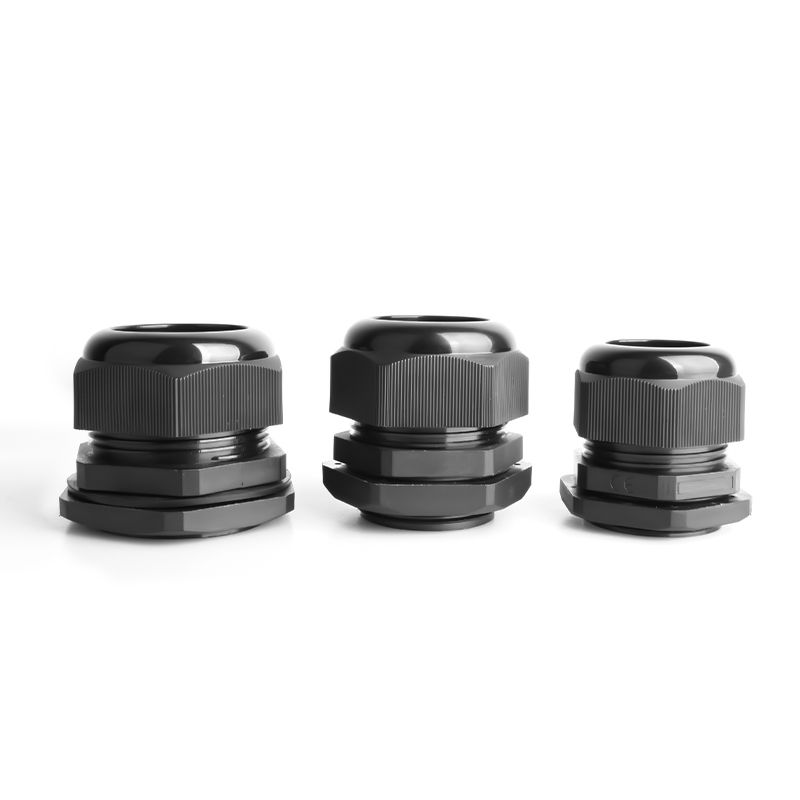

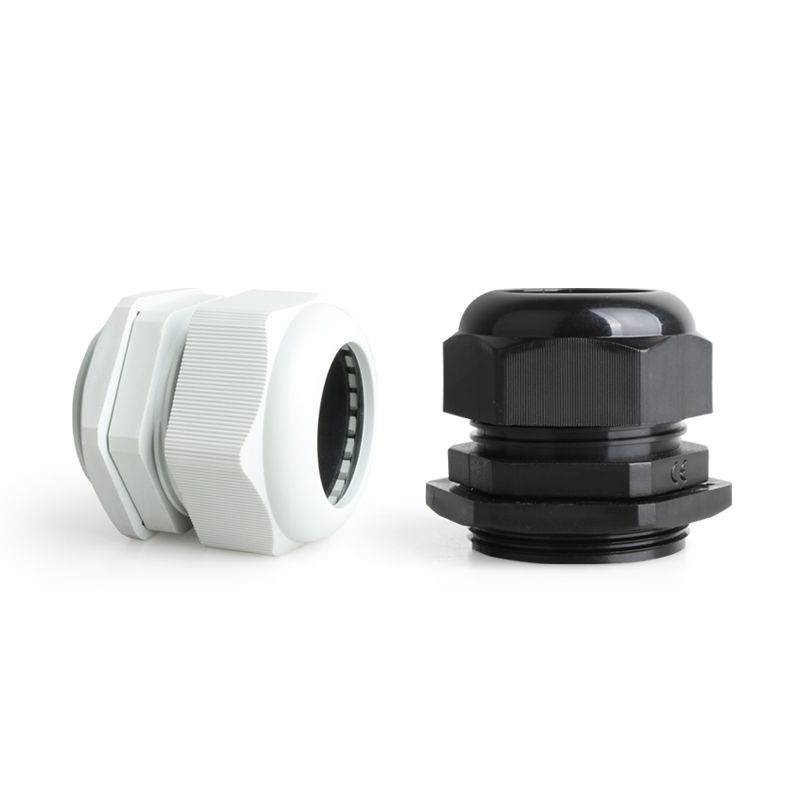

YDT is a leading cable gland manufacturer and supplier serving businesses across industries.
Our cable gland is made of high-quality nylon through integrated
injection molding; The tightening nut, main body, and nut parts are made
of nylon PA66 material; The sealing ring and gasket are made of nitrile
rubber. This series of products has a static temperature range of -40 ℃
to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic
-20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, the
product is waterproof, dustproof, salt resistant, acid and alkali
resistant, alcohol, grease, and general solvents.

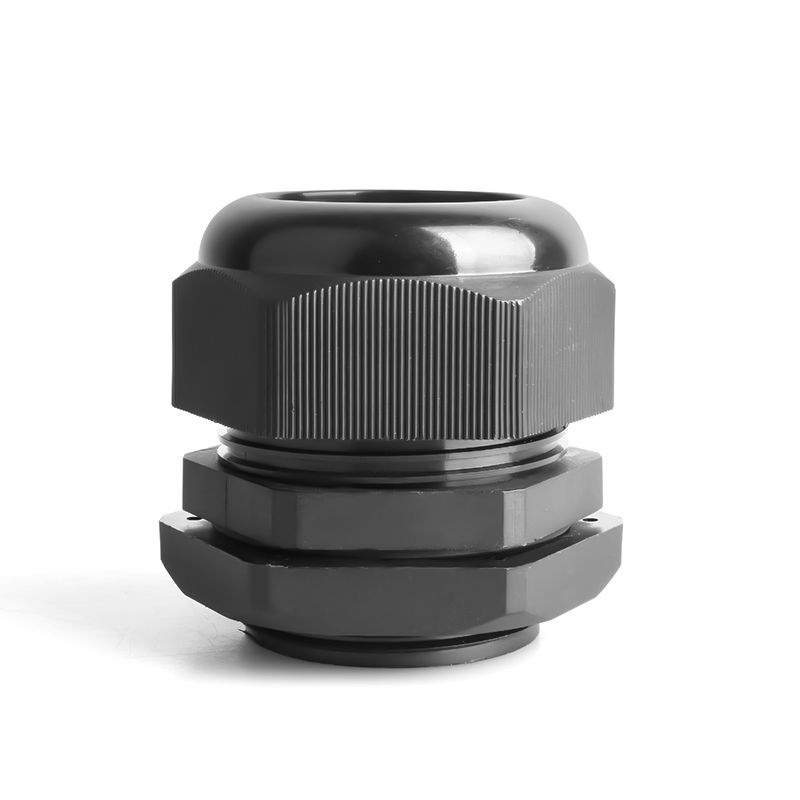

Our nylon cable gland products include various styles such as standard,
universal, and corner series, with complete specifications and colors
that can be customized according to customer requirement.
Product Specification
| Product Name | Nylon cable gland |
| Model | NPT Thread Series |
| Product Material | Nylon PA66 (body, tightening cap, nut); nitrile rubber (sealing ring, gasket) |
| Temperature range | Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. |
| Product design features | Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Protection level | IP66 IP68 |
| Fire resistance | UL94 V-2 |
| UV resistant | F1 |
| Environmental protection | Compliant with RoHs standards, halogen-free |
| Certificate | CE, RoHS, REACH |
| Cable range | Refer to the specification table for specific size specifications and display diagram |
| Special function available | Extended, anti bending, single hole, multi hole |
| Application | Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements |
| Machine and equipment manufacturing | |
| Photovoltaic | |
| Automation technology |
Drawings

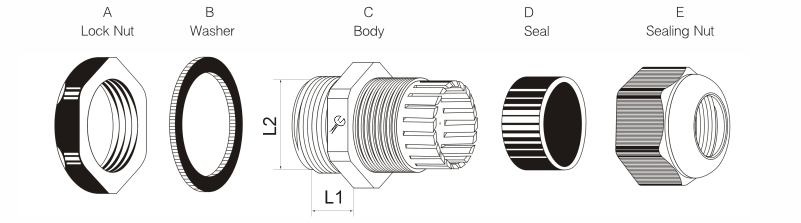

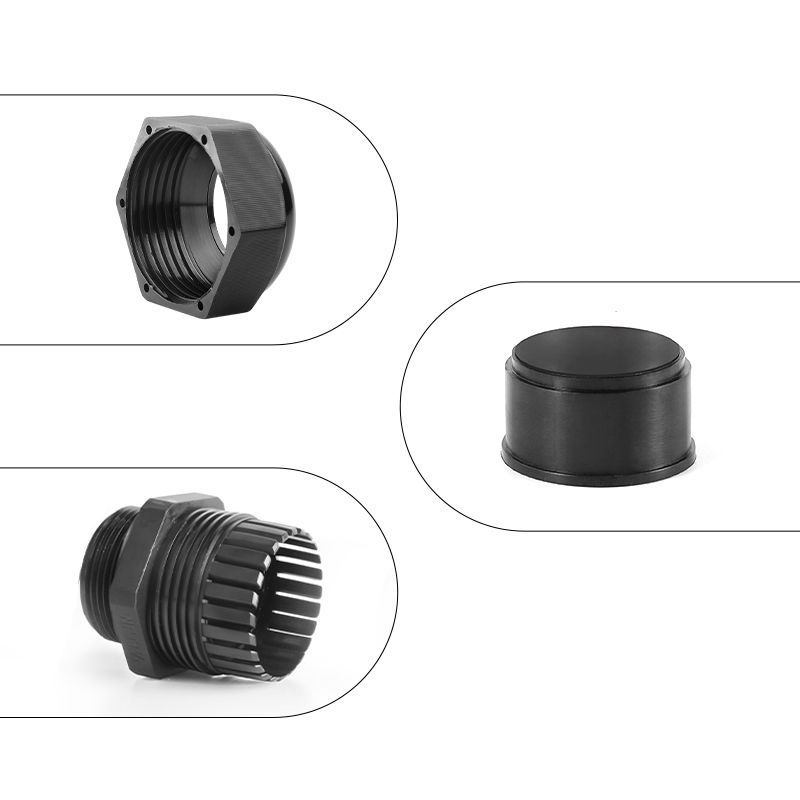

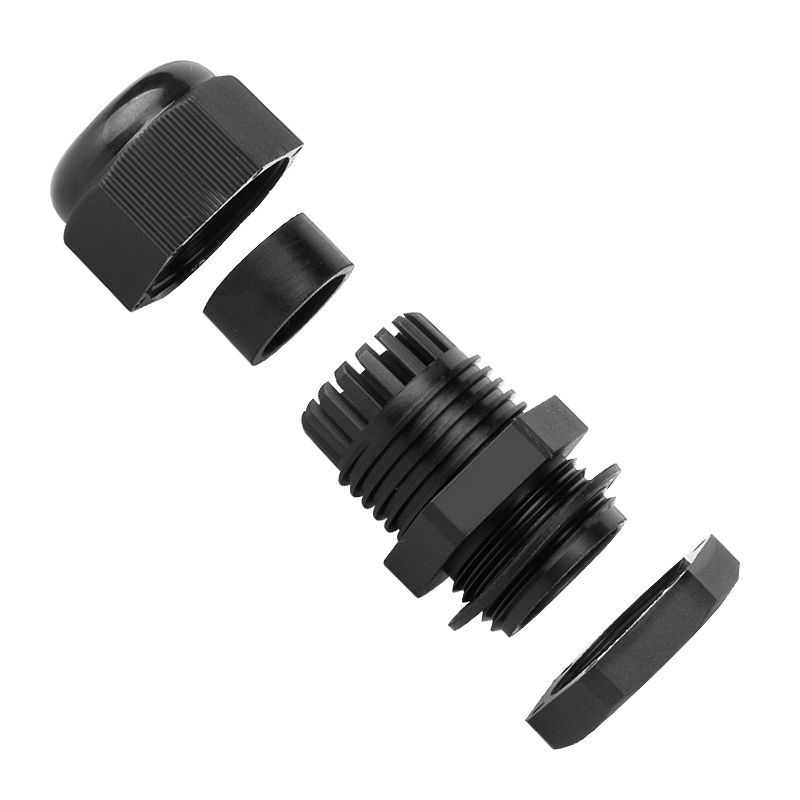

Structure Diagram

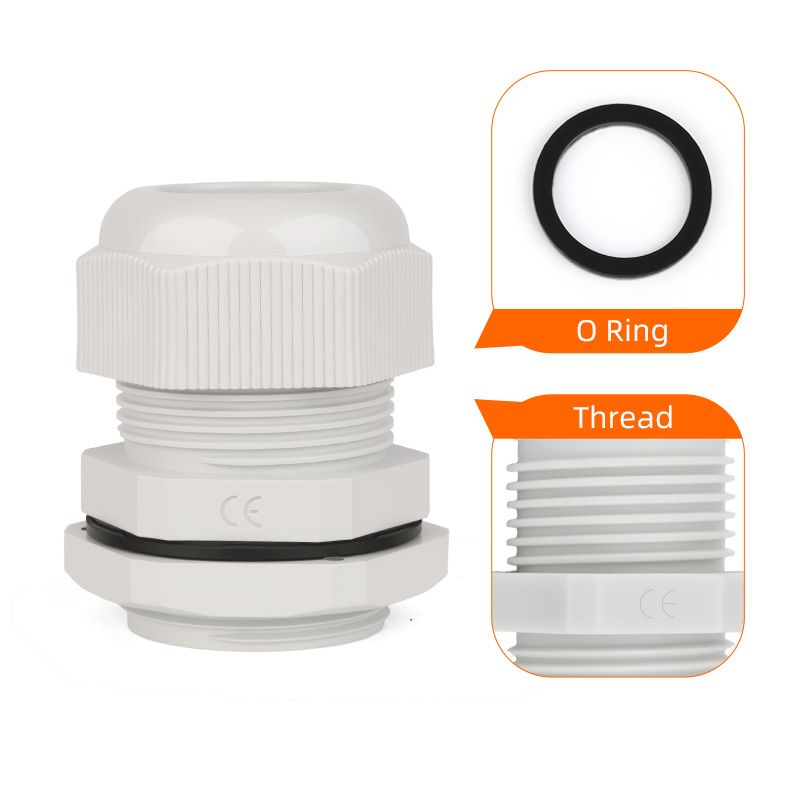

NPT Type

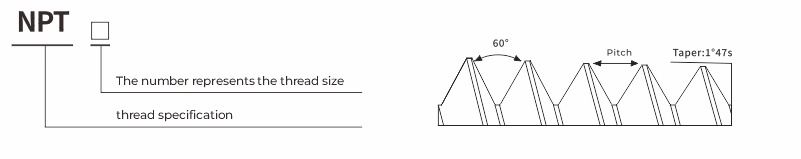

NPT belongs to the American standard taper pipe thread, which can be found in GB/T12716-1991 for North American national standards; The thread angle is 60.
The NPT standard thread size is usually described by two parameters: thread diameter and pitch; Representations such as NPT3/8 ", NPT1/2", NPT3/4", etC.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| NPT 1/4" | 3~6.5 | 12.8 | 9.4 | 21/19/16 |
| NPT 1/4" | 2~5 | 12.8 | 9.4 | 21/19/16 |
| NPT 3/8" | 4~8 | 16.85 | 15.1 | 22/21 |
| NPT 3/8" | 2~6 | 16.85 | 15.1 | 22/21 |
| NPT 1/2" | 8~14 | 20.6 | 12.8 | 27/24 |
| NPT 1/2" | 6~11 | 20.6 | 12.8 | 27/24 |
| NPT 3/4" | 12~18 | 25.5 | 15.5 | 33/32 |
| NPT 3/4" | 10~16 | 25.5 | 15.5 | 33/32 |
| NPT 1-1/4" | 24~32 | 32.3 | 15.5 | 52/50 |
| NPT 1-1/4" | 20~25 | 32.3 | 15.5 | 52/50 |
| NPT 1-1/2" | 22~32 | 47.1 | 17 | 60/52 |
| NPT 1-1/2" | 20~26 | 47.1 | 17 | 60/52 |
| NPT 2" | 43~37 | 47.1 | 17 | 70/67 |
| NPT 2" | 37~44 | 47.1 | 17 | 70/67 |
| NPT 3" | 60~70 | 87.7 | 22.2 | 97 |
| NPT 3" | 52~61 | 87.7 | 22.2 | 97 |
