BDM series explosion-proof joint | Non armored explosion-proof joint | Brass nickel plated, 304/316L stainless steel | M, G, NPT types |explosion-proof certification
Description
As a leading manufacturer and supplier of cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.
Each YDT cable sealing sleeve is made of high-quality raw materials; The
explosion-proof series products are made of high-quality brass nickel
plated and 304/304L stainless steel raw materials. In addition, this
type of product is waterproof, dustproof, salt resistant, acid and
alkali resistant, alcohol, grease, and general solvents, which can meet
the needs of various scenarios.
Our explosion-proof series cable gland products come in a complete range
of specifications and can be customized according to customer needs.
Product Specification
| Product Name | Non armored explosion-proof joint |
| working temperature | -50 ℃ to 120 ℃ |
| Protection level | IP66 |
| Certificate | SYEx24.0123X |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Cable range selection | See table parameters for details |
| Scope of application | Suitable for Zone 1 and Zone 2 explosive gas environments Suitable for Zone 21 and Zone 22 environments with combustible dust; Suitable for IIA, IB, IIC explosive gas environments: Widely used in explosive hazardous areas such as petroleum extraction, storage, chemical, pharmaceutical, military, and military facilities: As a supporting accessory for explosion-proof electrical equipment, it is used to clamp various armored or non armored cables. |
Drawings
Structure Diagram
When the thread specifications are M, NPT, G, theexplosion-proof markisExeb II CGb; Extb lIC Db.
Technical Parameter
| Thread specification(G) | cable range (B) | Thread (C) | length (L) | ||
| M | G | NPT | |||
| M12x1.5 | G1/4" | NPT1/4" | 3~6.5 | 12 | 52 |
| M16x1.5 | 一 | 一 | 5~10 | 15 | 52 |
| M20x1.5 | G1/2" | NPT1/2" | 9~15 | 15 | 52 |
| M25x1.5 | G3/4" | NPT3/4" | 14~20 | 15 | 52 |
| M32x1.5 | G1" | NPT1" | 19~25 | 17 | 52 |
| M40x1.5 | G1-1/4" | NPT1-1/4" | 25~32 | 17 | 54 |
| M50x1.5 | G1-1/2" | NPT1-1/2" | 35~40 | 17 | 59 |
| M63x1.5 | G2" | NPT2" | 45~50 | 17 | 59 |
| M75x1.5 | G2-1/2" | NPT2-1/2" | 56~65 | 17 | 78 |
| M90x2 | G3" | NPT3" | 64~75 | 17 | 78 |
| M115×2 | G4" | NPT4" | 78~92 | 17 | 82 |
You May Also Like
PVC cable duct 丨 PXC series 丨 flame retardant 丨customization
PA flexible conduit
Anti bending nylon cable gland 丨G-R types丨IP66 IP68 丨 Strain relief 丨Cord grip
Extended brass cable gland 丨 PG types 丨 IP66 IP68 丨 Stress relief 丨 Wire clamp
Nylon cable ties 丨 Label style 丨 customization
Nylon cable gland丨Extended version丨PG-L types丨IP66 IP68 丨 Strain relief 丨Cord grip
Brass cable glands 丨 PG types 丨 IP66 IP68 丨 Stress relief 丨 Wire clamp

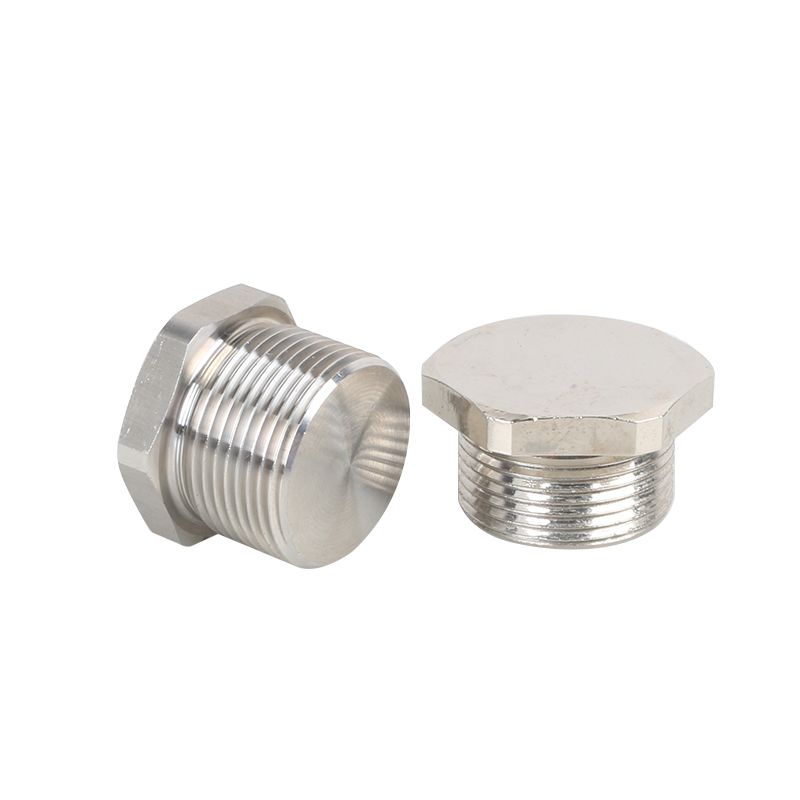

Metal hexagonal plug 丨 IP66 IP68丨 PG/M types 丨 304/316L stainless steel, brass nickel plated material
