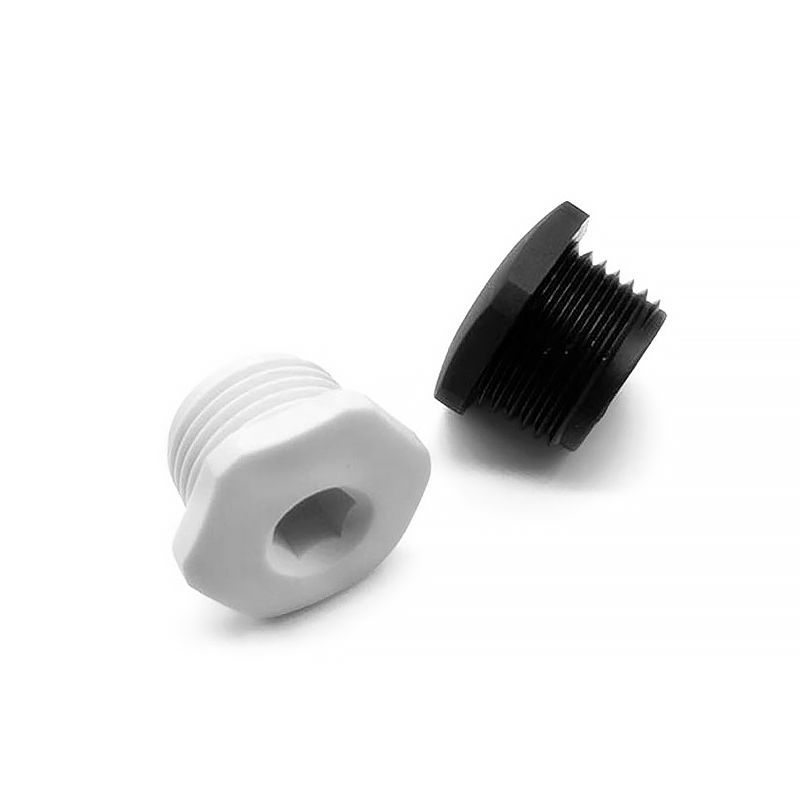

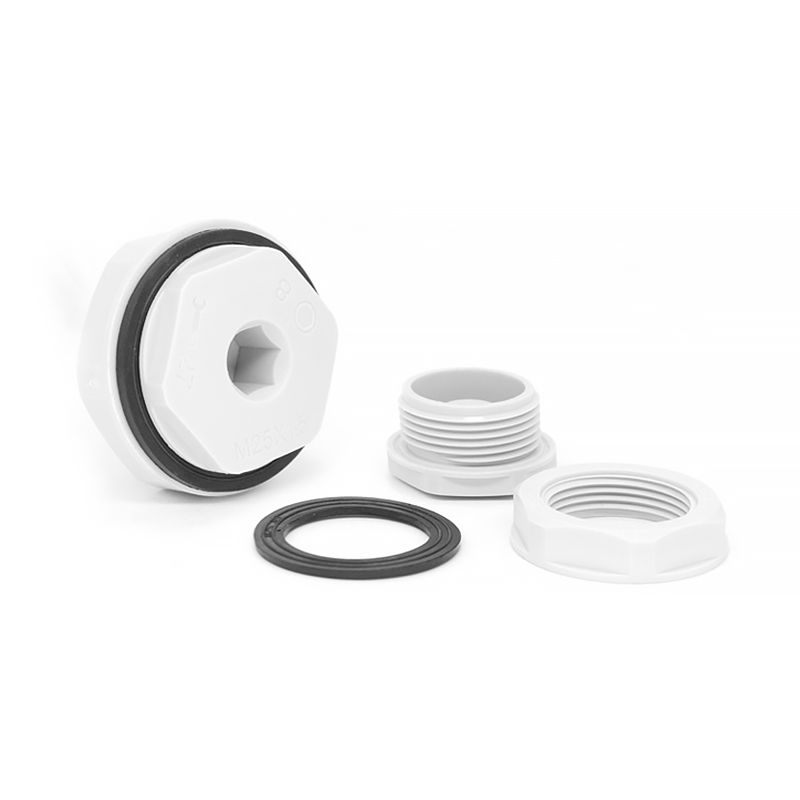

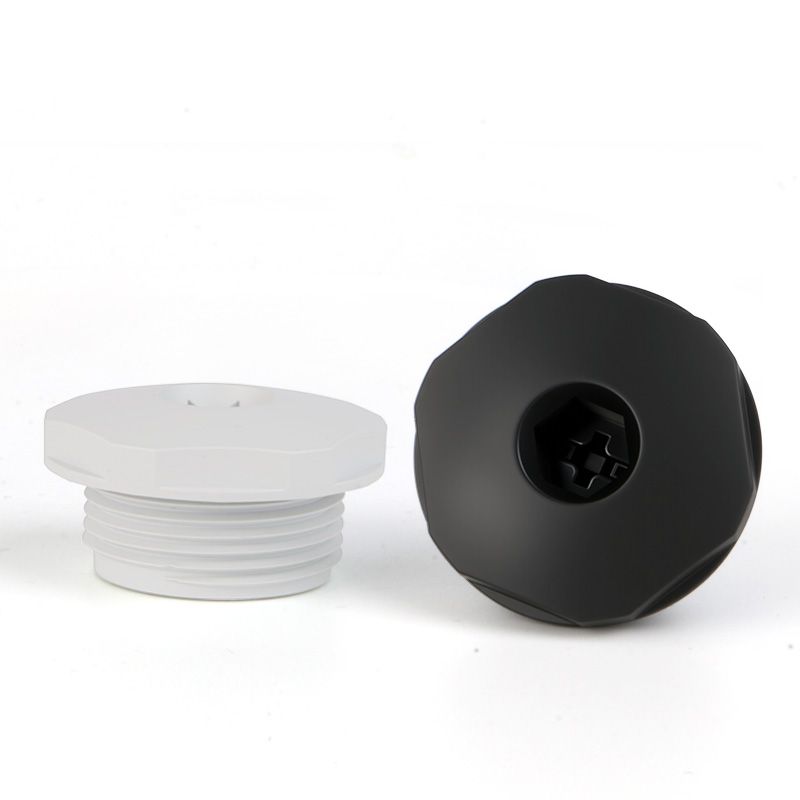

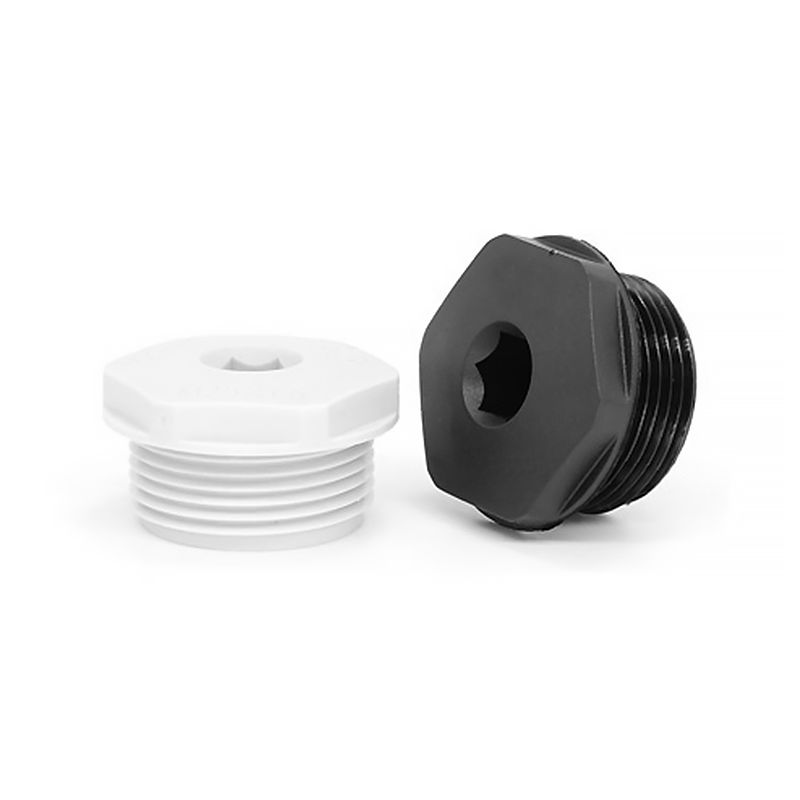

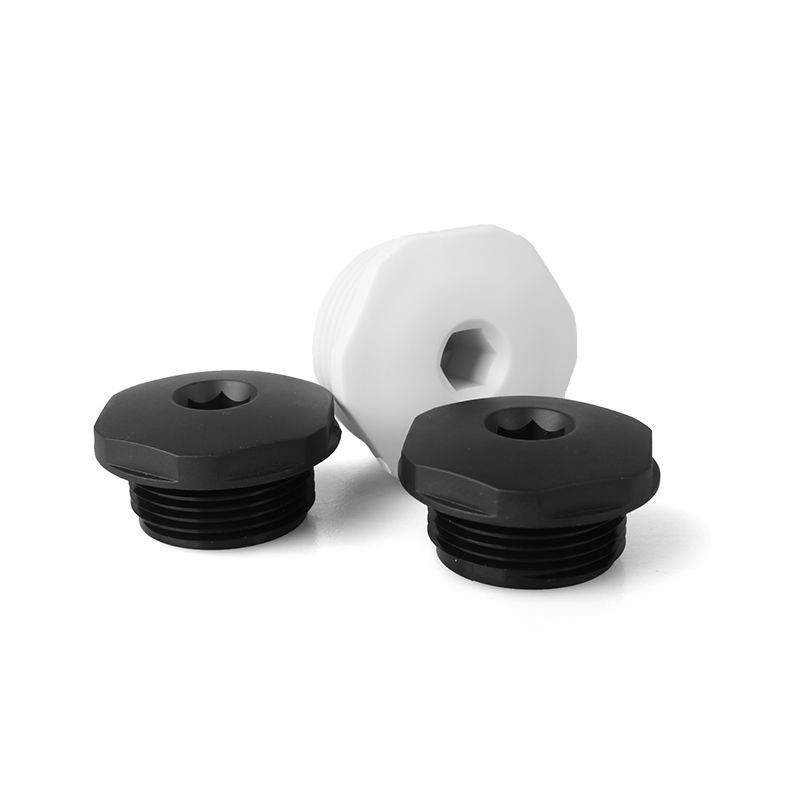

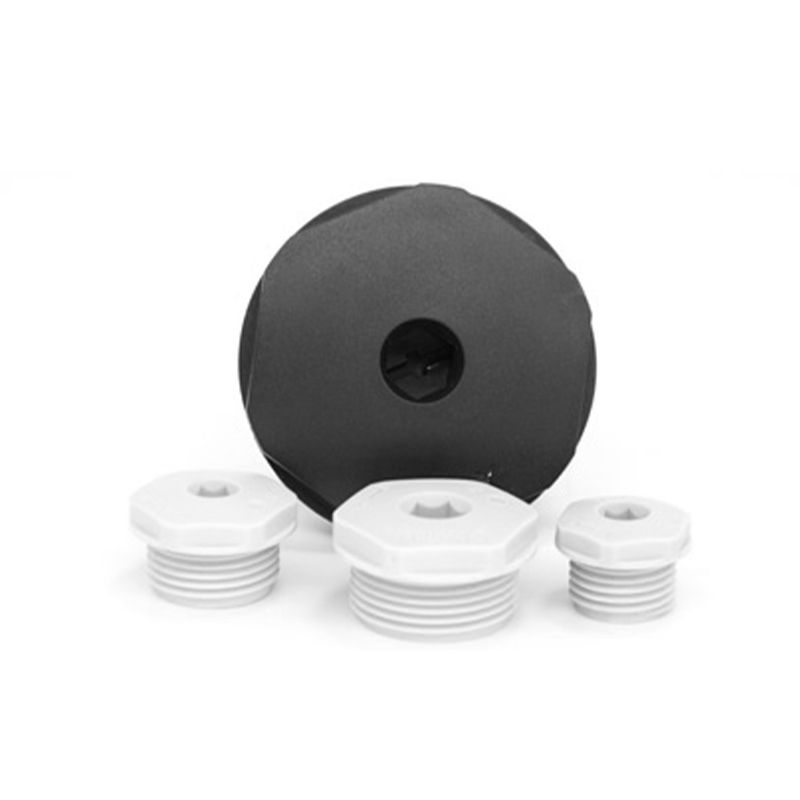

Nylon hexagonal plug 丨 IP66 IP68 丨 PG/M types
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality nylon
new material through integrated injection molding; The main body and nut
parts are made of high-performance nylon PA66 material; The gasket is
made of weather resistant nitrile rubber. This series of products has a
static temperature range of -40 ℃ to 100 ℃. In addition, this type of
product is waterproof, dustproof, salt resistant, acid and alkali
resistant, alcohol, grease, and general solvents.
Our nylon cable sealing sleeve accessories can be customized according to customer needs.
Product Specification
| Product Name | Nylon hexagonal plug head |
| Model | M/PG |
| Product Material | Using nylon PA66 |
| Temperature range | Static -40 ℃ to 100 ℃ |
| Product design features | To ensure the product is aesthetically pleasing, waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents, the reserved or excess hole positions should be leveled. |
| Protection level | IP68 |
| Fire resistance | Flame retardant |
| Certificate | rose ce s9001 |
| Aperture range selection | Specific dimensions should refer to the dimension specification diagram |
Drawings

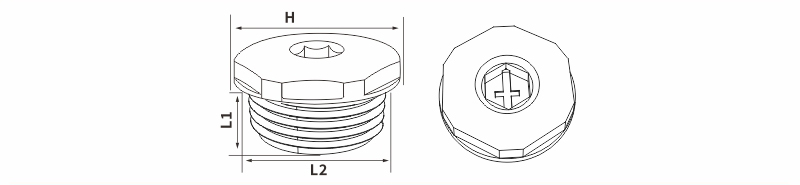

Structure Diagram
Thread specifications: PG/M.
Product material: Nylon PA66 is used.
Working temperature: Static -40 °C to 100 °C.
Product features: Plug the reserved or excess holes flat to make the product look beautiful.
Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents resistant.
Technical Parameter
| Model | Thread O.D. L2(mm) | Thread Length L1(mm) | Outside Diameter H(mm) |
| M12-T | 12 | 8.5 | 15 |
| M16-T | 16 | 8.5 | 19 |
| M18-T | 18 | 9 | 22 |
| M20-T | 20 | 9 | 25 |
| M22-T | 22 | 10.5 | 27 |
| M25-T | 25 | 10.5 | 29 |
| M27-T | 27 | 10.5 | 33 |
| M28-T | 28 | 10.5 | 33 |
| M32-T | 32 | 10.5 | 38 |
| M40-T | 40 | 11.5 | 46 |
| M50-T | 50 | 13.5 | 56 |
| M63-T | 63 | 14 | 68 |
| PG7-T | 12.5 | 8.5 | 15 |
| PG9-T | 15.2 | 8.5 | 19 |
| PG11-T | 18.6 | 9 | 22 |
| PG13.5-T | 20.4 | 9 | 25 |
| PG16-T | 22.5 | 10.5 | 27 |
| PG21-T | 28.3 | 10.5 | 33 |
| PG29-T | 37 | 11.5 | 44 |
| PG36-T | 47 | 13.5 | 55 |
| PG42-T | 54 | 13.5 | 62 |
| PG48-T | 59.3 | 14.5 | 68 |
