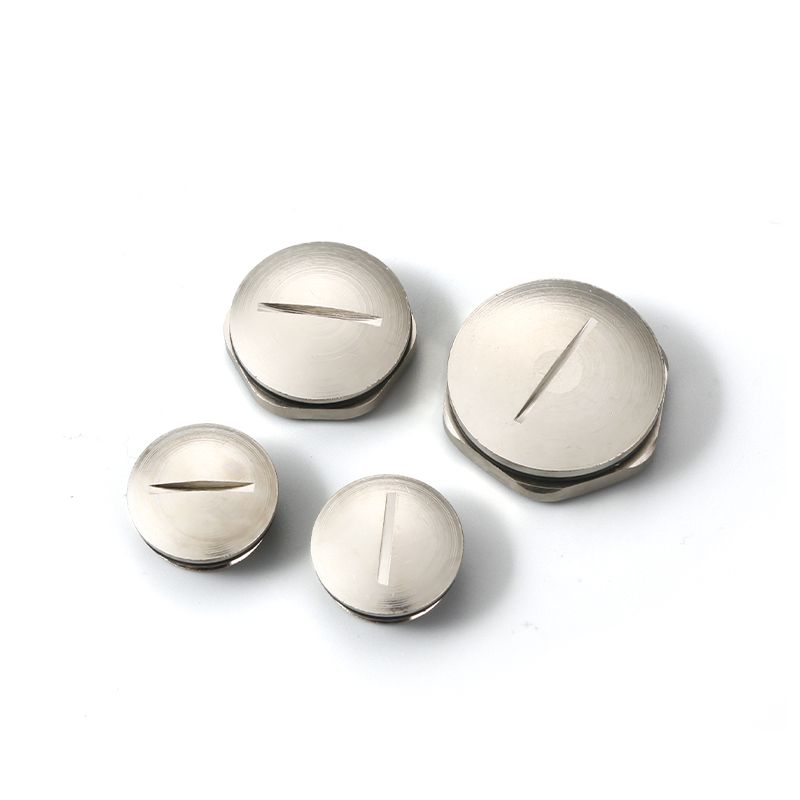

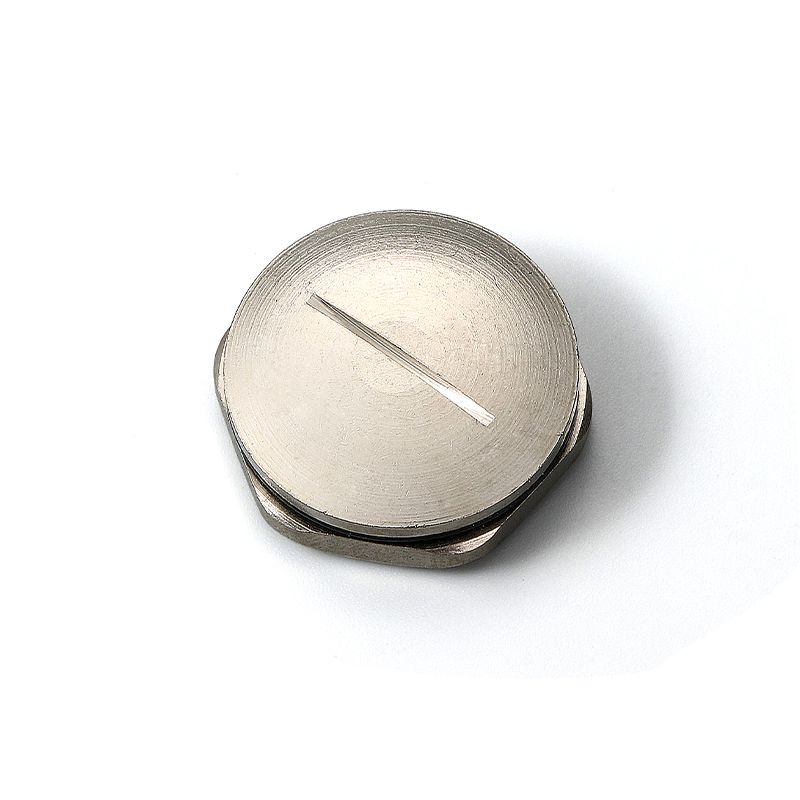

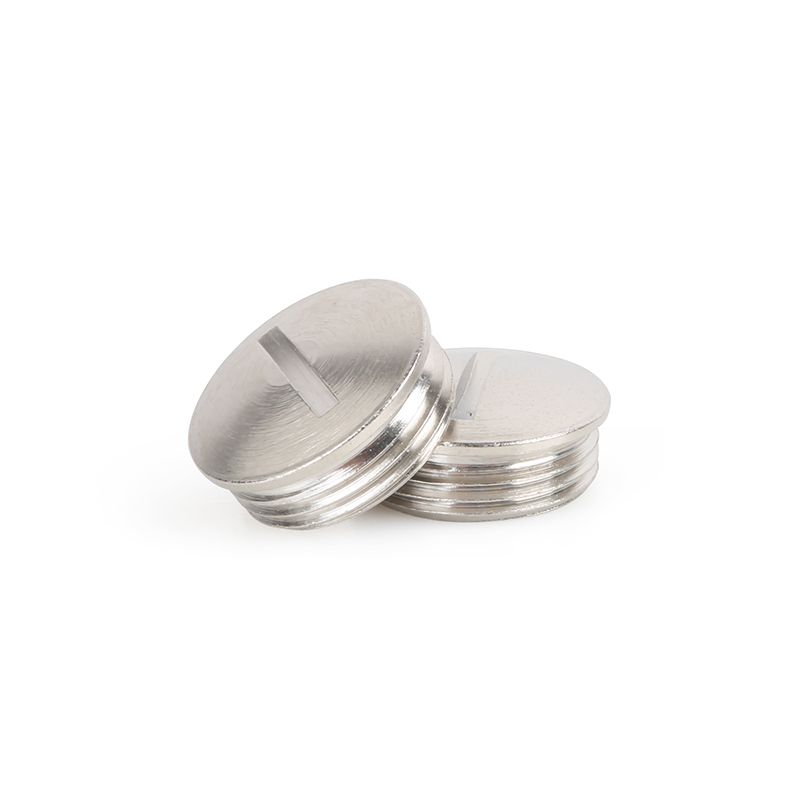

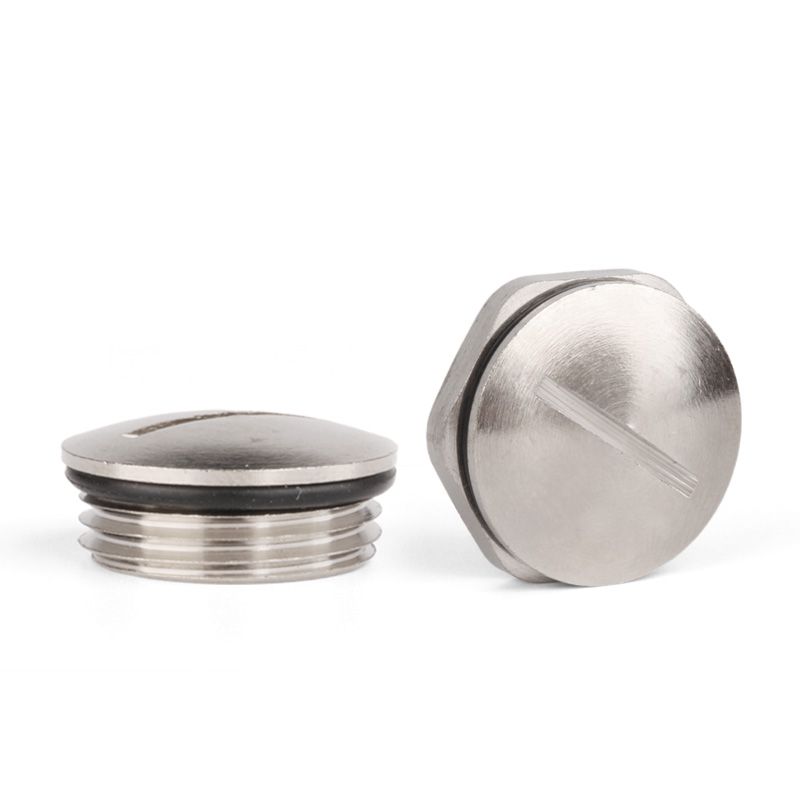

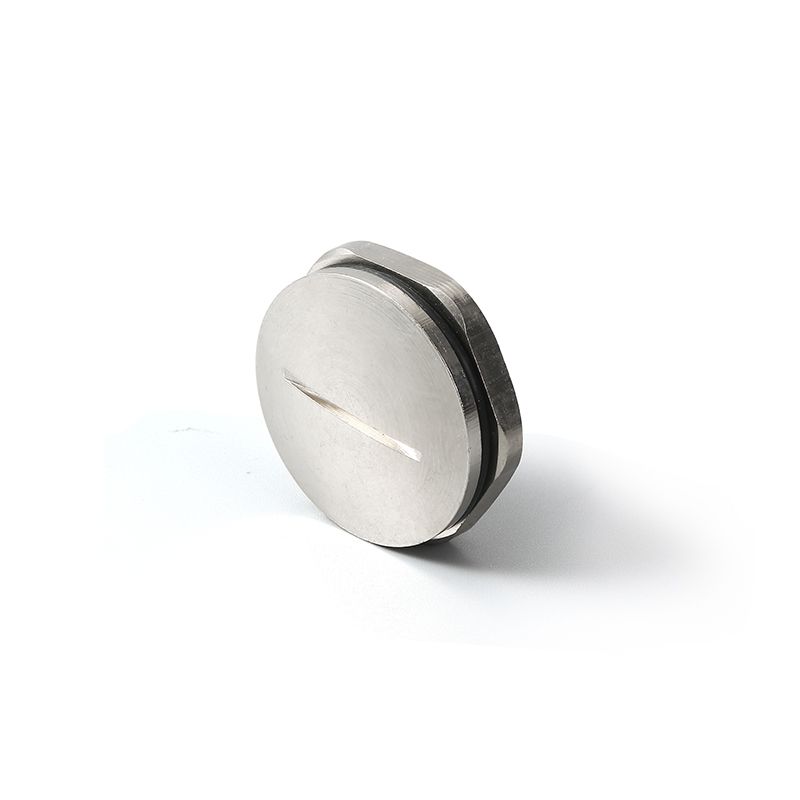

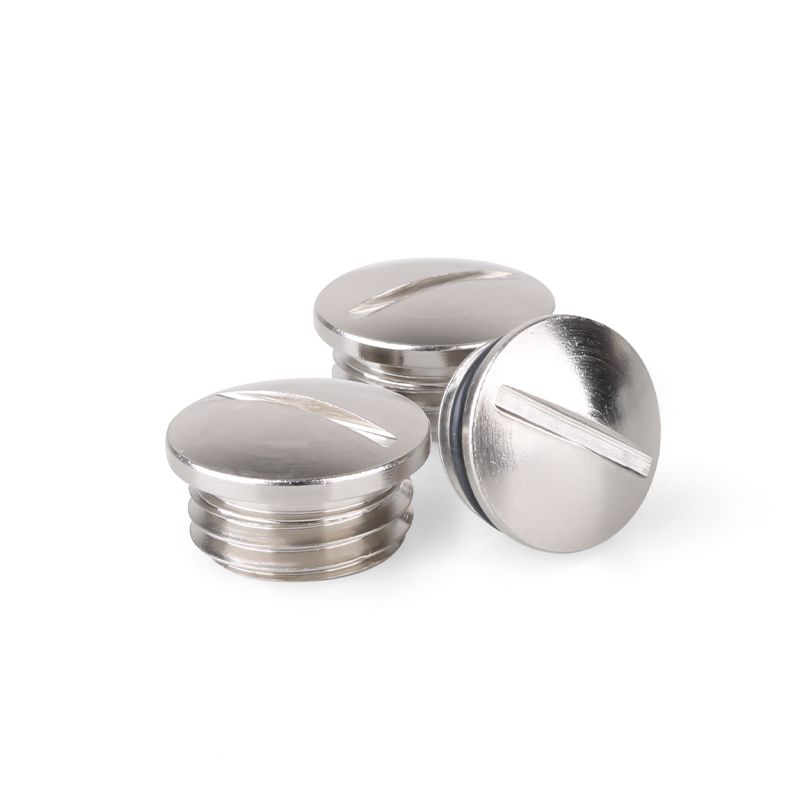

Metal round plug 丨 IP66 IP68 丨 PG/M types 丨 304/316L stainless steel, brass nickel plated material
Description
As a leading manufacturer and supplier of cable glands and electrical accessories, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new materials; The gasket is made of weather resistant nitrile rubber. This series of products has a static temperature range of -40 ℃ to 100 ℃. In addition, this type of product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.
Our nylon cable sealing sleeve accessories can be customized according to customer needs
Product Specification
| Product Name | Metal hexagonal cover |
| Model | M/PG |
| Product Material | Nickel plated brass, 304 stainless steel, 316 stainless steel |
| Temperature range | Static -40 ℃ to 100 ℃ |
| Product design features | To ensure the product is aesthetically pleasing, waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents, the reserved or excess hole positions should be leveled. |
| Protection level | IP68 |
| Fire resistance | Flame retardant |
| Certificate | rose ce s9001 |
| Aperture range selection | Specific dimensions should refer to the dimension specification diagram |
Drawings

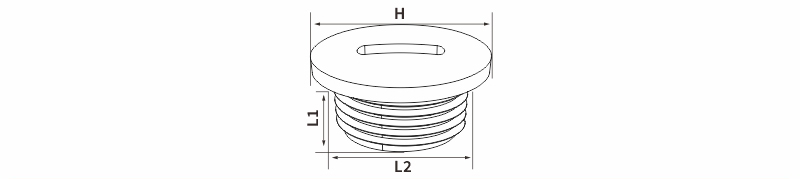

Structure Diagram

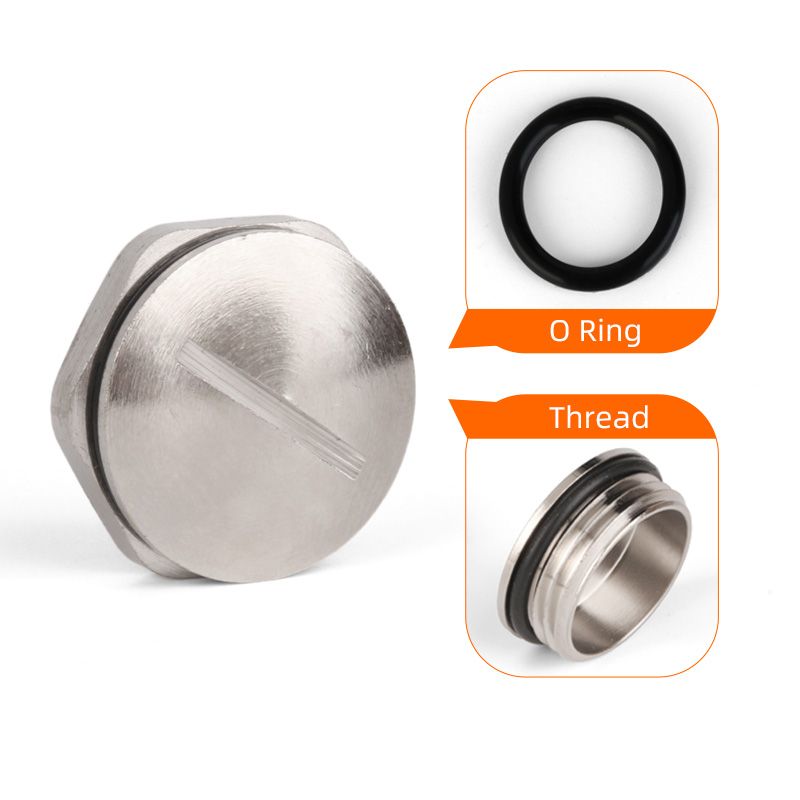

Thread specifications: PG/M.
Product Material: Nickel plated brass, 304 stainless steel, 316 stainless steel.
Working temperature: Static -40 °C to 100 °C.
Product features: Plug the reserved or excess holes flat to make the product beautiful, waterproof, dustproof, salt-resistant, acid and alkali resistant, alcohol, grease and general solvents resistant.
Technical Parameter
| Model | Thread O.D. L2(mm) | Thread Length L1(mm) | Outside Diameter H(mm) |
| PG7-T | 12.5 | 5 | 14 |
| PG9-T | 15.2 | 6 | 18 |
| PG11-T | 18.6 | 6 | 20 |
| PG13.5-T | 20.4 | 6.5 | 22 |
| PG16-T | 22.5 | 6.5 | 24 |
| PG21-T | 28.3 | 7 | 30 |
| PG29-T | 37 | 8 | 40 |
| PG36-T | 47 | 9 | 50 |
| PG42-T | 54 | 10 | 57 |
| PG48-T | 59.3 | 10 | 64 |
| M12-T | 12 | 5 | 14 |
| M16-T | 16 | 6 | 18 |
| M18-T | 18 | 6 | 20 |
| M20-T | 20 | 6.5 | 22 |
| M22-T | 22 | 6.5 | 24 |
| M25-T | 25 | 7 | 27 |
| M32-T | 32 | 8 | 35 |
| M40-T | 40 | 9 | 44 |
| M50-T | 50 | 10 | 54 |
| M63-T | 63 | 10 | 70 |
