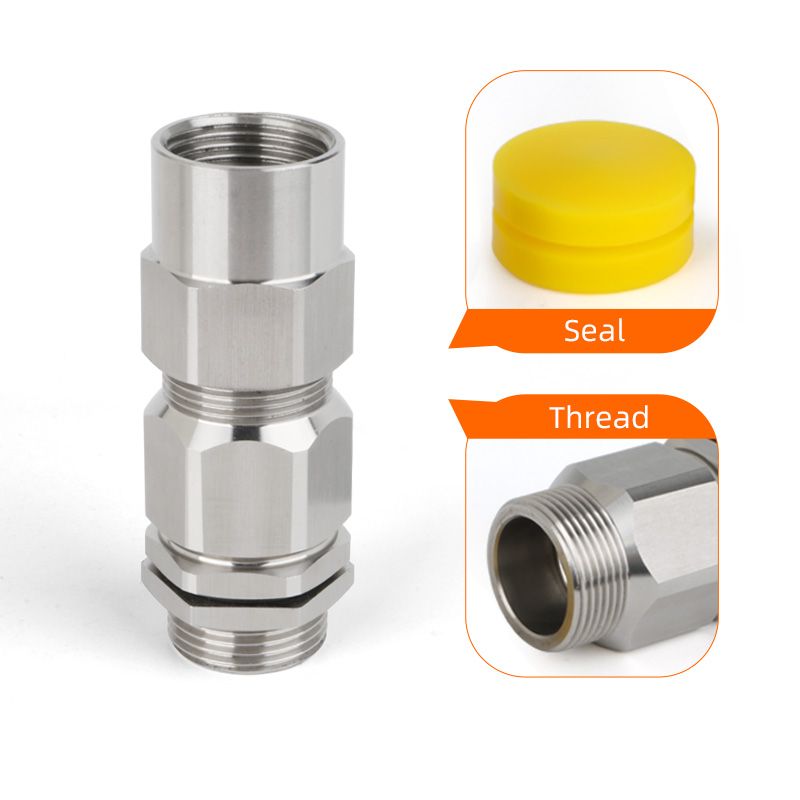

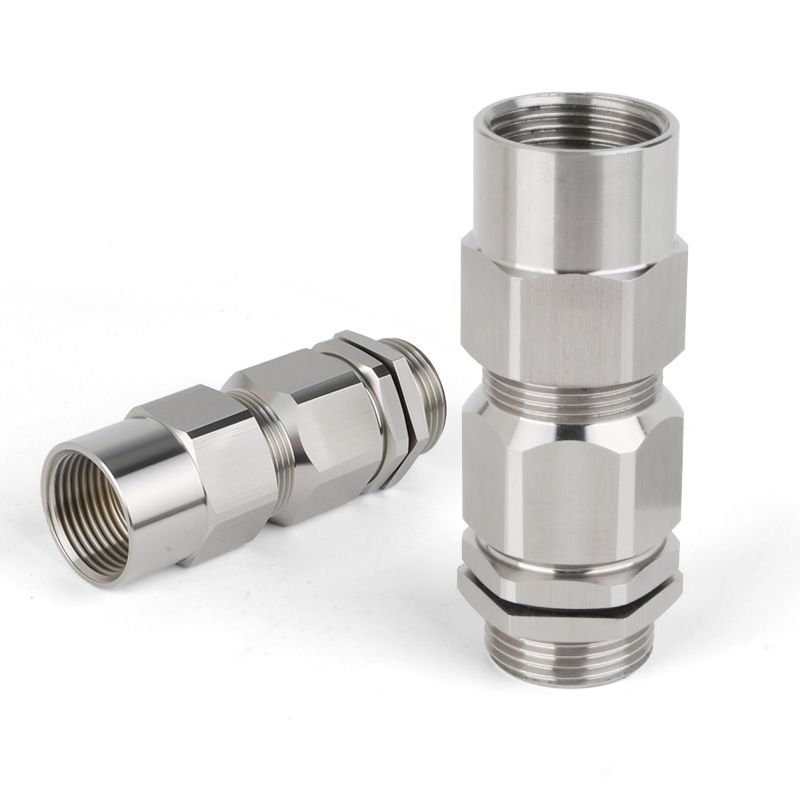

BDM series explosion-proof joint 丨 explosion-proof armored double sealed joint 丨 brass nickel plated, 304/316L stainless steel 丨 M, G, NPT types 丨explosion-proof certification
Description
As a leading manufacturer and supplier of cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.
Each YDT cable sealing sleeve is made of high-quality raw materials; The
explosion-proof series products are made of high-quality brass nickel
plated and 304/304L stainless steel raw materials. In addition, this
type of product is waterproof, dustproof, salt resistant, acid and
alkali resistant, alcohol, grease, and general solvents, which can meet
the needs of various scenarios.
Our explosion-proof series cable gland products come in a complete range
of specifications and can be customized according to customer needs.
Product Specification
| Product Name | explosion-proof armored double sealed joint |
| working temperature | -50 ℃ to 120 ℃ |
| Protection level | IP66 |
| Certificate | SYEx24.0123X |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Cable range selection | See table parameters for details |
| Scope of application | Suitable for Zone 1 and Zone 2 explosive gas environments Suitable for Zone 21 and Zone 22 environments with combustible dust; Suitable for IIA, IB, IIC explosive gas environments: Widely used in explosive hazardous areas such as petroleum extraction, storage, chemical, pharmaceutical, military, and military facilities: As a supporting accessory for explosion-proof electrical equipment, it is used to clamp various armored or non armored cables. |
Drawings
Structure Diagram
Made ofhigh-quality brass nickel plated orstainles steel, thedisplacement cable clampingdevicehasstrongwaterproof performance, a double-layer sealing structure, and a threaded interface at the incoming end,suitable for introducing armored cables.
Technical Parameter
| Thread specification(G) | Range of incoming lines (mm) | Maximum output line (mm) | L (mm) | A (mm) | Wrench Size A/B(mm) | ||
| M | G | NPT | |||||
| M16x1.5 | / | 5~8 | 12 | 87 | 16 | 24/26.5 | |
| M20x1.5 | G1/2" | NPT1/2" | 5~15 | 12 | 87 | 16 | 24/26.5 |
| M25x1.5 | G3/4" | NPT 3/4" | 8~20 | 18 | 88 | 17 | 30/33 |
| M32x1.5 | / | / | 10~25 | 22 | 96 | 17 | 38/42 |
| M40x1.5 | G1%" | NPT1%4" | 12~30 | 30 | 105 | 18 | 46/50 |
| M50x1.5 | G1V2" | NPT1V2" | 14~38 | 34 | 108 | 18 | 55/60 |
| M63x1.5 | G2" | NPT2" | 20~48 | 44 | 118 | 20 | 68/73 |
| M75x1.5 | G2V/₂" | NPT 2V₂" | 24~58 | 52 | 124 | 20 | 84/92 |
| M88x1.5 | / | / | 30~70 | 65 | 128 | 20 | 97/105 |
| M100x1.5 | G3V2" | NPT 3V₂" | 45~102 | 84 | 136 | 20 | 125/136 |
| M110x1.5 | / | / | 45~102 | 90 | 136 | 20 | 125/136 |
| M115x1.5 | G4" | NPT4" | 45~102 | 90 | 136 | 20 | 125/136 |
