BDM series explosion-proof joint 丨 Armored single sealed joint 丨 Brass nickel plated, 304/316L stainless steel丨 M, G, NPT types 丨explosion-proof certification
Description
As a leading manufacturer and supplier of cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.
Each YDT cable sealing sleeve is made of high-quality raw materials; The
explosion-proof series products are made of high-quality brass nickel
plated and 304/304L stainless steel raw materials. In addition, this
type of product is waterproof, dustproof, salt resistant, acid and
alkali resistant, alcohol, grease, and general solvents, which can meet
the needs of various scenarios.
Our explosion-proof series cable gland products come in a complete range
of specifications and can be customized according to customer needs.
Product Specification
| Armored single sealed joint | |
| Working temperature | -50 ℃ to 120 ℃ |
| Protection level | IP66 |
| Certificate | SYEx24.0123X |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Cable range selection | See table parameters for details |
| Scope of application | Suitable for Zone 1 and Zone 2 explosive gas environments Suitable for Zone 21 and Zone 22 environments with combustible dust; Suitable for IIA, IB, IIC explosive gas environments: Widely used in explosive hazardous areas such as petroleum extraction, storage, chemical, pharmaceutical, military, and military facilities: As a supporting accessory for explosion-proof electrical equipment, it is used to clamp various armored or non armored cables. |

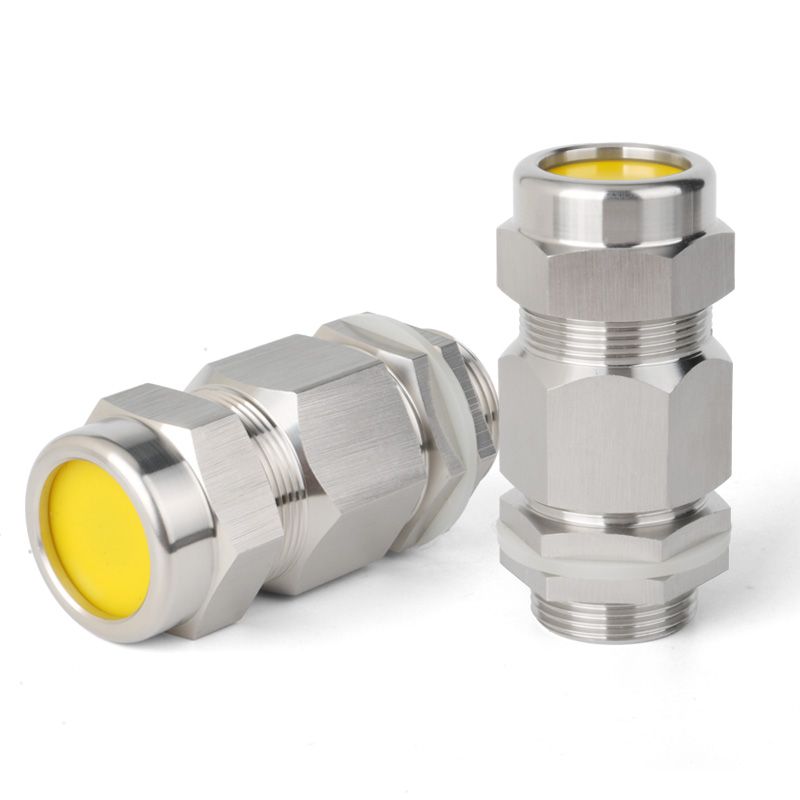

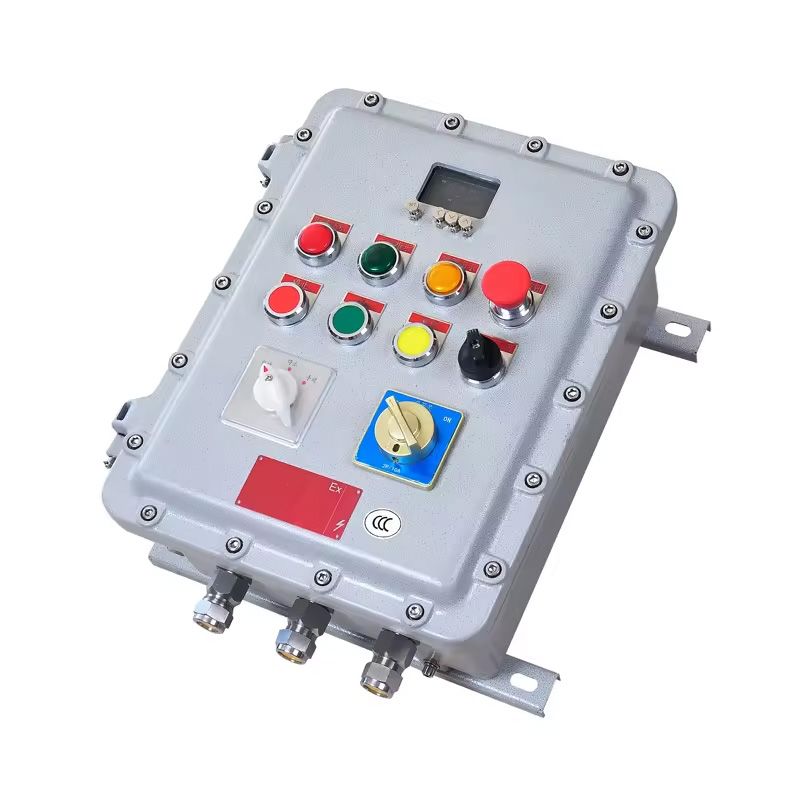

The YDT BDM series armored single sealed explosion-proof joint is engineered for reliable cable protection in industrial and hazardous environments. Featuring a single sealed armored design, it provides robust protection against moisture, dust, corrosion, and chemical exposure, ensuring long-term performance and safety.
Constructed from high-quality brass nickel plated, 304, and 316L stainless steel, the BDM series combines strength and durability with corrosion resistance. Available in M, G, and NPT thread types, it can be easily installed across a variety of industrial systems.
Certified for explosion-proof applications, this single sealed joint is ideal for critical installations where safety and reliability are paramount.
Armored Single Sealed Design: Ensures mechanical protection and reliable cable sealing in industrial environments.
Explosion-Proof Certification: Meets international safety standards for hazardous areas.
High-Quality Materials: Brass nickel plated, 304, and 316L stainless steel for long-lasting durability.
Thread Options: M, G, and NPT threads to support diverse industrial installations.
Environmental Resistance: Waterproof, dustproof, salt-resistant, acid & alkali resistant, and resistant to alcohol, grease, and general solvents.
Customizable Solutions: Tailored designs available to meet specific project requirements.
The BDM series armored single sealed explosion-proof joint is widely used in industries that require dependable cable protection, including:
Industrial automation and control systems
Power generation plants and substations
Oil & gas and chemical processing facilities
Offshore and marine installations
Heavy machinery and manufacturing equipment
Trusted Brand: YDT has been a pioneer in cable protection solutions since 2001, delivering high-quality products globally.
Reliable Performance: Each joint undergoes strict quality control to withstand harsh industrial environments.
Global Reach: YDT’s distribution network spans North America, South America, Europe, Africa, and the Middle East, ensuring prompt delivery and support.
Certified Safety: Explosion-proof certified, providing confidence for critical applications.
| Specification | Details |
|---|---|
| Model | BDM Series |
| Structure | Armored single sealed joint |
| Material | Brass nickel plated, 304/316L stainless steel |
| Thread Types | M, G, NPT |
| Protection | Explosion-proof, Waterproof, Dustproof, Corrosion resistant |
| Certification | Explosion-proof certified |
Secure reliable cable protection for your industrial projects with the BDM series armored single sealed explosion-proof joint from YDT.
[Request a Quote]
Drawings

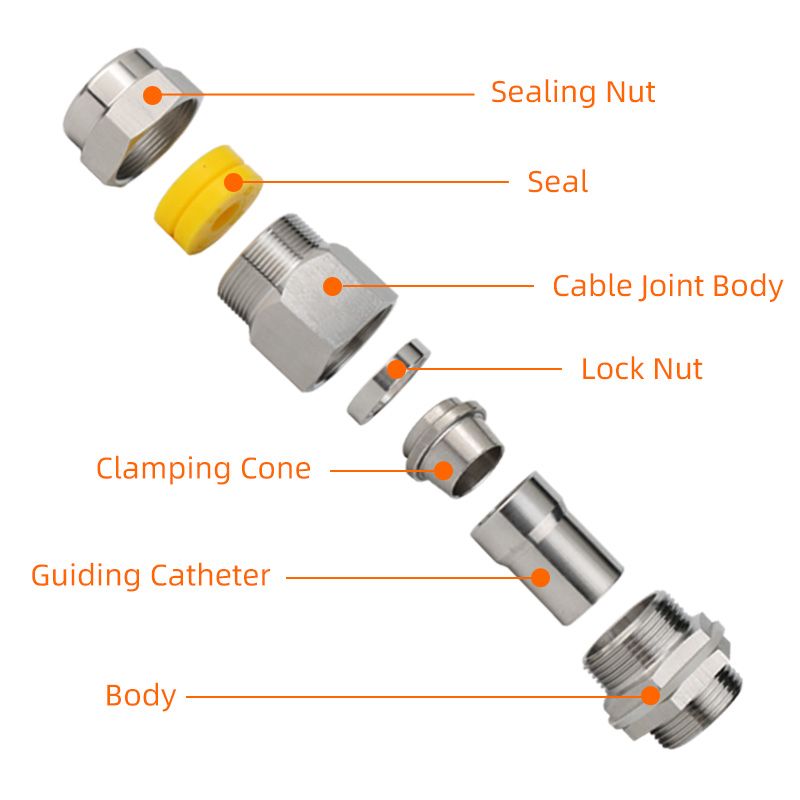

Structure Diagram
When the thread specifications are M, NPT, G, the explosion-proof mark is Exeb II C Gb; Ex tb IlI C Db.
Technical Parameter
| Thread specification(G) | Range of incoming lines (mm) | Maximum output line (mm) | L (mm) | A (mm) | Wrench SizeA/B (mm) | ||
| M | G | NPT | |||||
| M16x1.5 | / | 5~8 | 12 | 67.5 | 16 | 24/26.5 | |
| M20x1.5 | G1/2" | NPT1/2" | 5~15 | 12 | 67.5 | 16 | 24/26.5 |
| M25x1.5 | G3/4" | NPT 3/4" | 8~20 | 18 | 67.5 | 17 | 30/33 |
| M32x1.5 | / | 10~25 | 22 | 75 | 17 | 38/42 | |
| M40x1.5 | G1%4" | NPT1%4" | 12~30 | 30 | 84 | 18 | 46/50 |
| M50x1.5 | G1V₂" | NPT1V₂" | 14~38 | 34 | 89 | 18 | 55/60 |
| M63x1.5 | G2" | NPT2" | 20~48 | 44 | 98 | 20 | 68/73 |
| M75x1.5 | G2V2" | NPT 2V2" | 24~58 | 52 | 107 | 20 | 84/92 |
| M88x1.5 | / | / | 30~70 | 65 | 110 | 20 | 97/105 |
| M100x1.5 | G3V2" | NPT 3V₂" | 45~102 | 84 | 120 | 20 | 125/136 |
| M110x1.5 | / | / | 45~102 | 90 | 120 | 20 | 125/136 |
| M115x1.5 | G4" | NPT4" | 45~102 | 90 | 120 | 20 | 125/136 |
