BDM series explosion-proof joint 丨 Armored double sealed joint 丨 Brass nickel plated, 304/316L stainless steel丨 M, G, NPT types 丨explosion-proof certification
Description
As a leading manufacturer and supplier of explosion proof cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.
Each YDT cable sealing sleeve is made of high-quality raw materials; The
explosion-proof series products are made of high-quality brass nickel
plated and 304/304L stainless steel raw materials. In addition, this
type of product is waterproof, dustproof, salt resistant, acid and
alkali resistant, alcohol, grease, and general solvents, which can meet
the needs of various scenarios.
Our explosion-proof series cable gland products come in a complete range
of specifications and can be customized according to customer needs.
Product Specification
| Product Name | Armored double sealed joint |
| working temperature | -50 ℃ to 120 ℃ |
| Protection level | IP66 |
| Certificate | SYEx24.0123X |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Cable range selection | See table parameters for details |
| Scope of application | Suitable for Zone 1 and Zone 2 explosive gas environments Suitable for Zone 21 and Zone 22 environments with combustible dust; Suitable for IIA, IB, IIC explosive gas environments: Widely used in explosive hazardous areas such as petroleum extraction, storage, chemical, pharmaceutical, military, and military facilities: As a supporting accessory for explosion-proof electrical equipment, it is used to clamp various armored or non armored cables. |

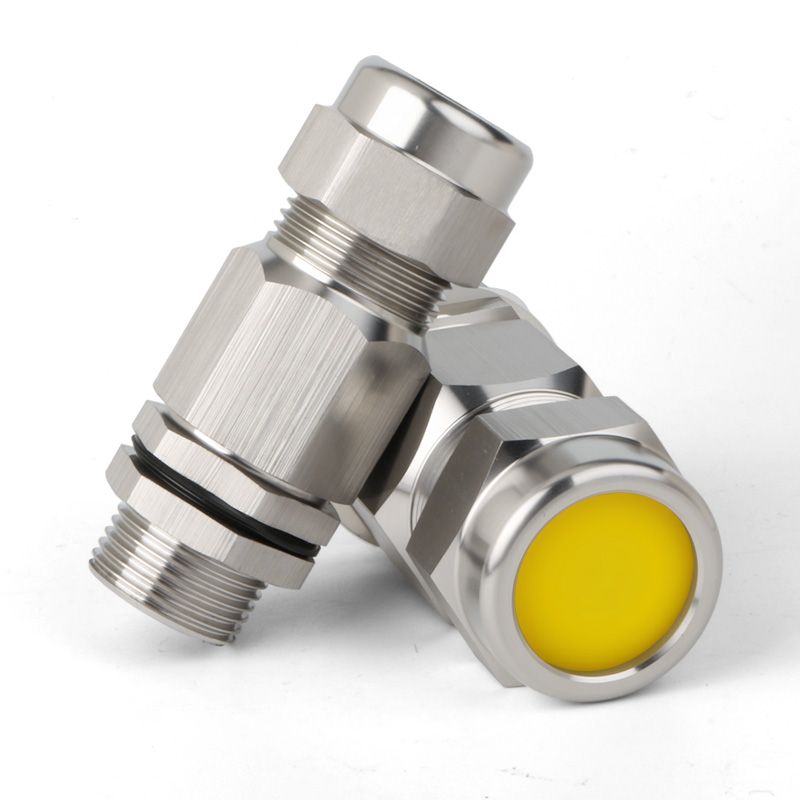

The YDT BDM series armored double sealed explosion-proof joint is designed for maximum protection and reliability in critical industrial applications. Featuring a double-sealed armored structure, this explosion-proof joint provides superior resistance against water, dust, corrosion, and harsh chemicals.
Crafted from high-quality brass nickel plated, 304, and 316L stainless steel, the BDM series ensures long-lasting performance and durability. With multiple thread options including M, G, and NPT types, it offers flexible installation for diverse industrial systems.
Certified for explosion-proof applications, the BDM series joint guarantees safe and reliable cable connections even in hazardous environments.

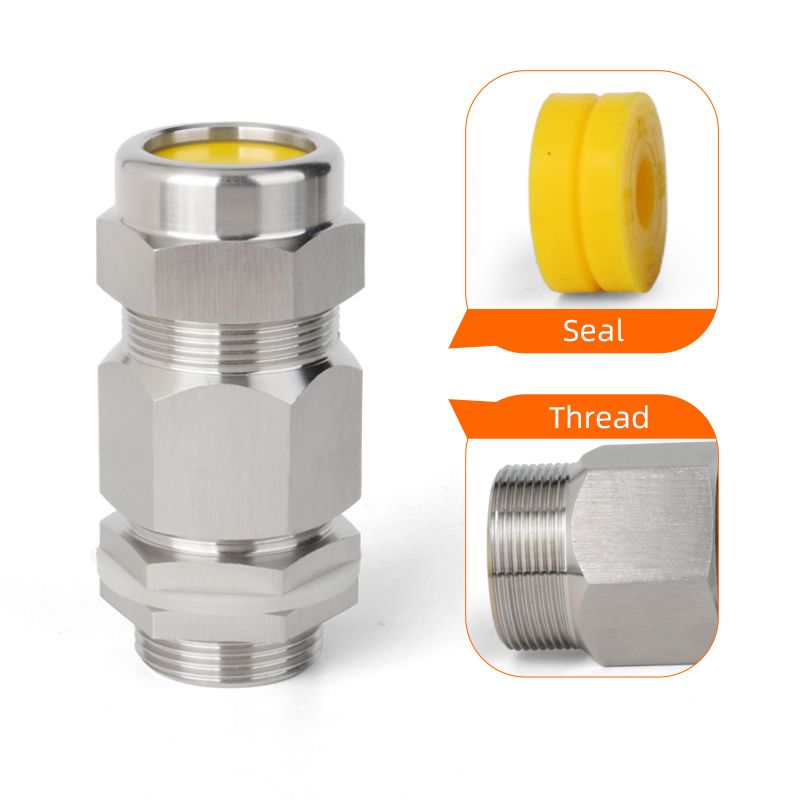

Double Sealed Armored Design: Provides enhanced mechanical protection and superior sealing for extreme conditions.
Explosion-Proof Certification: Complies with international safety standards for hazardous environments.
Premium Materials: Brass nickel plated, 304, and 316L stainless steel for excellent corrosion resistance and durability.
Thread Options: M, G, and NPT types available to suit different industrial installations.
Environmental Resistance: Resistant to water, dust, salt, acids, alkalis, alcohol, grease, and general solvents.
Customizable: Tailored solutions available to meet unique project requirements.

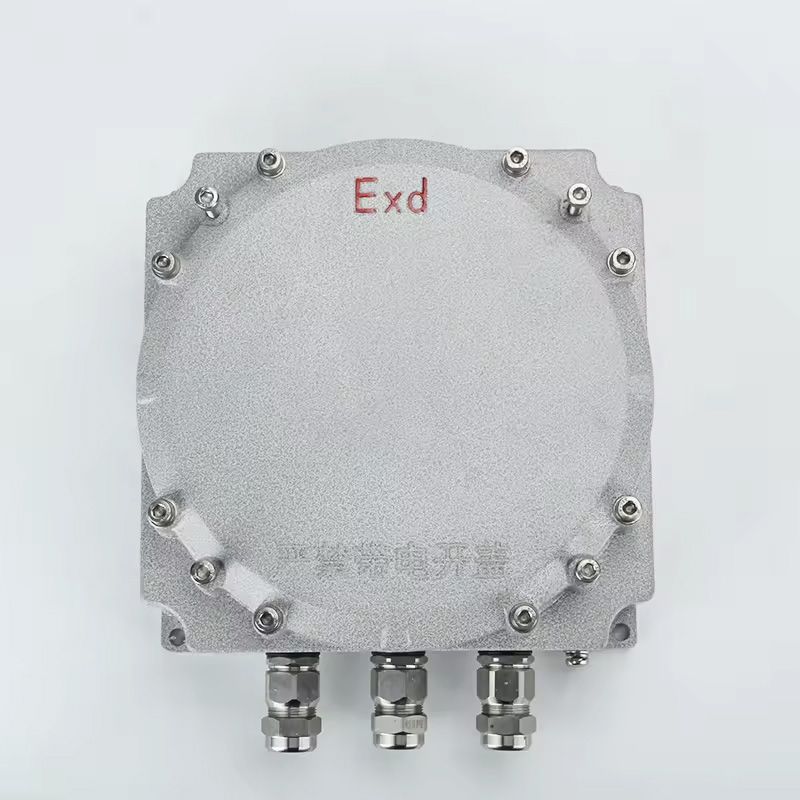

The BDM series armored double sealed explosion-proof joint is ideal for industries requiring high-reliability cable protection:
Industrial automation systems
Power generation plants and substations
Oil & gas and chemical facilities
Offshore and marine installations
Heavy machinery and manufacturing equipment
Proven Expertise: YDT has been delivering advanced cable protection solutions since 2001.
Superior Quality: Each joint undergoes rigorous quality control for reliability in extreme environments.
Global Availability: Distributors across North America, South America, Europe, Africa, and the Middle East ensure timely delivery and support.
Certified Safety: Explosion-proof certified to meet international standards, giving you confidence in critical applications.
Ensure maximum protection for your industrial projects with the BDM series armored double sealed explosion-proof joint from YDT.
Drawings

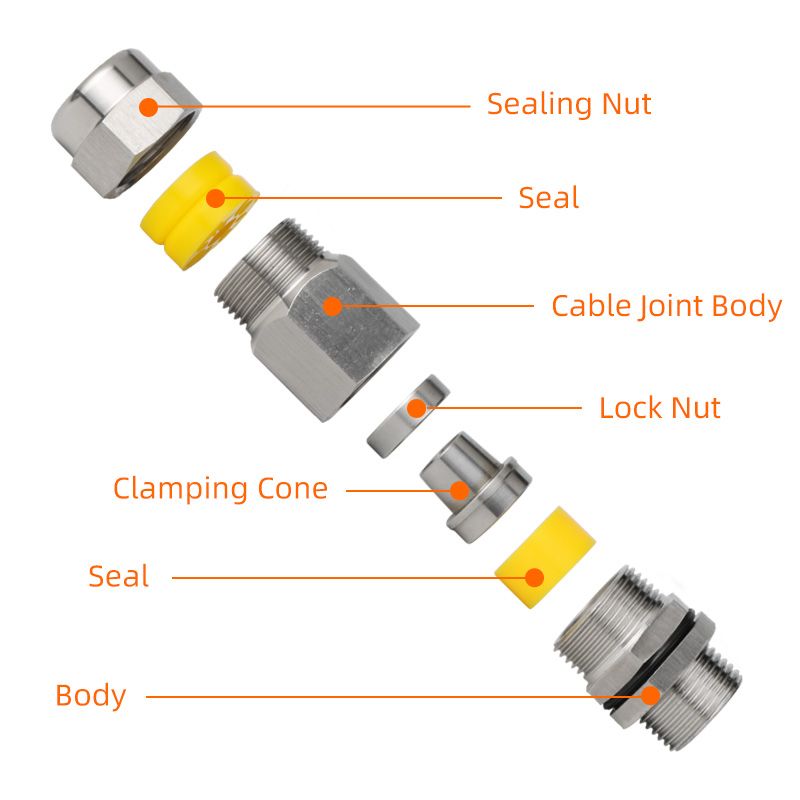

Structure Diagram
When the thread specifications are M, NPT, G, theexplosion-proof markisExeb IICGb; ExtbIII CDb.
Technical Parameter
| Thread specification(G) | Range of incoming lines (mm) | Maximum output line (mm) | L (mm) | A (mm) | Wrench SizeA/B (mm) | ||
| M | G | NPT | |||||
| M16x1.5 | / | 5~8 | 12 | 67.5 | 16 | 24/26.5 | |
| M20x1.5 | G1/2" | NPT1/2" | 5~15 | 12 | 67.5 | 16 | 24/26.5 |
| M25x1.5 | G3/4" | NPT 3/4" | 8~20 | 18 | 67.5 | 17 | 30/33 |
| M32x1.5 | / | 10~25 | 22 | 75 | 17 | 38/42 | |
| M40x1.5 | G1%4" | NPT1%4" | 12~30 | 30 | 84 | 18 | 46/50 |
| M50x1.5 | G1V₂" | NPT1V₂" | 14~38 | 34 | 89 | 18 | 55/60 |
| M63x1.5 | G2" | NPT2" | 20~48 | 44 | 98 | 20 | 68/73 |
| M75x1.5 | G2V2" | NPT 2V2" | 24~58 | 52 | 107 | 20 | 84/92 |
| M88x1.5 | / | / | 30~70 | 65 | 110 | 20 | 97/105 |
| M100x1.5 | G3V2" | NPT 3V₂" | 45~102 | 84 | 120 | 20 | 125/136 |
| M110x1.5 | / | / | 45~102 | 90 | 120 | 20 | 125/136 |
| M115x1.5 | G4" | NPT4" | 45~102 | 90 | 120 | 20 | 125/136 |
