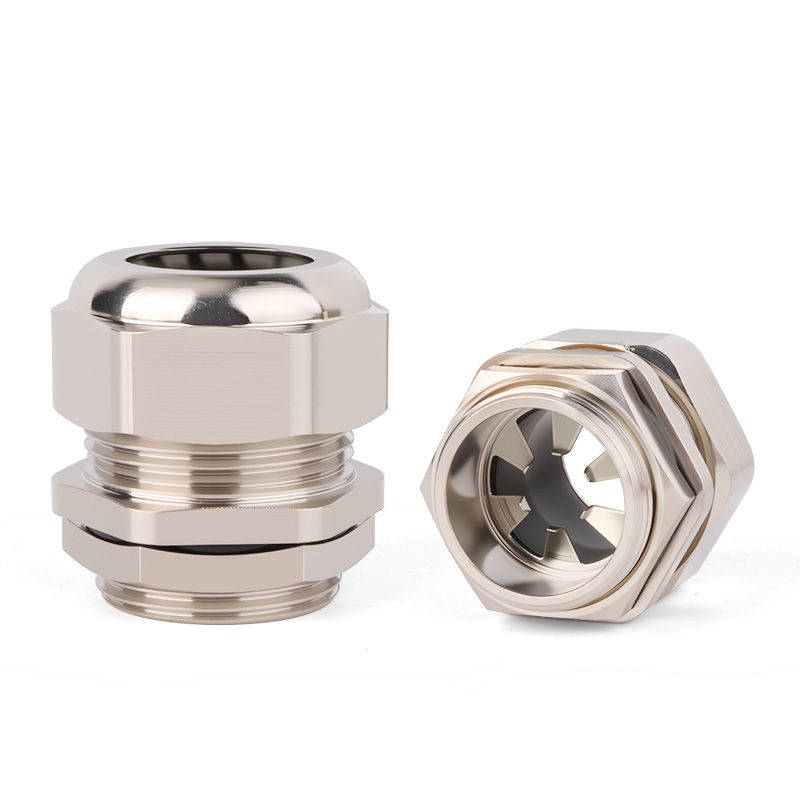

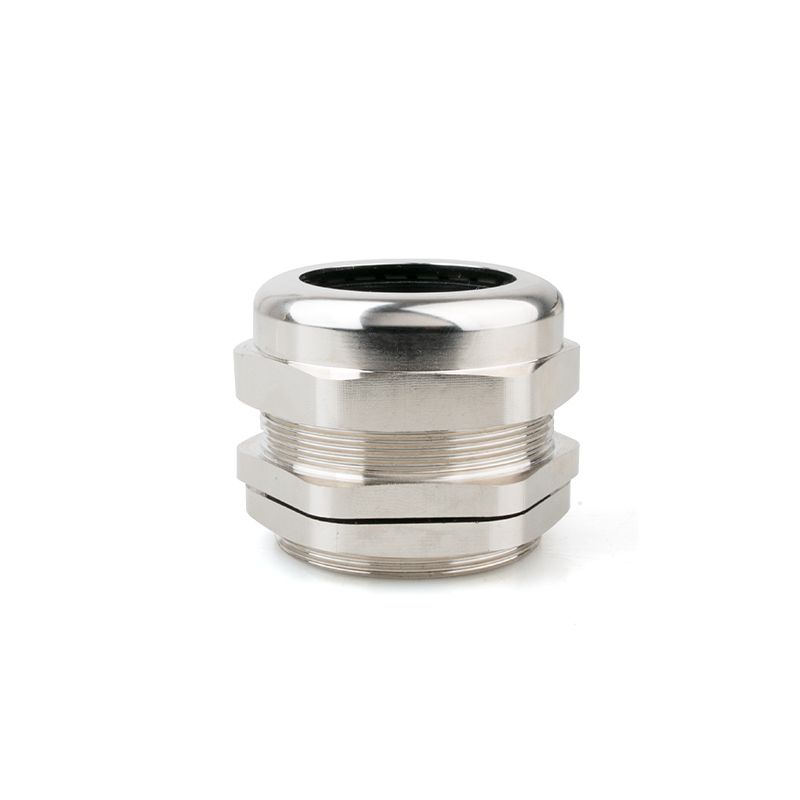

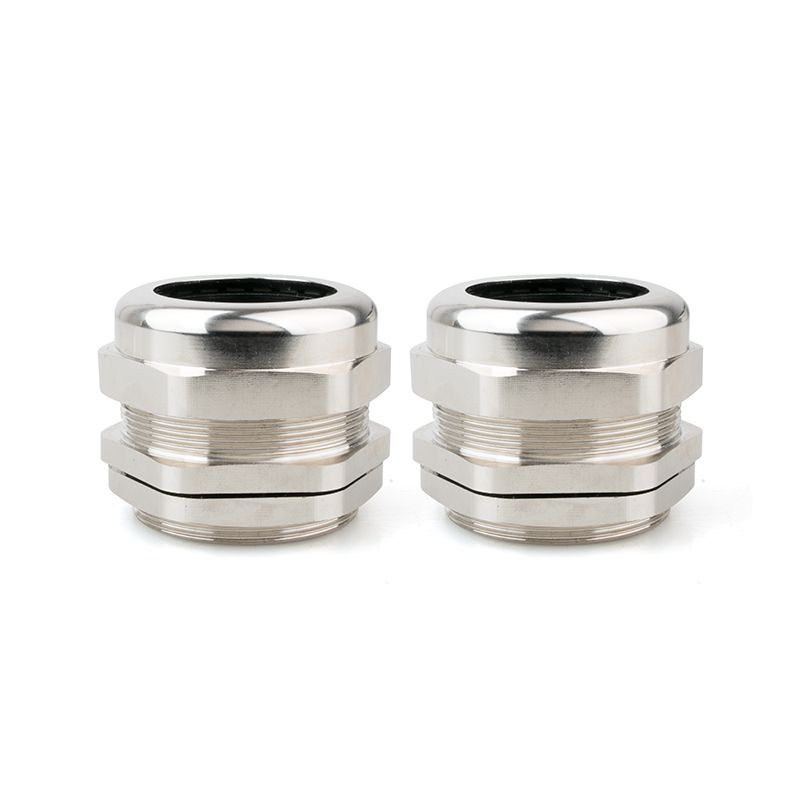

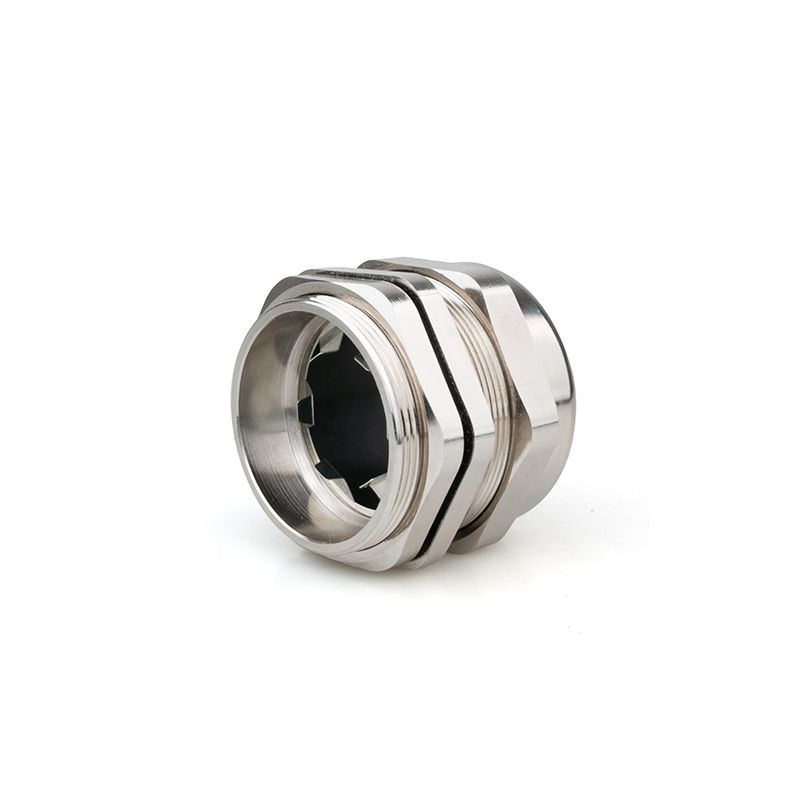

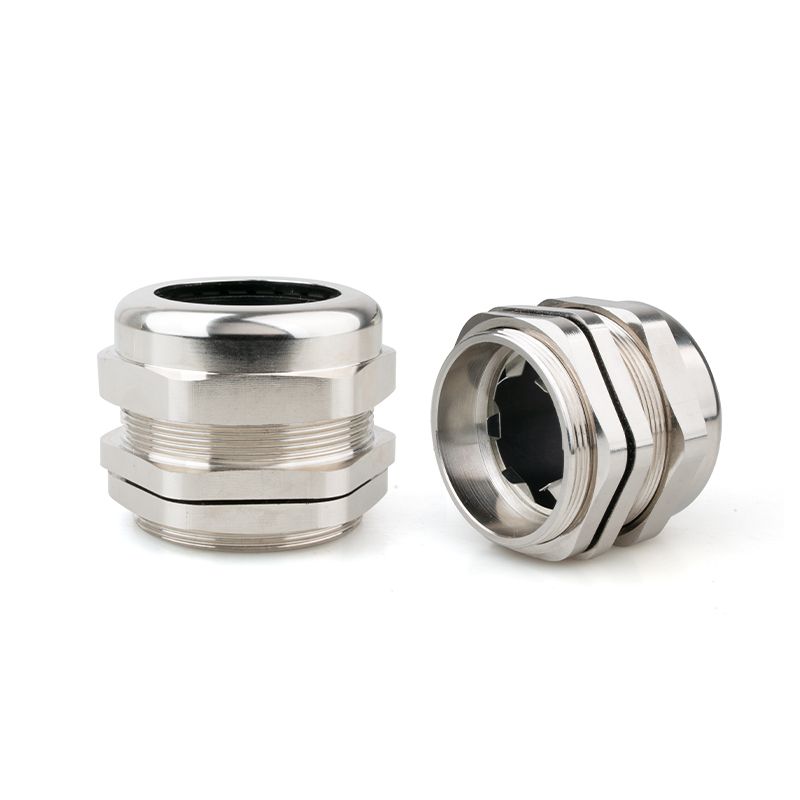

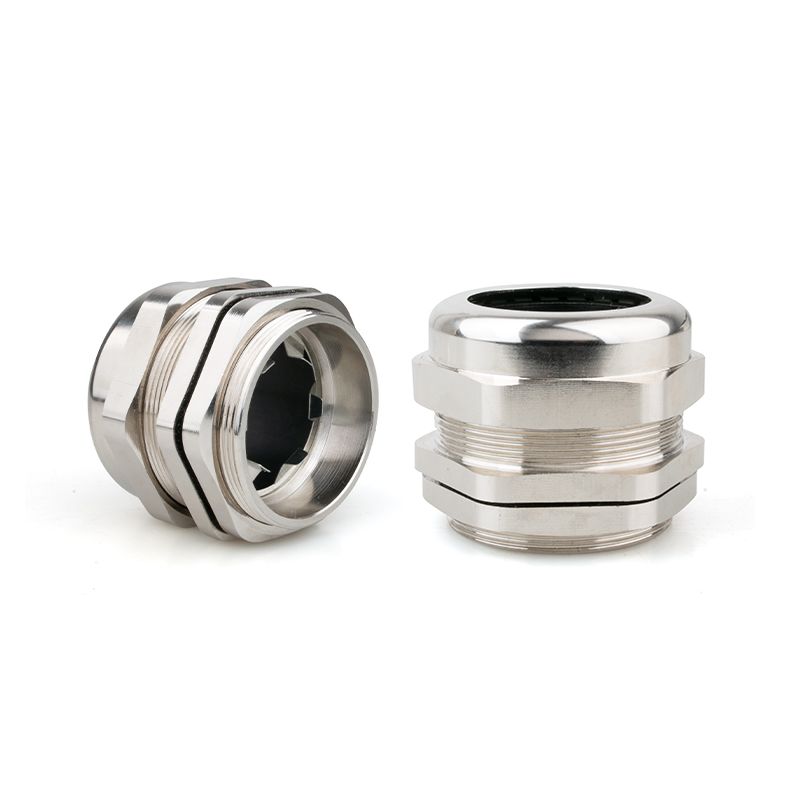

EMC anti magnetic cable gland 丨nickel plated brass丨 PG/M/NPT/G types 丨 IP66 IP68 丨 Stress relief 丨 Wire clamp
Description
As a leading manufacturer and supplier of cable glands, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT cable sealing sleeve is made of high-quality brass; The tightening nut, main body, and nut parts are made of high-quality brass materials, while the gripping claws, sealing rings, and washers are made of weather resistant nitrile rubber. This series of products has a static temperature range of -40 ℃ to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, this type of product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.
Our cable gland products include various styles such as standard, universal, and corner series, with complete specifications and customizable colors according to customer needs
Product Specification
| Product Name | EMC anti magnetic cable gland |
| Model | PG M NPT G |
| Product Material | The tightening nut, main body, and nut parts are made of high-quality brass materials; The gripping claws, sealing rings, and gaskets are made of weather resistant nitrile rubber. |
| Temperature range | Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. |

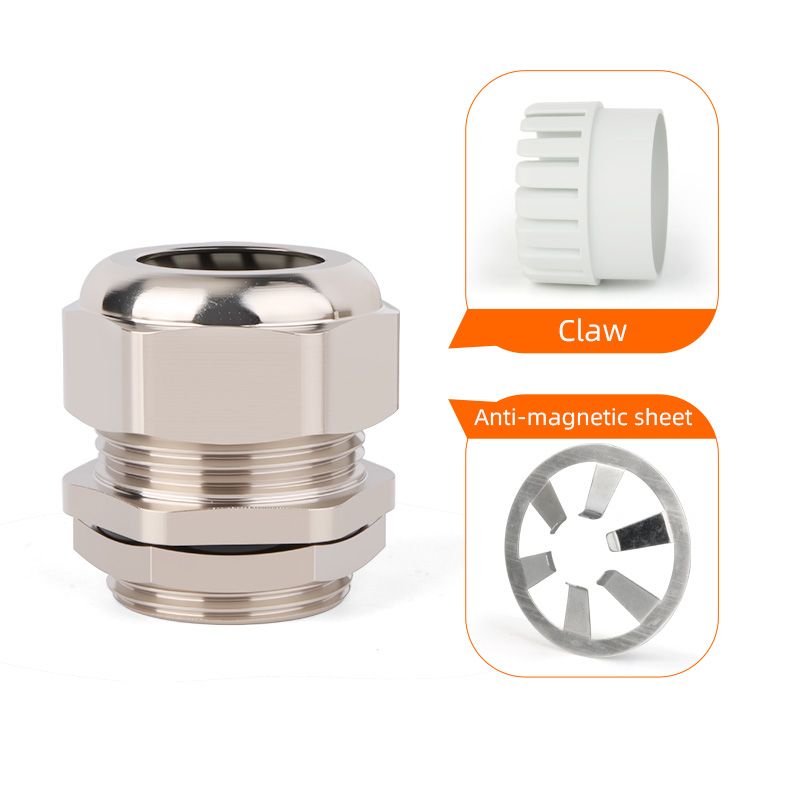

| Product design features | Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Protection level | IP66 IP68 |
| Fire resistance | UL94 V-2 |
| UV resistant | F1 |
| Environmental protection | Compliant with RoHs standards, halogen-free |
| Certificate | CE, RoHS, REACH |
| Cable range | Refer to the specification table for specific size specifications and display diagram |
Drawings

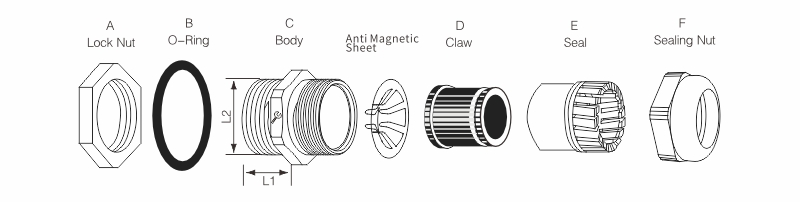

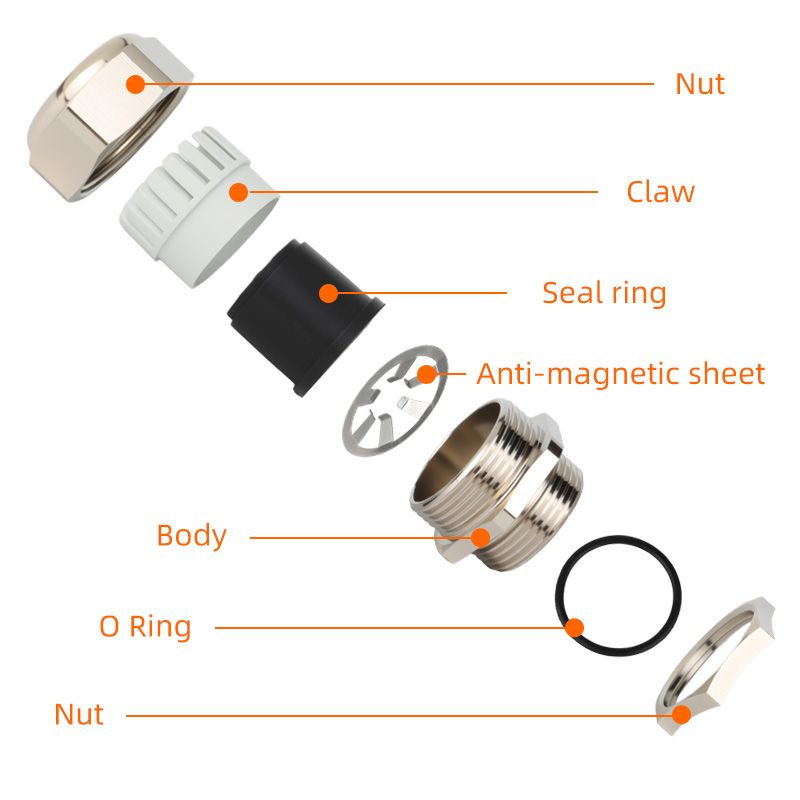

Structure Diagram

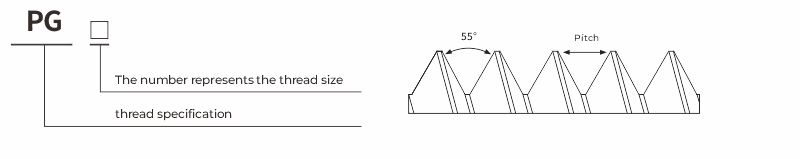

PG Type
PG thread isa German standard thread connection method, with a cylindrical thread form and a thread angle of 55.
According to the German standard RIN4043Q, the size specifications of PG threads include various models such as PG7, PG9, PG11, PG13.5, PG16, etc.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| BPG7 | 3-6.5 | 12.5 | 7 | 14 |
| BPG7 | 2-5 | 12.5 | 7 | 14 |
| BPG9 | 4-8 | 15.2 | 8 | 17 |
| BPG9 | 2-6 | 15.2 | 8 | 17 |
| BPG11 | 5-10 | 18.6 | 8 | 20 |
| BPG11 | 3-7 | 18.6 | 8 | 20 |
| BPG13.5 | 6-12 | 20.4 | 8 | 22 |
| BPG13.5 | 5-9 | 20.4 | 8 | 22 |
| BPG16 | 10-14 | 22.5 | 8 | 24 |
| BPG16 | 6-12 | 22.5 | 8 | 24 |
| BPG19 | 12-16 | 25 | 9 | 27 |
| BPG19 | 7-12 | 25 | 9 | 27 |
| BPG21 | 13-18 | 28.3 | 9 | 30 |
| BPG21 | 9-16 | 28.3 | 9 | 30 |
| BPG25 | 15-22 | 32 | 10 | 35 |
| BPG25 | 13-18 | 32 | 10 | 35 |
| BPG29 | 18-25 | 37 | 10 | 40 |
| BPG29 | 13-20 | 37 | 10 | 40 |
| BPG36 | 22-33 | 47 | 11 | 50 |
| BPG36 | 20-26 | 47 | 11 | 50 |
| BPG42 | 32-38 | 54 | 12 | 57 |
| BPG42 | 25-31 | 54 | 12 | 57 |
| BPG48 | 37-44 | 59.3 | 12 | 64 |
| BPG48 | 29-35 | 59.3 | 12 | 64 |
| BPG63 | 42-52 | 72 | 14 | 78 |
| BPG63 | 32-40 | 72 | 14 | 78 |
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| BM8 | 2-5 | 8 | 6 | 11 |
| BM8 | 1-2.5 | 8 | 6 | 11 |
| BM10 | 3-6.5 | 10 | 7 | 14 |
| BM10 | 1.5-3 | 10 | 7 | 14 |
| BM12 | 3-6.5 | 12 | 7 | 14 |
| BM12 | 1.5-3 | 12 | 7 | 14 |
| BM16 | 4-8 | 16 | 8 | 18 |
| BM16 | 2-6 | 16 | 8 | 18 |
| BM18 | 5-10 | 18 | 8 | 20 |
| BM18 | 3-7 | 18 | 8 | 20 |
| BM20 | 6-12 | 20 | 8 | 22 |
| BM20 | 5-9 | 20 | 8 | 22 |
| BM22 | 10-14 | 22 | 8 | 24 |
| BM22 | 7-12 | 22 | 8 | 24 |
| BM25 | 12-16 | 25 | 9 | 27 |
| BM25 | 10-12 | 25 | 9 | 27 |
| BM27 | 13-18 | 27 | 9 | 30 |
| BM27 | 9-6 | 27 | 9 | 30 |
| BM30 | 13-18 | 30 | 9 | 32 |
| BM30 | 9-6 | 30 | 9 | 32 |
| BM32 | 15-22 | 32 | 10 | 35 |
| BM32 | 13-18 | 32 | 10 | 35 |
| BM36 | 18-25 | 36 | 10 | 40 |
| BM36 | 13-20 | 36 | 10 | 40 |
| BM40 | 22-30 | 40 | 11 | 45 |
| BM40 | 20-26 | 40 | 11 | 45 |
| BM42 | 25-33 | 42 | 11 | 50 |
| BM42 | 20-26 | 42 | 11 | 50 |
| BM50 | 32-38 | 50 | 12 | 57 |
| BM50 | 25-31 | 50 | 12 | 57 |
| BM63 | 37-44 | 63 | 14 | 68 |
| BM63 | 29-35 | 63 | 14 | 68 |
| BM72 | 42-52 | 72 | 15 | 78 |
| BM72 | 32-40 | 72 | 15 | 78 |
| BM75 | 42-52 | 75 | 15 | 78 |
| BM75 | 32-40 | 75 | 15 | 78 |
| BM80 | 55-62 | 80 | 16 | 86 |
| BM80 | 45-52 | 80 | 16 | 86 |
| BM88 | 65-70 | 88 | 18 | 94 |
| BM88 | 55-60 | 88 | 18 | 94 |
| BM100 | 78-84 | 100 | 20 | 110 |
| BM100 | 68-74 | 100 | 20 | 110 |
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| BNPT 1/4" | 3-6.5 | 13.6 | 7 | 14 |
| BNPT 1/4" | 1.5-3 | 13.6 | 7 | 14 |
| BNPT 3/8" | 4-8 | 17 | 8 | 18 |
| BNPT 3/8" | 2-6 | 17 | 8 | 18 |
| BNPT 1/2" | 6-12 | 21.2 | 8 | 22 |
| BNPT 1/2" | 5-9 | 21.2 | 8 | 22 |
| BNPT 3/4" | 13-18 | 26.5 | 9 | 30 |
| BNPT 3/4" | 9-16 | 26.5 | 9 | 30 |
| BNPT 1" | 18-25 | 33.2 | 10 | 40 |
| BNPT 1" | 13-20 | 33.2 | 10 | 40 |
| BNPT 1-1/4" | 22-33 | 41.9 | 11 | 45 |
| BNPT 1-1/4" | 18-25 | 41.9 | 11 | 45 |
| BNPT 1-1/2" | 32-38 | 48 | 13 | 52 |
| BNPT 1-1/2" | 20-26 | 48 | 13 | 52 |
| BNPT 2" | 37-44 | 60 | 14 | 64 |
| BNPT 2" | 29-35 | 60 | 14 | 64 |
| BNPT 2-1/2" | 42-52 | 72.6 | 15 | 78 |
| BNPT 2-1/2" | 32-40 | 72.6 | 15 | 78 |
| BNPT 3" | 65-70 | 88.6 | 15 | 94 |
| BNPT 3" | 55-60 | 88.6 | 15 | 94 |
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| BG1/4" | 3-6.5 | 13.1 | 7 | 14 |
| BG1/4" | 1.5-3 | 13.1 | 7 | 14 |
| BG3/8" | 4-8 | 16.6 | 8 | 18 |
| BG3/8" | 2-6 | 16.6 | 8 | 18 |
| BG1/2" | 6-12 | 20.9 | 8 | 22 |
| BG1/2" | 5-9 | 20.9 | 8 | 22 |
| BG3/4" | 13-18 | 26.4 | 9 | 30 |
| BG3/4" | 9-16 | 26.4 | 9 | 30 |
| BG1" | 18-25 | 33.2 | 10 | 40 |
| BG1" | 13-20 | 33.2 | 10 | 40 |
| BG11/4" | 18-25 | 41.9 | 11 | 50 |
| BG11/4" | 13-20 | 41.9 | 11 | 50 |
| BG11/2" | 22-32 | 47.8 | 13 | 57 |
| BG11/2" | 20-26 | 47.8 | 13 | 57 |
| BG2" | 37-44 | 59.6 | 14 | 64 |
| BG2" | 29-34 | 59.6 | 14 | 64 |
| BG2 1/2" | 42-52 | 75.1 | 15 | 78 |
| BG2 1/2" | 32-40 | 75.1 | 15 | 78 |
| BG3" | 65-70 | 87.8 | 15 | 94 |
| BG3" | 55-60 | 87.8 | 15 | 94 |
