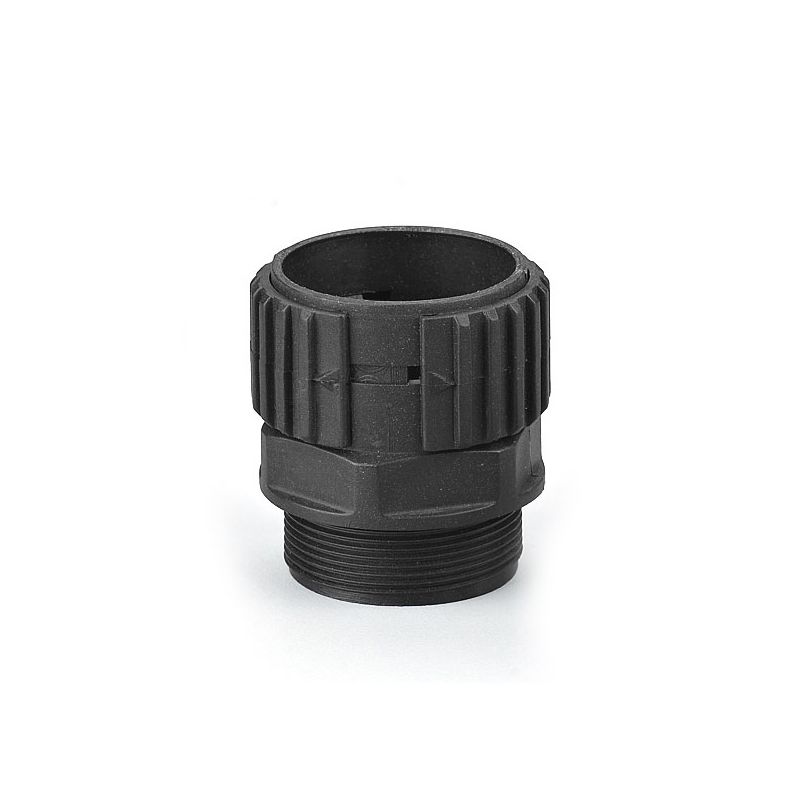

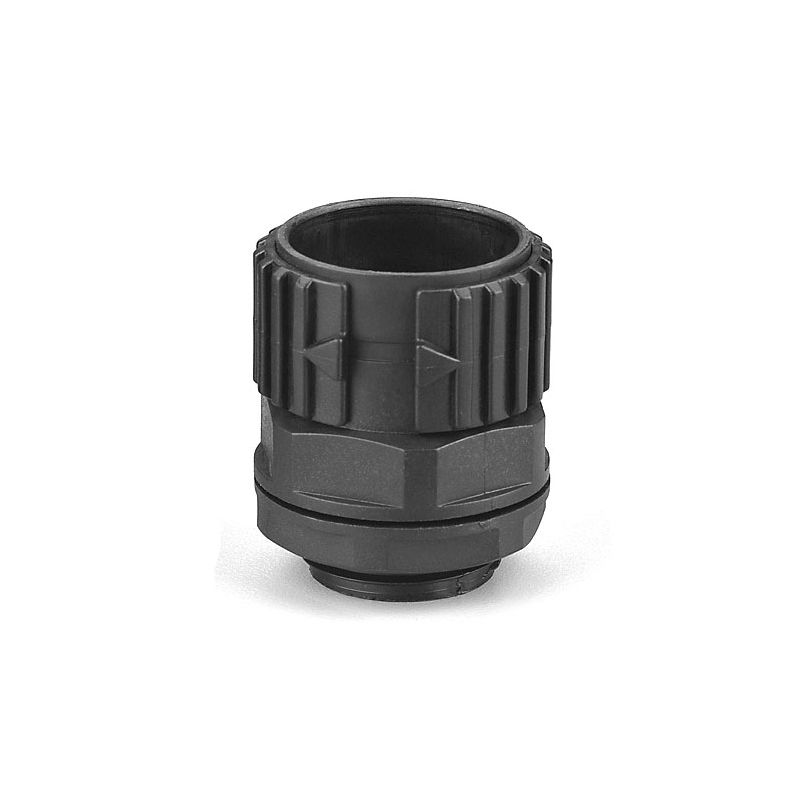

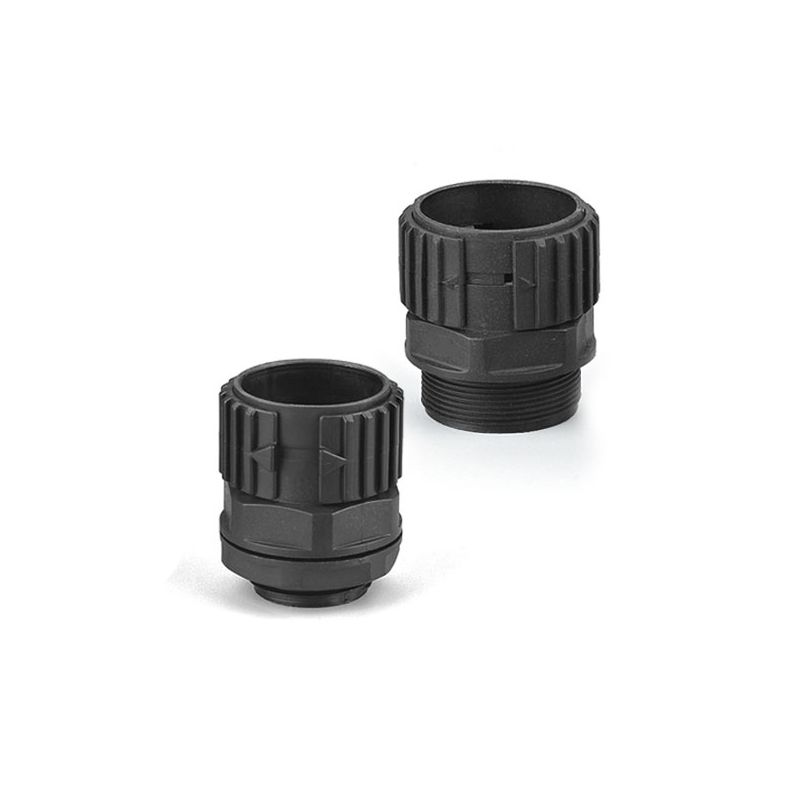

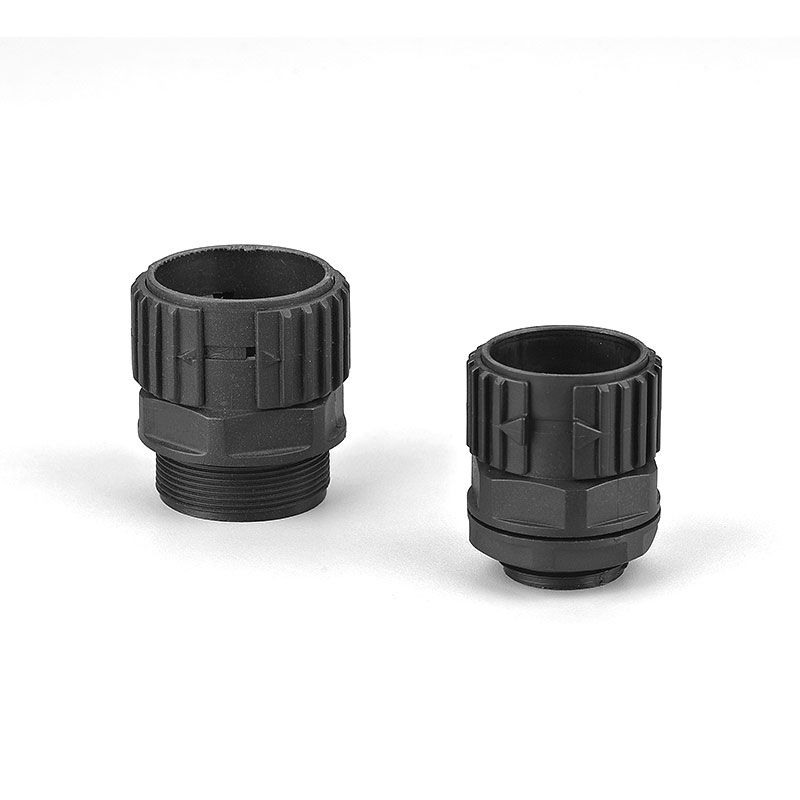

Nylon conduit connector SM series IP65 customization
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification

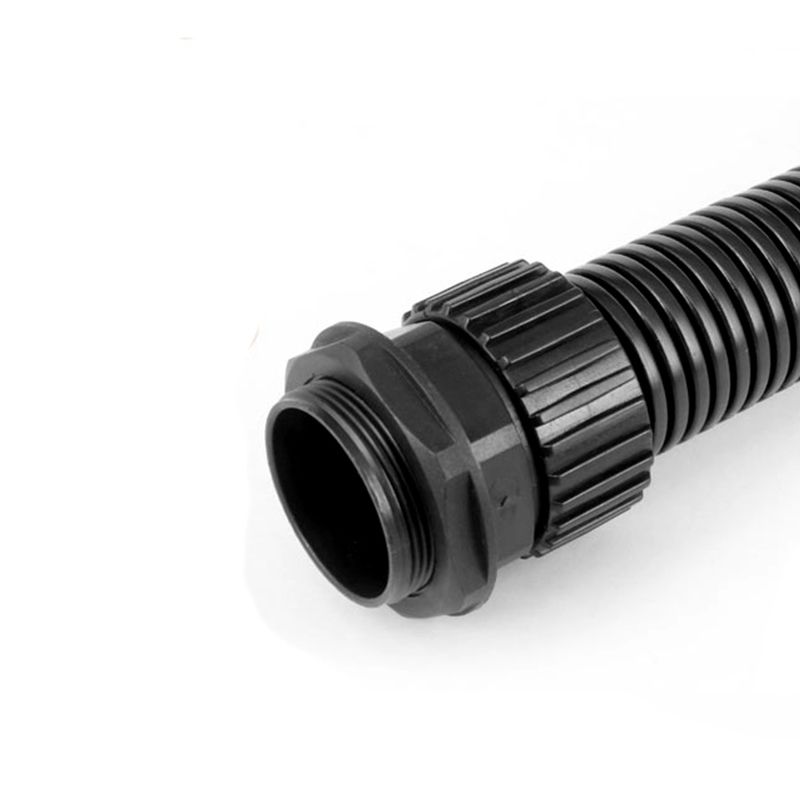

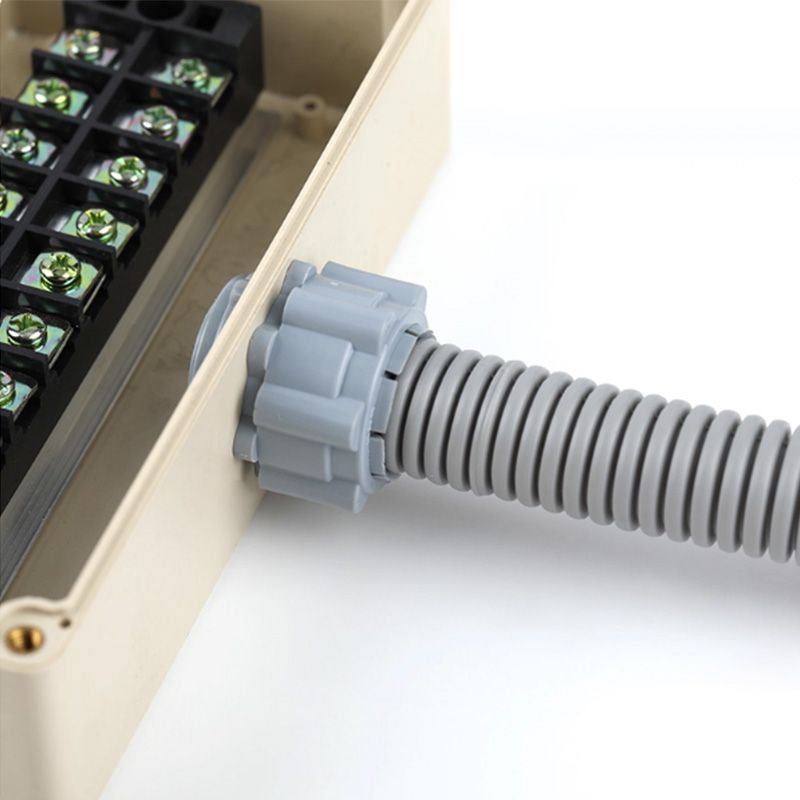

| Product Name | SM series hose quick connector |
| Product Material | Using PA nylon and outer clamping ring (polyoxymethylene POM). |
| Thread specifications | German system (PG)/metric system (M)/imperial system (G). |
| working temperature | .-40°C~+100°C |
| Product color | Black (special colors can be customized). |
| Product Features | The internal lock buckle and special design of the body allow for easy insertion and removal without the need for tools |
| usage method | YDT-SM type hose connector is a hose matching product that can be connected to the equipment box or to electric equipment with internal threads at the inlet and outlet according to the selected thread. Simply insert the hose into the interface and lock it. |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

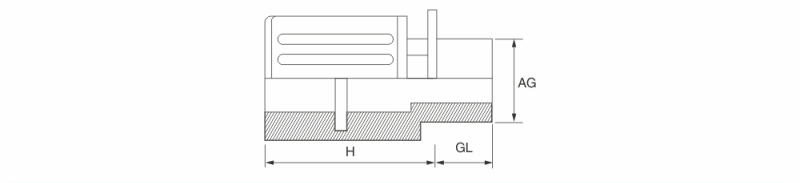

Structure Diagram
Product Material: Made of PA nylon, with an outer clamping ring made of polymethylene (POM).
Thread specifications: PG/M/G.
Working temperature: -40 °C~+100 °C.Product color: Black (special colors can be customized).
Product features: The internal lock buckle and special design of the body allow for easy insertion and removal without the need for tools.
Usage: YDT-SM type hose connector is a hose matching product that can be connected to the equipment box or to the electric equipment with internal thread inlet and outlet according to the selected thread. Simply insert the hose into the interface and lock it.
Technical Parameter
| Model | Suitable Flexible Pipe | Dimension Metric Of Thread | Ag Outer Diameter (mm) | Ag Inner Diameter (mm) | GL (mm) | H |
| YDT-SM-PG7 | AD10.0 | PG7 | 12.3 | 8.0 | 10 | 18.0 |
| YDT-SM-PG9 | AD13.0 | PG9 | 15.0 | 10.0 | 10 | 19.0 |
| YDT-SM-PG11 | AD15.8 | PG11 | 18.4 | 12.5 | 10 | 23.0 |
| YDT-SM-PG13.5 | AD18.5 | PG13.5 | 20.2 | 14.3 | 12 | 25.0 |
| YDT-SM-PG16 | AD21.2 | PG16 | 22.3 | 17.0 | 13 | 27.0 |
| YDT-SM-PG21 | AD28.5 | PG21 | 28.0 | 22.0 | 14 | 33.0 |
| YDT-SM-PG29 | AD34.5 | PG29 | 36.7 | 29.0 | 14 | 35.0 |
| YDT-SM-PG36 | AD42.5 | PG36 | 46.7 | 36.5 | 15 | 38.5 |
| YDT-SM-PG48 | AD54.5 | PG48 | 59.0 | 53.0 | 16 | 39.0 |
| Model | Suitable Flexible Pipe | Dimension Metric Of Thread | Ag Outer Diameter (mm) | Ag Inner Diameter (mm) | GL (mm) | H |
| YDT-SM-M12 | AD10.0 | M12×1.5 | 12 | 8 | 10 | 18.0 |
| YDT-SM-M16 | AD10.0 | M16×1.5 | 16 | 10 | 10 | 19.0 |
| YDT-SM-M16 | AD13.0 | M16×1.5 | 16 | 10 | 10 | 19.0 |
| YDT-SM-M18 | AD15.8 | M18×1.5 | 18 | 12 | 10 | 23.0 |
| YDT-SM-M16 | AD15.8 | M16×1.5 | 16 | 10 | 10 | 23.0 |
| YDT-SM-M20 | AD15.8 | M20×1.5 | 20 | 14.3 | 12 | 25.0 |
| YDT-SM-M20 | AD21.2 | M20×1.5 | 20 | 17.0 | 13 | 27.0 |
| YDT-SM-M24 | AD21.2 | M24×1.5 | 24 | 17.0 | 13 | 27.0 |
| YDT-SM-M25 | AD25.0 | M25×1.5 | 25 | 19.5 | 14 | 30.0 |
| YDT-SM-M25 | AD28.5 | M25×1.5 | 25 | 22.0 | 20 | 30.0 |
| YDT-SM-M27 | AD28.5 | M27×2.0 | 27 | 22.0 | 14 | 33.0 |
| YDT-SM-M30 | AD28.5 | M30×2.0 | 30 | 22.0 | 11.0 | 33.0 |
| YDT-SM-M32 | AD34.5 | M32×1.5 | 32 | 26.0 | 14 | 35.0 |
| YDT-SM-M36 | AD34.5 | M36×2.0 | 36 | 29.0 | 14 | 35.0 |
| YDT-SM-M36 | AD34.5 | M36×2.0 | 36 | 29.0 | 14 | 35.0 |
| YDT-SM-M48 | AD42.5 | M48×2.0 | 48 | 36.5 | 15 | 38.5 |
| YDT-SM-M60 | AD54.5 | M60×2.0 | 60 | 53.0 | 16 | 39.0 |
| Model | Suitable Flexible Pipe | Dimension Metric Of Thread | Ag Outer Diameter (mm) | Ag Inner Diameter (mm) | GL (mm) | H |
| YDT-SM-G3/4" | AD25.0 | G 3/4" | 26.0 | 19.5 | 14 | 30 |
| YDT-SM-G1" | AD34.5 | G 1" | 33.0 | 26.0 | 20 | 35 |
