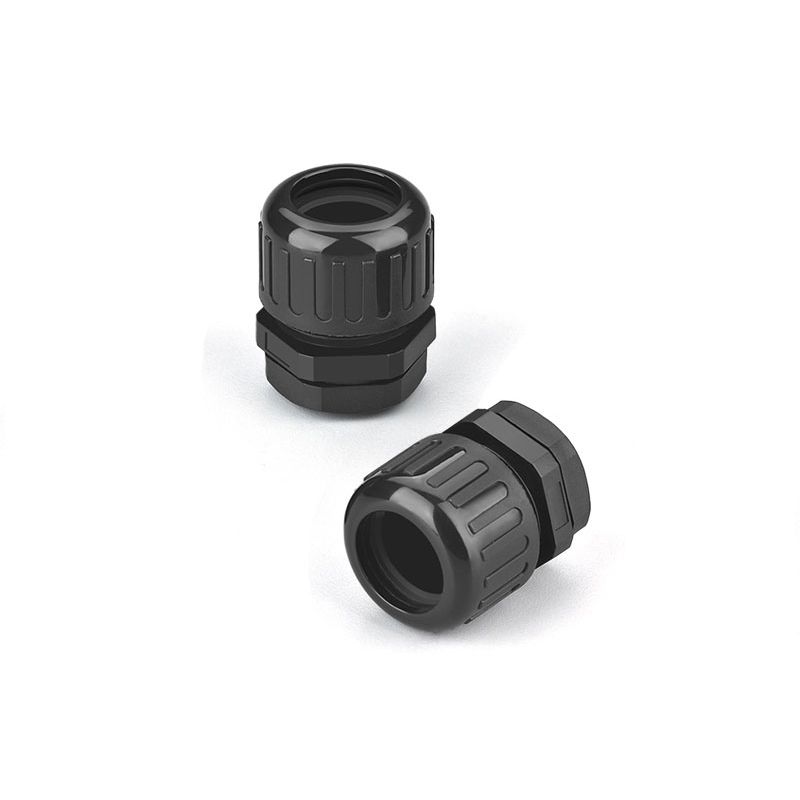

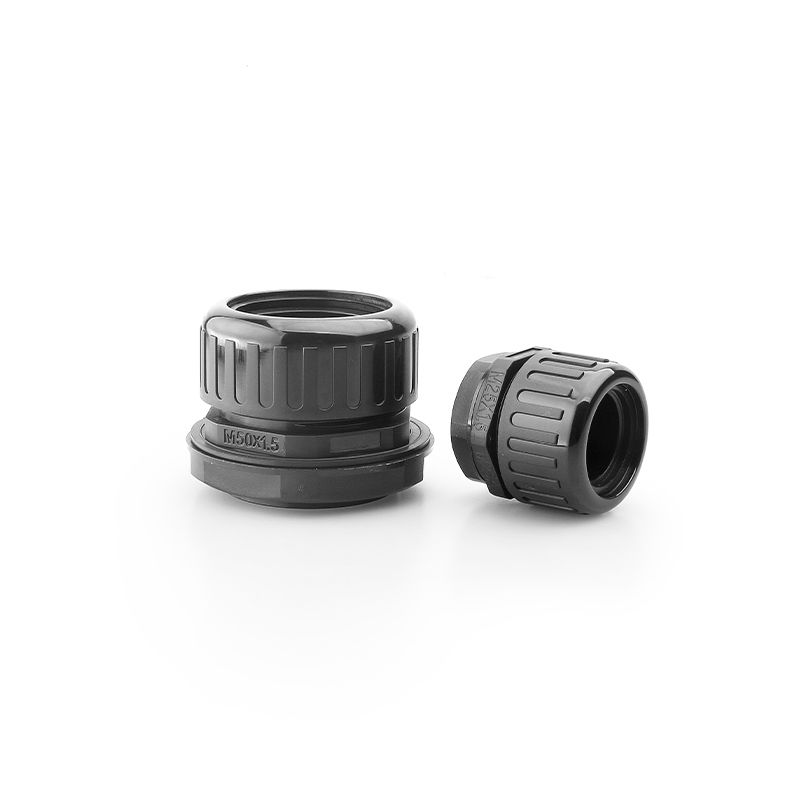

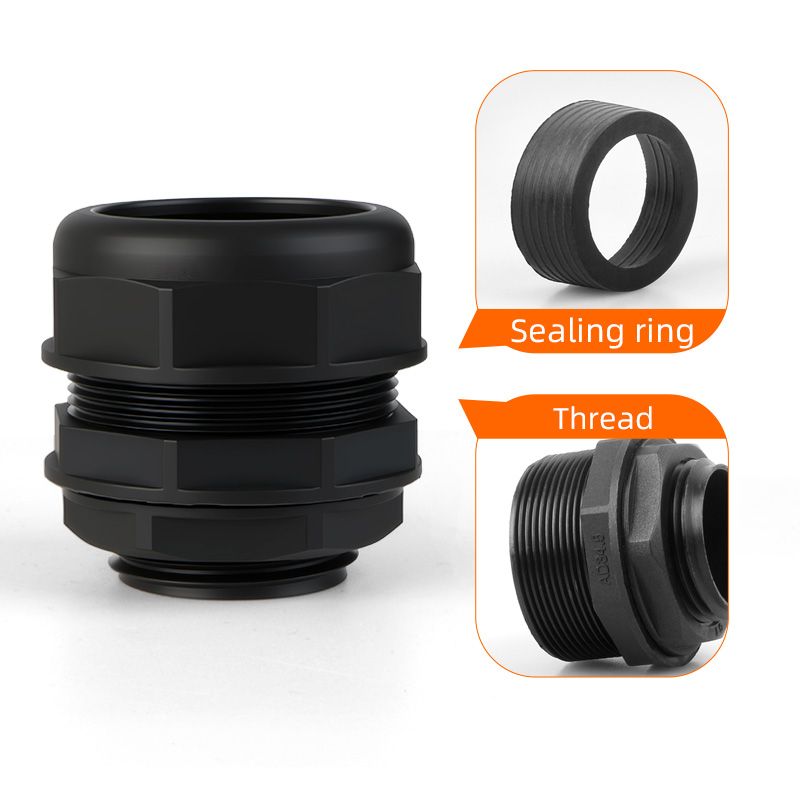

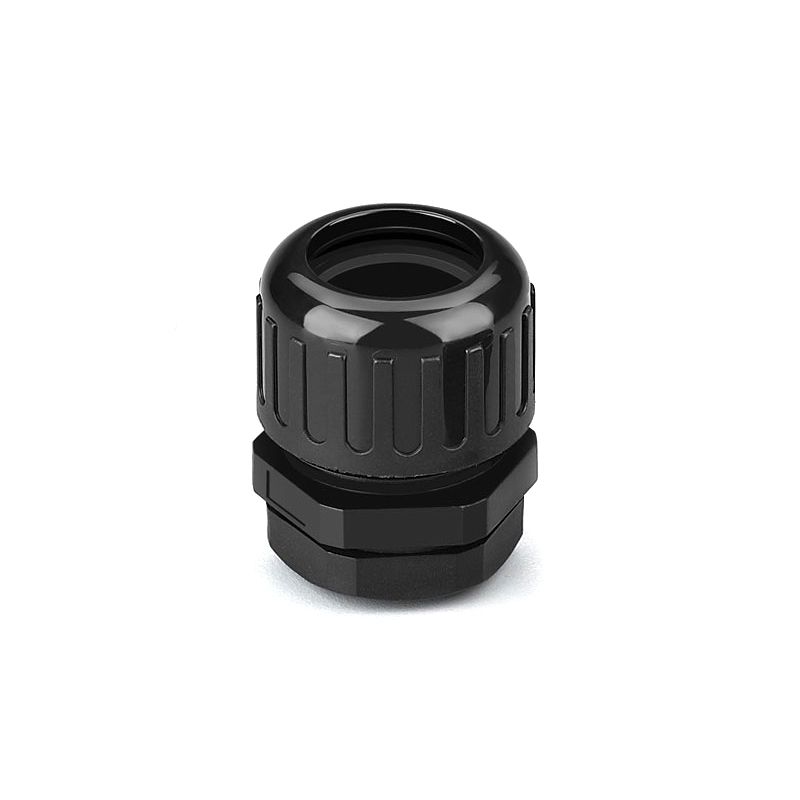

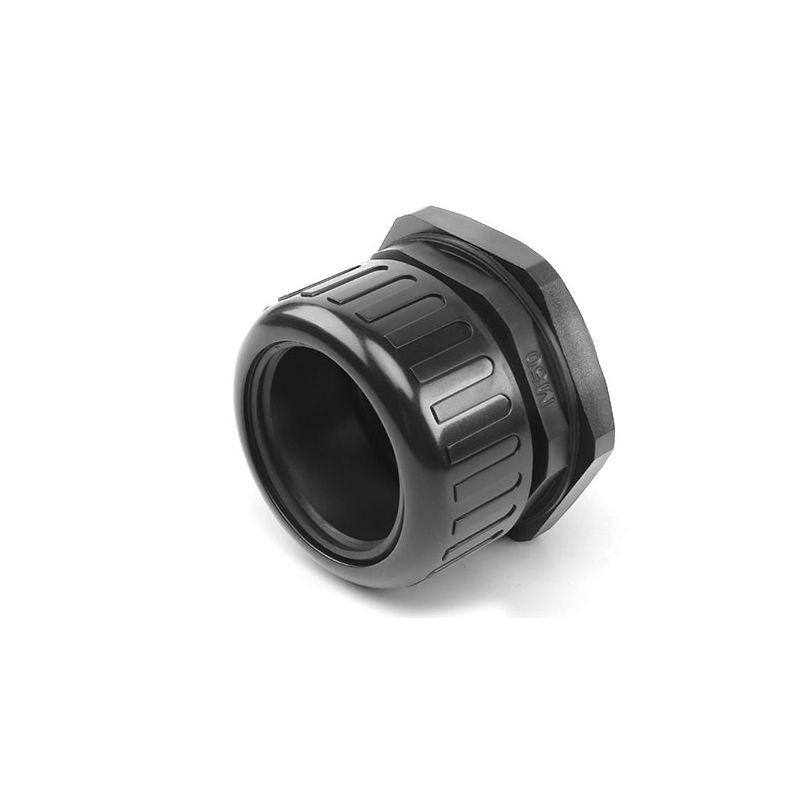

Nylon conduit connector 丨 SM-F series 丨 IP65 丨 customization
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification
| Product Name | SM-F series plastic hose waterproof joint |
| Product Material | A. Parts B and E are made of nylon, part D is made of polyoxymethylene (POM), and part C is made of nitrile rubber. |
| Thread specifications | German system (PG)/metric system (M)/imperial system (G). |
| working temperature | From -40 ℃ to+100 ℃, it can reach+120 ° C in a short period of time. |
| Product color | Black (special colors can be customized). |
| product mix | Both the interior and exterior are wavy. |
| Protection level | IP65. |
| Product Features | The special design of the clamping ring and seal, combined with the clamping head assembly, saves time and is convenient. The clamping hose has a large range, strong tensile strength, and can be waterproof, dustproof, salt resistant, and acid alkali resistant |
| usage method | You Jing, oil and other general solvents. “ |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

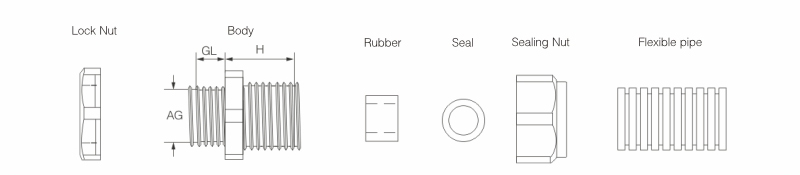

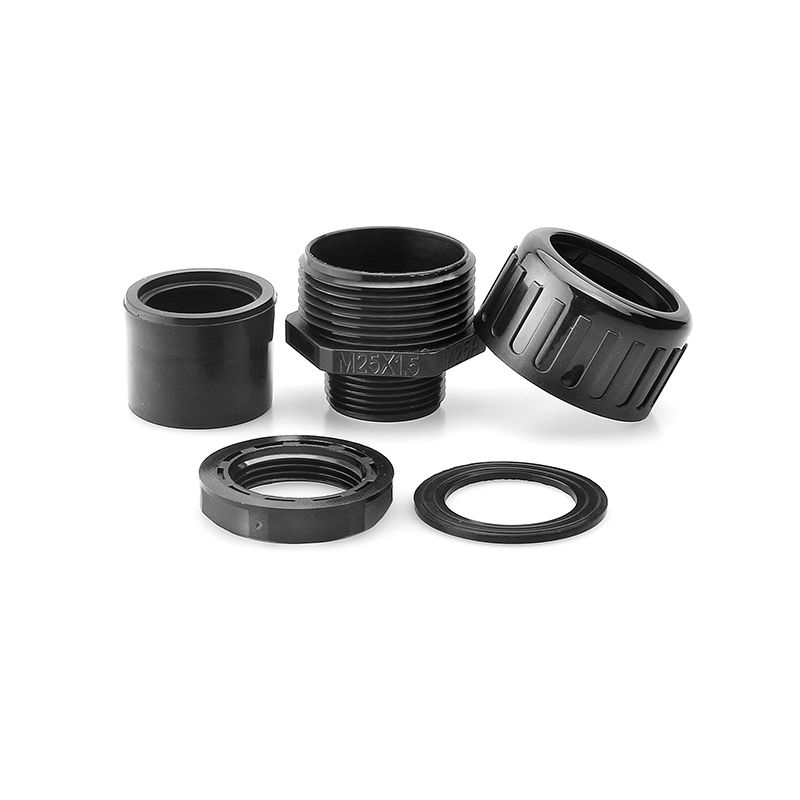

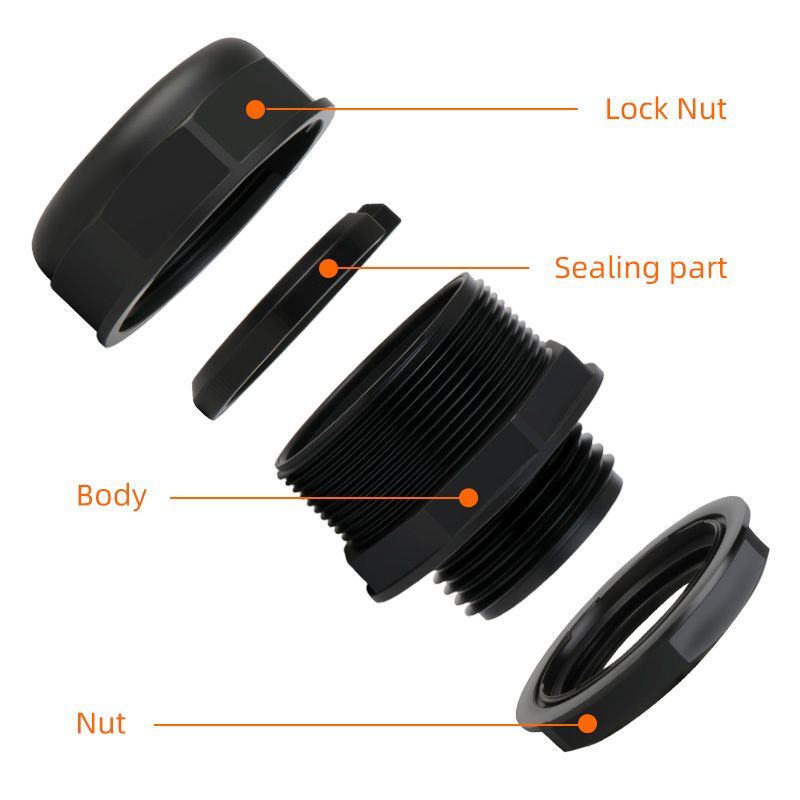

Structure Diagram
Product Material: Nylon is used for parts A, B, and E, POM is used for part D, and nitrile rubber is used for part C.
Thread specifications: PG/M/G.
Working temperature: -40 °C~+100 °C, can reach+120 °C in a short time.
Product color: Black (special colors can be customized).
Product structure: Both the interior and exterior are wavy.
Protection level: IP65.
Product features: Special design of clamping ring and seal, time-saving and convenient assembly with clamping head, wide clamping hose range, strong tensile strength, waterproof, dustproof, salt resistant, and acid resistant. Alcohol, oils, and other general solvents.

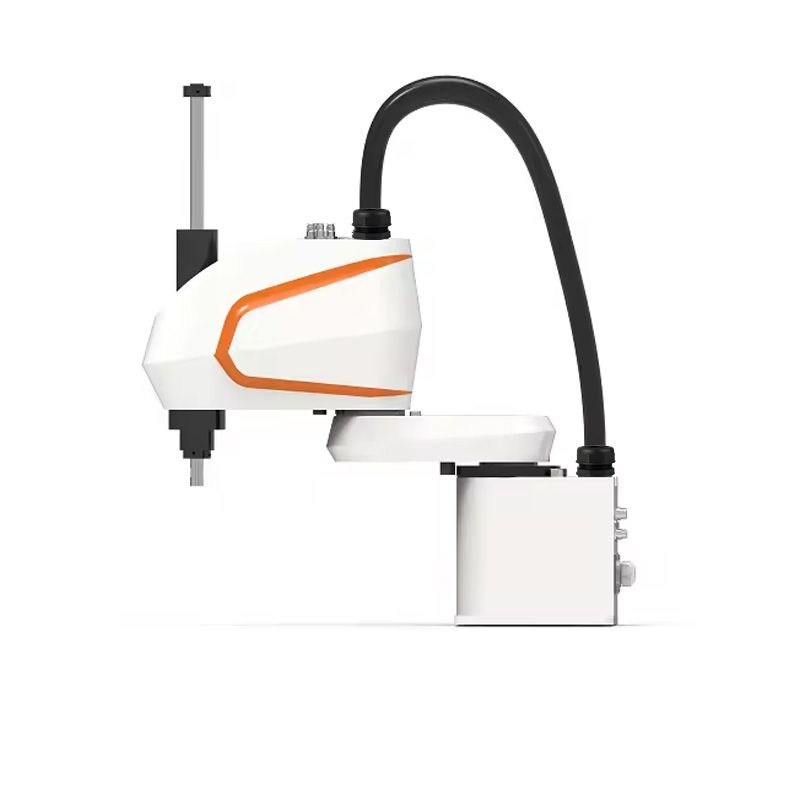

Usage: YDT-F plastic hose waterproof joint is a hose matching product, which can be connected to the equipment box, or can be connected to the electric equipment with internal thread inlet and outlet according to the selected thread. Simply insert the hose into the interface and lock it.
Technical Parameter
| Model | Suitable Flexible Pipe | Dimension Metric Of Thread | Ag Outer Diameter (mm) | Ag Inner Diameter (mm) | GL (mm) | H |
| YDT-SM-F-PG7 | AD10.0 | PG7 | 12.5 | 8.5 | 8 | 20 |
| YDT-SM-F-PG9 | AD13.0 | PG9 | 15.2 | 11.0 | 8 | 20 |
| YDT-SM-F-PG11 | AD15.8 | PG11 | 18.6 | 14.0 | 10 | 20 |
| YDT-SM-F-PG13.5 | AD15.8 | PG13.5 | 40.4 | 16.0 | 10 | 20 |
| YDT-SM-F-PG13.5 | AD18.5 | PG13.5 | 40.4 | 16.0 | 10 | 20 |
| YDT-SM-F-PG16 | AD21.2 | PG16 | 22.5 | 17.0 | 10 | 20 |
| YDT-SM-F-PG21 | AD28.5 | PG21 | 28.3 | 23.0 | 14 | 25 |
| YDT-SM-F-PG29 | AD34.5 | PG29 | 37.0 | 31.0 | 14 | 35 |
| YDT-SM-F-PG36 | AD42.5 | PG36 | 47.0 | 40.0 | 15 | 40 |
| YDT-SM-F-PG48 | AD54.5 | PG48 | 59.3 | 51.0 | 20 | 44 |
| Model | Suitable Flexible Pipe | Dimension Metric Of Thread | Ag Outer Diameter (mm) | Ag Inner Diameter (mm) | GL (mm) | H |
| YDT-SM-F-M12 | AD10.0 | M12×1.5 | 12 | 8 | 8 | 19 |
| YDT-SM-F-M12 | AD13.0 | M12×1.5 | 12 | 8 | 8 | 19 |
| YDT-SM-F-M16 | AD13.0 | M16×1.5 | 16 | 10 | 10 | 20 |
| YDT-SM-F-M18 | AD13.0 | M18×1.5 | 18 | 13 | 10 | 20 |
| YDT-SM-F-M20 | AD13.0 | M20×1.5 | 20 | 16 | 10 | 20 |
| YDT-SM-F-M16 | AD15.8 | M16×1.5 | 16 | 10 | 10 | 20 |
| YDT-SM-F-M18 | AD15.8 | M18×1.5 | 18 | 13 | 10 | 20 |
| YDT-SM-F-M20 | AD15.8 | M20×1.5 | 20 | 16 | 10 | 20 |
| YDT-SM-F-M20 | AD18.5 | M20×1.5 | 20 | 16 | 10 | 20 |
| YDT-SM-F-M24 | AD21.2 | M24×1.5 | 24 | 20 | 10 | 20 |
| YDT-SM-F-M25 | AD21.2 | M25×1.5 | 25 | 21 | 15 | 25 |
| YDT-SM-F-M25 | AD25.0 | M25×1.5 | 25 | 21 | 15 | 25 |
| YDT-SM-F-M25 | AD28.5 | M25×1.5 | 25 | 21 | 15 | 25 |
| YDT-SM-F-M27 | AD28.5 | M27×2.0 | 27 | 21 | 15 | 25 |
| YDT-SM-F-M30 | AD28.5 | M30×2.0 | 30 | 21 | 15 | 25 |
| YDT-SM-F-M32 | AD28.5 | M32×1.5 | 32 | 26 | 15 | 30 |
| YDT-SM-F-M32 | AD34.5 | M32×1.5 | 32 | 26 | 15 | 30 |
| YDT-SM-F-M36 | AD34.5 | M36×2.0 | 36 | 28 | 15 | 32 |
| YDT-SM-F-M40 | AD34.5 | M40×1.5 | 40 | 35 | 15 | 40 |
| YDT-SM-F-M40 | AD42.5 | M40×1.5 | 40 | 35 | 15 | 40 |
| YDT-SM-F-M48 | AD42.5 | M48×2.0 | 48 | 38 | 15 | 40 |
| YDT-SM-F-M50 | AD54.5 | M50×1.5 | 50 | 44 | 18 | 42 |
| YDT-SM-F-M60 | AD54.5 | M60×2.0 | 60 | 55 | 18 | 42 |
| Model | Suitable Flexible Pipe | Dimension Metric Of Thread | Ag Outer Diameter (mm) | Ag Inner Diameter (mm) | GL (mm) | H |
| YDT-SM-F-G1/2" | AD21.2 | G 1/2" | 20.4 | 15.0 | 10 | 25 |
| YDT-SM-F-G3/4" | AD28.5 | G 3/4" | 26.0 | 21.0 | 15 | 25 |
| YDT-SM-F-G1" | AD34.5 | G 1" | 33.0 | 26.0 | 15 | 30 |
