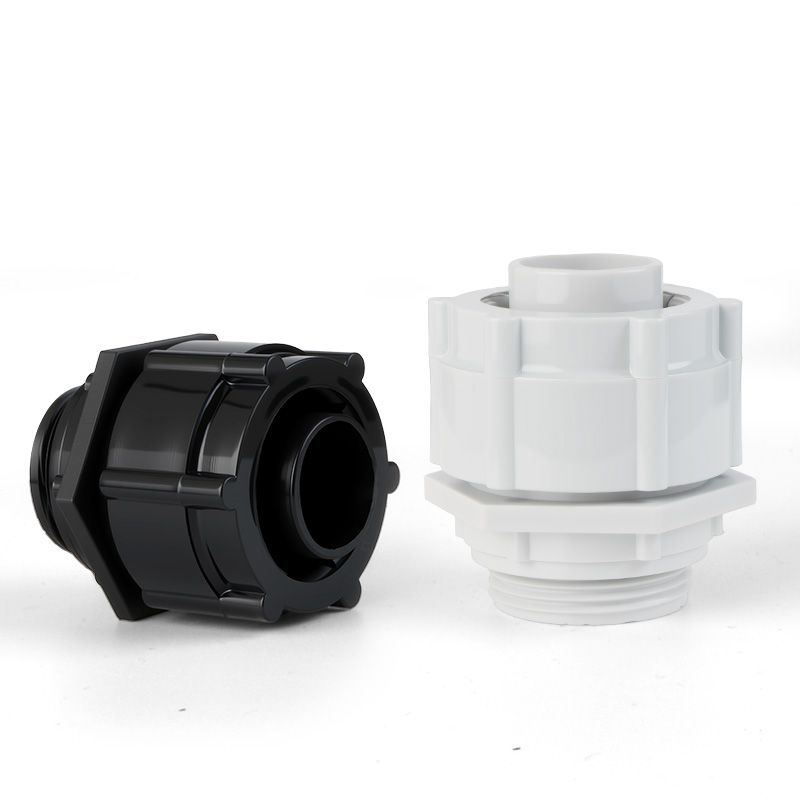

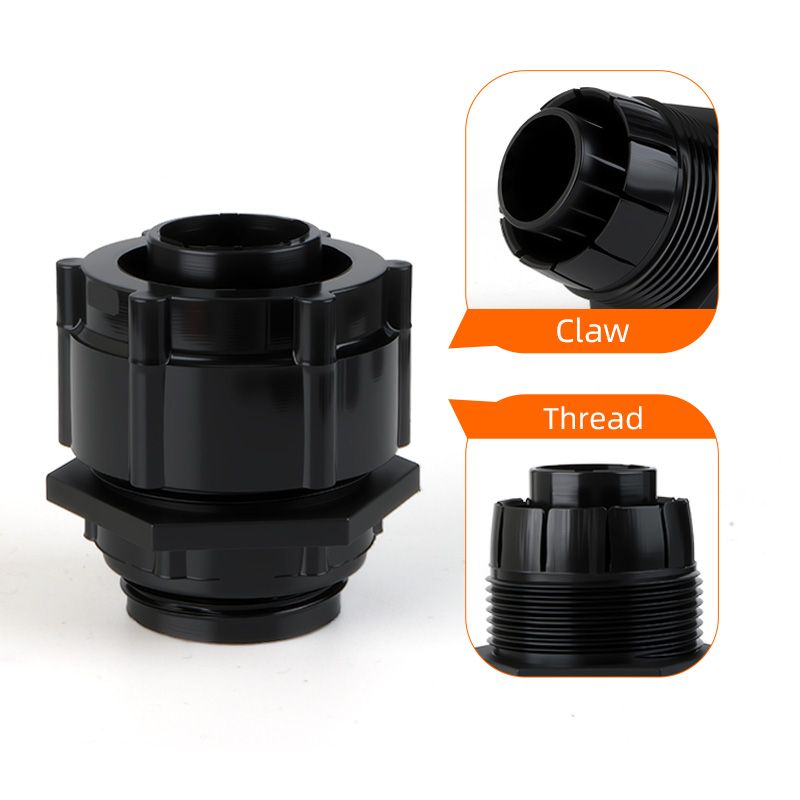

Nylon conduit connector 丨 BG series 丨 IP65 丨 customization
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification
| Product Name | BG series corrugated pipe joint |
| Product Material | Using nylon PA66,94V-2. |
| Product color | White, black, and gray. |

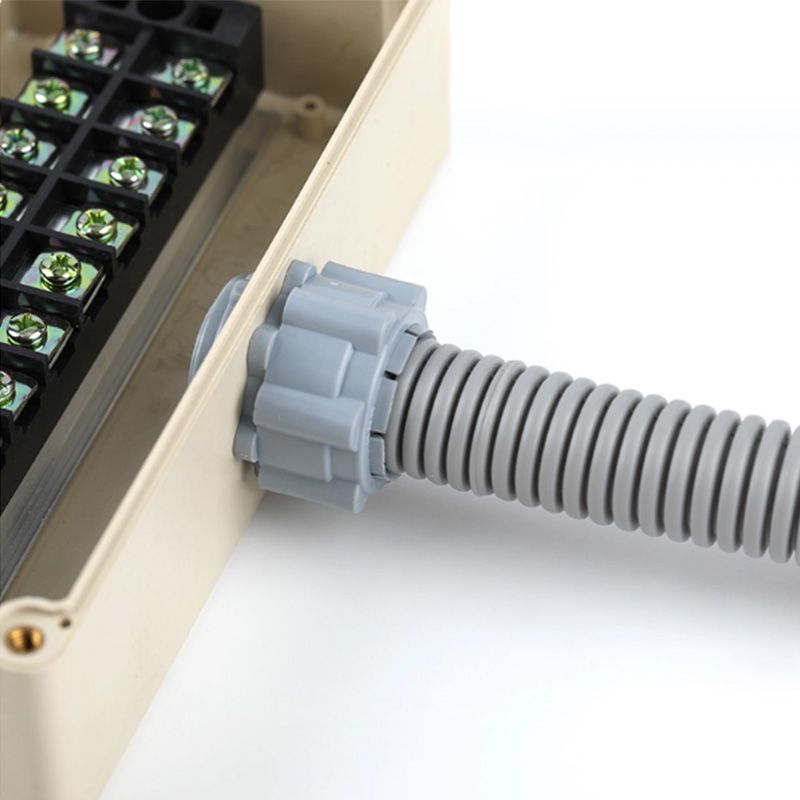

| Product Usage | Fix the hose on the control panel of the machine and equipment. |
| Product application | 1. The installation body needs to be pre drilled on the
panel; 2. The hose passes through the nut and the hose passes through
the clamping claw; 3. Fix the nut“ |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

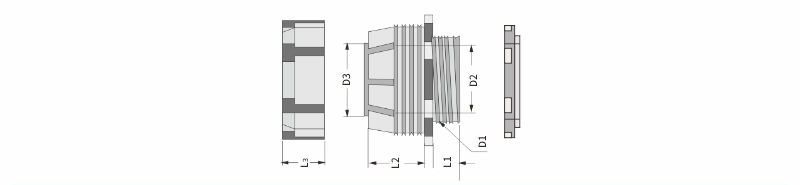

Structure Diagram
Product material: Made of nylon PA66, 94V-2.
Product colors: white, black, and gray.
Product use: Fixing hoses on control panels of machines and equipment.
Product application:
1. The installation body needs to be pre-drilled on the panel;
2. The hose passes through the nut and the clamping claw;
3. Secure the nut.
Technical Parameter
| Model | D1 (mm) | D2 (mm) | D3 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Suitable Flexible Pipe |
| YDT-BG-10 | 14.4 | 6.3 | 7.5 | 9.7 | 18.5 | 15.9 | BG-10P |
| YDT-BG-16 | 15.9 | 11 | 10.8 | 10.0 | 17.9 | 15.7 | BG-16P |
| YDT-BG-18 | 16.0 | 11.1 | 13.3 | 9.7 | 18.6 | 15.9 | BG-18P (3/8") |
| YDT-BG-20 | 19.2 | 15 | 14.7 | 10.0 | 17.7 | 16.0 | BG-20P |
| YDT-BG-22 | 20.0 | 15.4 | 17.2 | 9.8 | 17.6 | 16.3 | BG-22P (1/2") |
| YDT-BG-25 | 25.0 | 18.9 | 19.8 | 11.4 | 23.6 | 20.6 | BG-25P (3/4") |
| YDT-BG-32 | 31.2 | 26.0 | 24.3 | 12.0 | 22.8 | 20.6 | BG-32P |
| YDT-BG-34 | 32.0 | 26.8 | 28.6 | 11.3 | 23.3 | 20.7 | BG-34P (1") |
| YDT-BG-40 | 37.5 | 31.5 | 31.6 | 11.3 | 23.6 | 20.7 | BG-40P |
| YDT-BG-42 | 40.0 | 32.7 | 34.8 | 11.5 | 23.3 | 20.8 | BG-42P (1") |
| YDT-BG-48 | 44.0 | 37.5 | 40.5 | 12.6 | 22.3 | 20.7 | BG-48P |
| YDT-BG-50 | 44.0 | 37.5 | 39.5 | 12.6 | 21.6 | 20.7 | BG-50P |
