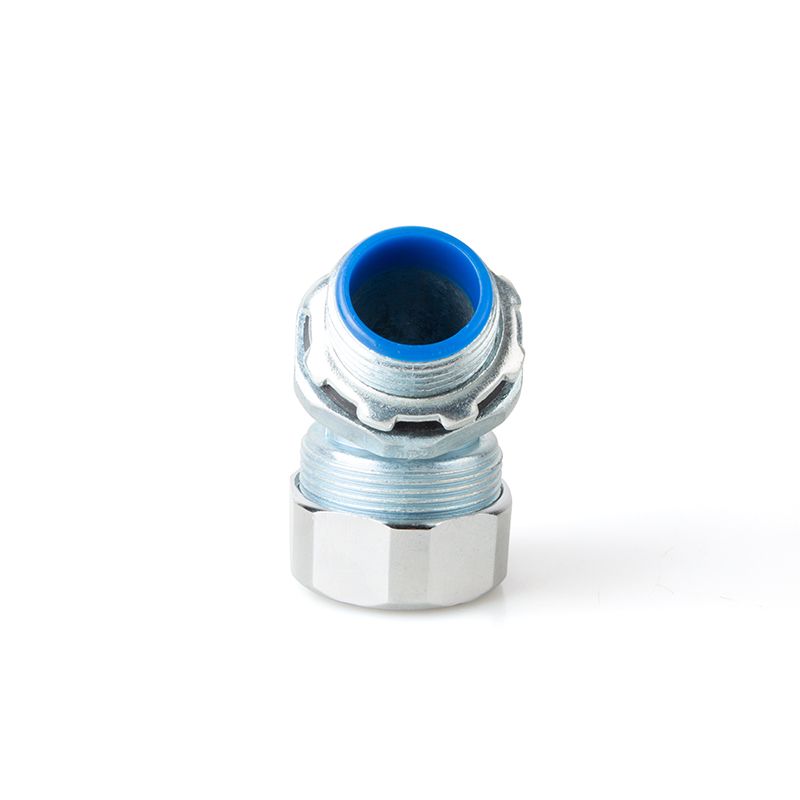

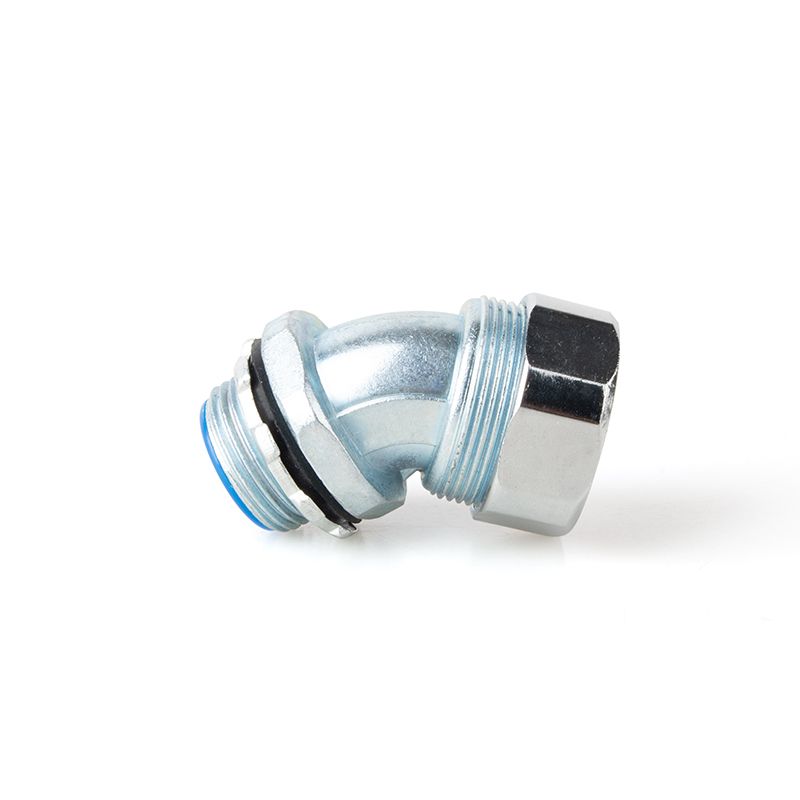

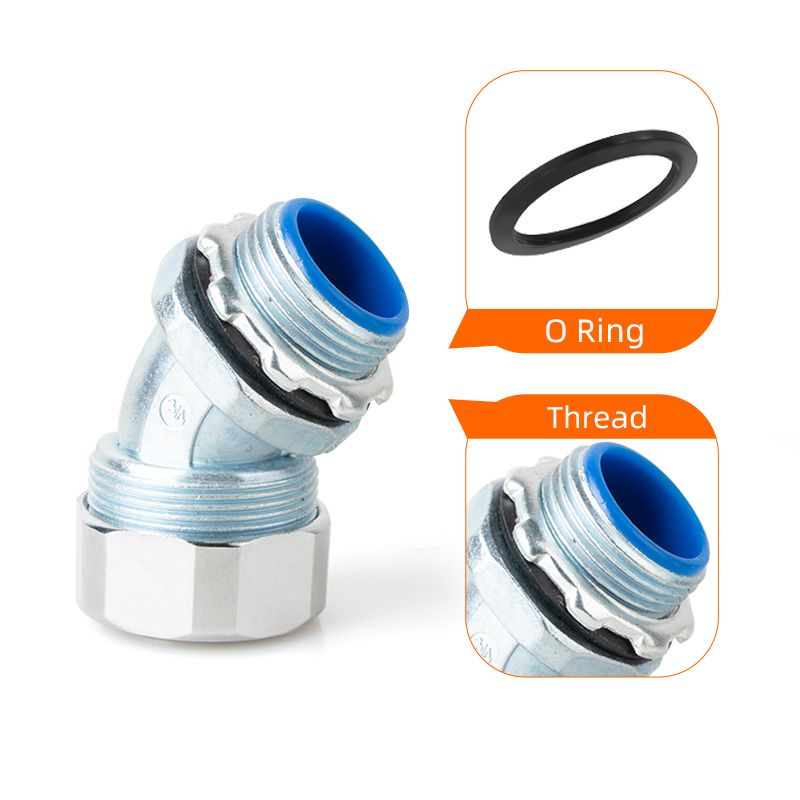

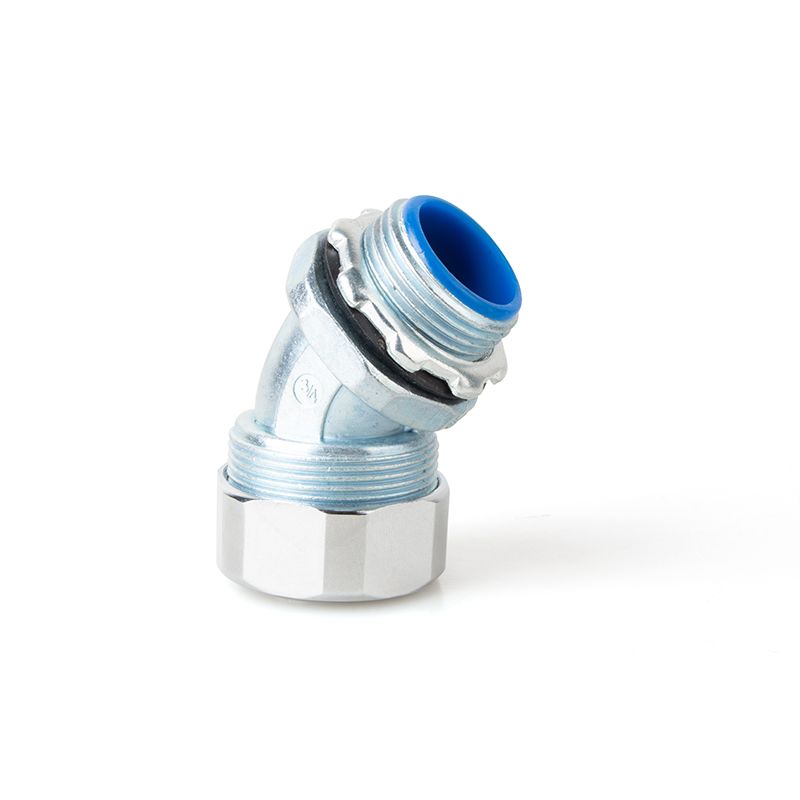

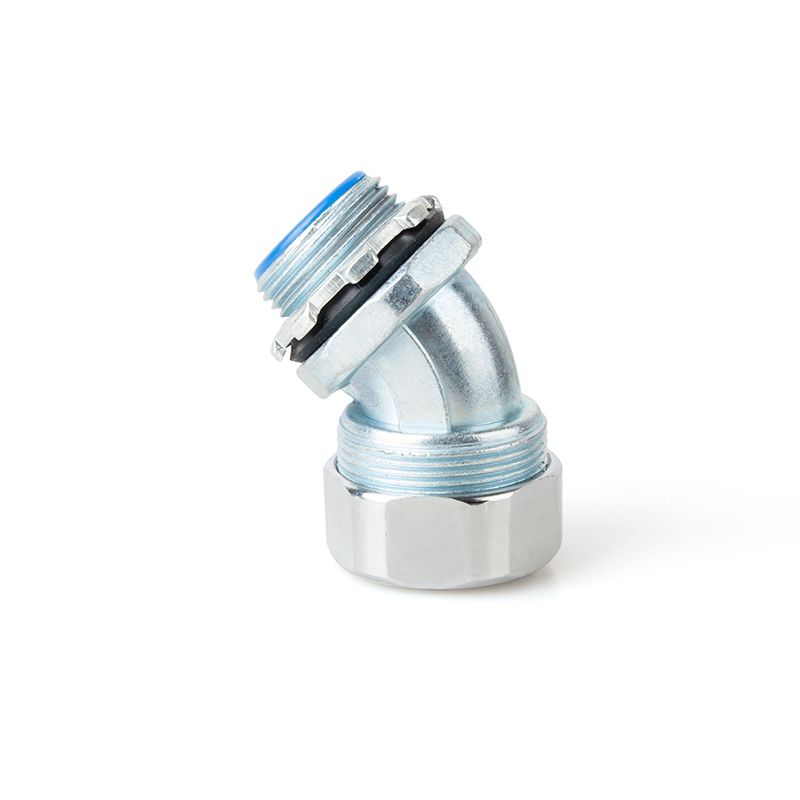

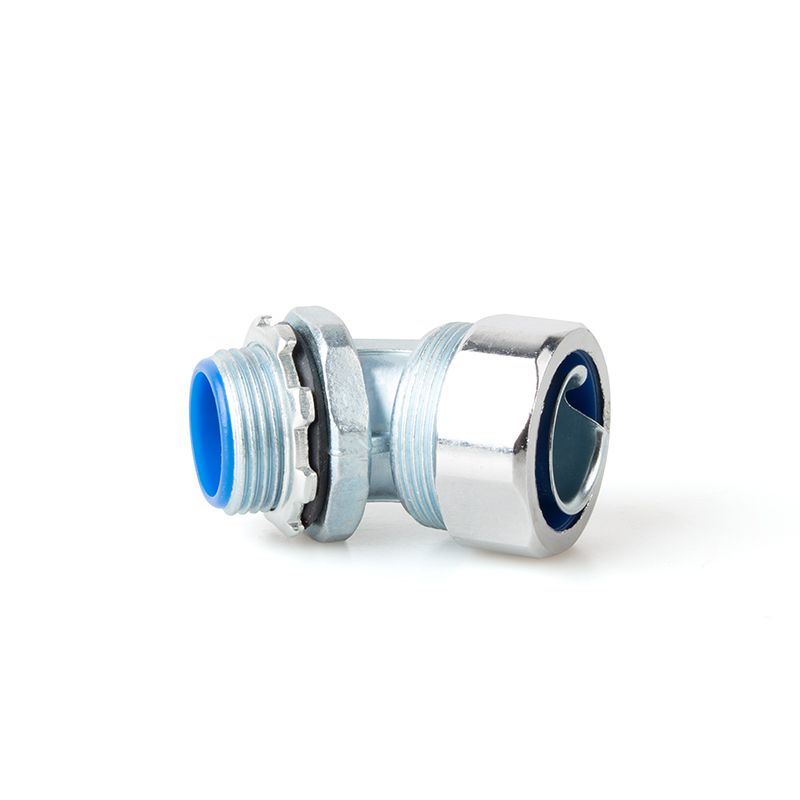

Metal hose connector 丨 DWJ series 45° 丨 IP65 丨 customizatio
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification
| Product Name | DWJ series 45 degree corner connector |
| Thread specifications | imperial system (G). |
| Product Material | A. Parts C and F are made of high-quality thickened zinc alloy, parts B and E are made of nitrile rubber, and part D is made of iron sheet. |
| Product color | Metallic color (silver white) |
| working temperature | -40 ° C~+100 ° C, can reach+120 ° C in a short time |
| Protection level | IP65 |
| Product Features | 1. After joining, it forms a 45 degree angle with the box, and the thickened zinc alloy has a beautiful appearance, tight structure, and high strength; 2. In addition to the following standard specifications, the size and thread standards can be changed as required |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

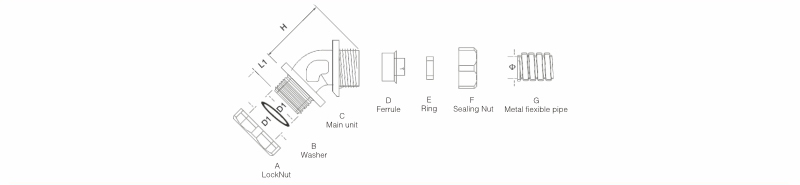

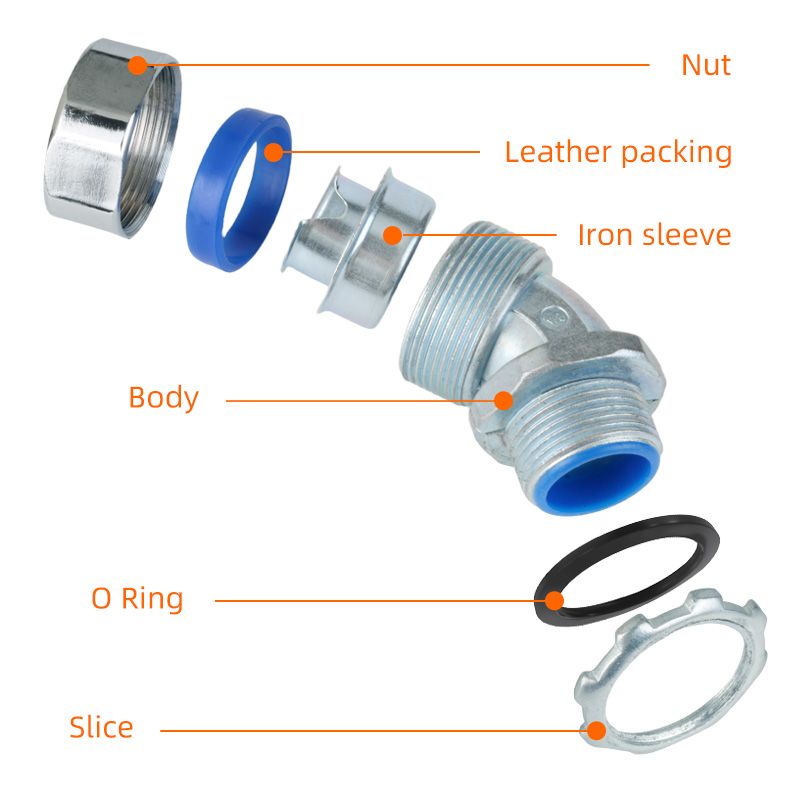

Structure Diagram
Thread specification: G.
Product Material: Parts A, C, and F are made of high-quality steel, while part D is made of iron sheet by die-casting.
Color: Metallic (silver white).
Working temperature: -40 °C~+100 °C, instantaneous heat resistance can reach+120 °C.
Product features:
1. After joining, it forms a 45 degree angle with the box, and the thickened zinc alloy has a beautiful appearance, tight structure, and high strength;
2. In addition to the following standard specifications, the size and thread standards can be changed as required.
Technical Parameter
| Suitable Metal flexible pipe | Thread standard | Thread O.D D1 | Thread Length L1 | Joint Length H | |
| Metric | G system | G system | |||
| 12(13) | 3/8" | G3/8" | 16.5 | 8 | 50 |
| 15(16) | 1/2" | G1/2" | 21.3 | 11 | 54 |
| 20(19) | 3/4" | G3/4" | 26.6 | 14 | 70 |
| 25 | 1" | G1" | 33.4 | 15 | 80 |
| 32 | 1-1/4" | G1-1/4" | 42.1 | 15 | 90 |
| 38(40) | 1-1/2" | G1-1/2" | 47.8 | 16 | 110 |
| 51(50) | 2" | G2" | 59.6 | 18 | 130 |
| 64(70) | 2-1/2" | G2-1/2" | 75.1 | 22 | 190 |
| 75(80) | 3" | G3" | 87.8 | 22 | 220 |
| 100 | 4" | G4" | 113 | 24 | 250 |
