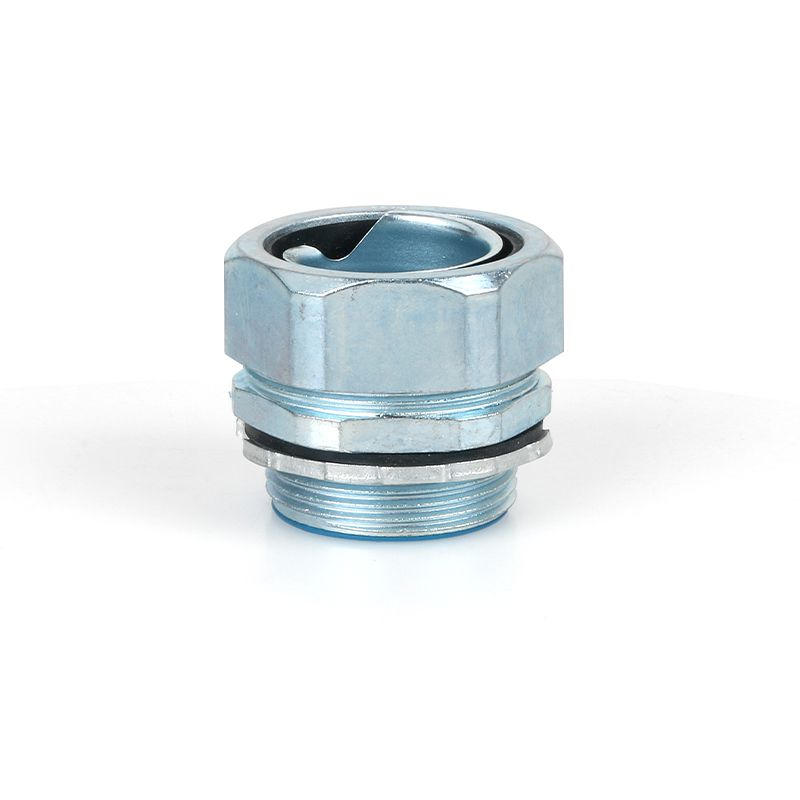

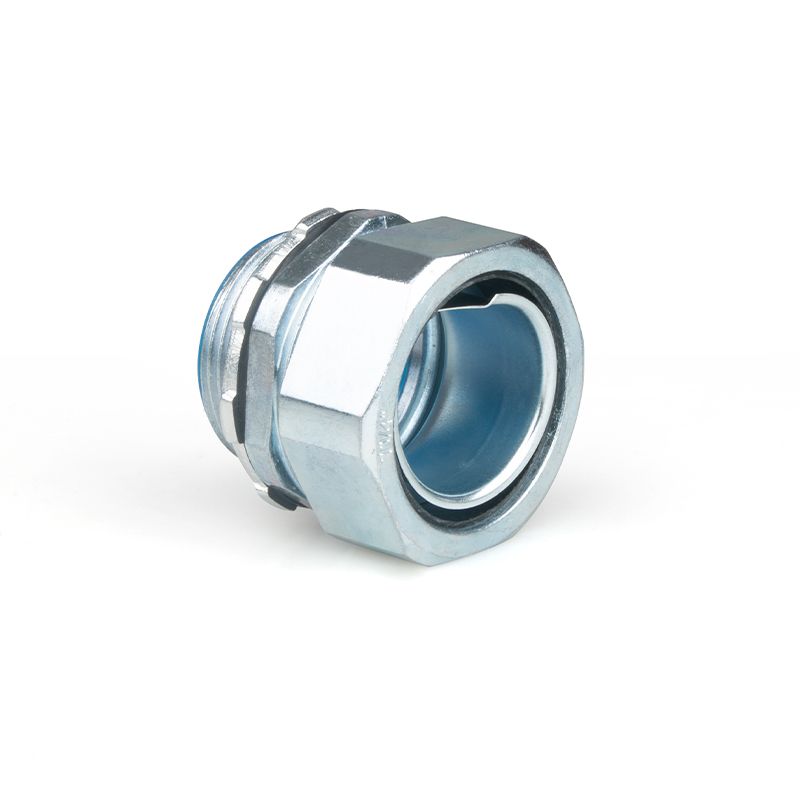

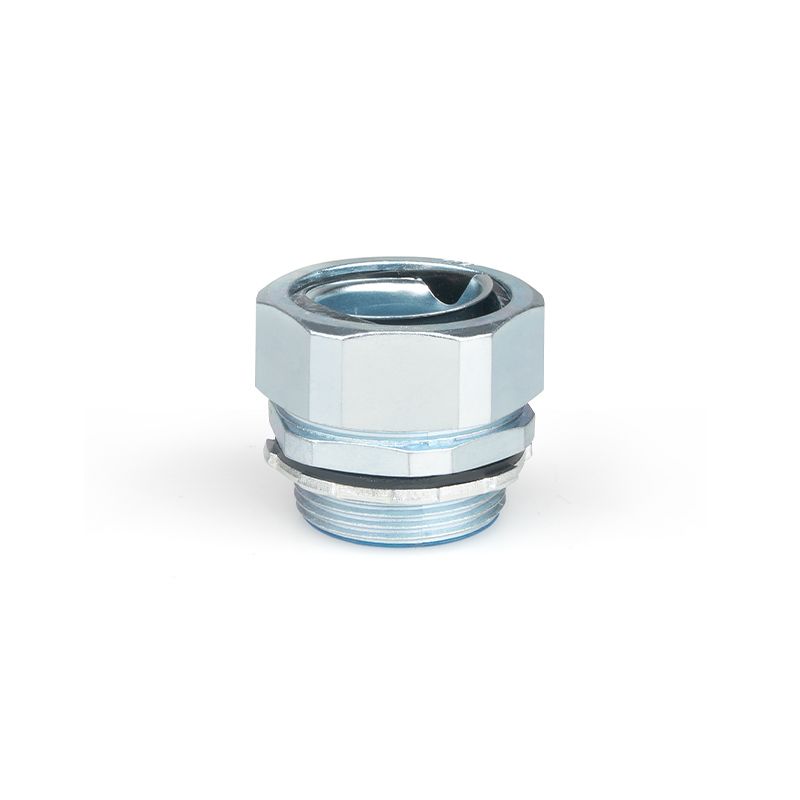

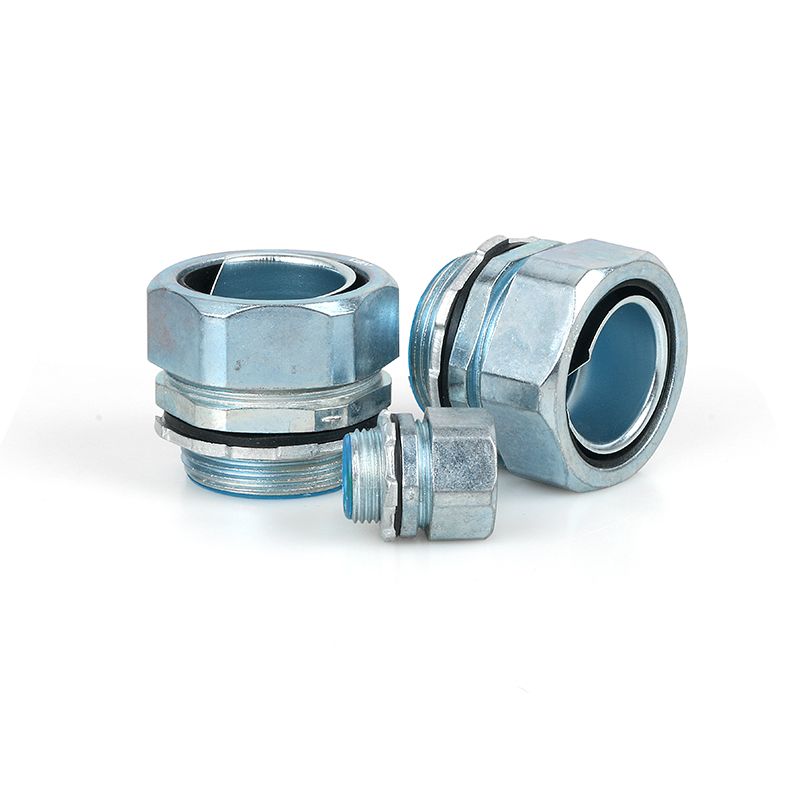

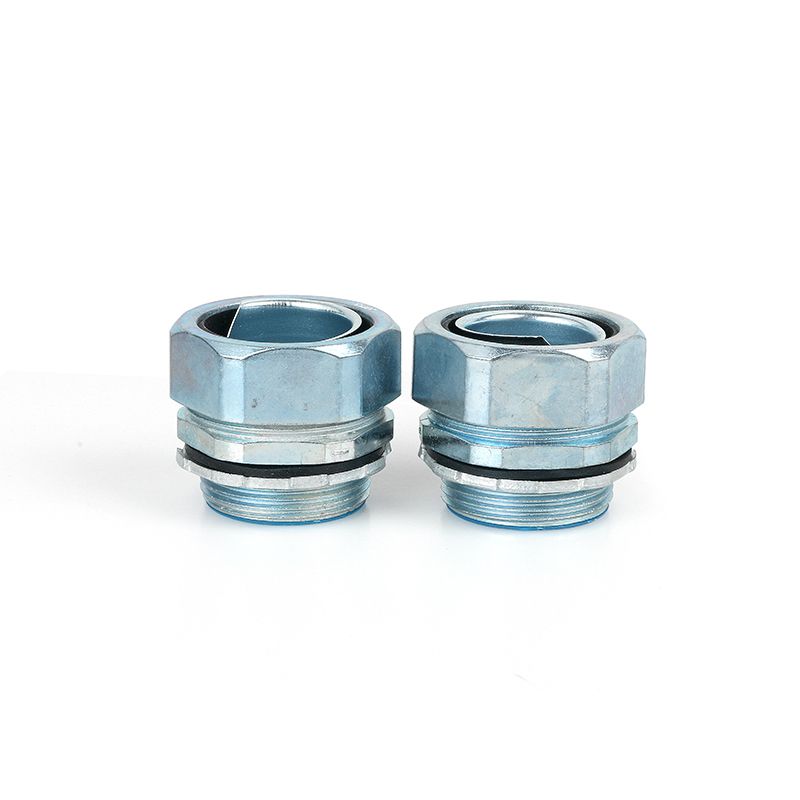

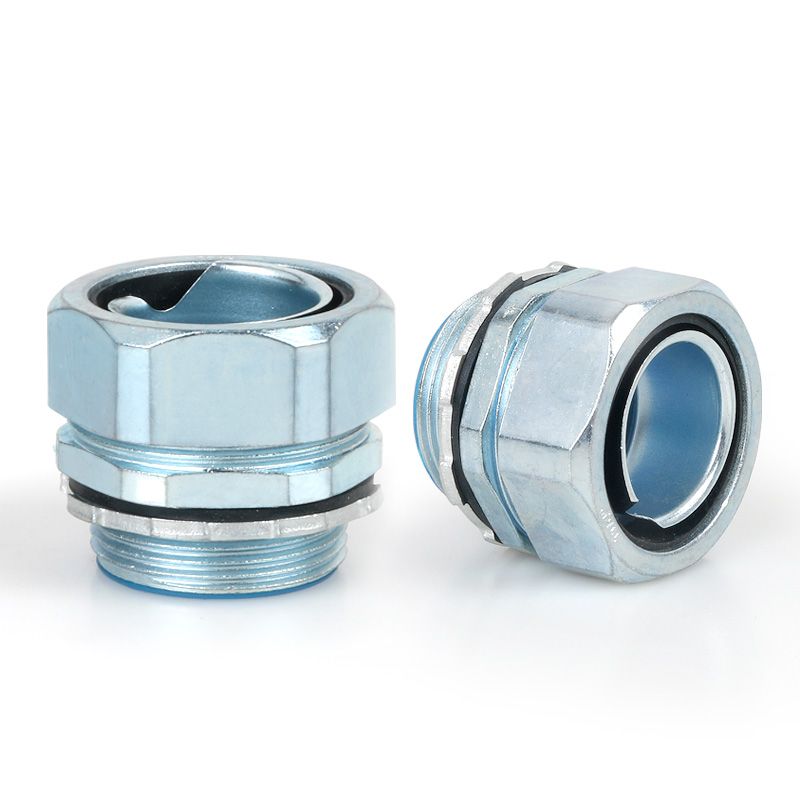

Metal hose connector 丨 DPJ series 丨 IP65 丨 customization

Description

As a leading manufacturer and supplier of cable glands and electrical accessories, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new materials; This type of product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.

Get Instant Quote Next Product

Product Specification

Product Name	DPJ series end connectors
Thread specifications	German system (PG)/metric system (M)/imperial system (G).
Product Material	A. Parts C and F are made of high-quality thickened zinc alloy, parts B and E are made of nitrile rubber, and part D is made of iron sheet.
Product color	Metallic color (silver white)
working temperature	-40 ° C~+100 ° C, can reach+120 ° C in a short time
Protection level	IP65

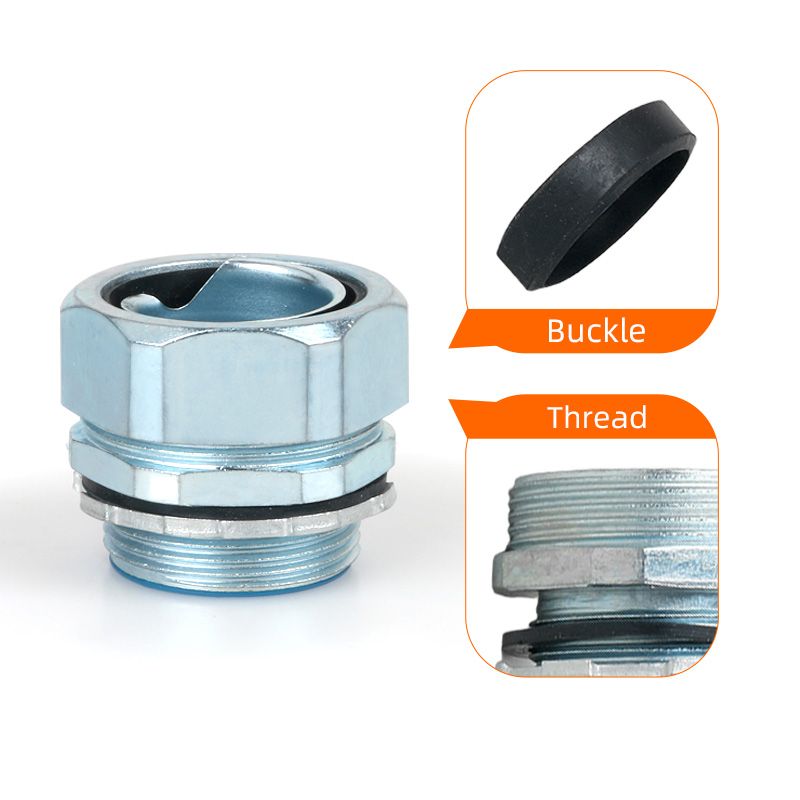

Product Features	1. Thickened zinc alloy galvanized or plated, with beautiful appearance, tight structure, and high strength. 2. The design of the hose sheath is tightly connected to the hose, which is time-saving and convenient to assemble, and has strong tensile strength. 3. It can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol resistant, oil resistant, grease resistant, and general liquid containing; 4. In addition to the following standard specifications, the size and thread standards can be changed as required.
Product specifications	Please refer to the specification and size diagram for specific models

Drawings

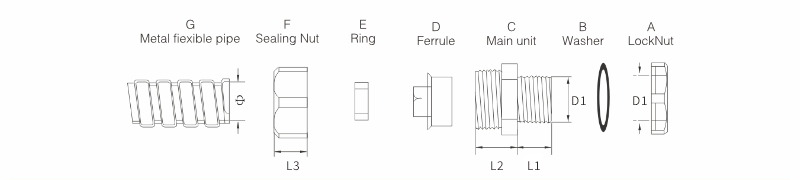

Structure Diagram

Thread specifications: PG/M/G.

Product Material: Parts A, C, and F are made of high-quality thickened zinc alloy, parts B and E are made of nitrile rubber, and part D is made of iron sheet.

Color: Metallic (silver white).

Working temperature: -40 °C~+100 °C, can reach+120 °C in a short time.

Protection level: IP65.

Product features:

1. Thickened zinc alloy galvanized or chrome plated, beautiful appearance, compact structure, high strength;

2. The design of the hose sheath and the tight connection of the hose are time-saving, convenient to assemble, and have strong tensile strength;

3. It is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol resistant, oil resistant, grease resistant, and can hold general liquids;

4. In addition to the following standard specifications, the size and thread standards can be changed as required.

Technical Parameter

Suitable Metal flexible pipe		Spiral tooth standard			Thread O.D.	Thread Length	Joint Length
Metric	G system	Metric	G system		D1(mm)	L1 mm)	L2+L3(mm)
φ6	3/16"	M14x1.5	G1/4"	PG7	13.2	8	16
φ8	1/4"	M16×1.5	G3/8"	PG9	13.2	8	16
φ10	5/16"	M16×1.5	G3/8"	PG9	16.5	8	17
φ12(13)	3/8"	M20×1.5	G3/8"	PG11/PG	13.5 16.5	8	18
φ15(16)	1/2"	M20×1.5/M24×1.5	G1/2"	PG13.5/PG16	21.3	11	23
φ20(19)	3/4"	M27×2.0/M30×2.0	G3/4"	PG21	26.6	14	22
φ25	1"	M33×2.0/M36×2.0	G1"	PG29	33.4	15	28
中32	1-1/4"	M42×2.0/M48×2.0	G1-1/4"	PG29	42.1	15	30
中38(40)	1-1/2"	M48×2.0/M60x2.0	G1-1/2"	PG36/PG42	47.8	16	32
φ51(50)	2"	M60×2.0/M70x2.0	G2"	PG48	59.6	18	34
中64(70)	2-1/2"	M76×2.0	G2-1/2"		75.1	22	38
φ75(80)	3"	M88×2.0	G3"		87.8	22	46
φ100	4"	M114×2.0	G4"		113	24	50
φ125	5"	M140×2.0	G5"
φ150	6"	M164×2.0	G6"
