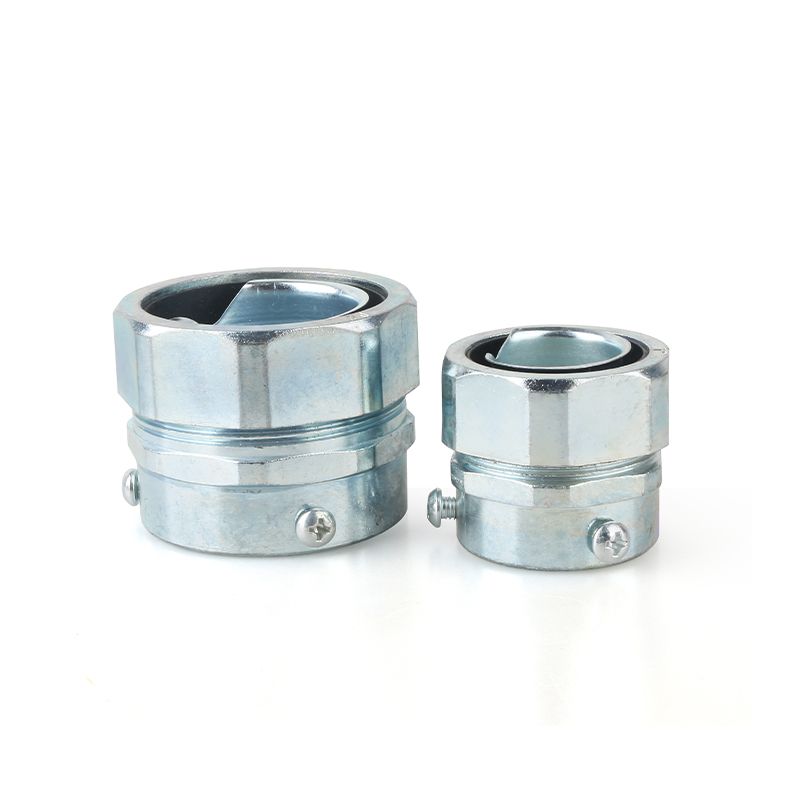

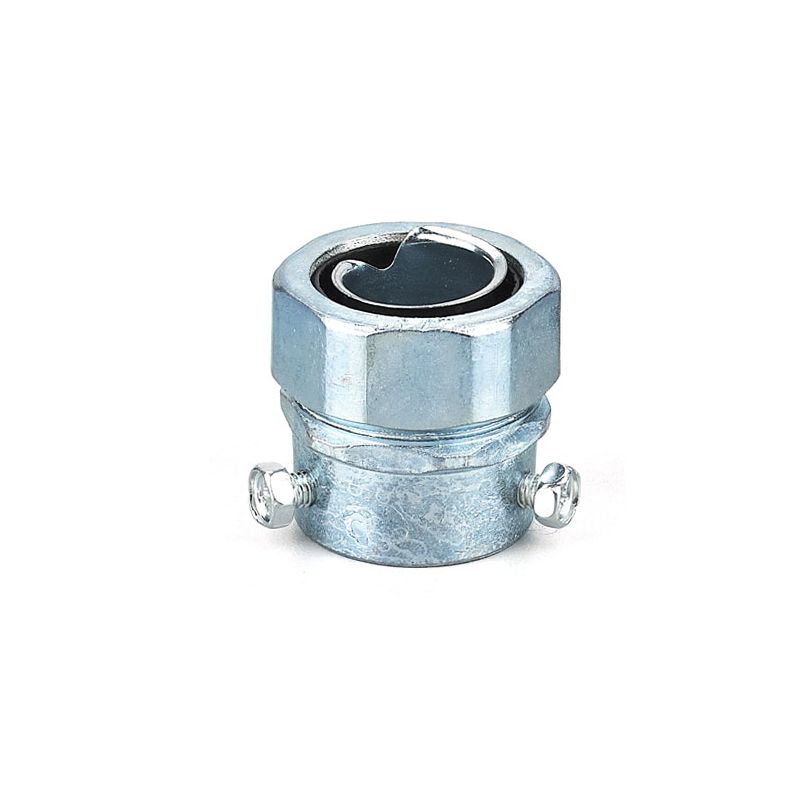

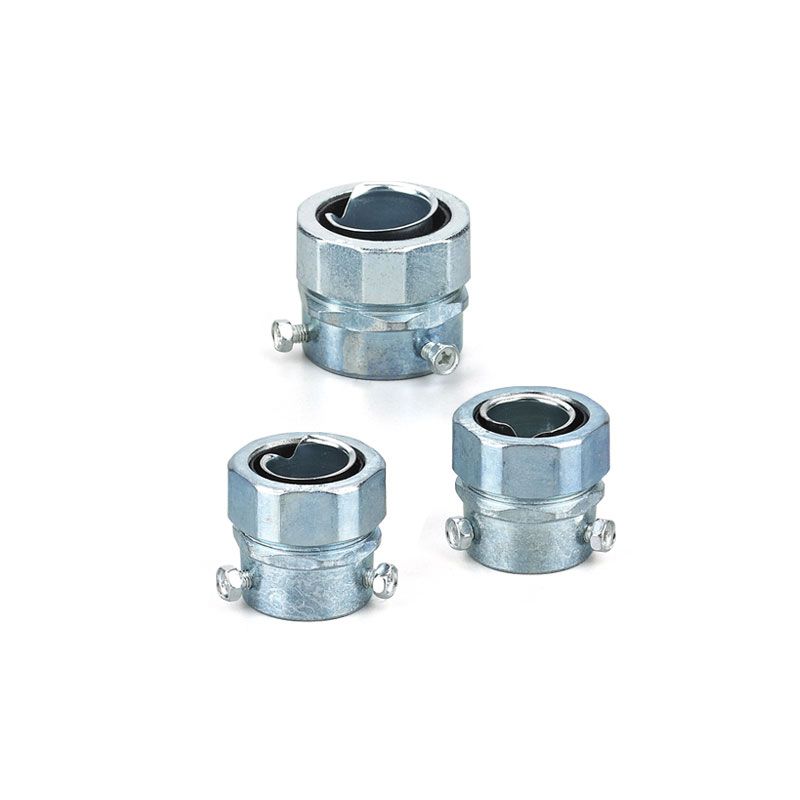

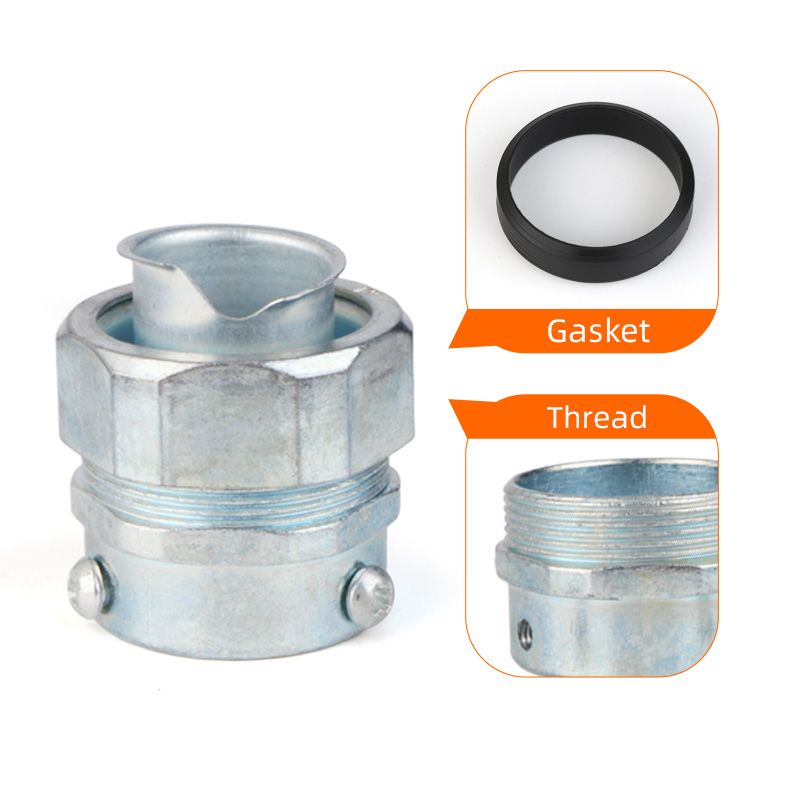

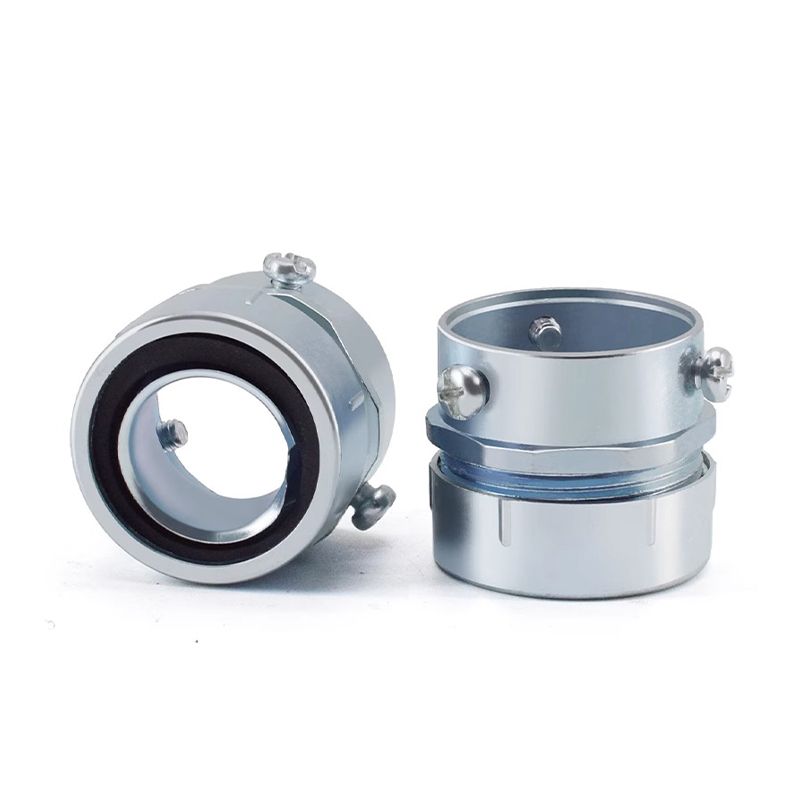

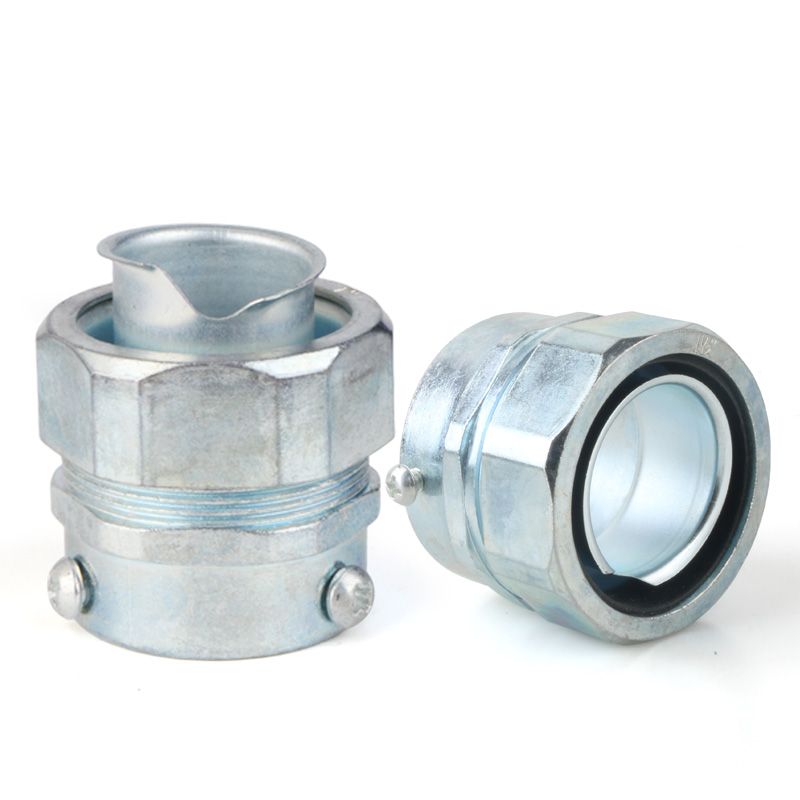

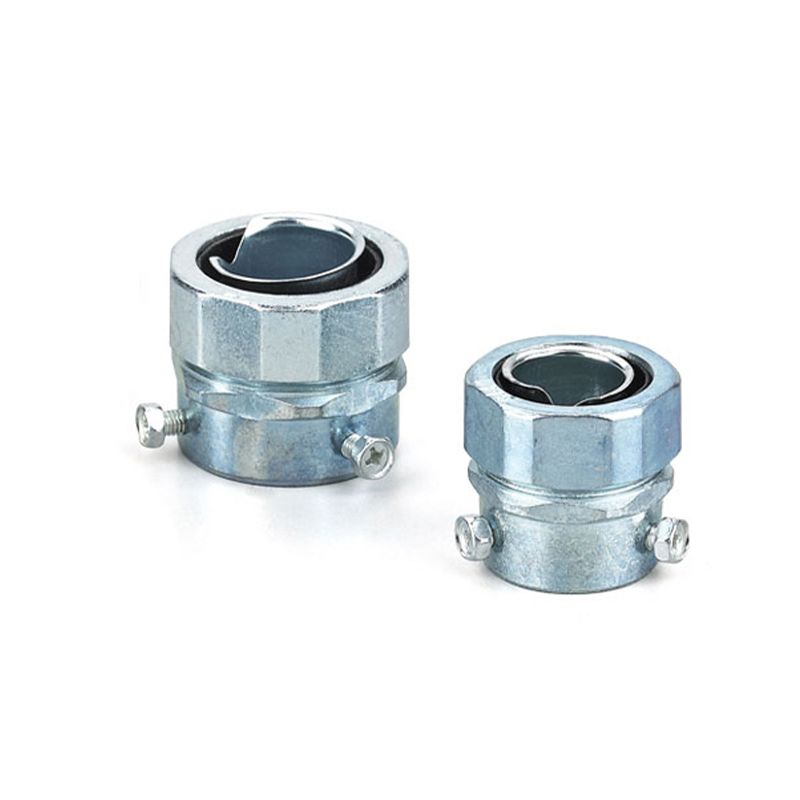

Metal hose connector 丨 DKJ series 丨 IP65 丨 customization
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality new
materials; This type of product is waterproof, dustproof, salt
resistant, acid and alkali resistant, alcohol, grease and general
solvents.
Our cable sealing sleeve accessories can be customized according to customer needs.
Product Specification
| Product Name | DKJ series card sleeve connector |
| Product Material | A. Parts C and F are made of high-quality thickened zinc alloy, parts B and E are made of nitrile rubber, and part D is made of iron sheet. |
| Product color | Metallic color (silver white) |
| working temperature | -40 ° C~+100 ° C, can reach+120 ° C in a short time |
| Protection level | IP65 |
| Product Features | 1. Thickened zinc alloy galvanized or plated, with beautiful appearance, tight structure, and high strength. 2. The design of the hose sheath is tightly connected to the hose, which is time-saving and convenient to assemble, and has strong tensile strength. 3. It can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol resistant, oil resistant, grease resistant, and general liquid containing; 4. In addition to the following standard specifications, the size and thread standards can be changed as required. |
| Product specifications | Please refer to the specification and size diagram for specific models |
Drawings

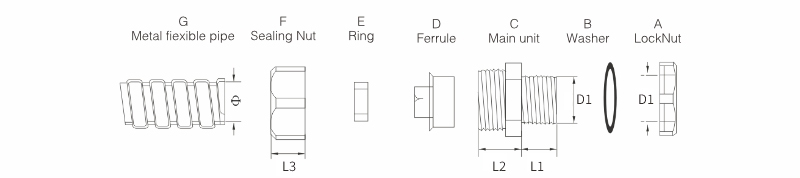

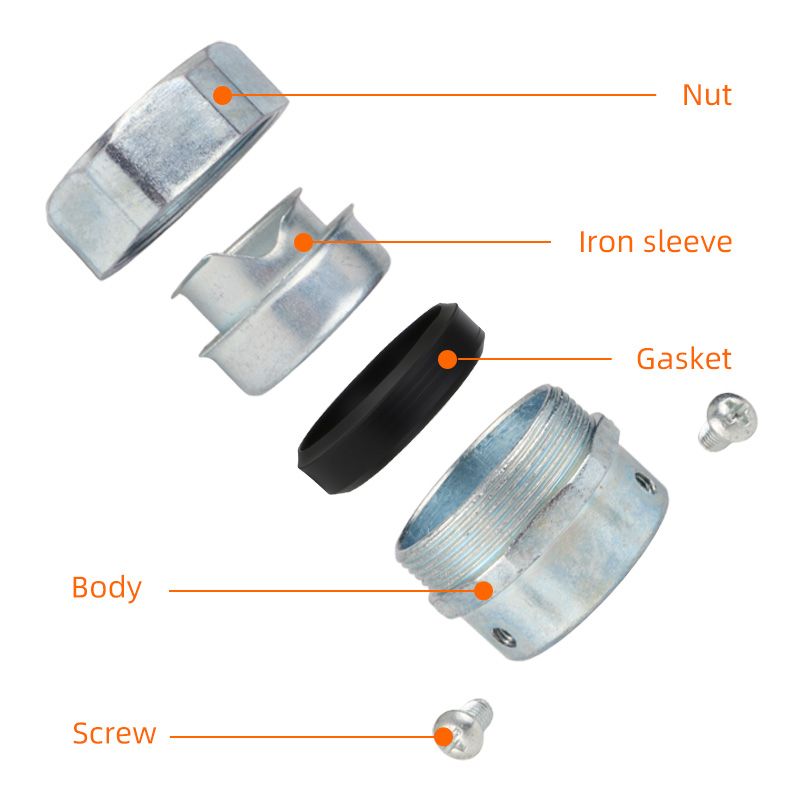

Structure Diagram
Product Material: Parts A, C, and F are made of high-quality thickened zinc alloy, parts B and E are made of nitrile rubber, and part D is made of iron sheet.
Color: Metallic (silver white).
Working temperature: -40 °C~+100 °C, can reach+120 °C in a short time.
Protection level: IP65.
Product features:
1. Thickened zinc alloy galvanized or chrome plated, beautiful appearance, compact structure, high strength;
2. The design of the hose sheath and the tight connection of the hose are time-saving, convenient to assemble, and have strong tensile strength;
3. It is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol resistant, oil resistant, grease resistant, and can hold general liquids;
4. In addition to the following standard specifications, the size and thread standards can be changed as required.
Technical Parameter
| Suitable Metal fexible pipe | Thrade tio sted derex | Thin steel pipe | |||||
| Metric | G system | Norminal | British system | Outer diameter × wall thickness(mm) | Norminal | British system | Outer diameter× wall thickness(mm) |
| φ10 | 5/16" | #10 | 5/16" | #12 | 1/2" | 12.76×1.60 | |
| φ12(13) | 3/8" | #12 | 3/8" | 17.00x2.25 | #15 | 5/8" | 15.87x1.60 |
| φ15(16) | 1/2" | #15 | 1/2" | 21.25×2.75 | #20 | 3/4" | 19.05×1.80 |
| φ20(19) | 3/4" | #20 | 3/4" | 26.75x2.75 | #25 | 1" | 25.40x1.80 |
| φ25 | 1" | #25 | 1" | 33.50x3.25 | #32 | 1-1/4" | 31.75x1.80 |
| φ32 | 1-1/4" | #32 | 1-1/4" | 42.25×3.25 | #40 | 1-1/2" | 38.10x1.80 |
| φ38(40) | 1-1/2" | #40 | 1-1/2" | 48.00x3.50 | #50 | 2" | 50.80x2.00 |
| φ51(50) | 2" | #50 | 2" | 60.00x3.50 | #70 | 2-1/2" | 63.50x2.50 |
| φ64(70) | 2-1/2" | #70 | 2-1/2" | 75.50x3.75 | #80 | 3" | 76.20x3.20 |
| φ75(80) | 3" | #80 | 3" | 88.50x4.00 | |||
| φ100 | 4" | #100 | 4" | 114x4.00 | |||
| Φ125 | 5" | #125 | 5" | 140x4.50 | |||
| φ150 | 6" | #150 | 6" | 165.00x4.50 | |||
