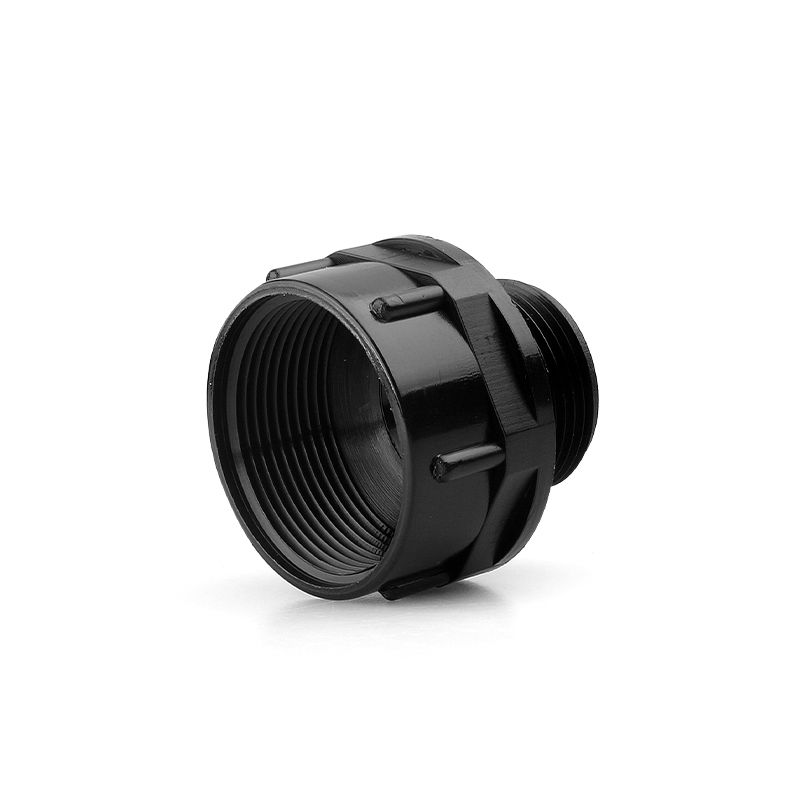

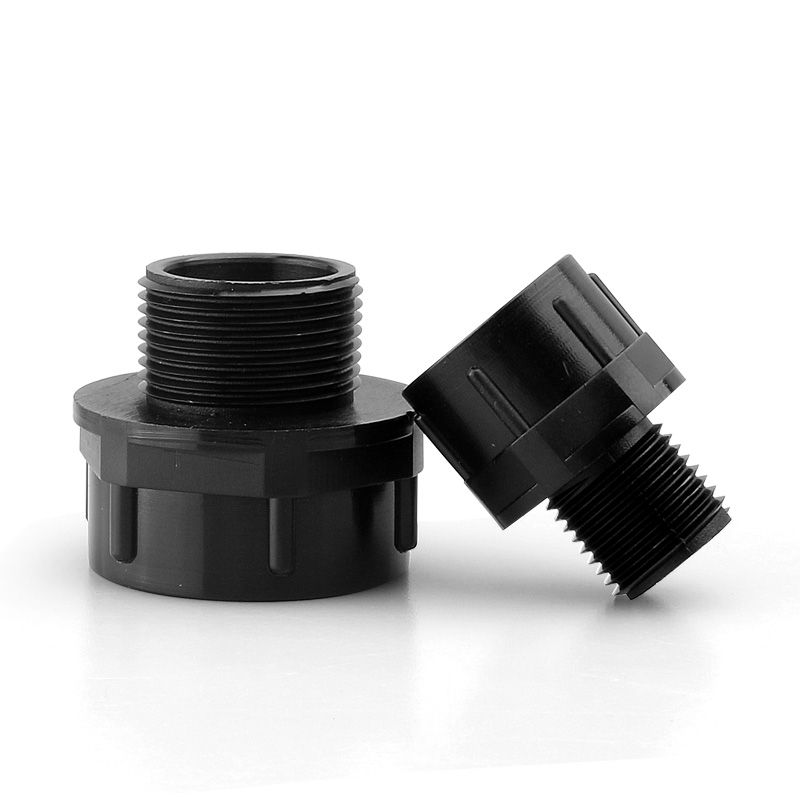

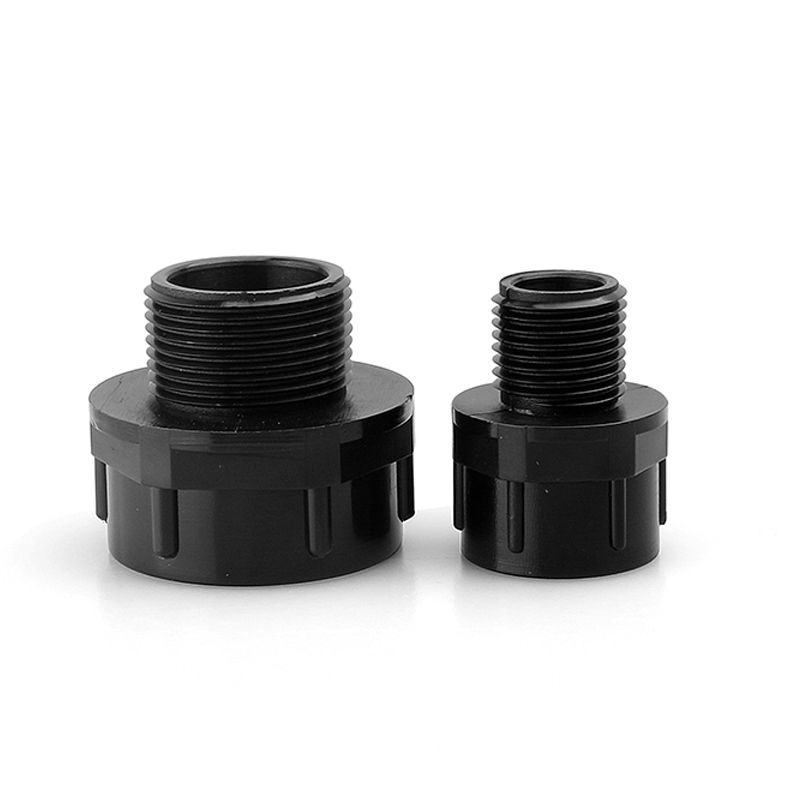

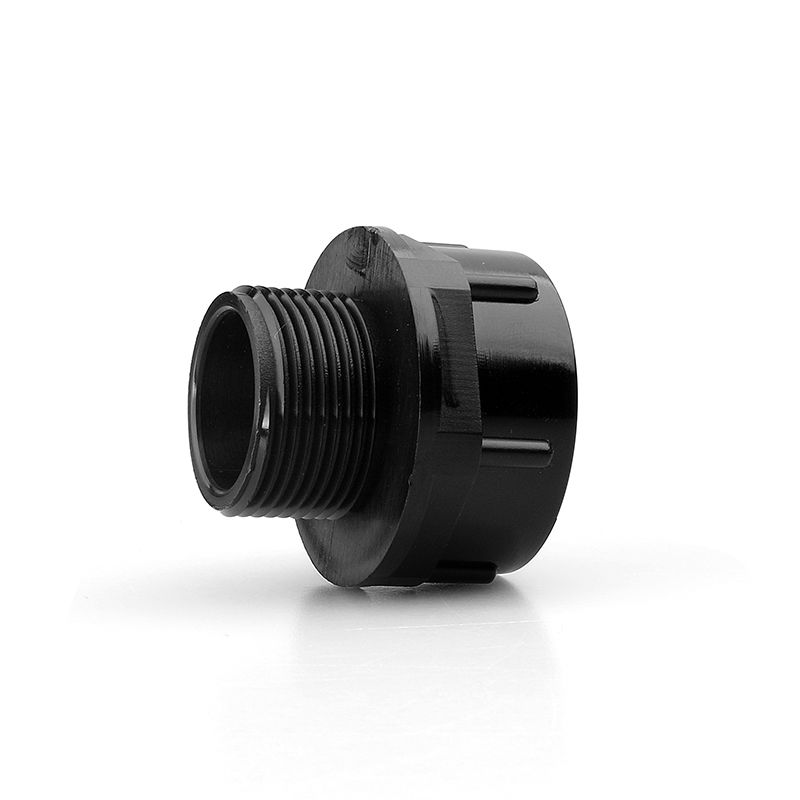

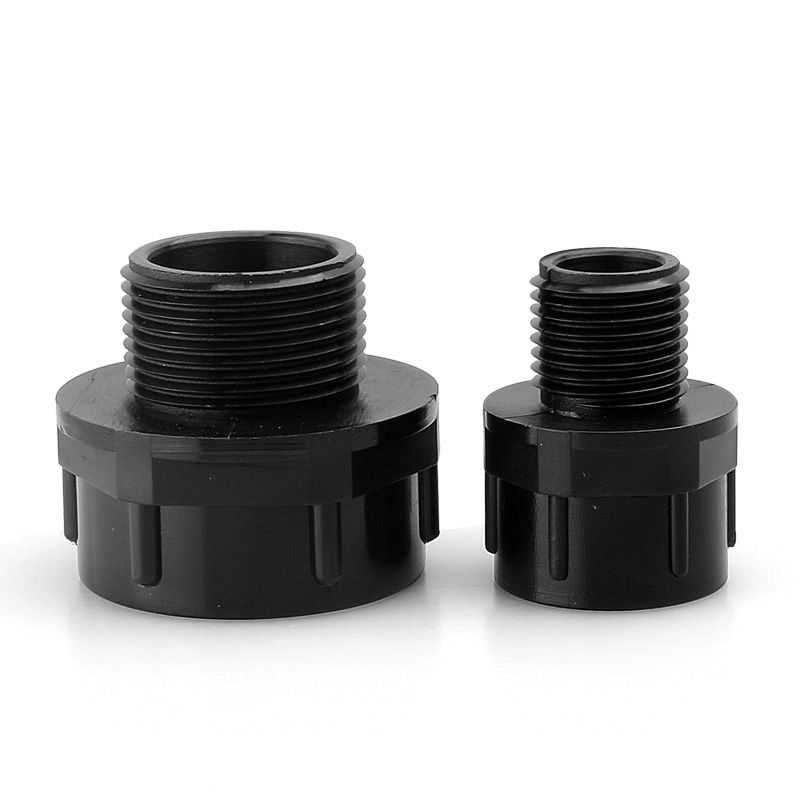

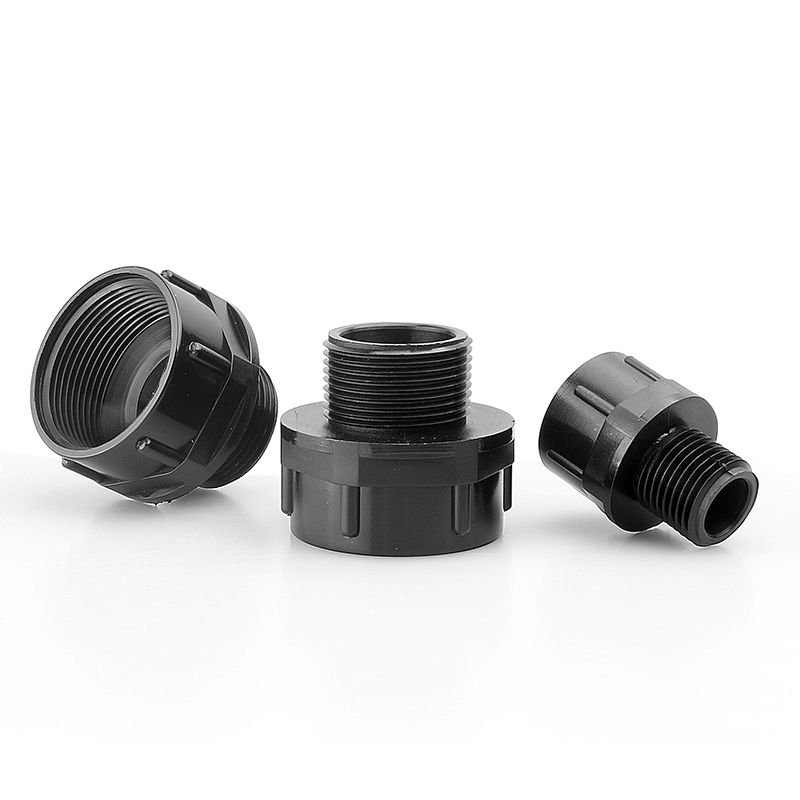

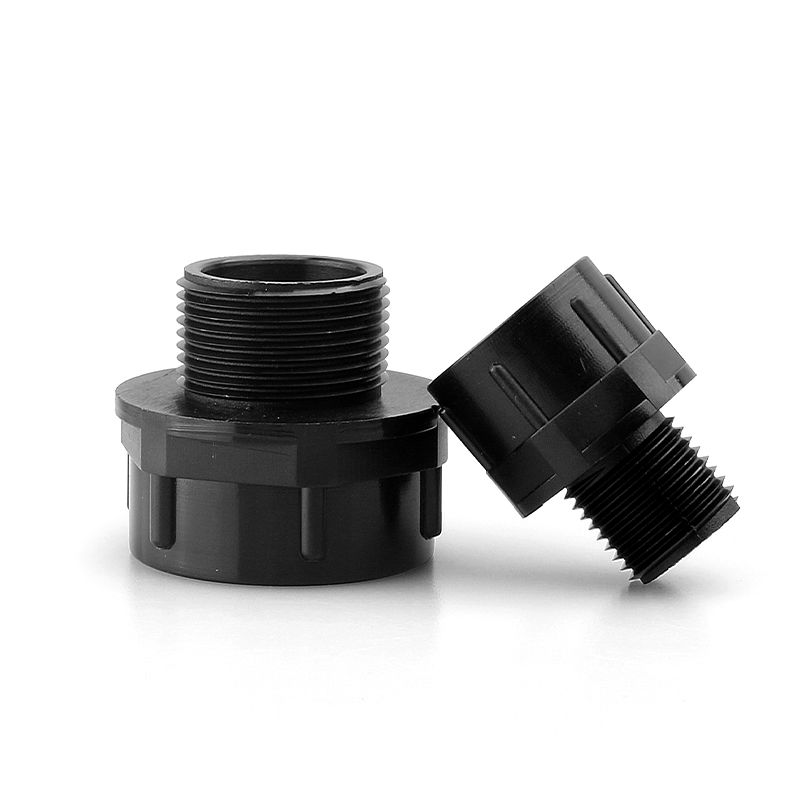

Nylon expanding ring 丨 IP66 IP68 丨 M/G/NPT types
Description
As a leading manufacturer and supplier of cable glands and electrical
accessories, YDT is committed to providing high-quality products and
services to enterprises in various industries.
Each YDT cable sealing sleeve accessory is made of high-quality nylon
PA66; This series of products is waterproof, dustproof, salt resistant,
acid and alkali resistant, alcohol, grease and general solvents.
Our cable glands and electrical accessories products can be customized according to customer needs.
Product Specification
| Product Name | Nylon diameter increasing ring |
| Model | M/NPT/G |
| Product Material | High quality Nylon |
| Temperature range | Static -40 ℃ to 100 ℃ |
| Product design features | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Protection level | IP68 |
| Fire resistance | Flame retardant |
| Certificate | ce s9001 |
| Aperture range selection | Specific dimensions should refer to the dimension specification diagram |
Drawings
Thread spec.: M/NPT/G.
Product Material: Made of brass with nickel plating.
Working temperature: Static -40 °C to 100 °C, instantaneous heat resistance to 120 °C.
Product features: Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Technical Parameter
| Internal Thread | External Thread | External Thread Length (mm) | Total Length (mm) | Spanner Size A & E(mm) |
| M12×1.5 | M16×1.5 | 6 | 20 | 18 |
| M12×1.5 | M20×1.5 | 6 | 20 | 22 |
| M16×1.5 | M20×1.5 | 6 | 20 | 22 |
| M16×1.5 | M25×1.5 | 6 | 23 | 27 |
| M18×1.5 | M20×1.5 | 6.5 | 22 | 22 |
| M20×1.5 | M24×1.5 | 7 | 23 | 27 |
| M20×1.5 | M25×1.5 | 8 | 23 | 27 |
| M20×1.5 | M32×1.5 | 7 | 22 | 35 |
| M24×1.5 | M27×2.0 | 7 | 25 | 30 |
| M24×1.5 | M30×2.0 | 7 | 25 | 32 |
| M25×1.5 | M30×2.0 | 8 | 23 | 32 |
| M25×1.5 | M32×1.5 | 9 | 25 | 35 |
| M25×1.5 | M40×1.5 | 8 | 25 | 45 |
| M27×1.5 | M36×2.0 | 8 | 24 | 40 |
| M32×1.5 | M40×1.5 | 9 | 26 | 45 |
| M32×1.5 | M50×1.5 | 9 | 26 | 55 |
| M36×1.5 | M48×2.0 | 9 | 26 | 50 |
| M40×1.5 | M50×1.5 | 10 | 27 | 55 |
| M40×1.5 | M63×1.5 | 10 | 28 | 68 |
| M48×1.5 | M64×2.0 | 10 | 28 | 68 |
| M50×1.5 | M63×1.5 | 10 | 29 | 68 |
| M63×1.5 | M72×2.0 | 10 | 29 | 78 |
| NPT 1/4" | NPT 3/8" | 7 | 21 | 20 |
| NPT 3/8" | NPT 1/2" | 7 | 21 | 24 |
| NPT 1/2" | NPT 3/4" | 7 | 21 | 30 |
| NPT 1/2" | NPT 1" | 7 | 21 | 35 |
| NPT 3/4" | NPT 1" | 7 | 21 | 35 |
| NPT 1" | NPT 1-1/4" | 9 | 24 | 45 |
| NPT 1" | NPT 1-1/2" | 9 | 26 | 55 |
| NPT 1-1/4" | NPT 1-1/2" | 9 | 26 | 55 |
| NPT 1/4" | NPT 2" | 10 | 28 | 64 |
| NPT 1/2" | NPT 2" | 10 | 28 | 64 |
| G 1/4" | G 3/8" | 7 | 21 | 20 |
| G 3/8" | G 1/2" | 7 | 21 | 24 |
| G 1/2" | G 3/4" | 7 | 21 | 30 |
| G 1/2" | G 1" | 7 | 21 | 35 |
| G 3/4" | G 1" | 7 | 21 | 35 |
| G 1" | G 1-1/4" | 9 | 24 | 45 |
| G 1" | G 1-1/2" | 9 | 26 | 55 |
| G 1-1/4" | G 1-1/2" | 9 | 26 | 55 |
| G 1-1/4" | G 2" | 10 | 28 | 64 |
| G 1-1/2" | G 2" | 10 | 28 | 64 |
