PVC cable duct 丨 PZC series 丨 flame retardant 丨customization
Description
As a leading manufacturer and supplier of cable glands and wiring equipment, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT wiring duct category and its accessories; All use high-quality new materials.
Our wiring equipment products have a wide variety of types and complete
specifications, and color specifications can be customized according to
customer needs.
Product Specification
| Product Name | PZC series decorative trunking |
| Product Material | South Asian hard PVC, good insulation, non self ignition, temperature resistance up to 85 ° C |
| temperature range | Continuous high temperature of -25 degrees Celsius to 75 degrees Celsius, with instant heat resistance up to 85 degrees Celsius. |
| Product design features | Composed of a groove bottom and a groove cover, with outlet holes on both sides of the bottom groove. |
| usage method | First, fix the bottom slot, insert the wires to be matched into the slot, and cover the slot cover. |
| More choices | Other lengths can be customized according to demand (specifications are based on the external width and height after the combination of slot cover and slot bottom) |
| Flammability performance level | UL94 V-2 |
| certificate | CE, RoHS, REACH |
| Cable range selection | Refer to the specification table for specific size specifications and display diagram |
Drawings

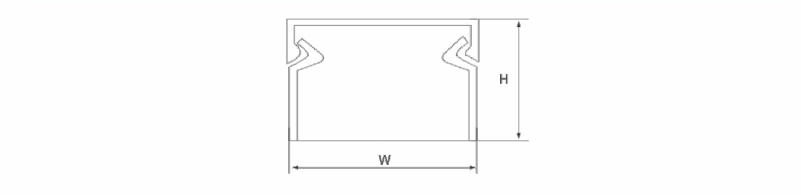

Structure Diagram
Material: South Asian hard PVC, with good insulation, non self-ignition, and temperature resistance up to 85 °C.

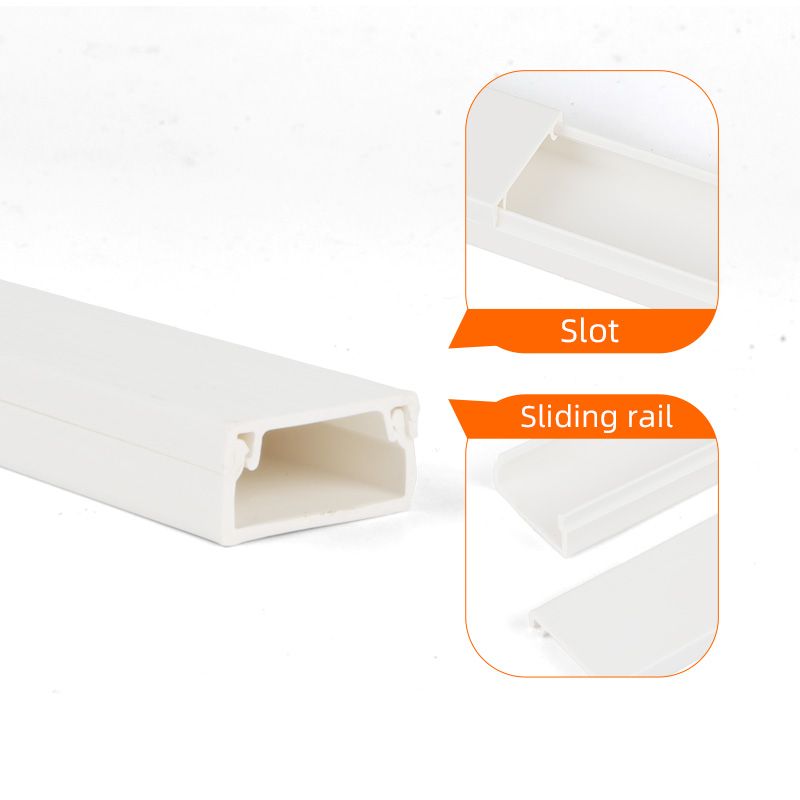

Product Structure: Composed of a groove bottom and a groove cover, with outlet holes on both sides of the bottom groove.
Color: Blue, other colors can be customized.
Working temperature: -25 degrees Celsius, continuous high temperature up to 75 degrees Celsius, and instant heat resistance up to 85 degrees Celsius.
Usage: First, fix the bottom slot, insert the wire to be matched into the slot, and cover the slot cover.
More options: Other lengths can be customized according to demand (specifications are based on the external width and height after the combination of slot cover and slot bottom).
Technical Parameter
| Specification (H×W) | Package (M/PKG) |
| PZC-10×15 | 100 |
| PZC-10×20 | 100 |
| PZC-10×25 | 100 |
| PZC-15×25 | 100 |
| PZC-15×35 | 100 |
| PZC-20×30 | 100 |
| PZC-20×35 | 100 |
| PZC-20×50 | 100 |
| PZC-25×40 | 100 |
| PZC-30×50 | 100 |
| PZC-30×60 | 100 |
| PZC-30×80 | 100 |
| PZC-30×100 | 100 |
| PZC-50×80 | 60 |
| PZC-50×100 | 60 |
| PZC-80×100 | 36 |
| PZC-100×100 | 36 |
