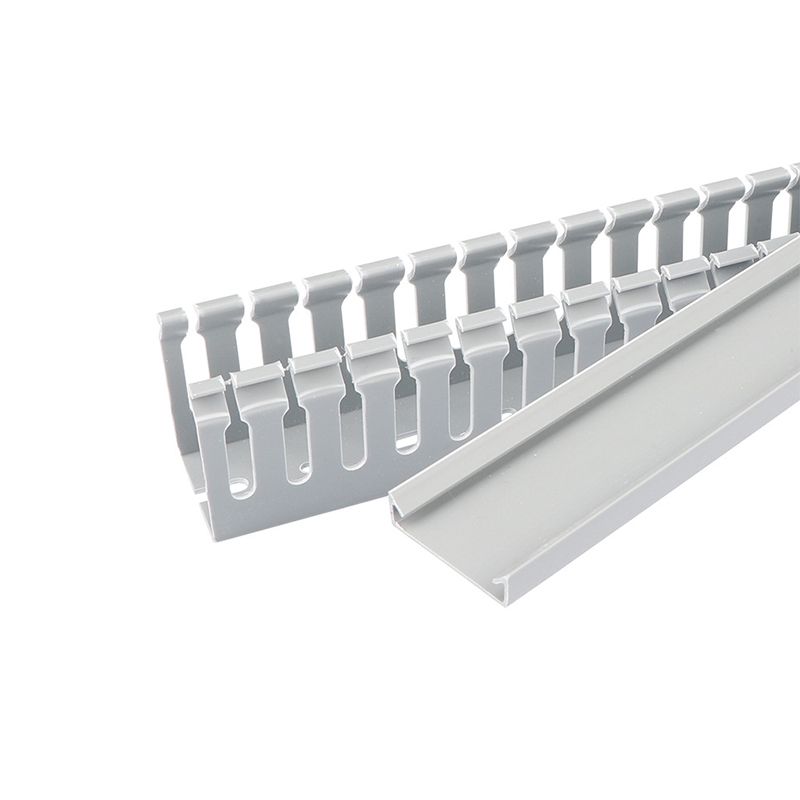

PVC cable duct 丨 PXC series 丨 flame retardant 丨customization

Description

As a leading manufacturer and supplier of cable glands and wiring equipment, YDT is committed to providing high-quality products and services to enterprises in various industries.

Each YDT wiring duct category and its accessories; All use high-quality new materials.

Our wiring equipment products have a wide variety of types and complete specifications, and color specifications can be customized according to customer needs.

Get Instant Quote

Product Specification

Product Name	PXC wiring duct
Product Material	South Asian hard PVC, good insulation, non self ignition, temperature resistance up to 85 ° C
temperature range	Continuous high temperature of -25 degrees Celsius to 75 degrees Celsius, with instant heat resistance up to 85 degrees Celsius.

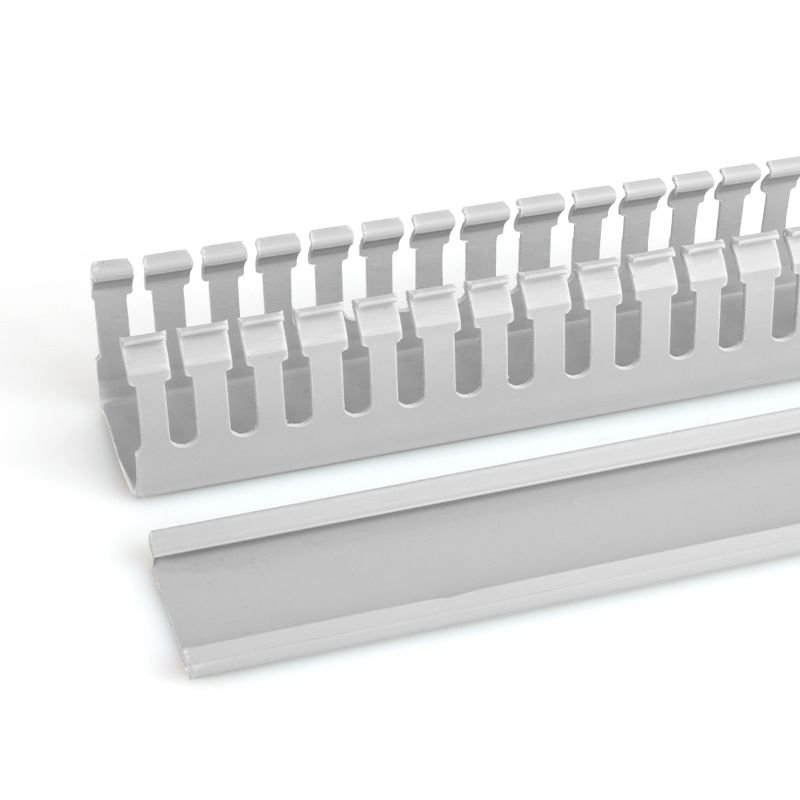

Product design features	Composed of a groove bottom and a groove cover, with outlet holes on both sides of the bottom groove.
usage method	First, fix the bottom slot, insert the wires to be matched into the slot, and cover the slot cover.
More choices	Other lengths can be customized according to demand (specifications are based on the external width and height after the combination of slot cover and slot bottom)
Flammability performance level	UL94 V-2
certificate	CE, RoHS, REACH
Cable range selection	Refer to the specification table for specific size specifications and display diagram

Drawings

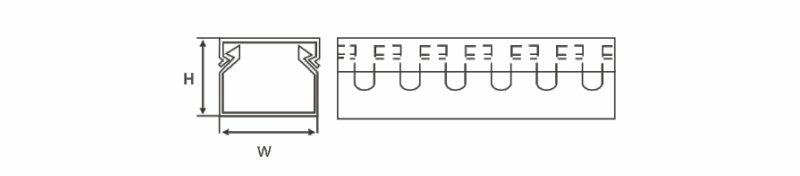

Structure Diagram

Material: South Asian hard PVC, with good insulation, non self-ignition, and temperature resistance up to 85 °C.

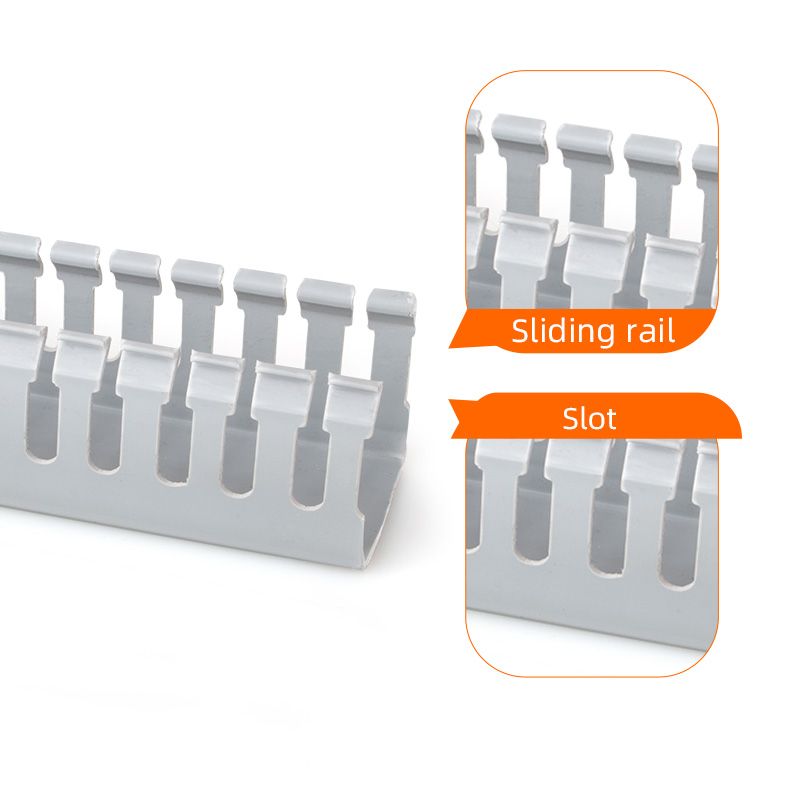

Product Structure: Composed of a groove bottom and a groove cover, with outlet holes on both sides of the bottom groove.

Color: Blue, other colors can be customized.

Working temperature: -25 degrees Celsius, continuous high temperature up to 75 degrees Celsius, and instant heat resistance up to 85 degrees Celsius.

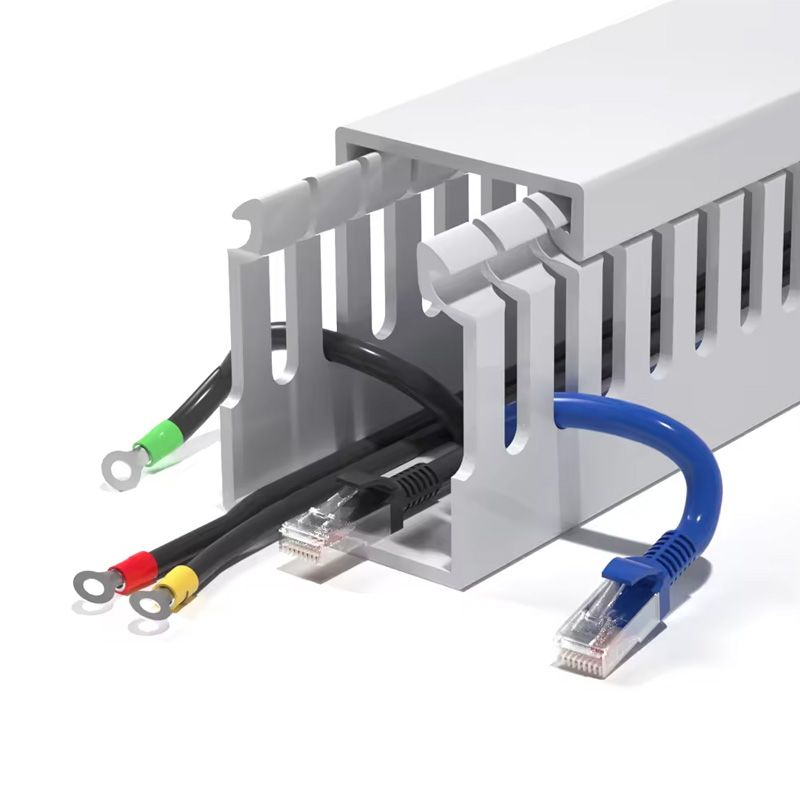

Usage: First, fix the bottom slot, insert the wire to be matched into the slot, and cover the slot cover.

More options: Other lengths can be customized according to demand (specifications are based on the external width and height after the combination of slot cover and slot bottom).

Technical Parameter

Specification (H×W)	Package (M/PKG)	Specification (H×W)	Package (M/PKG)
PZC-20×15	100	PZC-50×15	100
PZC-20×20	100	PZC-50×25	100
PZC-20×25	100	PZC-50×30	100
PZC-25×25	100	PZC-50×35	100
PZC-30×15	100	PZC-50×40	100
PZC-30×20	100	PZC-50×45	100
PZC-30×25	100	PZC-50×50	100
PZC-30×30	100	PZC-50×55	100
PZC-30×35	100	PZC-50×60	100
PZC-30×50	100	PZC-50×80	60
PZC-35×25	100	PZC-50×100	60
PZC-35×35	100	PZC-60×35	100
PZC-40×25	100	PZC-60×40	100
PZC-40×30	100	PZC-60×60	80
PZC-40×35	100	PZC-80×35	60
PZC-40×40	100	PZC-80×45	60
PZC-40×50	100	PZC-80×50	60
PZC-40×60	100	PZC-80×55	60
PZC-45×45	100	PZC-80×80	36
PZC-45×50	100	PZC-80×100	36
		PZC-100×100	36
