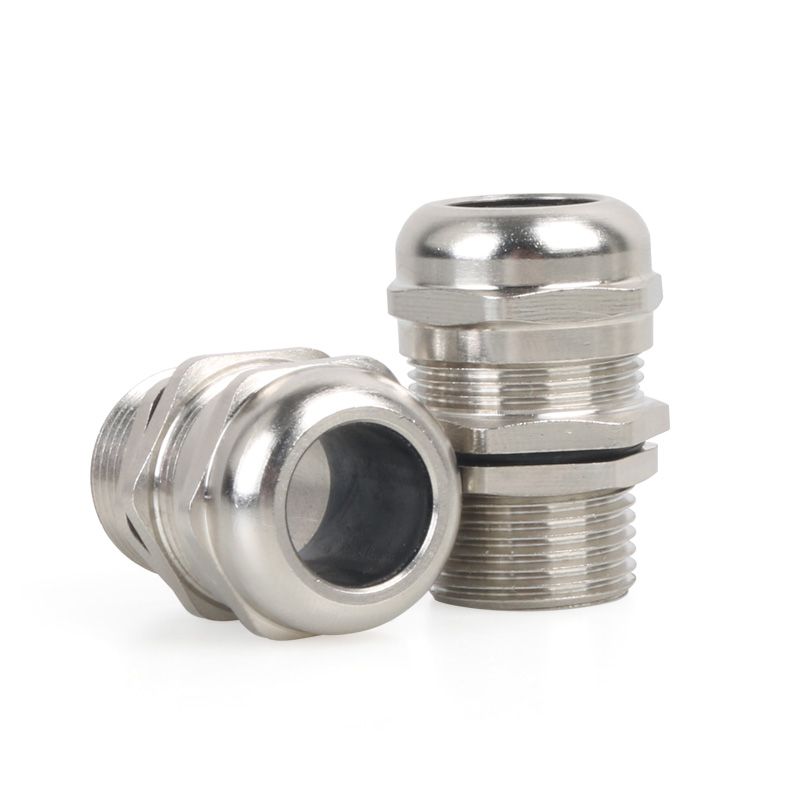

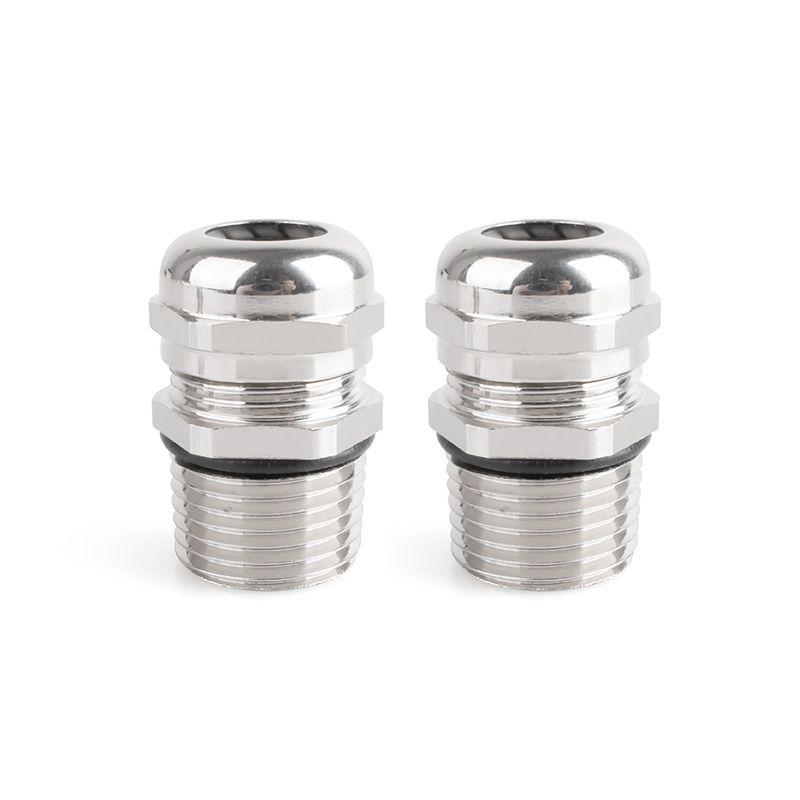

Extended brass cable gland 丨 NPT types 丨 IP66 IP68 丨 Stress relief 丨 Wire clamp

Description

As a leading manufacturer and supplier of cable glands, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT cable sealing sleeve is made of high-quality brass; The tightening nut, main body, and nut parts are made of high-quality brass material, with nickel plating on the surface; The gripping claws, sealing rings, and gaskets are made of weather resistant nitrile rubber. This series of products has a static temperature range of -40 ℃ to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, this type of product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.
Our cable gland products include various styles such as standard, universal, and corner series, with complete specifications and customizable colors according to customer needs.

Get Instant Quote Next Product

Product Specification

Product Name	Extended brass cable gland
Model	NPT thread types
Product Material	Nickel plated brass (body, tightening cap, nut); nitrile rubber (sealing ring, gasket)
Temperature range	Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃.
Product design features	Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength
Product performance	Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Protection level	IP66 IP68
Fire resistance	UL94 V-2
UV resistant	F1
Environmental protection	Compliant with RoHs standards, halogen-free
Certificate	CE, RoHS, REACH
Cable range	Refer to the specification table for specific size specifications and display diagram
Special function available	Extended, anti bending, single hole, multi hole, semi through, straight through

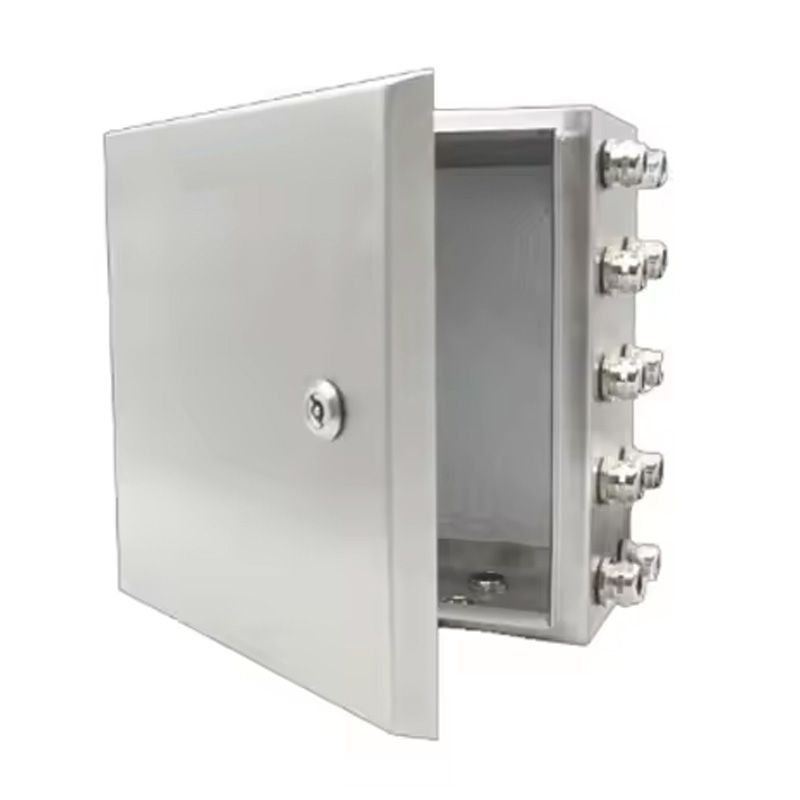

Application	Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
	Machine and equipment manufacturing
	Photovoltaic
	Automation technology

Drawings

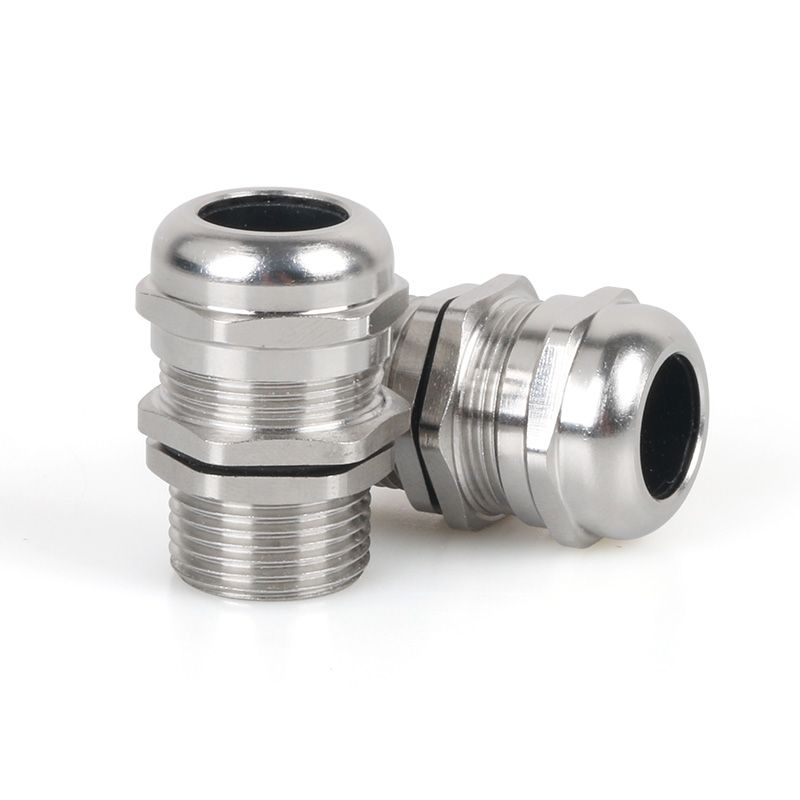

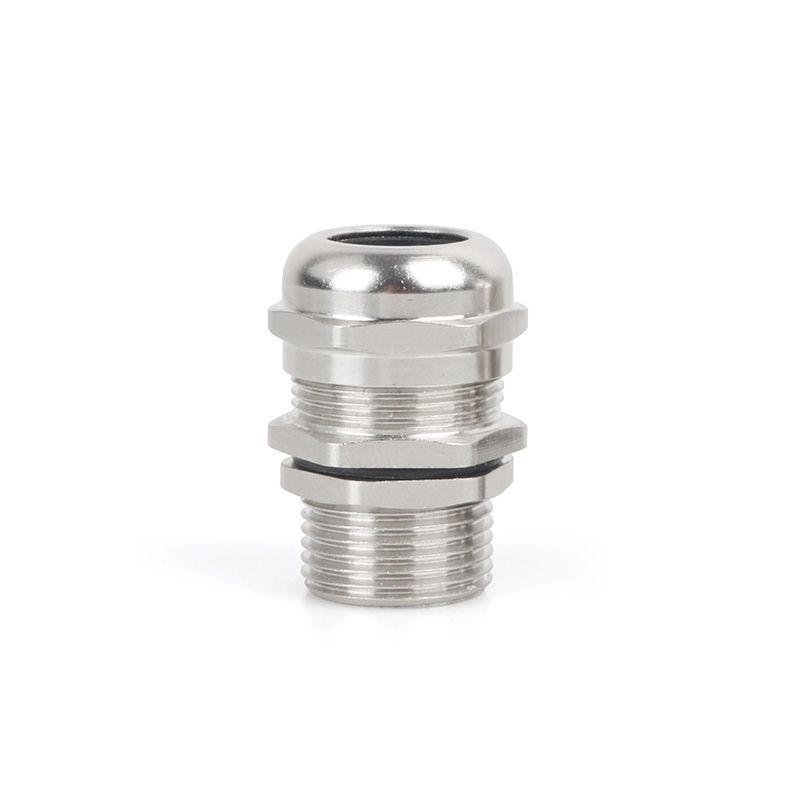

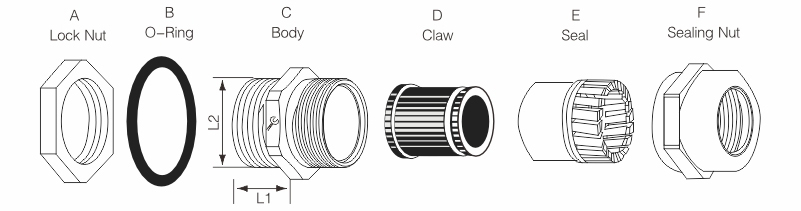

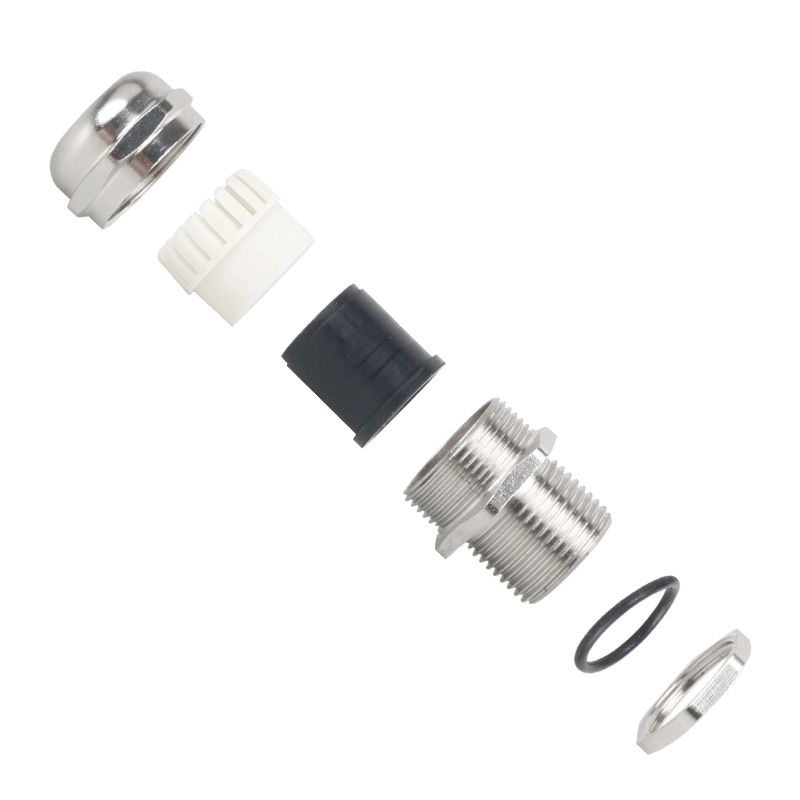

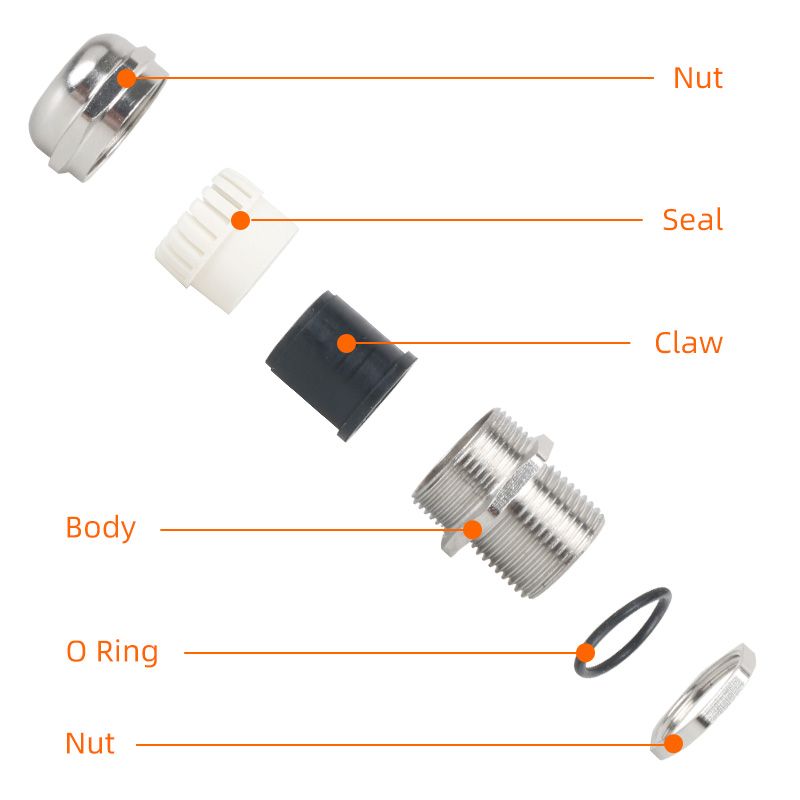

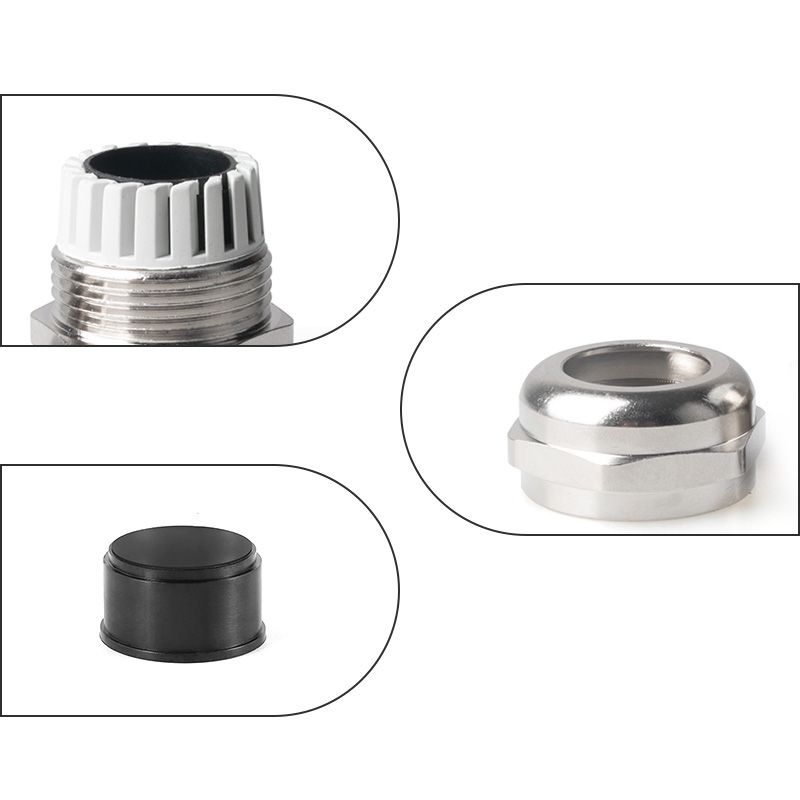

Structure Diagram

NPT Type

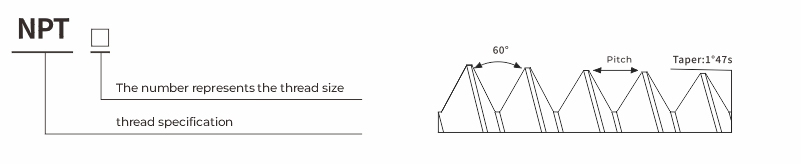

NPT belongs to the American standard taper pipe thread, which can be found in GB/T12716-1991 for North American national standards; The thread angle is 60.
The NPT standard thread size is usually described by two parameters: thread diameter and pitch; Representations such as NPT3/8 ", NPT1/2", NPT3/4", etc.

NPT Type

Technical Parameter

Model	Cable Range (mm)	Thread O.D. L2(mm)	Thread Length L1(mm)	Spanner Size A & E(mm)
BNPT3/8"-L	4~8	17.05	15	18
BNPT3/8"-L	2~6	17.05	15	18
BNPT1/2"-L	6~12	21.22	15	22
BNPT1/2"-L	5~9	21.22	15	22
BNPT3/4"-L	13~18	26.56	15	30
BNPT3/4"-L	9~16	26.56	15	30
BNPT1"-L	18~25	33.22	16	40
BNPT1"-L	13~20	33.22	16	40
BNPT1 1/4"-L	25~32	41.98	18	50
BNPT1 1/4"-L	20~26	41.98	18	50
BNPT1 1/2"-L	32~38	48.05	20	57
BNPT1 1/2"-L	25~32	48.05	20	57
