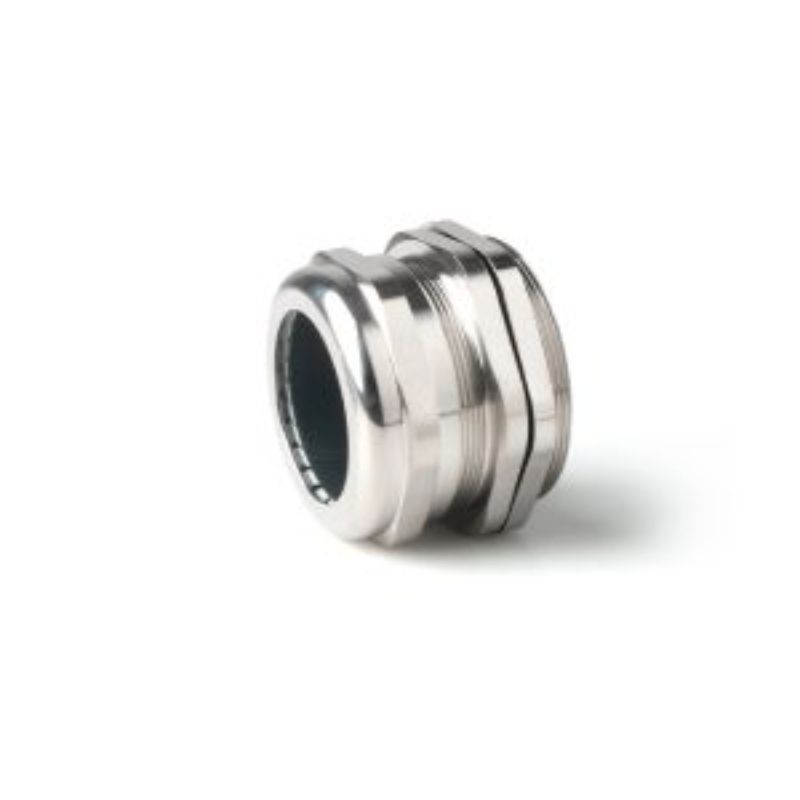

Brass cable glands 丨 PG types 丨 IP66 IP68 丨 Stress relief 丨 Wire clamp

Description

As a leading manufacturer and supplier of brass cable glands, YDT is committed to providing high-quality products and services to enterprises in various industries.
Each YDT cable sealing sleeve is made of high-quality brass; The tightening nut, main body, and nut parts are made of high-quality brass material, with nickel plating on the surface;The gripping claw and gasket are made of nylon PA66 material, and the rubber ring is made of nitrile rubber material. This series of products has a static temperature range of -40 ℃ to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, this type of product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.
Our cable gland products include various styles such as standard, universal, and corner series, with complete specifications and customizable colors according to customer needs.

Get Instant Quote Next Product

Product Specification

Product Name	Brass nickel plated cable gland
Model	PG thread types
Product Material	Nickel plated brass (body, tightening cap, nut); nitrile rubber (sealing ring, gasket)
Temperature range	Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃.

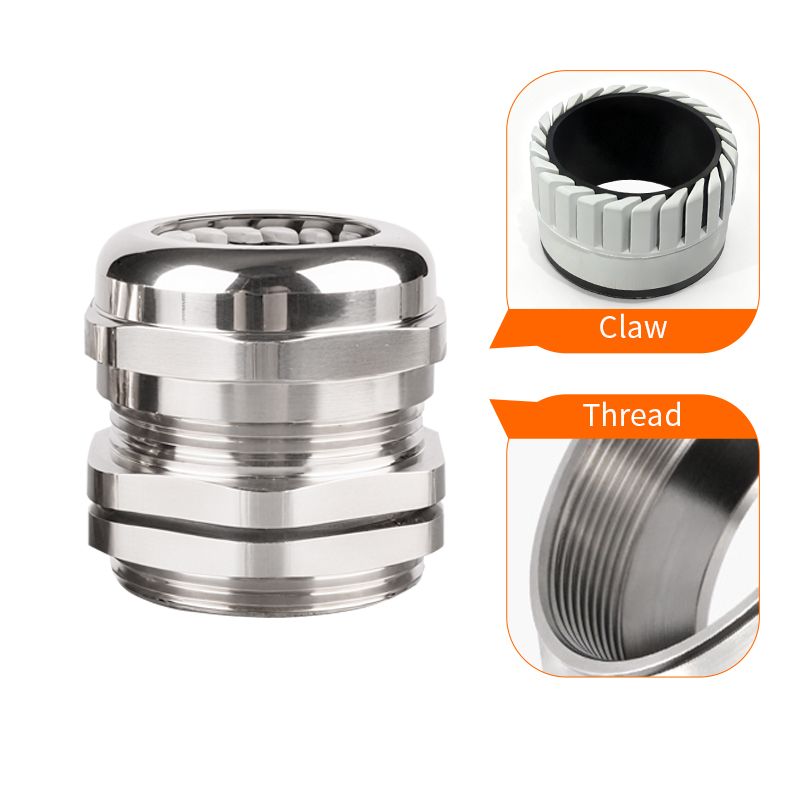

Product design features	Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength
Product performance	Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents.
Protection level	IP66 IP68
Fire resistance	UL94 V-2
UV resistant	F1
Environmental protection	Compliant with RoHs standards, halogen-free
Certificate	CE, RoHS, REACH
Cable range	Refer to the specification table for specific size specifications and display diagram
Special function available	Extended, anti bending, single hole, multi hole, semi through, straight through

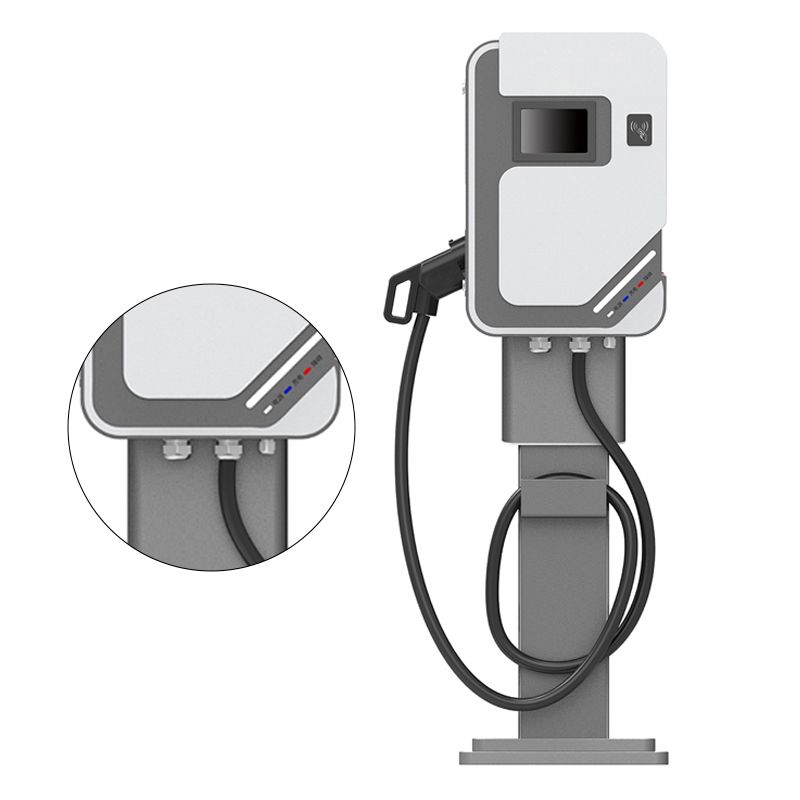

Application	Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
	Machine and equipment manufacturing
	Photovoltaic
	Automation technology

Drawings

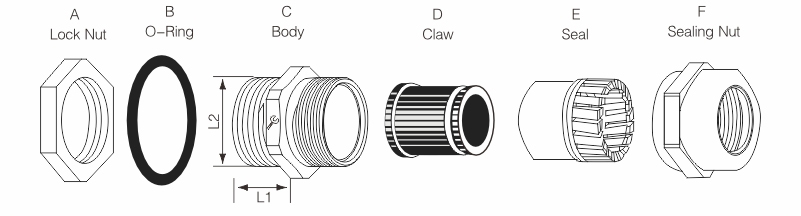

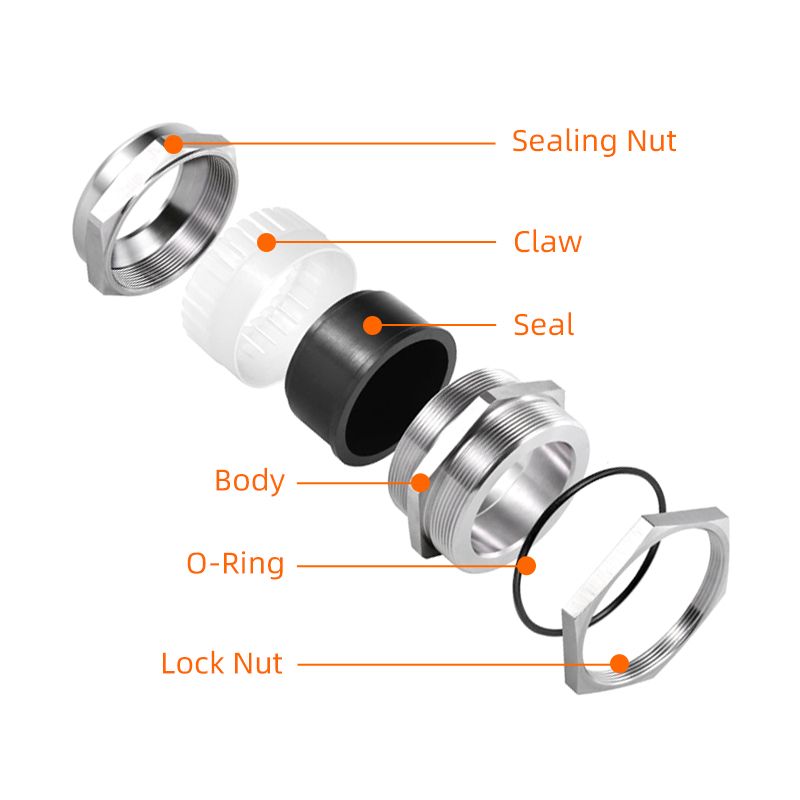

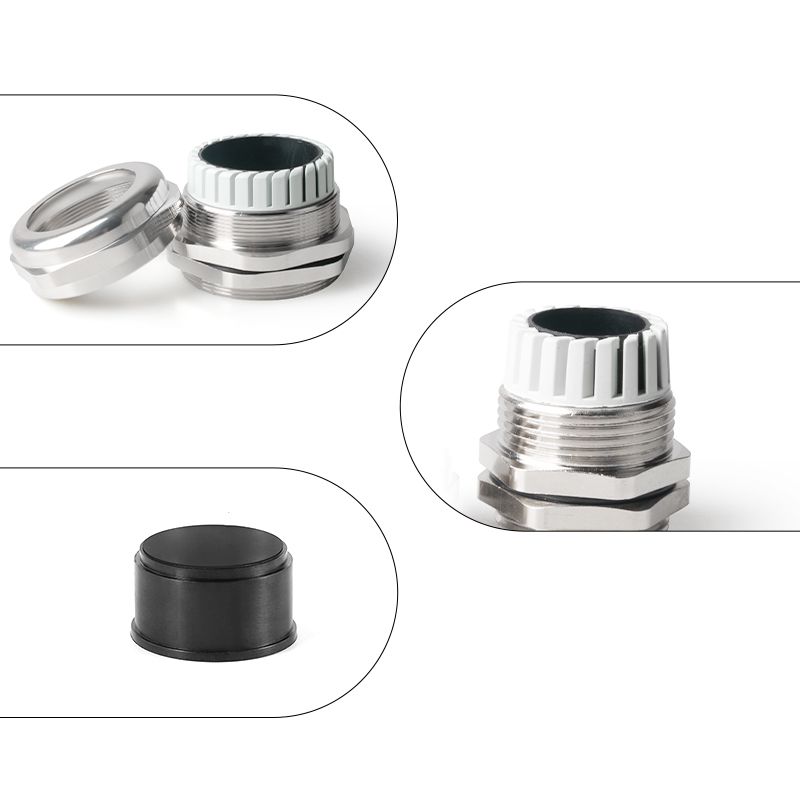

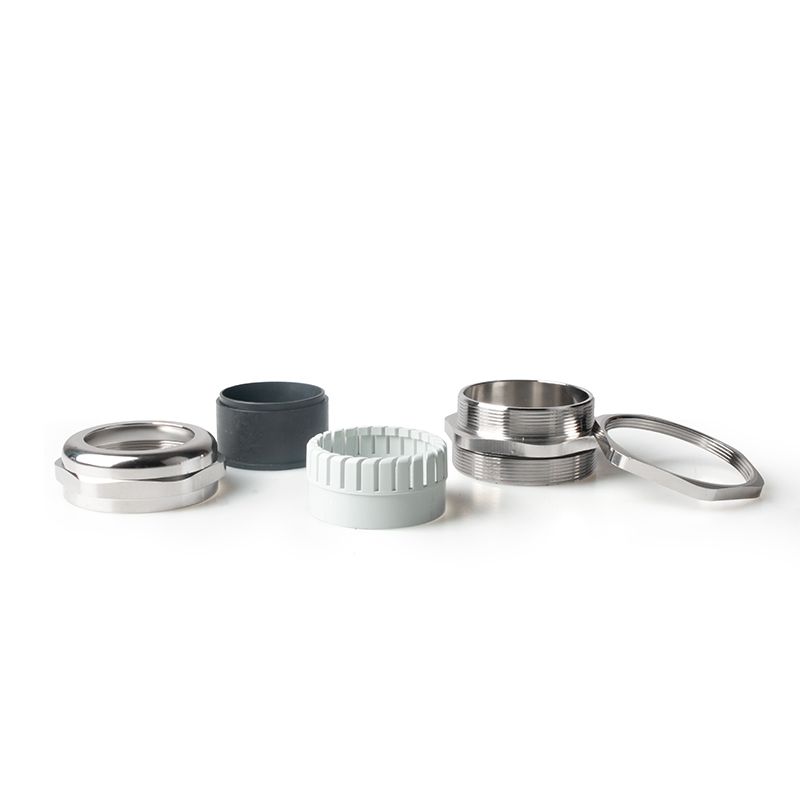

Structure Diagram

PG Type

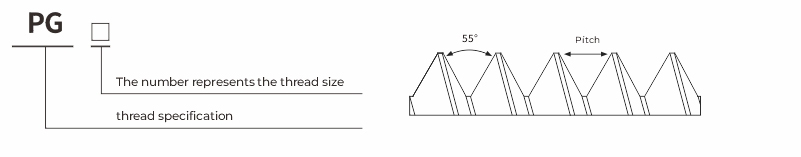

PG thread isa German standard thread connection method, with a cylindrical thread form and a thread angle of 55.
According to the German standard RIN4043Q, the size specifications of PG threads include various models such as PG7, PG9, PG11, PG13.5, PG16, etc.

Brass cable glands 丨 PG types 丨 IP66 IP68 丨 Stress relief 丨 Wire clamp

Technical Parameter

Model	Cable Range (mm)	Thread O.D L2(mm)	Thread Length L7(mm)	Spanner Size A&E(mm)

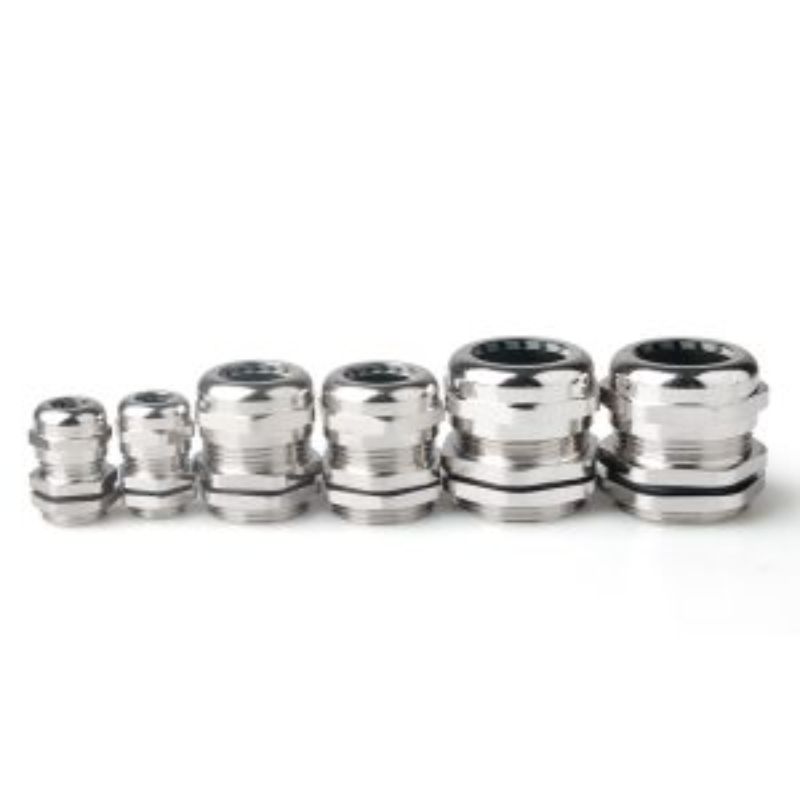

BPG7	3~6.5	12.5	7	14
BPG7	2~5	12.5	7	14
BPG9	4~8	15.2	8	17
BPG9	2~5	15.2	8	17
BPG11	5~10	18.6	8	20
BPG11	3~7	18.6	8	20
BPG13.5	6~12	20.4	8	22
BPG13.5	5~9	20.4	8	22
BPG16	10~14	22.5	8	24
BPG16	6~12	22.5	8	24
BPG19	12~16	25	9	27
BPG19	7~12	25	9	27
BPG21	13~18	28.3	9	30
BPG21	9~16	28.3	9	30
BPG25	15~22	32	10	35
BPG25	13~18	32	10	35
BPG29	18~25	37	10	40
BPG29	13~20	37	10	40
BPG36	25~33	47	11	50
BPG36	20~26	47	11	50
BPG42	32~38	54	12	57
BPG42	25~31	54	12	57
BPG48	37~44	59.3	12	64
BPG48	29~35	59.3	12	64
BPG63	42~52	72	14	78
BPG63	32~40	72	14	78

Ideal for the Following Applications

Electrical Control Panels & Junction Boxes

Industrial Machinery & Automation Equipment

LED Lighting Systems & Outdoor Power Units

Railway, Marine, and Energy Installations

Why Choose Our PG Brass Cable Glands?

Feature	Advantage for Industrial Buyers
Brass Nickel-Plated Body	Corrosion-resistant and durable for harsh environments
IP66 / IP68 Waterproof Rating	Secure sealing against dust, moisture, and oil
Built-in Wire Clamp / Strain Relief	Prevents cable pull-out and bending damage
Available in Multiple Thread Sizes (PG7–PG48)	One-stop order for all standard sizes
Compatible with Non-Armored Cables	Fits control cabinets, junction boxes, lighting & equipment wiring
OEM / Customized Packaging & Logo	Ideal for distributors & brand owners
