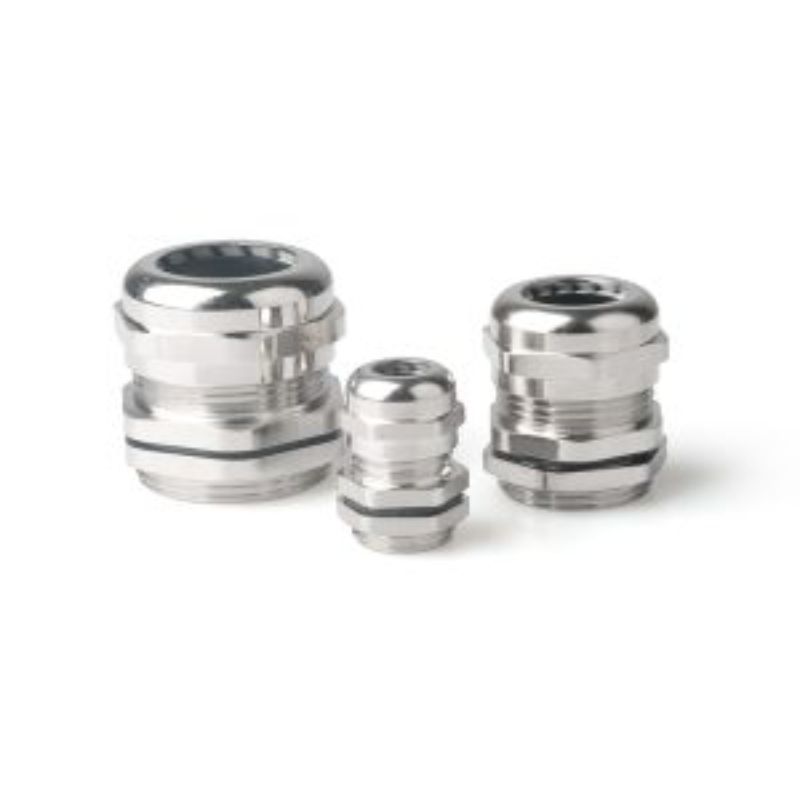

Brass cable glands 丨 M types 丨 IP66 IP68丨 Stress relief 丨 Wire clamp
Description
As a leading manufacturer and supplier of brass cable glands, YDT is committed to providing high-quality products and services to enterprises in various industries.

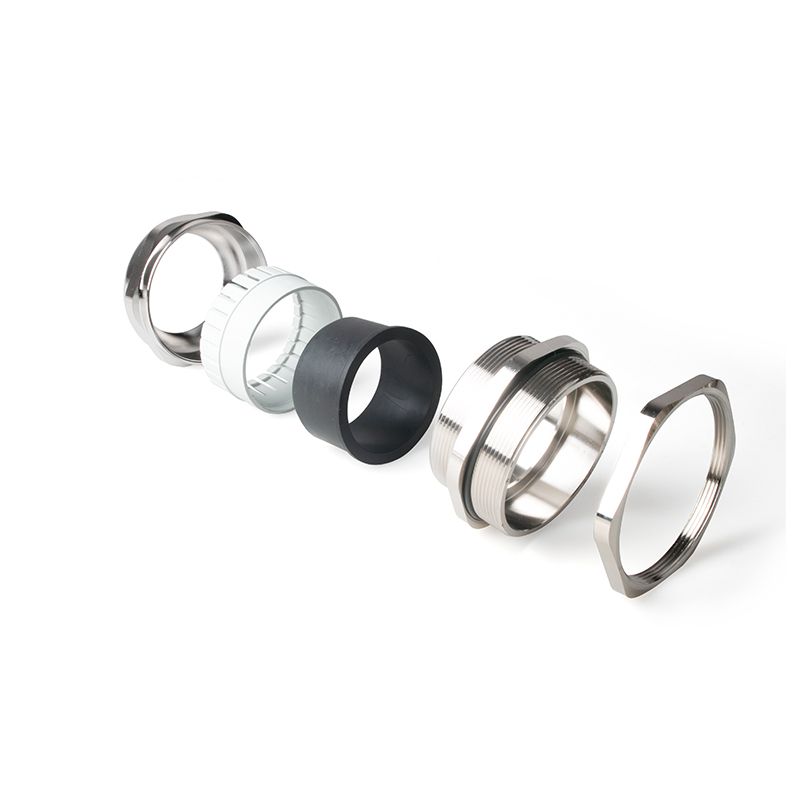

Each YDT cable sealing sleeve is made of high-quality brass; The tightening nut, main body, and nut parts are made of high-quality brass material, with nickel plating on the surface; The gripping claws, sealing rings, and gaskets are made of weather resistant nitrile rubber. This series of products has a static temperature range of -40 ℃ to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, this type of product is waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease, and general solvents.
Our cable gland products include various styles such as standard, universal, and corner series, with complete specifications and customizable colors according to customer needs.
Product Specification
| Product Name | Brass nickel plated cable gland |
| Model | Metric thread series |
| Product Material | Nickel plated brass (body, tightening cap, nut); nitrile rubber (sealing ring, gasket) |
| Temperature range | Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. |

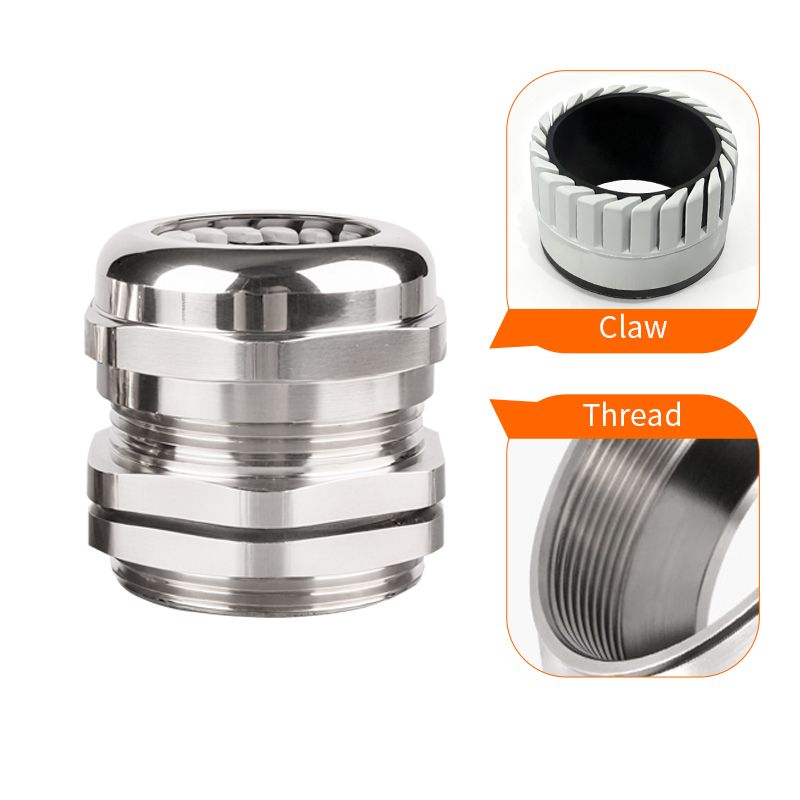

| Product design features | Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Protection level | IP66 IP68 |
| Fire resistance | UL94 V-2 |
| UV resistant | F1 |
| Environmental protection | Compliant with RoHs standards, halogen-free |
| Certificate | CE, RoHS, REACH |
| Cable range | Refer to the specification table for specific size specifications and display diagram |
| Special function available | Extended, anti bending, single hole, multi hole, semi through, straight through |
| Application | Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements |
| Machine and equipment manufacturing | |
| Photovoltaic | |
| Automation technology |
YDT, a trusted global cable protection provider since 2001, offers premium Extended PG Brass Cable Glands designed for reliable, durable, and waterproof cable management. Engineered for industrial machinery, electrical panels, OEM equipment, and bulk distribution, these cable glands meet the requirements of procurement teams, distributors, and electrical contractors worldwide.
The Extended PG Brass Cable Gland combines high-quality brass construction, IP66/IP68 protection, and stress relief to ensure superior performance in harsh industrial environments. Its extended design provides extra length for thicker panels or deeper mounting, making it ideal for bulk electrical installations and complex machinery setups.
Key Features:
Material: Premium brass – corrosion-resistant, robust, and durable
Thread Type: PG Thread (Panzer-Gewinde) for international compatibility
Sealing Rating: IP66 / IP68 – dustproof, waterproof, and oil-resistant
Stress Relief & Wire Clamp: Prevents cable pull-out and reduces bending fatigue
Extended Length Design: Suitable for thick panels or extended mounting requirements
Size Range: PG7–PG48 standard sizes; custom sizes available for bulk orders
Certification: ISO 9001 / ISO 45001 – quality and safety certified
YDT Extended PG Brass Cable Glands are ideal for:
Industrial Control Panels – Extra length for thick panels or deep mounting
Electrical Equipment & OEM Machinery – Robust sealing and stress relief
LED Lighting & Outdoor Installations – Protects against moisture, dust, and corrosion
Marine, Renewable Energy & Transportation Systems – Resistant to harsh environments
Chemical Plants, Oil & Gas – Durable in oil, chemicals, and vibration-prone areas
Experienced Manufacturer: Over 20 years in cable protection solutions
High-Quality Brass Material: Corrosion-resistant, durable, and strong
Bulk Supply & Customization: Flexible MOQ, mix sizes, OEM logos, and private packaging
Extended Design Advantage: Extra length suitable for complex installations
Global Reach: Fast delivery and professional after-sales support across North America, Europe, Middle East, Africa, and South America
Streamline Supply: One trusted supplier for extended PG brass cable glands
Reliable & Durable: Reduces maintenance costs and downtime
Customizable Options: Thread sizes, sealing levels, and packaging for bulk projects
Large-Scale Availability: Ideal for OEMs, electrical contractors, and distributors
Safety & Compliance: IP66/IP68 rated, stress relief, wire clamp, ISO-certified
Request a Bulk Quote Today
Provide your required cable size, quantity, and customization needs. YDT ensures fast quotation, reliable delivery, and premium quality Extended PG Brass Cable Glands for industrial and commercial projects.
Drawings

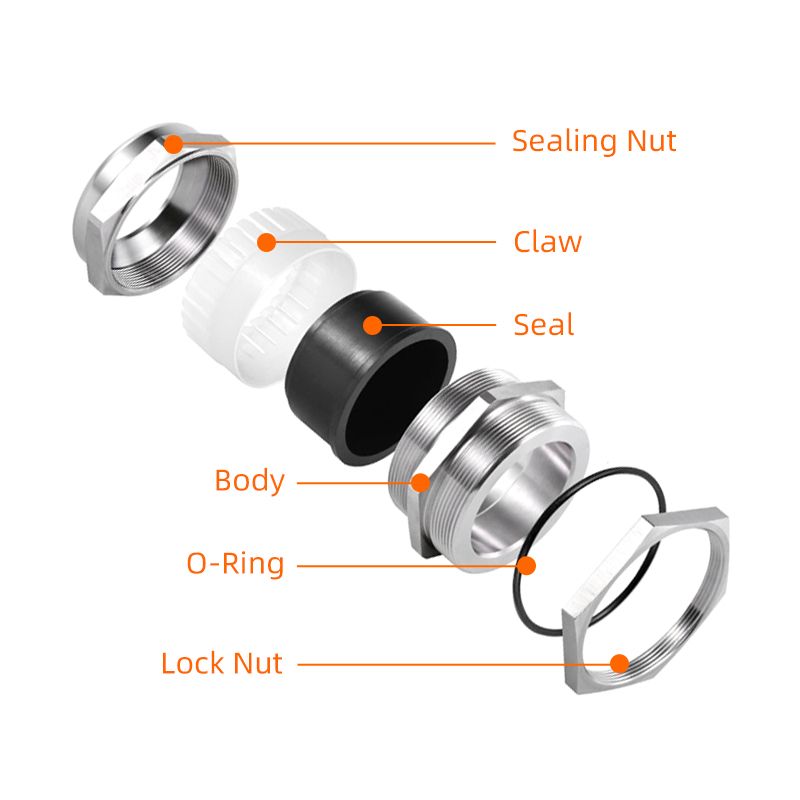

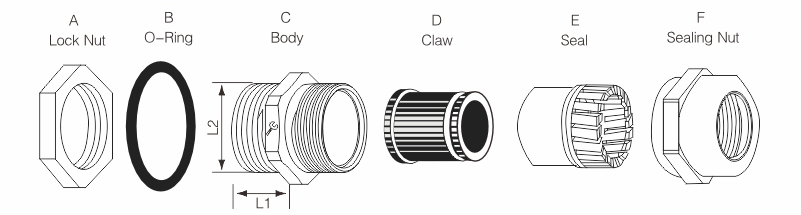

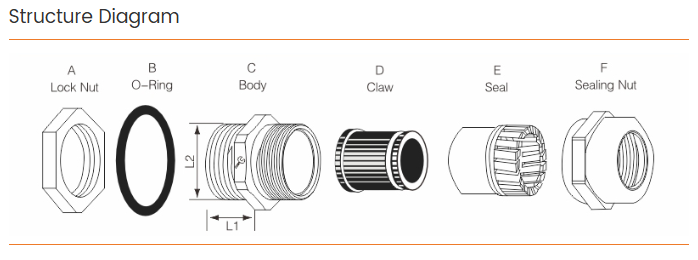

Structure Diagram

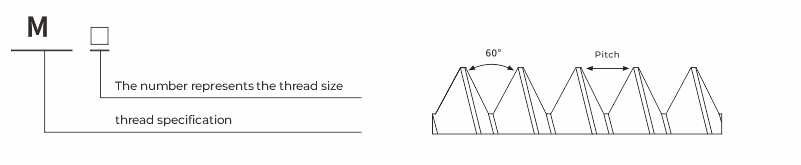

M Type
ISO metric thread, also known as metric thread, has a flat tooth tip thatis easy to turn, and a rounded tooth base to increase thread strength. The thread angle is 60 degrees. Representations such as M8x1.25 or M8.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D L2(mm) | Thread Length L7(mm) | Spanner Size A&E(mm) |
| BM8 | 2~5 | 8 | 6 | 11 |
| BM8 | 1~2.5 | 8 | 6 | 11 |
| BM10 | 3~6.5 | 10 | 7 | 14 |
| BM10 | 1.5~3 | 10 | 7 | 14 |
| BM12 | 3~6.5 | 12 | 7 | 14 |
| BM12 | 1.5~3 | 12 | 7 | 14 |
| BM16 | 4~8 | 16 | 8 | 18 |
| BM16 | 2~6 | 16 | 8 | 18 |
| BM18 | 5~10 | 18 | 8 | 20 |
| BM18 | 3~7 | 18 | 8 | 20 |
| BM20 | 6~12 | 20 | 8 | 22 |
| BM20 | 5~9 | 20 | 8 | 22 |
| BM22 | 10~14 | 22 | 8 | 24 |
| BM22 | 7~12 | 22 | 8 | 24 |
| BM25 | 12~16 | 25 | 9 | 27 |
| BM25 | 10~12 | 25 | 9 | 27 |
| BM27 | 13~18 | 27 | 9 | 30 |
| BM27 | 9~6 | 27 | 9 | 30 |
| BM30 | 13~18 | 30 | 9 | 32 |
| BM30 | 9~6 | 30 | 9 | 32 |
| BM32 | 15~22 | 32 | 10 | 35 |
| BM32 | 13~18 | 32 | 10 | 35 |
| BM36 | 18~25 | 36 | 10 | 40 |
| BM36 | 13~20 | 36 | 10 | 40 |
| BM40 | 22~30 | 40 | 11 | 45 |
| BM40 | 20~26 | 40 | 11 | 45 |
| BM42 | 25~33 | 42 | 11 | 50 |
| BM42 | 20~26 | 42 | 11 | 50 |
| BM50 | 32~38 | 50 | 12 | 57 |
| BM50 | 25~31 | 50 | 12 | 57 |
| BM63 | 37~44 | 63 | 14 | 64/68 |
| BM63 | 29~35 | 63 | 14 | 64/68 |
| BM72 | 42~52 | 72 | 15 | 78 |
| BM72 | 32~40 | 72 | 15 | 78 |
| BM75 | 42~52 | 75 | 15 | 78 |
| BM75 | 32~40 | 75 | 15 | 78 |
| BM80 | 55~62 | 80 | 16 | 86 |
| BM80 | 45~52 | 80 | 16 | 86 |
| BM88 | 65~70 | 88 | 18 | 94 |
| BM88 | 55~60 | 88 | 18 | 94 |
| BM100 | 78~84 | 100 | 20 | 110 |
| BM100 | 68~74 | 100 | 20 | 110 |
