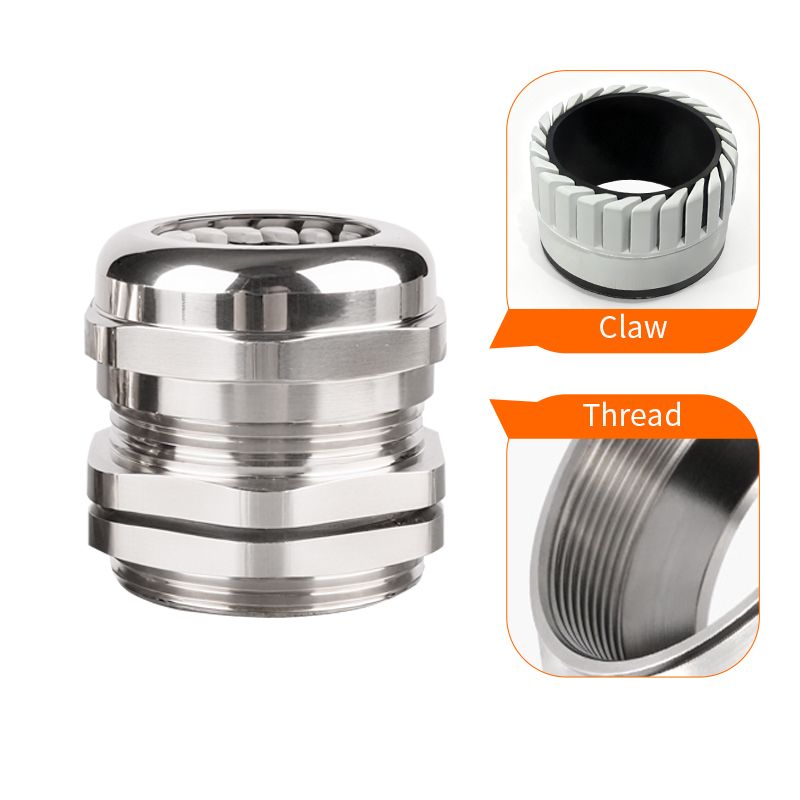

Brass cable glands 丨 G types 丨 IP66 IP68丨 Stress relief 丨 Wire clamp
Description
As a leading manufacturer and supplier of cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.

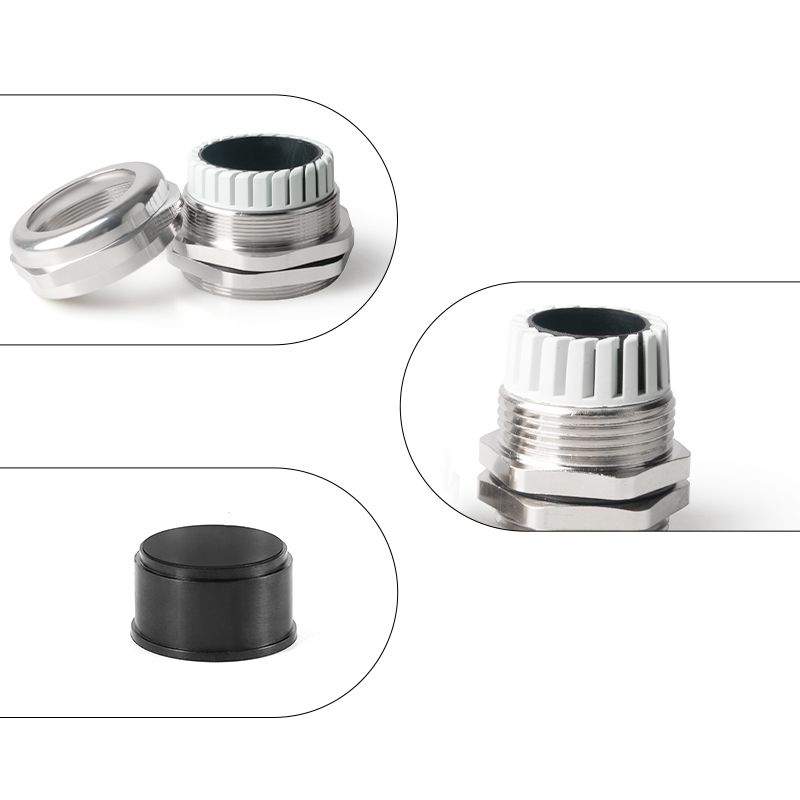

Each YDT cable sealing sleeve is made of high-quality brass; The
tightening nut, main body, and nut parts are made of high-quality brass
material, with nickel plating on the surface; The gripping claws,
sealing rings, and gaskets are made of weather resistant nitrile rubber.
This series of products has a static temperature range of -40 ℃ to 100 ℃
and an instantaneous heat resistance range of 120 ℃; Dynamic -20 ℃ to
80 ℃, instantly heat-resistant to 100 ℃. In addition, this type of
product is waterproof, dustproof, salt resistant, acid and alkali
resistant, alcohol, grease, and general solvents.

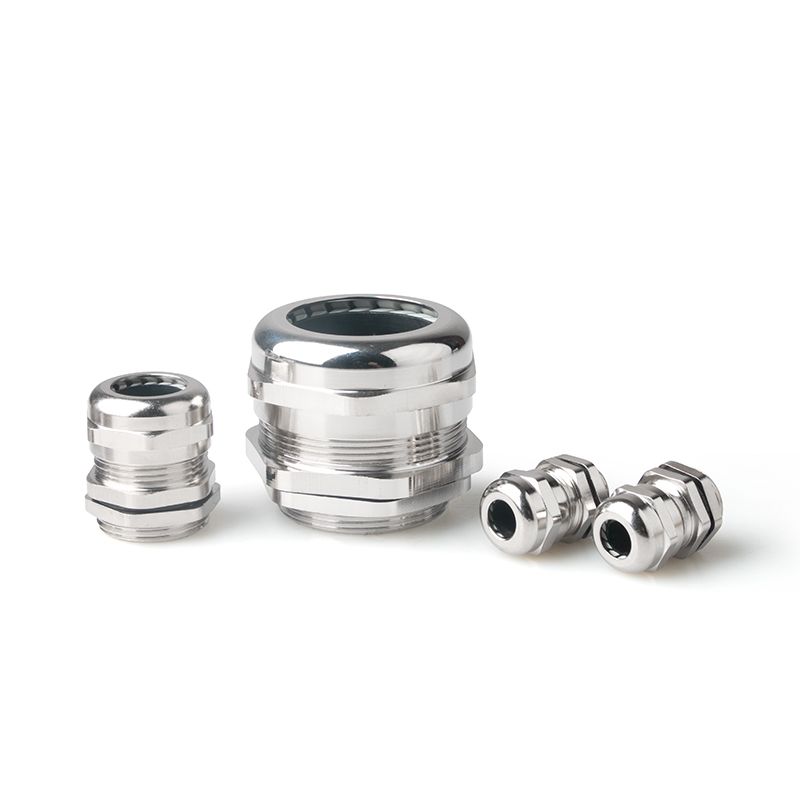

Our cable gland products include various styles such as standard,
universal, and corner series, with complete specifications and
customizable colors according to customer needs.
Product Specification

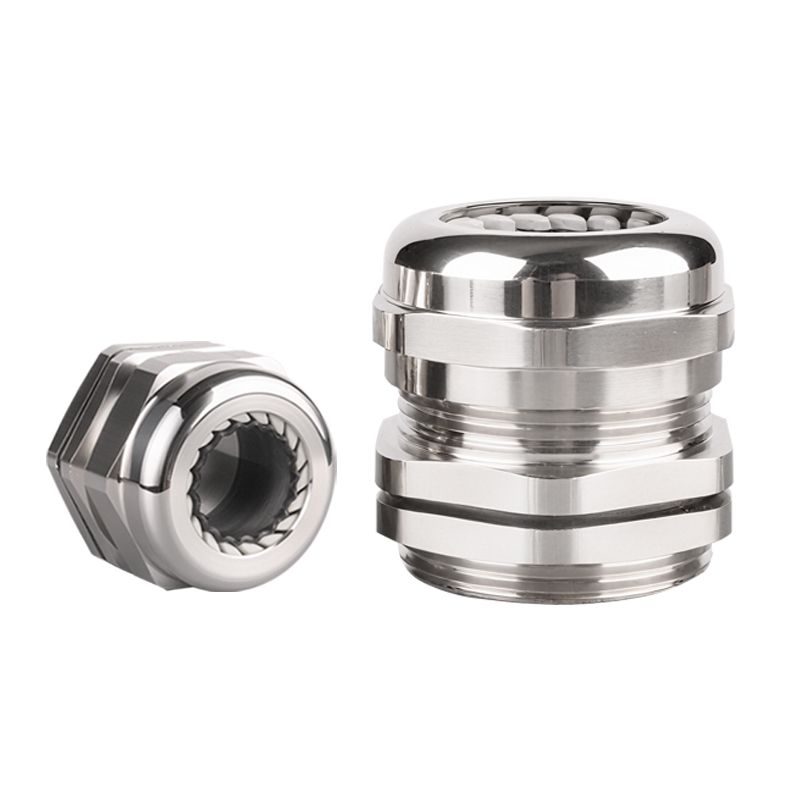

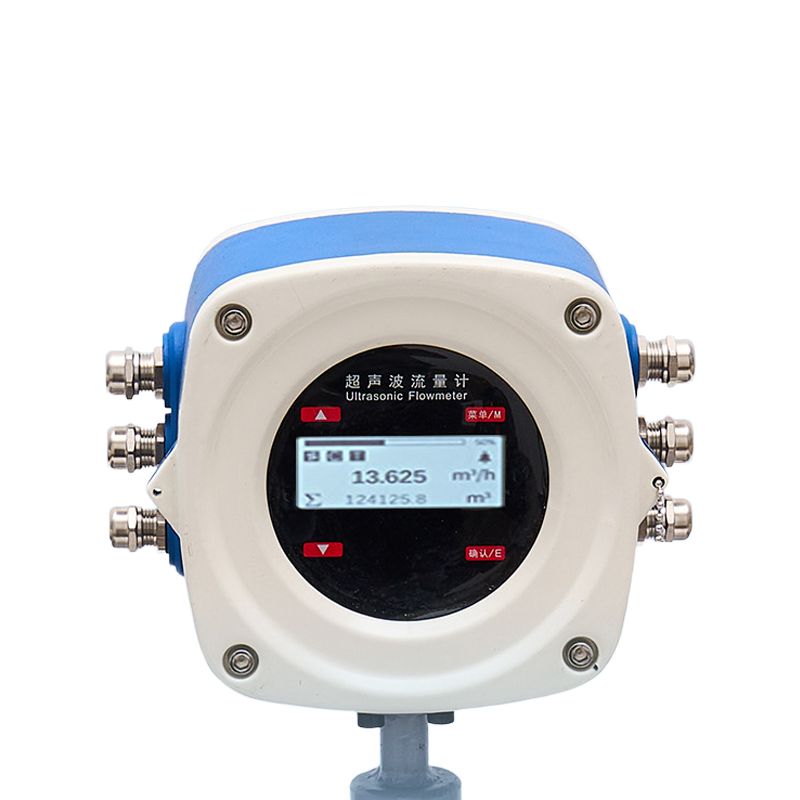

| Product Name | Brass nickel plated cable gland |
| Model | G thread types |
| Product Material | Nickel plated brass (body, tightening cap, nut); nitrile rubber (sealing ring, gasket) |
| Temperature range | Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. |
| Product design features | Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Protection level | IP66 IP68 |
| Fire resistance | UL94 V-2 |
| UV resistant | F1 |
| Environmental protection | Compliant with RoHs standards, halogen-free |
| Certificate | CE, RoHS, REACH |
| Cable range | Refer to the specification table for specific size specifications and display diagram |
| Special function available | Extended, anti bending, single hole, multi hole, semi through, straight through |
| Application | Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements |
| Machine and equipment manufacturing | |
| Photovoltaic | |
| Automation technology |
Drawings

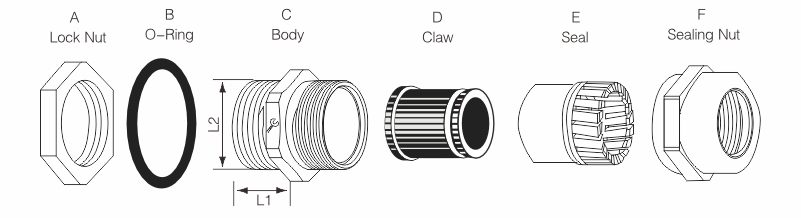

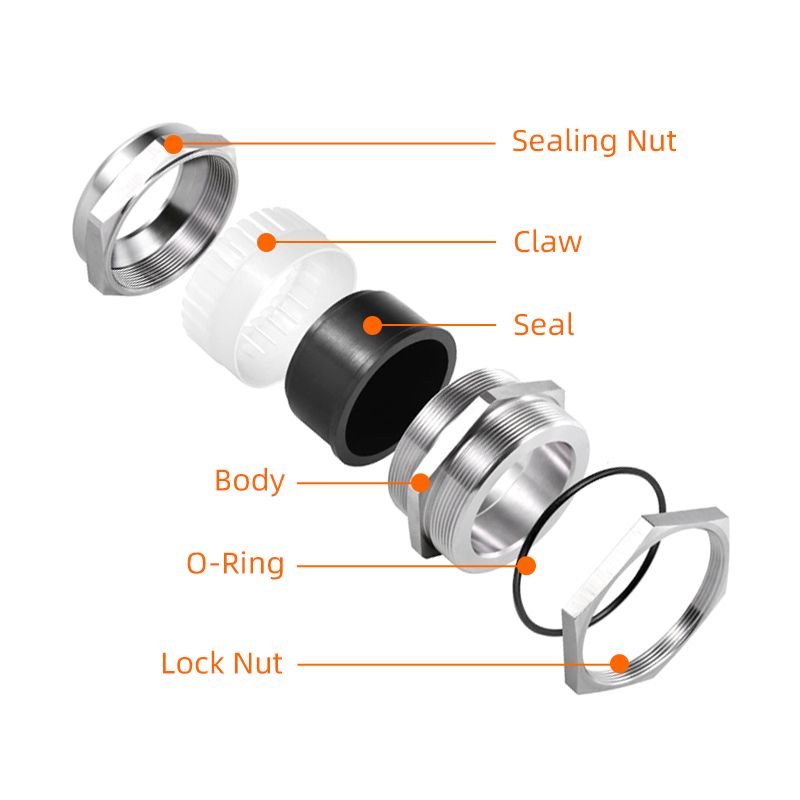

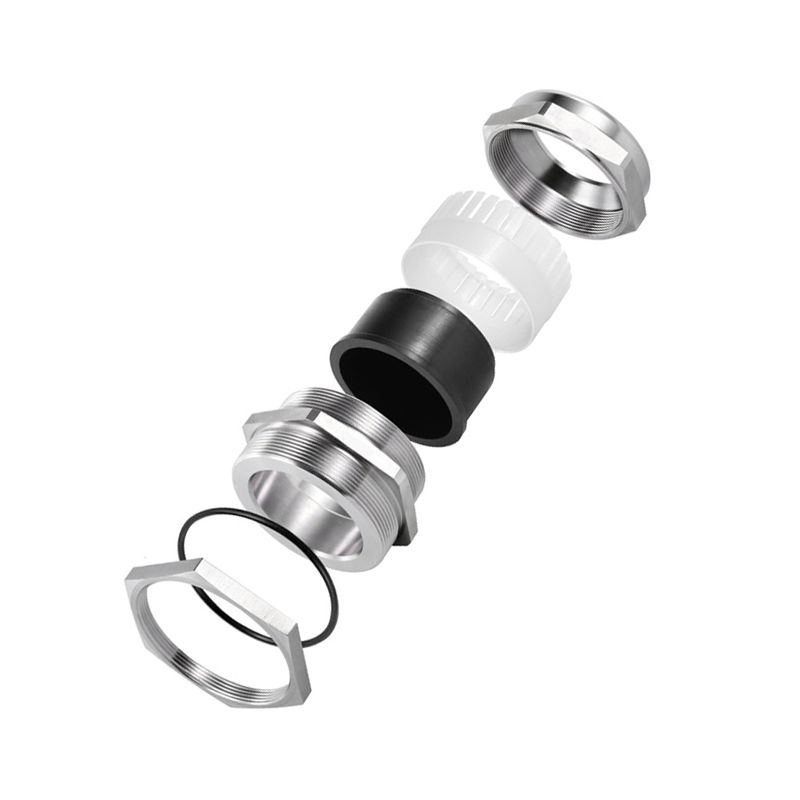

Structure Diagram
G Type
G is an imperial thread, and the thread sizeis marked in imperial. The symbol G represents cylindrical thread. The national standard can be found in GB/T7307-2001, and the thread angleis 55.
Representations such as G1/4 ", G3/8", G1/2 ", etc.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| BG1/4" | 3~6.5 | 13.1 | 7 | 14 |
| BG1/4" | 1.5~3 | 13.1 | 7 | 14 |
| BG3/8" | 4~8 | 16.6 | 8 | 18 |
| BG3/8" | 2~6 | 16.6 | 8 | 18 |
| BG1/2" | 6~12 | 20.9 | 8 | 22 |
| BG1/2" | 5~9 | 20.9 | 8 | 22 |
| BG3/4" | 13~18 | 26.4 | 9 | 30 |
| BG3/4" | 9~16 | 26.4 | 9 | 30 |
| BG1" | 18~25 | 33.2 | 10 | 40 |
| BG1" | 13~20 | 33.2 | 10 | 40 |
| BG1 1/4" | 25~33 | 41.9 | 11 | 50/45 |
| BG1 1/4" | 20~26 | 41.9 | 11 | 50/45 |
| BG1 1/2" | 32~38 | 47.8 | 13 | 57/52 |
| BG1 1/2" | 25~31 | 47.8 | 13 | 57/52 |
| BG2" | 37~44 | 59.6 | 14 | 64 |
| BG2" | 29~35 | 59.6 | 14 | 64 |
| BG2 1/2" | 42~52 | 75.1 | 15 | 78 |
| BG2 1/2" | 32~40 | 75.1 | 15 | 78 |
| BG3" | 65~70 | 87.8 | 15 | 94 |
| BG3" | 55~60 | 87.8 | 15 | 94 |
