Threaded Brass Cable Gland vs Push-Fit Brass Cable Gland: Which Cable Entry Solution Is Better for Industrial Applications?
May. 21, 2026
Cable entry systems play a critical role in industrial electrical installations, directly affecting cable protection, sealing reliability, installation efficiency, and long-term operational safety. Among the various cable gland designs available in today’s market, threaded brass cable glands and push-fit brass cable glands are two commonly discussed solutions for cable management systems.
For procurement engineers, panel builders, OEM manufacturers, EPC contractors, and industrial maintenance teams, choosing the right cable gland type is not simply about installation preference. The selection impacts:
Waterproof performance
Vibration resistance
Maintenance requirements
Installation speed
Cable retention force
Long-term system stability
Total project cost
Although both threaded and push-fit brass cable glands are designed to secure and protect cables entering electrical enclosures, they are engineered for different application priorities and environmental conditions.
This article provides a detailed comparison between threaded brass cable glands and push-fit brass cable glands, helping industrial buyers and engineers understand the structural differences, advantages, limitations, and ideal application scenarios for each solution.

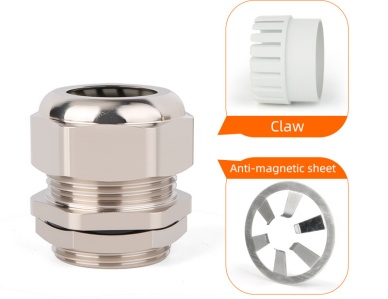

A threaded brass cable gland is a cable entry device that secures itself to an enclosure through threaded mounting holes or locknuts. The gland body contains external threads, allowing it to be mechanically tightened into panels, junction boxes, switchgear cabinets, orequipment housings.
Threaded brass cable glands are widely used in:
Industrial automation
Power distribution systems
Oil & gas facilities
Renewable energy projects
Telecommunications
Railway systems
Marine engineering
Heavy industrial equipment
Common thread standards include:
Metric thread
PG thread
NPT thread
BSP thread
The threaded structure creates a strong mechanical connection that improves sealing and vibration resistance.
A push-fit brass cable gland is designed for quick cable installation without traditional threaded fastening during mounting. Instead of requiring rotational tightening into threaded holes, the gland is pushed directly into a prepared opening and secured through clips, spring locking mechanisms, or snap-fit retention systems.
Push-fit cable glands are commonly used in:
Fast assembly production lines
Light commercial equipment
Consumer electronics
Compact electrical systems
Modular control cabinets
The main purpose of push-fit systems is to reduce installation time and simplify assembly procedures.
A threaded gland typically includes:
Brass threaded body
Locknut
Sealing insert
Compression nut
Cable clamping system
The threaded connection mechanically compresses the gland against the enclosure surface for secure installation.
A push-fit design often includes:
Snap-lock retention clips
Spring-loaded fixing elements
Push-in sealing structures
Compact cable retention mechanisms
Instead of thread engagement, the gland relies on insertion pressure and retention force.
Installation efficiency is one of the biggest differences between these two cable gland types.
Push-fit systems are specifically designed for rapid assembly.
Advantages include:
No thread alignment required
Reduced installation steps
Faster cable routing
Simplified production line assembly
For high-volume manufacturing environments, push-fit cable glands can significantly reduce labor time.
This is particularly beneficial for:
Consumer product assembly
Mass-produced control boxes
Modular electrical systems
Threaded cable glands require:
Proper thread alignment
Mechanical tightening
Locknut installation
Torque control
Installation takes more time compared to push-fit systems, but the resulting mechanical connection is much stronger and more reliable.
For industrial applications, the additional installation time is often justified by improved long-term performance.
Cable sealing performance directly affects equipment safety and environmental protection.
Threaded cable glands generally provide superior sealing performance because:
Compression force is adjustable
Threaded tightening improves sealing pressure
Multi-layer sealing systems can be integrated
High-quality threaded brass cable glands commonly achieve:
IP66
IP67
IP68 waterproof ratings
This makes them highly suitable for:
Outdoor installations
Wet environments
Dust-heavy facilities
Marine applications
Push-fit cable glands can provide acceptable sealing in controlled environments, but their sealing capability is usually more limited.
Potential challenges include:
Reduced sealing pressure
Seal movement during vibration
Lower long-term waterproof reliability
Push-fit systems are generally better suited for:
Indoor applications
Dry environments
Light-duty equipment
For harsh industrial conditions, threaded glands are typically preferred.
Industrial environments often expose cable systems to vibration, shock, and mechanical stress.
Threaded glands perform exceptionally well in vibration-prone environments because the threaded engagement creates:
Strong mechanical locking
Stable cable retention
Reliable strain relief
Applications benefiting from threaded systems include:
Railway equipment
Wind turbines
Industrial machinery
Mining systems
Marine engines
Properly installed threaded cable glands are highly resistant to loosening.
Push-fit systems may be more vulnerable to:
Retention fatigue
Lock clip wear
Accidental pull-out
Long-term loosening under vibration
In environments with constant movement or vibration, push-fit glands may require more frequent inspection.
Cable pull-out resistance is critical for maintaining stable electrical connections.
Threaded cable glands usually provide stronger cable clamping because:
Compression nuts apply higher force
Adjustable tightening improves grip
Internal seals enhance cable retention
This helps prevent:
Cable displacement
Seal failure
Internal conductor stress
Push-fit systems prioritize speed over maximum retention force.
Although suitable for lightweight applications, they may not perform as well under:
Heavy cable loads
Frequent movement
Mechanical pulling force
For large industrial cables, threaded designs are generally more reliable.
Both gland types may use brass construction, but environmental durability depends on structural design and finishing quality.
Premium threaded cable glands often feature:
Nickel-plated brass
Thick corrosion-resistant coatings
Enhanced sealing barriers
These improve resistance against:
Salt spray
Moisture
Industrial chemicals
Push-fit systems sometimes include additional internal retention components such as springs or clips, which may:
Wear over time
Corrode faster
Lose retention strength in harsh environments
Outdoor durability may therefore be lower in some push-fit designs.
Advantages include:
Long operational lifespan
Stable sealing performance
Predictable maintenance cycles
Easy inspection of tightening condition
Threaded systems are widely trusted in critical infrastructure because of their long-term reliability.
Push-fit systems simplify installation but may require:
More frequent inspection
Clip integrity checks
Seal replacement over time
For accessible indoor systems, this may not be a major issue.
However, in remote or difficult-to-maintain installations, threaded cable glands are often preferred.
Potential cost advantages include:
Lower installation labor cost
Faster production line efficiency
Reduced assembly time
This can benefit OEM manufacturers with large-scale production requirements.
Although installation takes longer, threaded glands often reduce:
Failure risk
Maintenance cost
Replacement frequency
Downtime expenses
For industrial systems, total lifecycle cost is often lower despite higher upfront installation effort.
Threaded cable glands are commonly used in:
Explosion-proof and waterproof protection are critical.
Solar and wind systems require long-term environmental durability.
Continuous vibration demands strong cable retention.
Saltwater resistance and waterproof sealing are essential.
Reliable cable protection reduces production downtime.
Push-fit systems are more common in:
Fast production assembly is prioritized.
Compact installation improves manufacturing efficiency.
Quick installation simplifies production.
Controlled environments reduce environmental stress risks.
The installation environment is harsh
Waterproof performance is critical
Vibration resistance is required
Long-term reliability is important
Heavy cables are used
Outdoor exposure exists
Maintenance access is difficult
Fast installation is the priority
Production efficiency matters most
Indoor use is expected
Environmental exposure is limited
Lightweight cables are used
Assembly labor reduction is important
Before selecting a cable gland type, buyers should evaluate:
Consider:
Temperature
Humidity
UV exposure
Chemicals
Dust
Salt spray
Larger cables often require stronger mechanical retention.
Remote installations should prioritize reliability over installation speed.
Verify certifications such as:
IP ratings
CE
RoHS
ATEX
IECEx
Reliable suppliers should provide:
Precision machining
Stable quality control
Material traceability
Technical support
Customization options
The choice between threaded brass cable glands and push-fit brass cable glands depends heavily on application priorities.
Push-fit cable glands offer excellent installation efficiency and simplified assembly, making them ideal for lightweight indoor systems and high-volume manufacturing environments.
However, threaded brass cable glands remain the preferred solution for demanding industrial applications because they provide superior sealing performance, stronger cable retention, better vibration resistance, and longer operational reliability.
For industrial buyers, selecting the correct cable gland should not focus only on initial installation convenience. Long-term durability, environmental suitability, maintenance cost, and operational safety are far more important factors when evaluating the true value of a cable entry system.
YDT supplies high-quality brass cable gland solutions for industrial, commercial, renewable energy, marine, and automation applications, offering reliable sealing performance, precision manufacturing, and customized cable management solutions for global customers.
