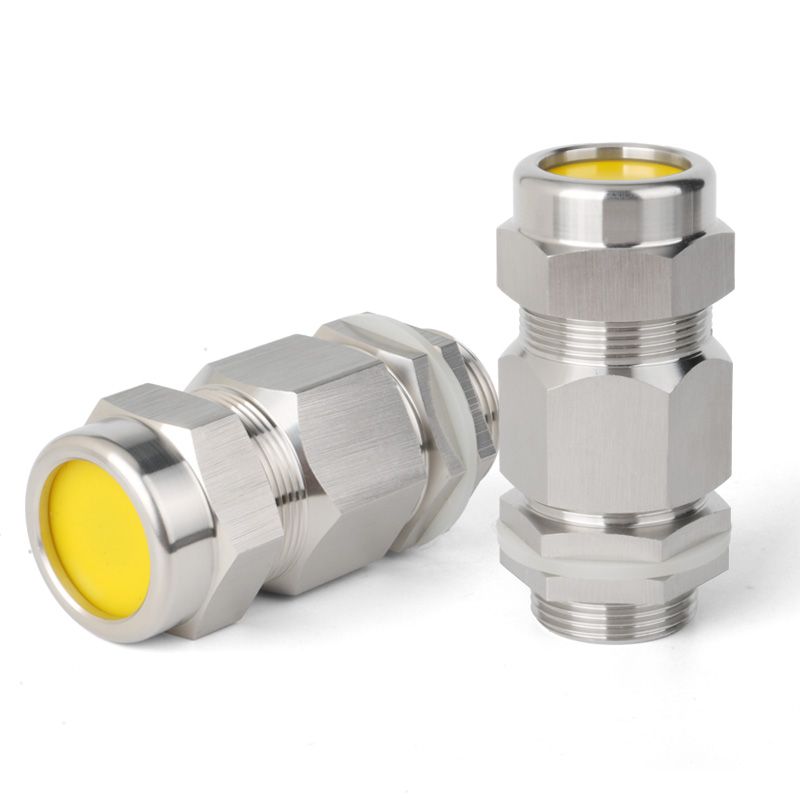

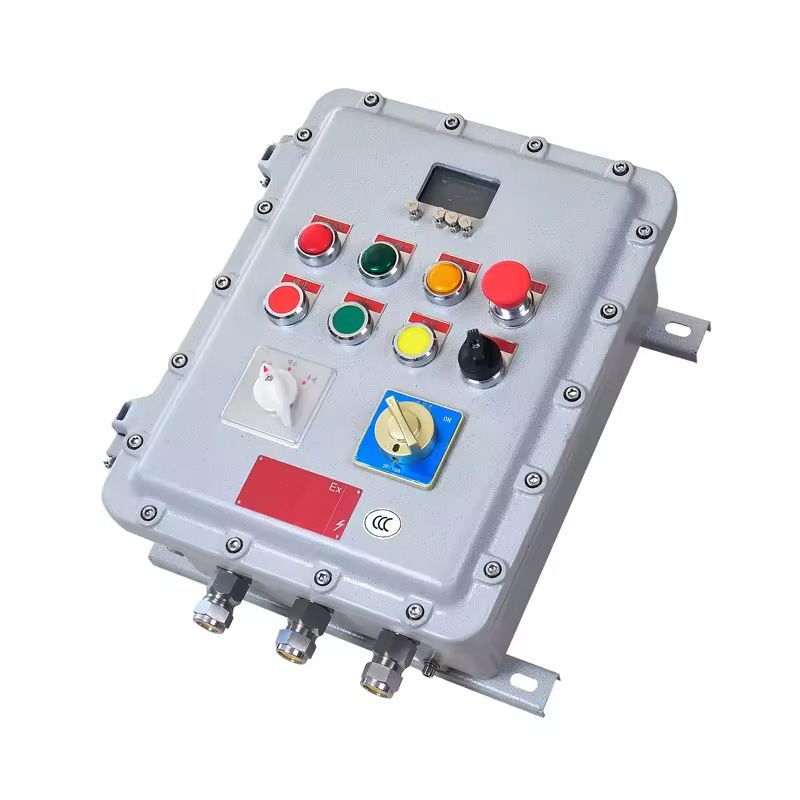

BDM series explosion-proof joint 丨 Armored stuffing box joint 丨 Brass nickel plated, 304/316L stainless steel 丨 M, G, NPT types 丨explosion-proof certification
Description
As a leading manufacturer and supplier of explosion proof cable glands, YDT is committed
to providing high-quality products and services to enterprises in
various industries.
Each YDT cable sealing sleeve is made of high-quality raw materials; The
explosion-proof series products are made of high-quality brass nickel
plated and 304/304L stainless steel raw materials. In addition, this
type of product is waterproof, dustproof, salt resistant, acid and
alkali resistant, alcohol, grease, and general solvents, which can meet
the needs of various scenarios.
Our explosion-proof series cable gland products come in a complete range
of specifications and can be customized according to customer needs.
Product Specification
| Product Name | Armored stuffing box joint |
| working temperature | -50 ℃ to 120 ℃ |
| Protection level | IP66 |
| Certificate | SYEx24.0123X |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Cable range selection | See table parameters for details |
| Scope of application | Suitable for Zone 1 and Zone 2 explosive gas environments Suitable for Zone 21 and Zone 22 environments with combustible dust; Suitable for IIA, IB, IIC explosive gas environments: Widely used in explosive hazardous areas such as petroleum extraction, storage, chemical, pharmaceutical, military, and military facilities: As a supporting accessory for explosion-proof electrical equipment, it is used to clamp various armored or non armored cables. |
The YDT BDM series connection type sealed explosion-proof joint is specially designed for industrial applications that require secure, modular, and reliable cable connections. Its connection type sealing structure ensures a tight, leak-proof seal while simplifying installation and maintenance, making it ideal for high-demand industrial environments.
Constructed from premium brass nickel plated, 304, and 316L stainless steel, this joint provides exceptional durability and corrosion resistance. Available in M, G, and NPT thread types, the BDM series can integrate seamlessly into various electrical systems and industrial setups.
With explosion-proof certification, this connection type joint offers safety, performance, and peace of mind in hazardous and extreme conditions.
Connection Type Sealed Structure: Provides reliable and easy-to-install sealing for industrial cables.
Explosion-Proof Certified: Meets international safety standards for hazardous areas and critical installations.
Premium Material Options: Brass nickel plated, 304, and 316L stainless steel ensure long-term durability and corrosion resistance.
Multiple Thread Options: Supports M, G, and NPT threads for versatile applications.
Environmental Protection: Waterproof, dustproof, salt-resistant, acid & alkali resistant, and resistant to alcohol, grease, and general solvents.
Customizable: Can be tailored to meet unique industrial requirements and project specifications.
The BDM series connection type sealed explosion-proof joint is widely used in scenarios requiring robust, modular cable protection:
Industrial automation and control systems
Power plants and electrical substations
Oil & gas and chemical processing facilities
Offshore and marine installations
Heavy machinery requiring secure modular connections
Trusted Industrial Brand: YDT has been delivering high-quality cable protection solutions since 2001.
Reliable Performance: Designed and tested to withstand harsh industrial conditions, ensuring long-term operational safety.
Global Availability: With distributors in North America, South America, Europe, Africa, and the Middle East, YDT ensures timely delivery and local support.
Certified Safety: Explosion-proof certified for compliance with international standards.
Ensure secure, reliable, and easy-to-install cable protection for your industrial projects with the BDM series connection type sealed explosion-proof joint from YDT.
Drawings
Structure Diagram
When the thread specifications are M, NPT, G, theexplosion-proof markisExeb IICGb; ExtbIII CDb.
Technical Parameter
| Thread specification(G) | Range of incoming lines (mm) | Maximum output line (mm) | L (mm) | A (mm) | Wrench SizeA/B (mm) | ||
| M | G | NPT | |||||
| M16x1.5 | / | 5~8 | 12 | 67.5 | 16 | 24/26.5 | |
| M20x1.5 | G1/2" | NPT1/2" | 5~15 | 12 | 67.5 | 16 | 24/26.5 |
| M25x1.5 | G3/4" | NPT 3/4" | 8~20 | 18 | 67.5 | 17 | 30/33 |
| M32x1.5 | / | 10~25 | 22 | 75 | 17 | 38/42 | |
| M40x1.5 | G1%4" | NPT1%4" | 12~30 | 30 | 84 | 18 | 46/50 |
| M50x1.5 | G1V₂" | NPT1V₂" | 14~38 | 34 | 89 | 18 | 55/60 |
| M63x1.5 | G2" | NPT2" | 20~48 | 44 | 98 | 20 | 68/73 |
| M75x1.5 | G2V2" | NPT 2V2" | 24~58 | 52 | 107 | 20 | 84/92 |
| M88x1.5 | / | / | 30~70 | 65 | 110 | 20 | 97/105 |
| M100x1.5 | G3V2" | NPT 3V₂" | 45~102 | 84 | 120 | 20 | 125/136 |
| M110x1.5 | / | / | 45~102 | 90 | 120 | 20 | 125/136 |
| M115x1.5 | G4" | NPT4" | 45~102 | 90 | 120 | 20 | 125/136 |
