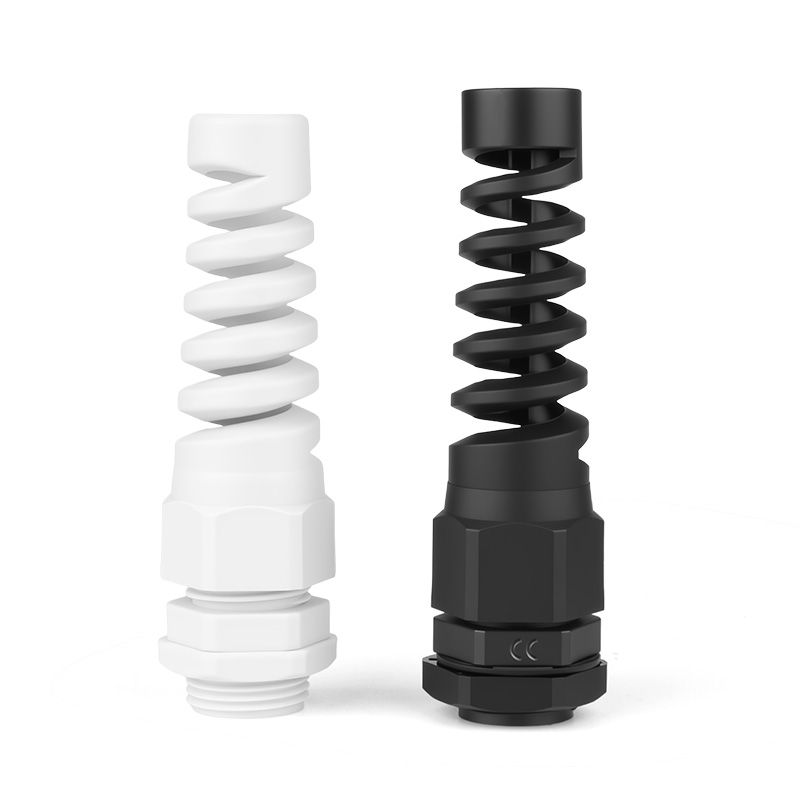

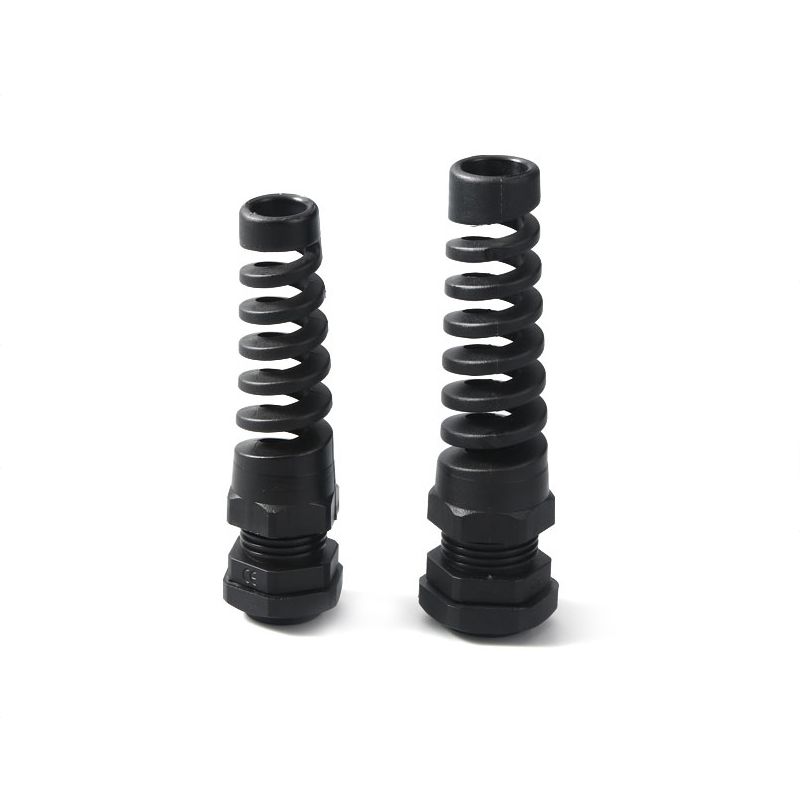

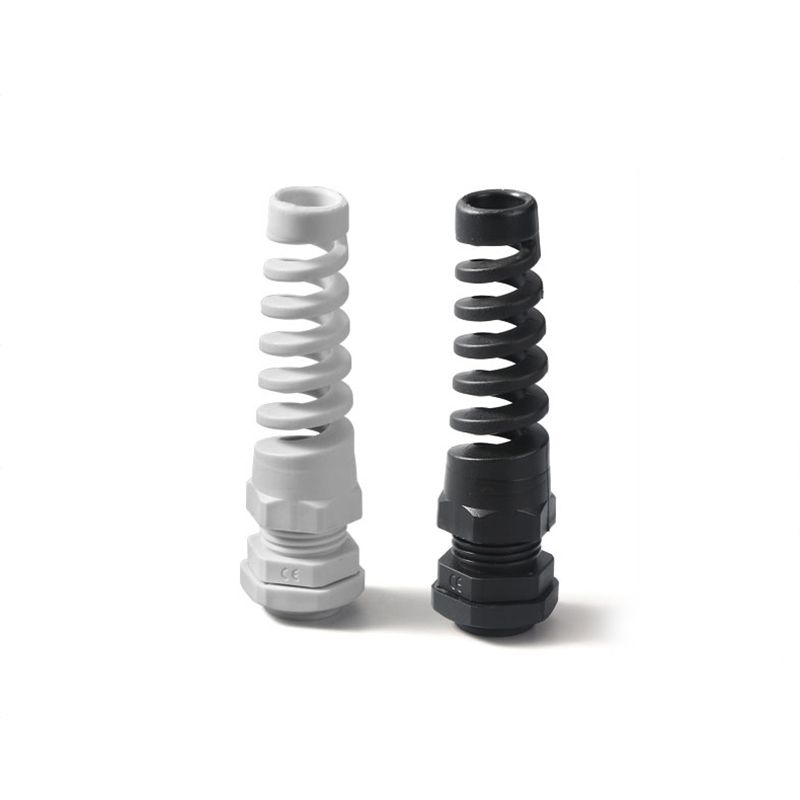

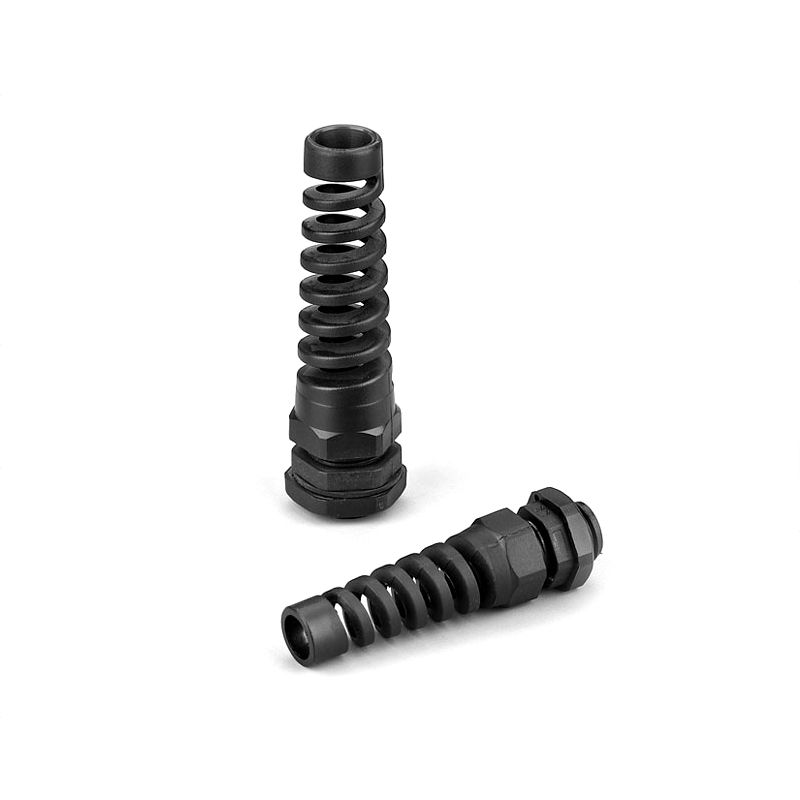

Anti bending nylon cable gland 丨G-R types丨IP66 IP68 丨 Strain relief 丨Cord grip
Description
YDT is a leading cable gland manufacturer and supplier serving businesses across industries.

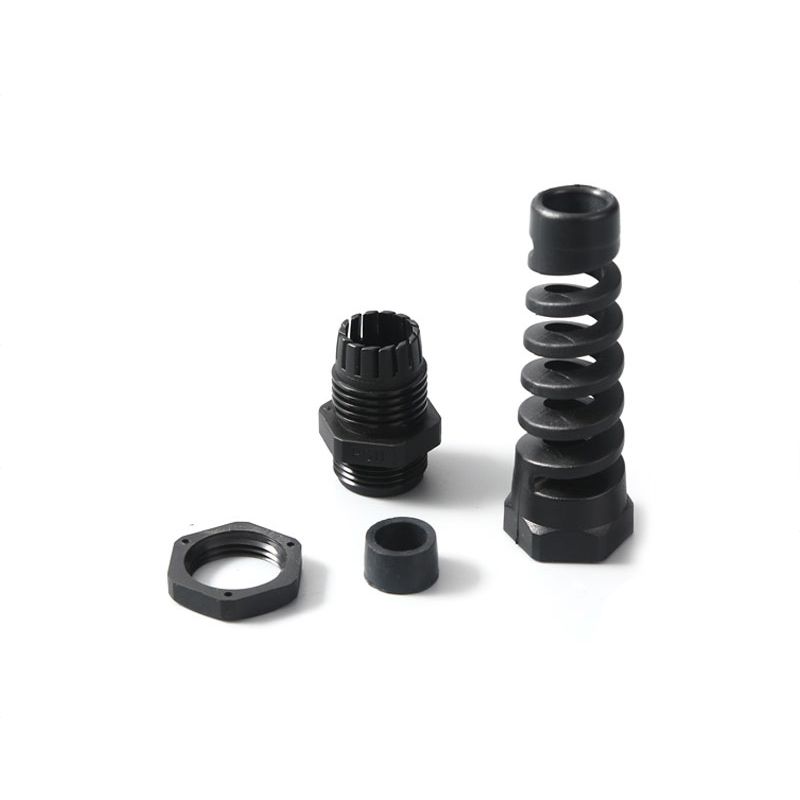

Our cable gland is made of high-quality nylon through integrated
injection molding; The tightening nut, main body, and nut parts are made
of nylon PA66 material; The sealing ring and gasket are made of nitrile
rubber. This series of products has a static temperature range of -40 ℃
to 100 ℃ and an instantaneous heat resistance range of 120 ℃; Dynamic
-20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. In addition, the
product is waterproof, dustproof, salt resistant, acid and alkali
resistant, alcohol, grease, and general solvents.
Our nylon cable gland products include various styles such as standard,
universal, and corner series, with complete specifications and colors
that can be customized according to customer requirement.
Product Specification
| Product Name | Anti bending nylon cable gland |
| Model | G Thread Series |
| Product Material | Nylon PA66 (body,Clamping head, nut); nitrile rubber (sealing ring, gasket) |
| Temperature range | Static -40 ℃ to 100 ℃, instantaneous heat resistance to 120 ℃; Dynamic -20 ℃ to 80 ℃, instantly heat-resistant to 100 ℃. |
| Product design features | Special clamping claw and rubber component design, with a wide range of cable clamping and strong tensile strength |
| Product performance | Waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and general solvents. |
| Fire resistance | UL94 V-2 |
| UV resistant | F1 |
| Environmental protection | Compliant with RoHs standards, halogen-free |
| Certificate | CE, RoHS, REACH |
| Cable range | Refer to the specification table for specific size specifications and display diagram |
| Special function available | Extended, anti bending |

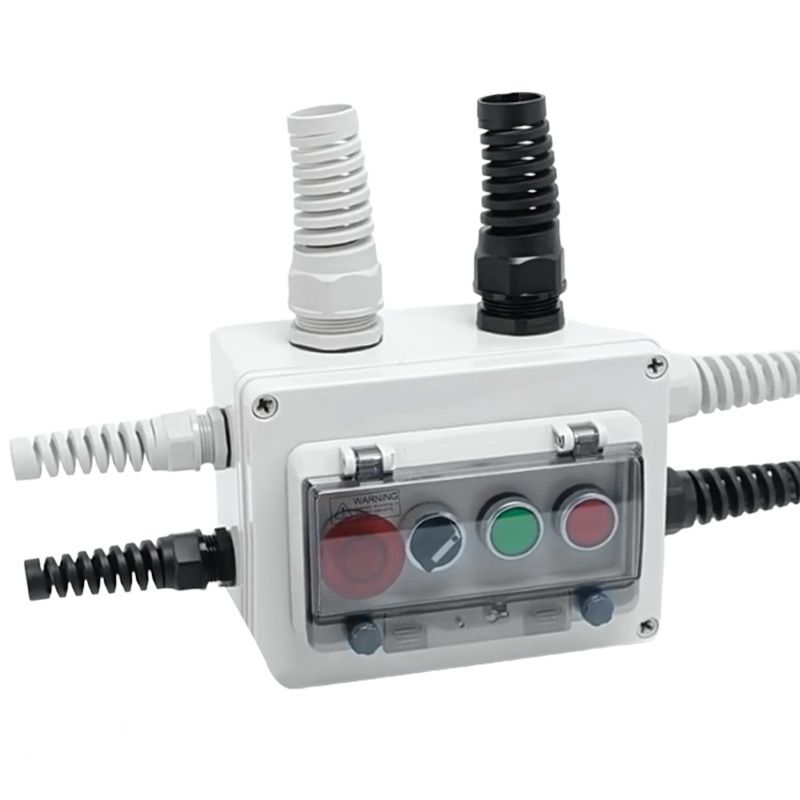

| Application | Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements |
| Machine and equipment manufacturing | |
| Photovoltaic | |
| Automation technology |
Drawings

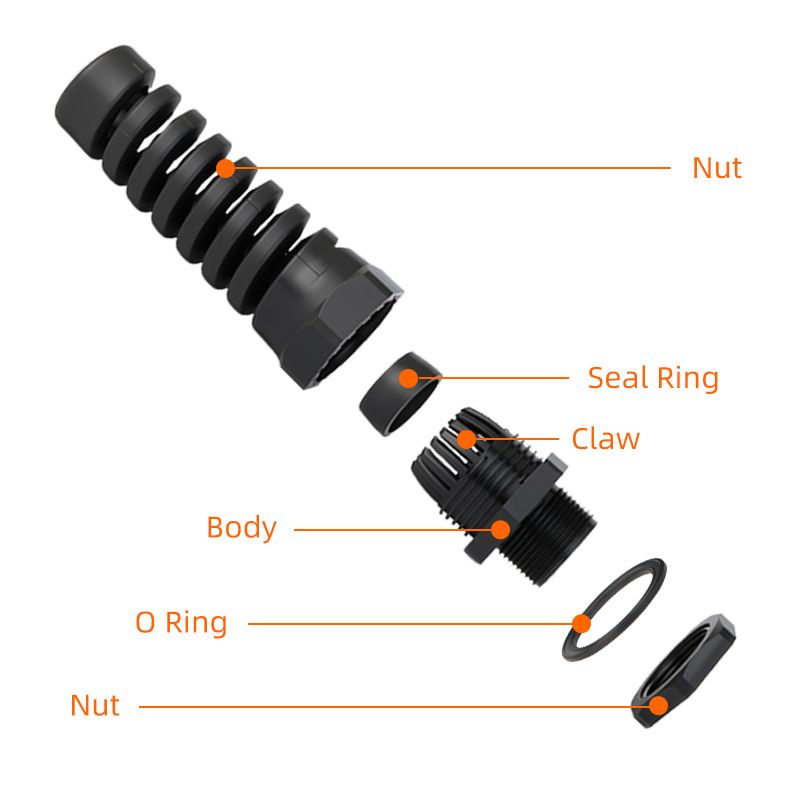

Structure Diagram
G Type
Gis an imperial thread, and the thread size is marked in imperial. The symbol G represents cylindrical thread. The national standard can be found in GB/T7307-2001, and the thread angle is 55.
Representations such as G1/4 ", G3/8", G1/2 ", etc.
Technical Parameter
| Model | Cable Range (mm) | Thread O.D. L2(mm) | Thread Length L1(mm) | Spanner Size A & E(mm) |
| G1/4"-R | 4.5~8 | 12.4 | 8.1 | 19 |
| G1/4"-R | 3~5.3 | 12.4 | 8.1 | 19 |
| G3/8"-R | 6~10 | 15.9 | 15 | 22 |
| G3/8"-R | 4~7 | 15.9 | 15 | 22 |
| G1/2"-R | 9~14 | 20.1 | 13 | 27/24 |
| G1/2"-R | 6~11 | 20.1 | 13 | 27/24 |
| G3/4"-R | 13~18 | 25.45 | 15 | 33/32 |
| G3/4"-R | 10~16 | 25.45 | 15 | 33/32 |
You May Also Like

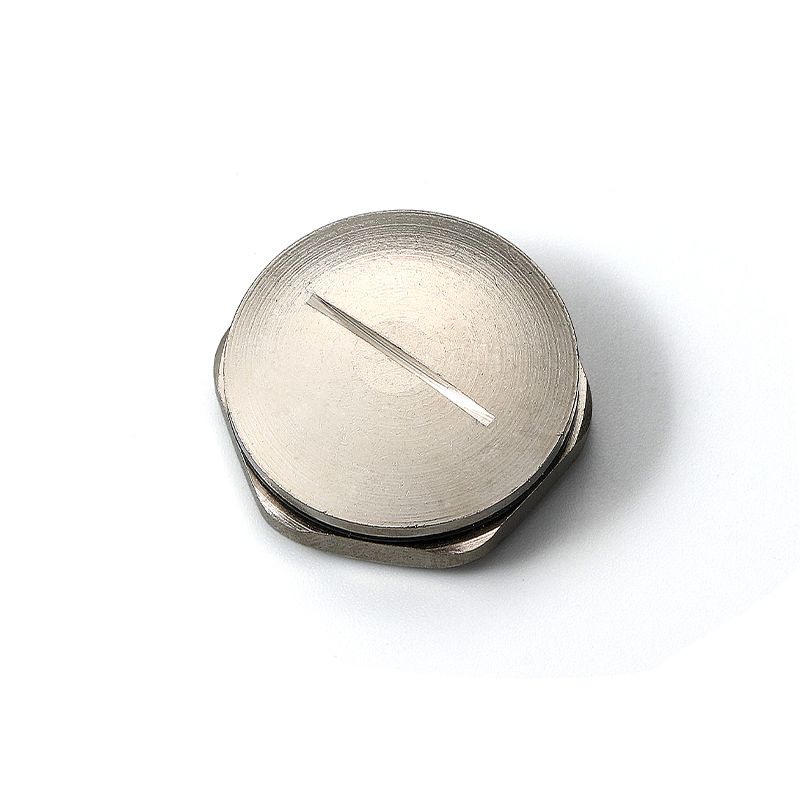

Metal round plug 丨 IP66 IP68 丨 PG/M types 丨 304/316L stainless steel, brass nickel plated material

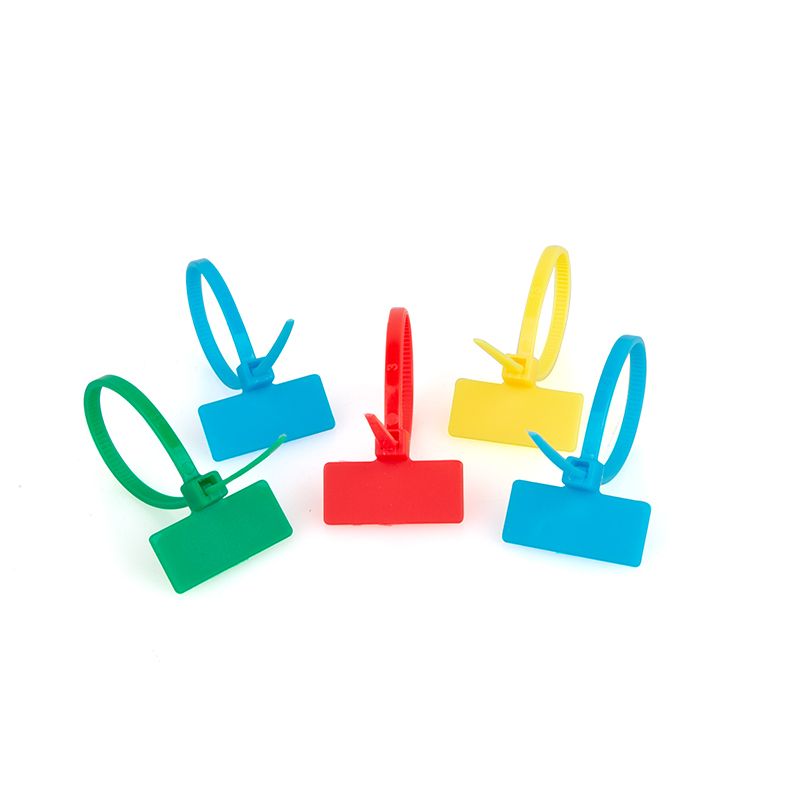

Nylon cable ties 丨 Label style 丨 customization
